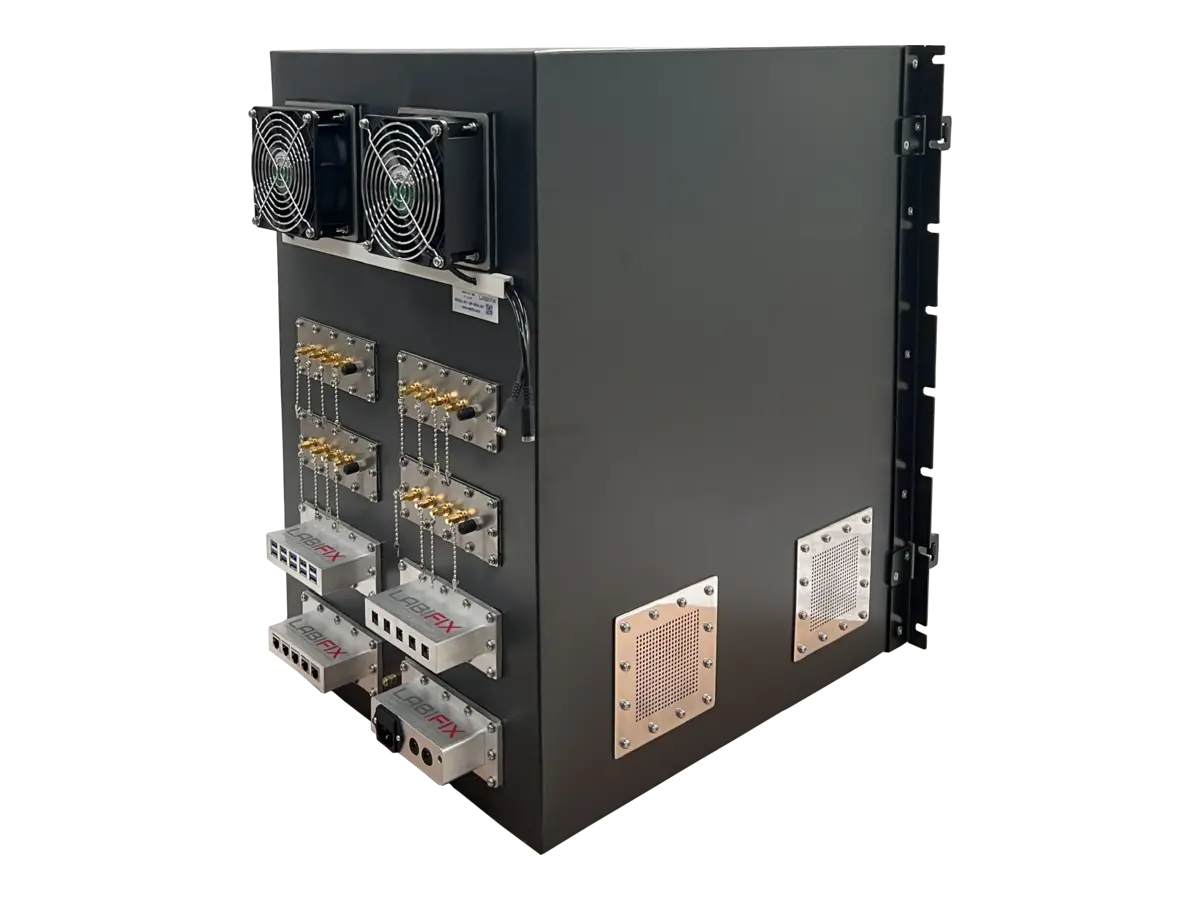

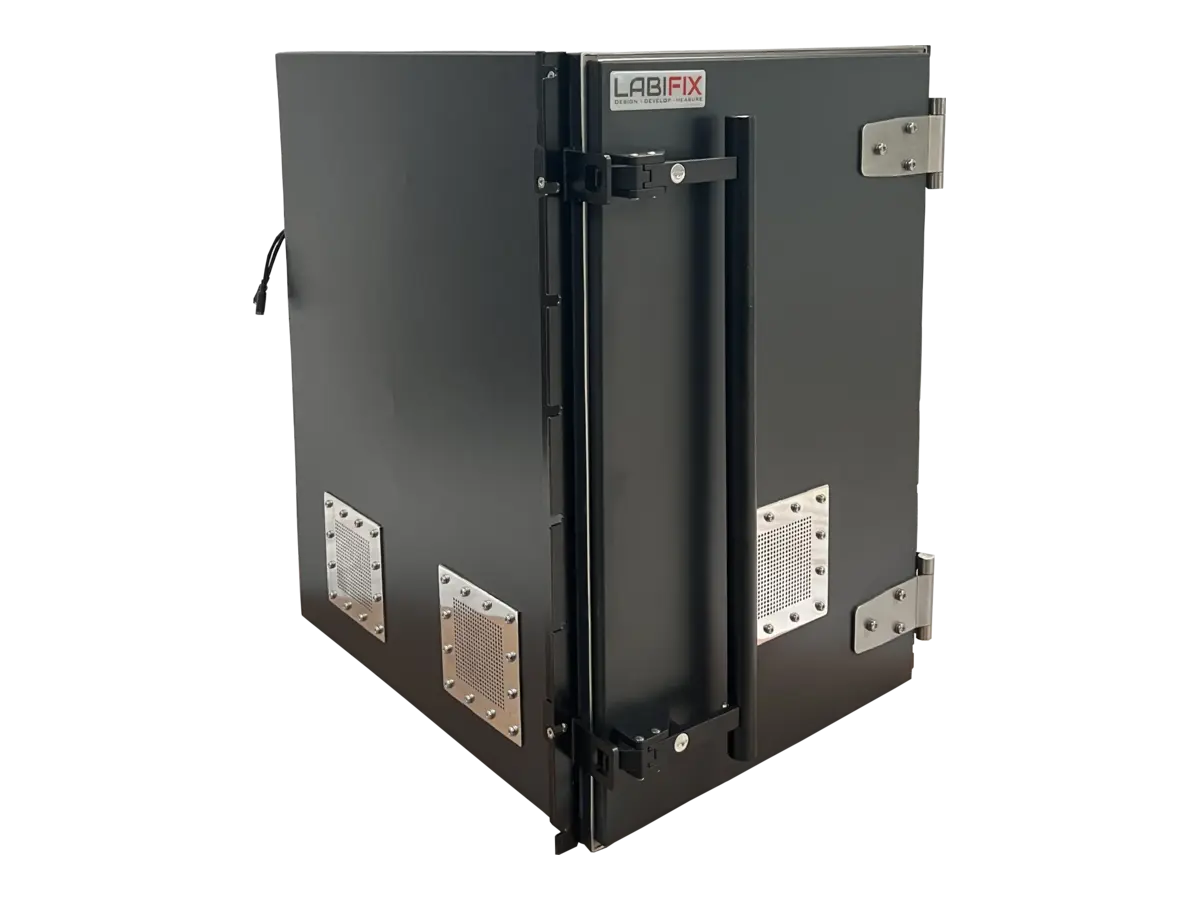

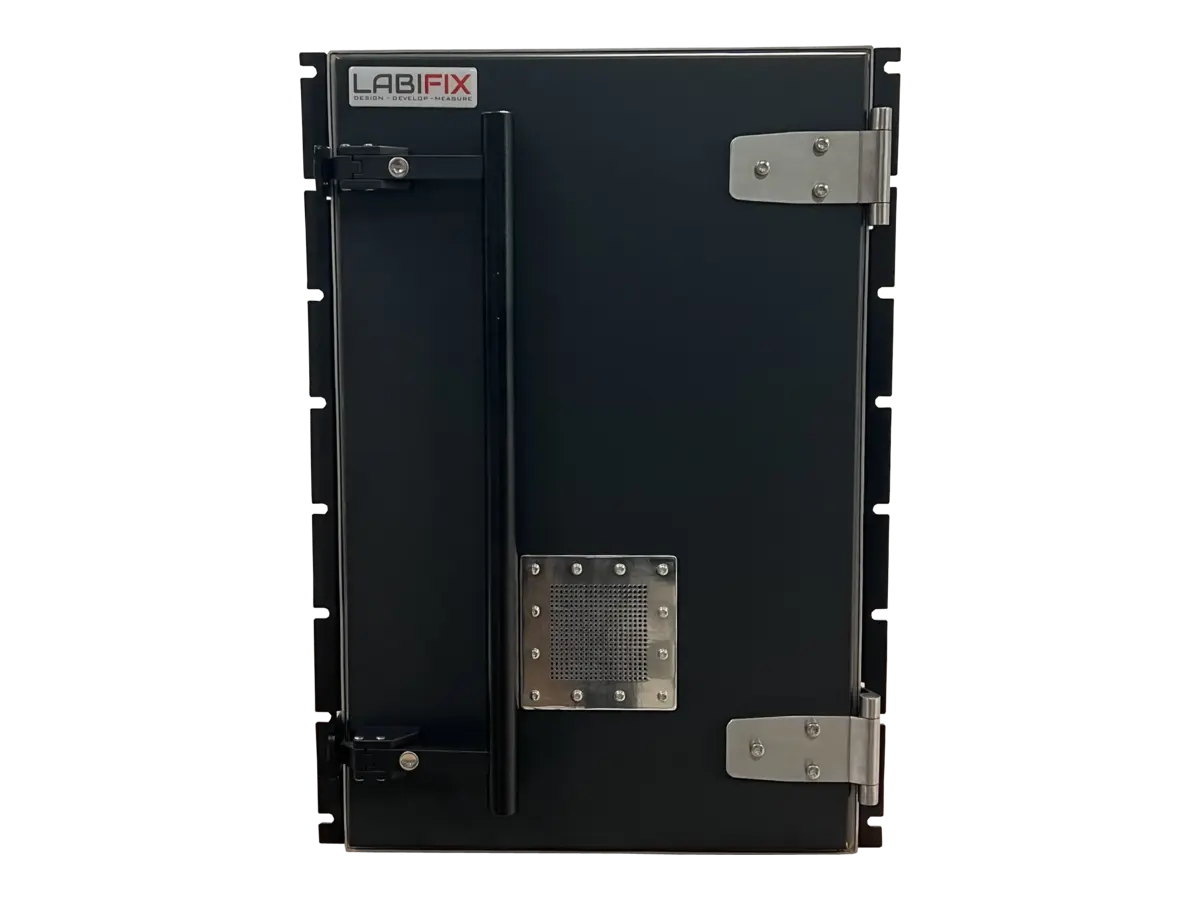

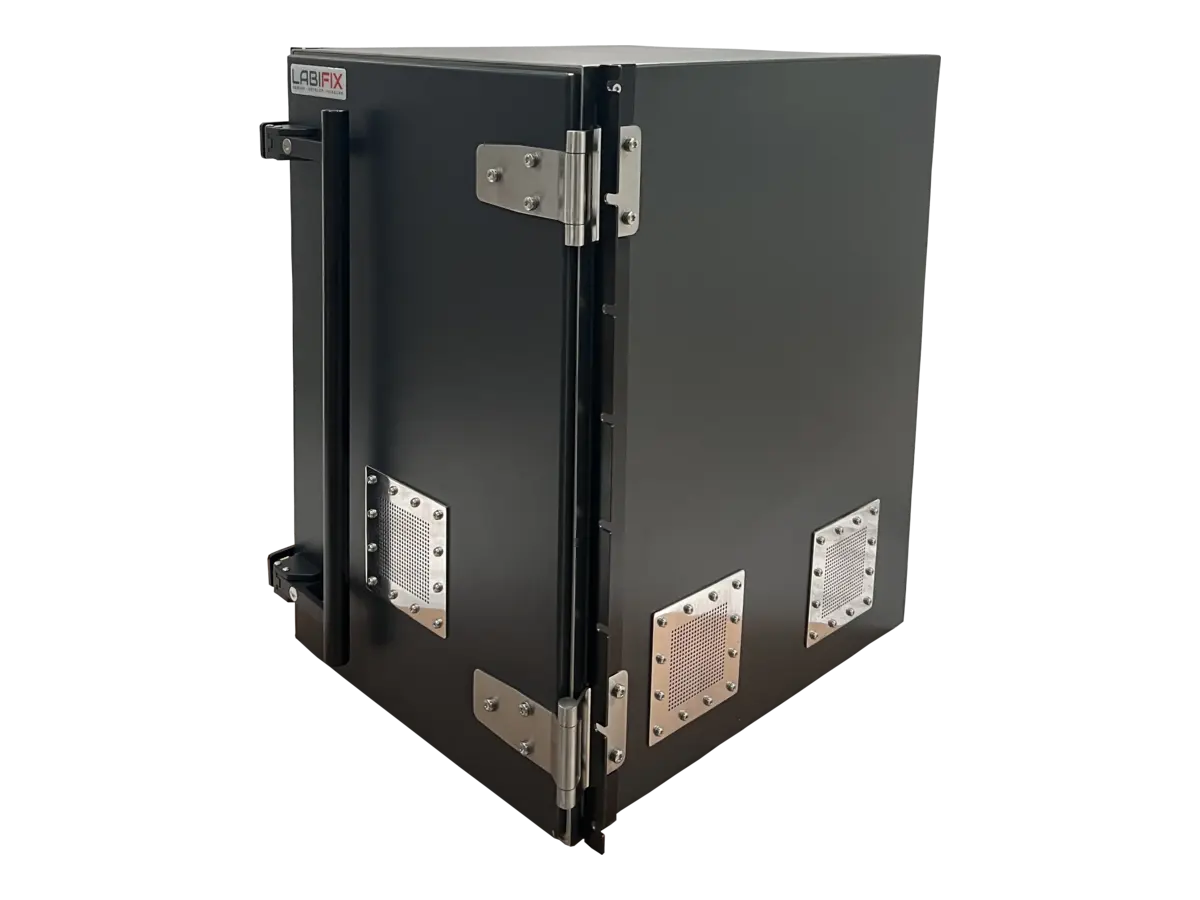

LBX4100 RF Shield Box
LBX4100 is suited to engineering teams looking for dependable RF isolation without being locked into a single test configuration. The configuration can include Completely Customizable Shielded Enclosure and High performance shielded Air Vents for adequate air flow, giving the test setup the flexibility to accommodate the DUT and its required interfaces. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF test enclosure, LBX4100 can be configured around the DUT and the way it needs to be tested.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

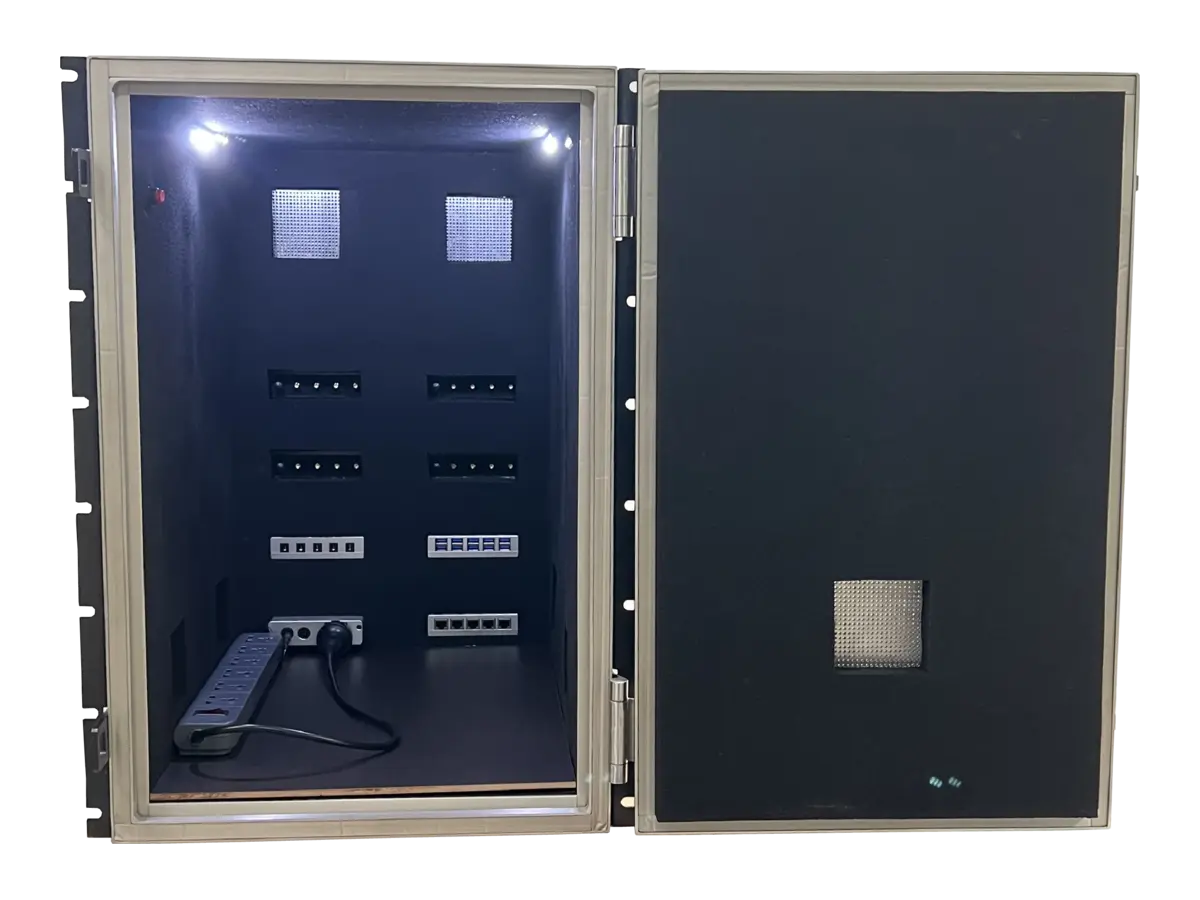

High Performance Pyramidal RF Microwave Absorber lining

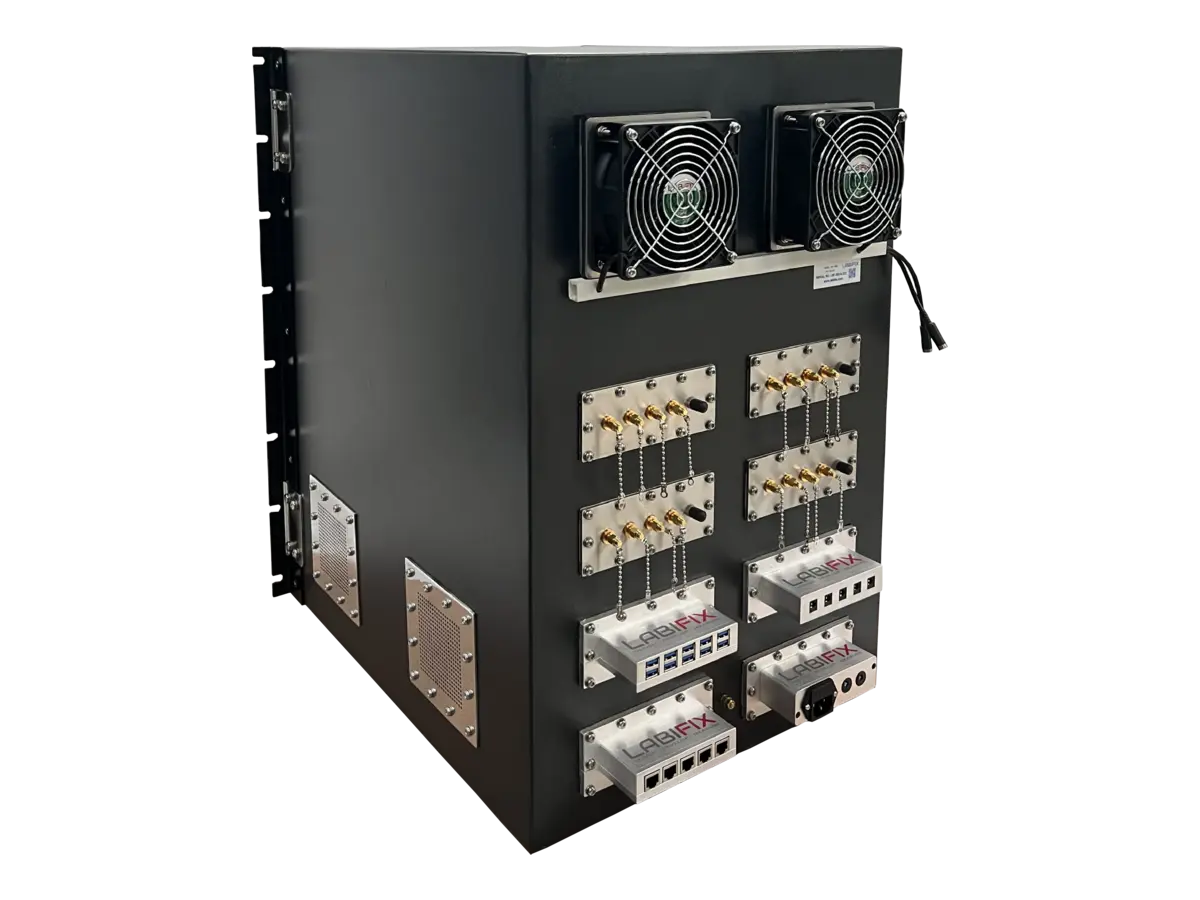

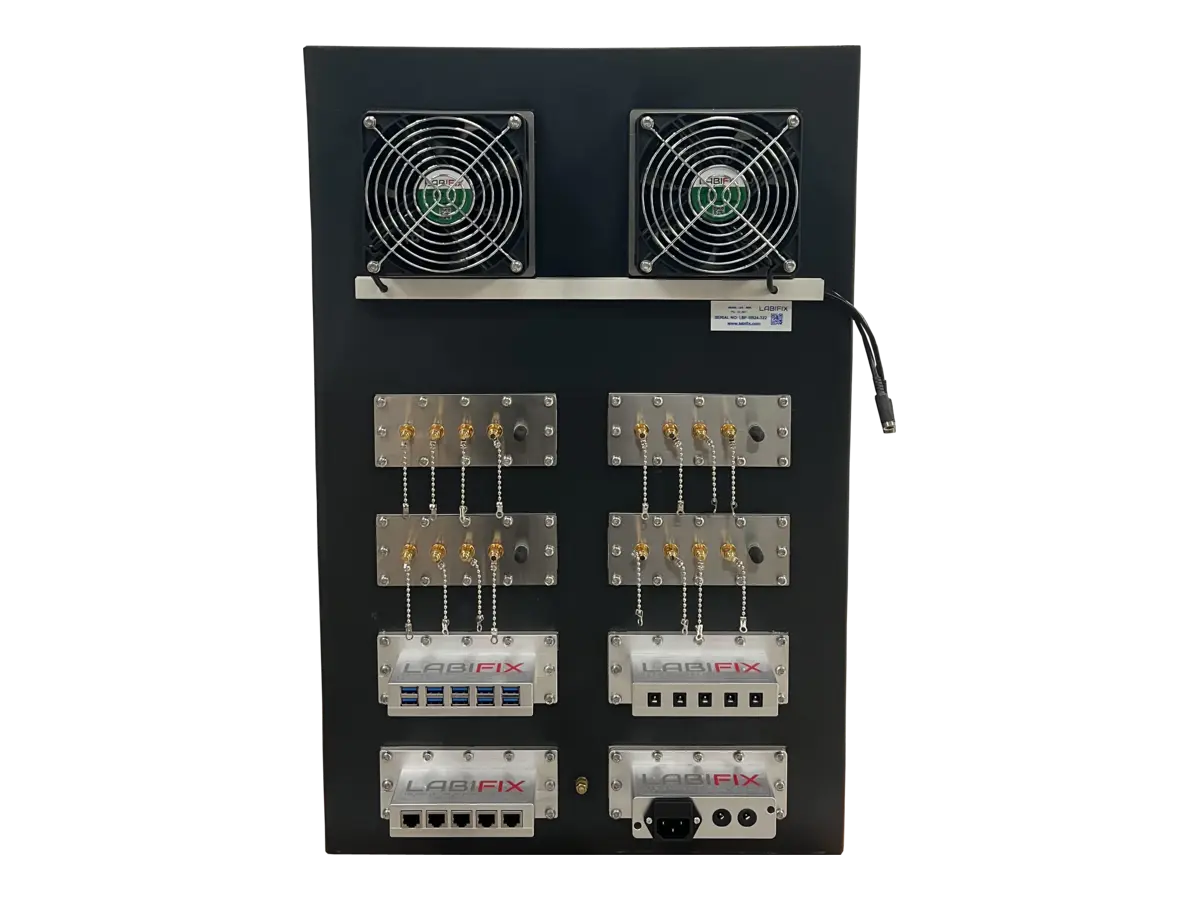

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Related RF Shielding Enclosures
Explore complementary RF test boxes and isolation enclosures engineered for precision testing
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
