LBX1900

RF SHEILDED TEST ENCLOSURE

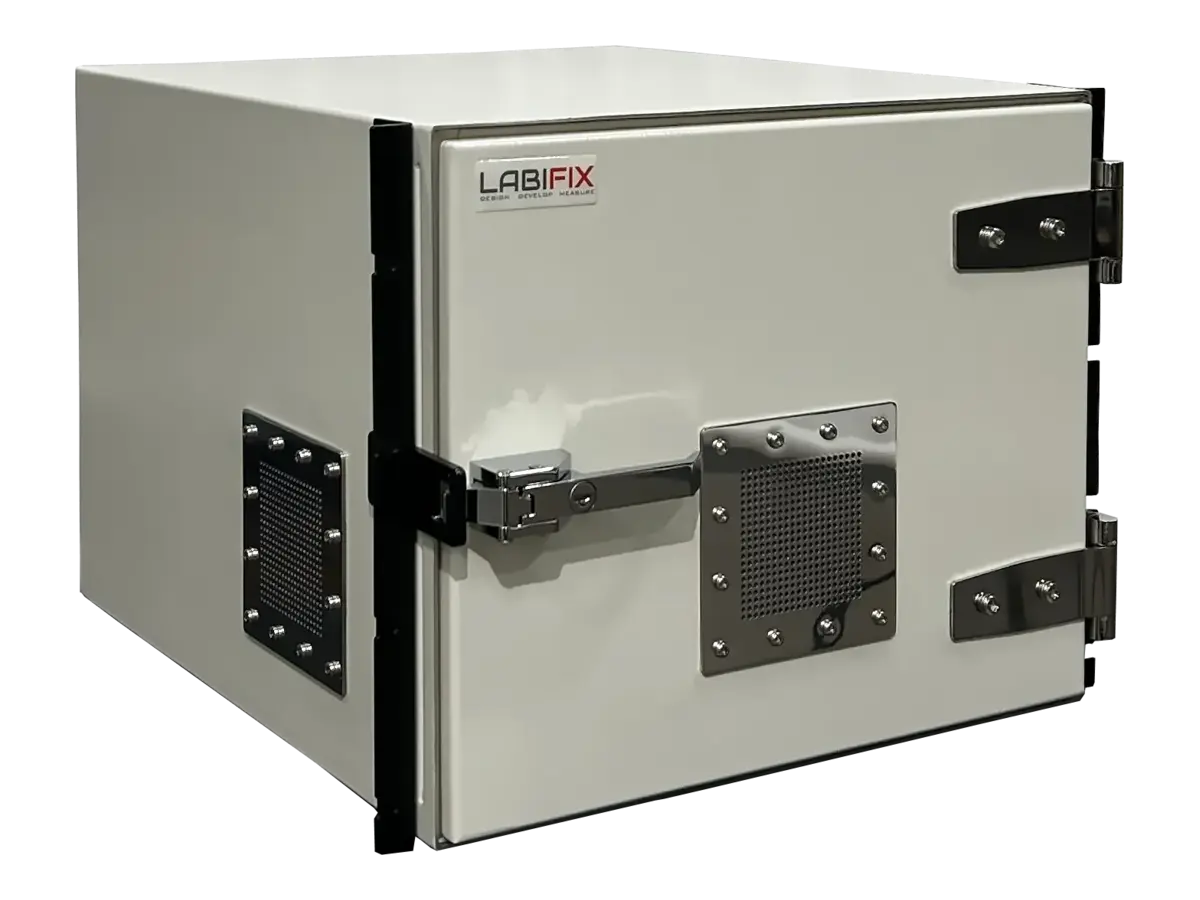

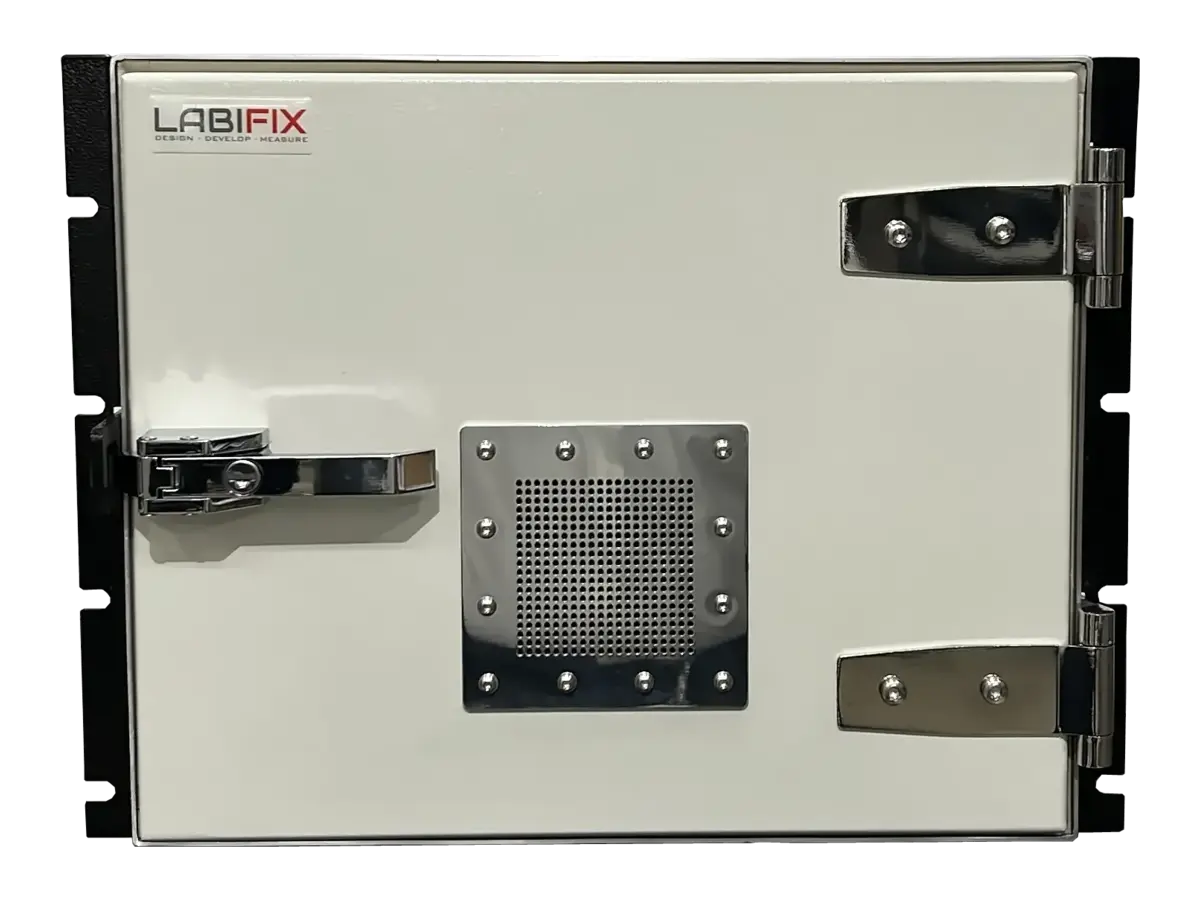

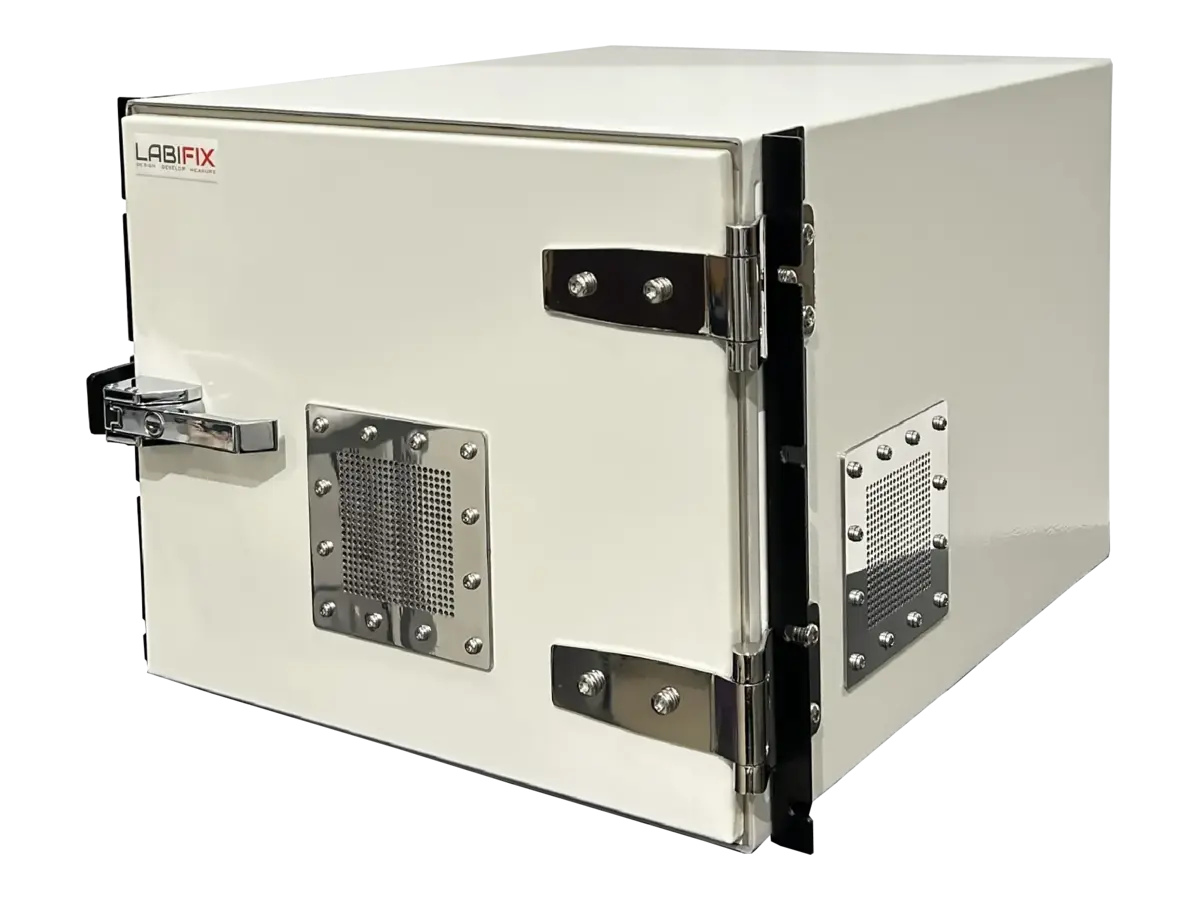

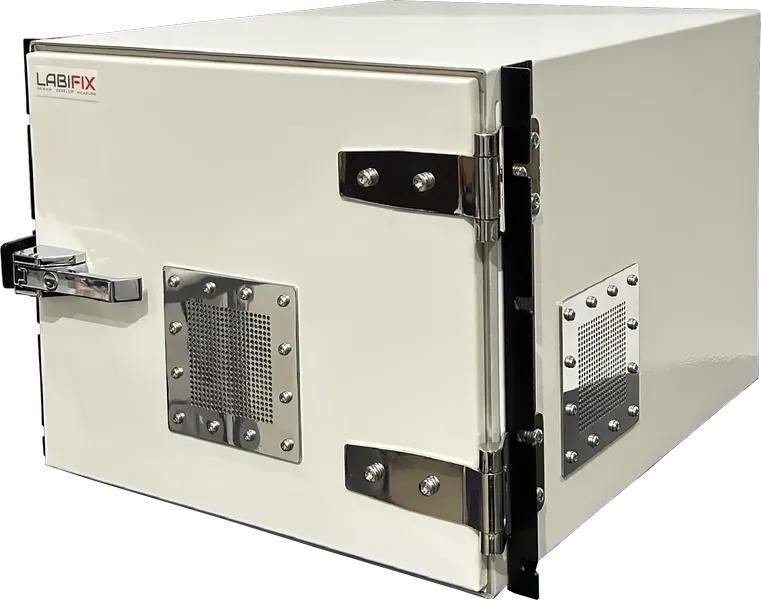

LBX4012 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

For testing wireless device compatibility, functionality, and performance, The LBX4012 RF shielded test enclosure is made. Offers superior shielding of >90dB against all forms of EMI/RFI, particularly for contemporary wireless communication technologies like Bluetooth, Wi-Max, 3G, 4G, and 5G LTE, as well as Wi-Fi 802.11 – all series.

By designing the I/O connections with an infinite number of interchangeable plug-in RF modules, the product can be fully customized to your exact specifications. Both standalone and 19″rack mountable versions of the RF Shielded Enclosure are available. The shielded enclosure design gives you the freedom to select from a variety of options.

Description

Features
  • Completely Customizable Shielded Enclosure
  • RF Gasket System
  • Design and Develop for Wireless Device Testing
  • Rugged Welded Construction
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • EMI filters on Data Ports and Power lines
  • High performance shielded Air Vents for adequate air flow
Applications
  • Bluetooth and Zigbee
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Medical Device
  • Forensics and Security
  • Wireless Device Testing
  • Cellular 4G,5G,LTE, Wimax
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 14"H x 17"W x 20"D
  • Interior : 12"H x 15"W x 18"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Enclosure 1.0
RF Shielded Enclosure 1.1
RF Shielded Enclosure 1.2
RF Shielded Enclosure 1.3
RF Shielded Enclosure 1.4
RF Shielded Enclosure 1.5
RF Shielded Enclosure 1.6
RF Shielded Enclosure 1.7
RF Shielded Enclosure 1.8

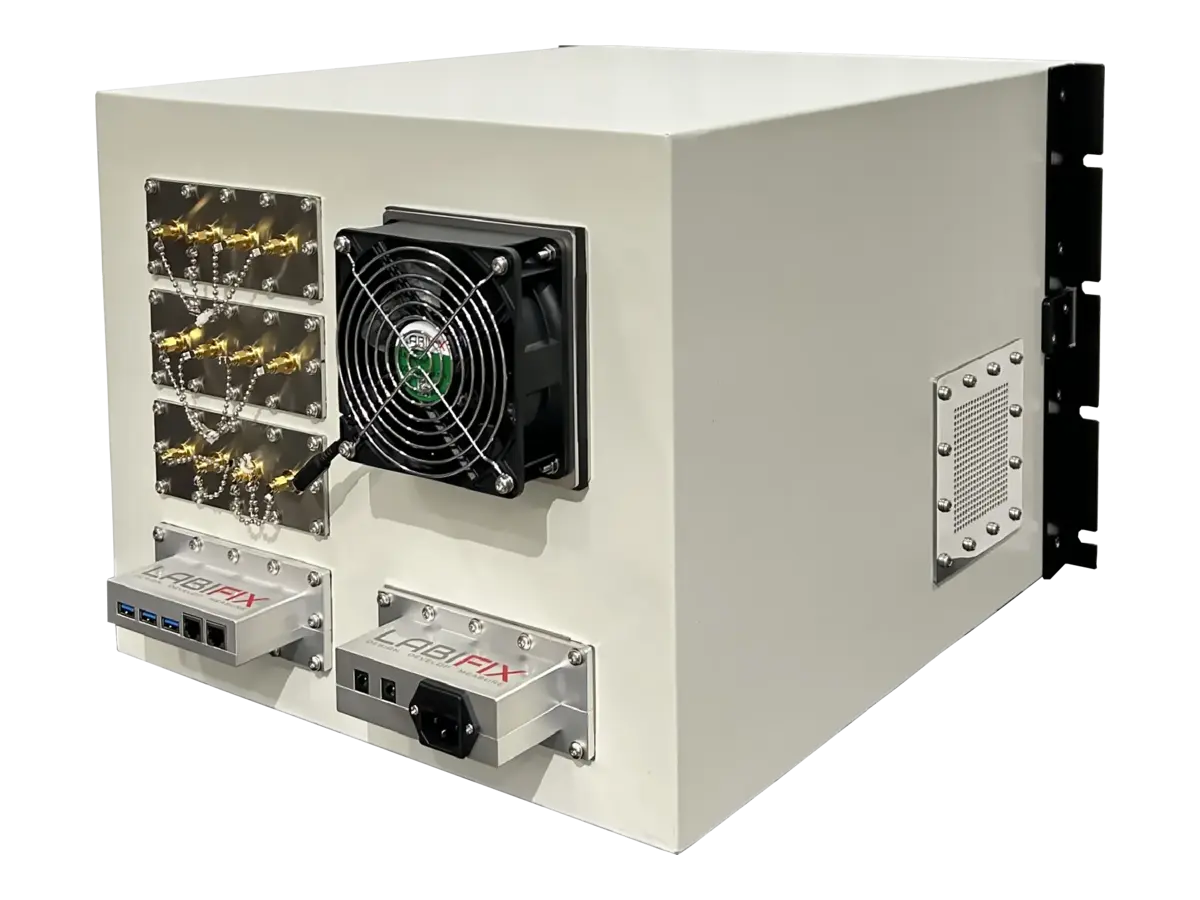

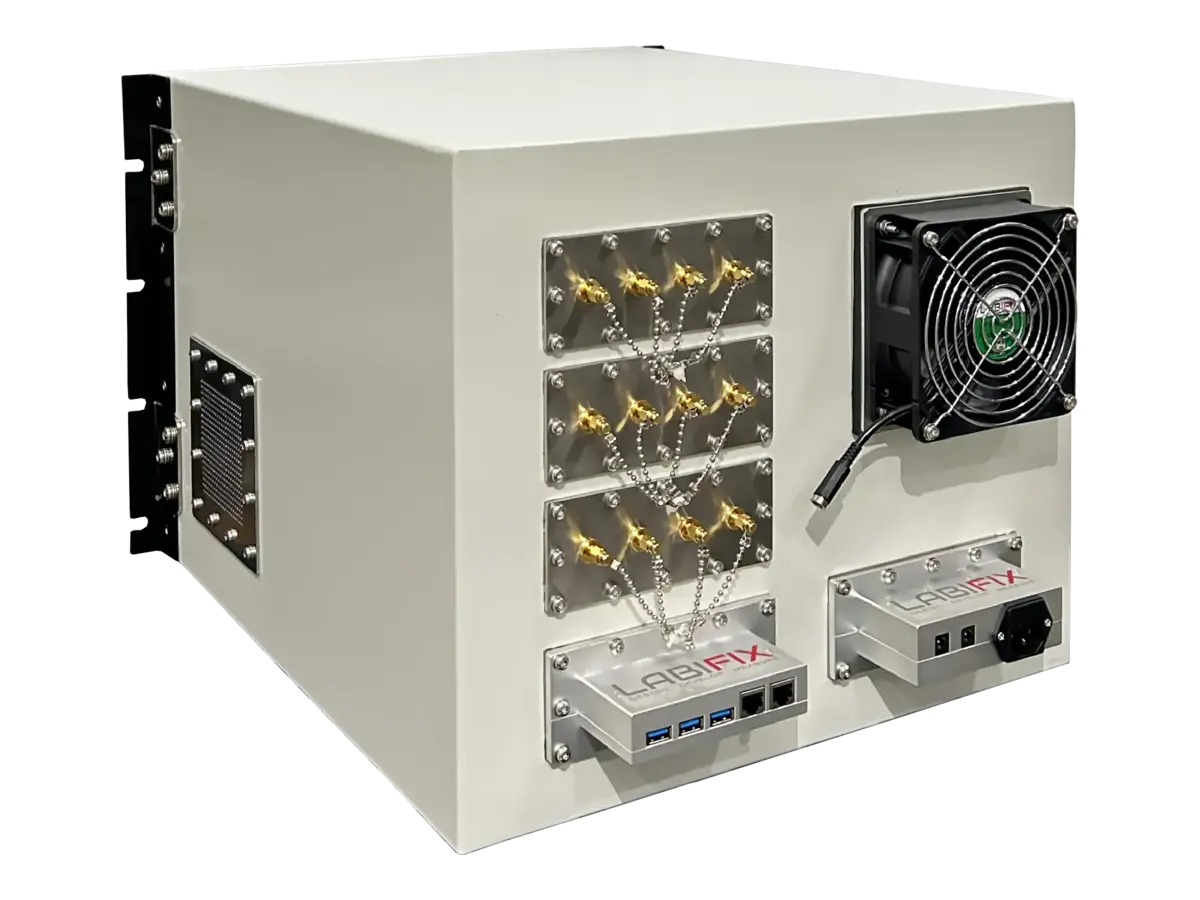

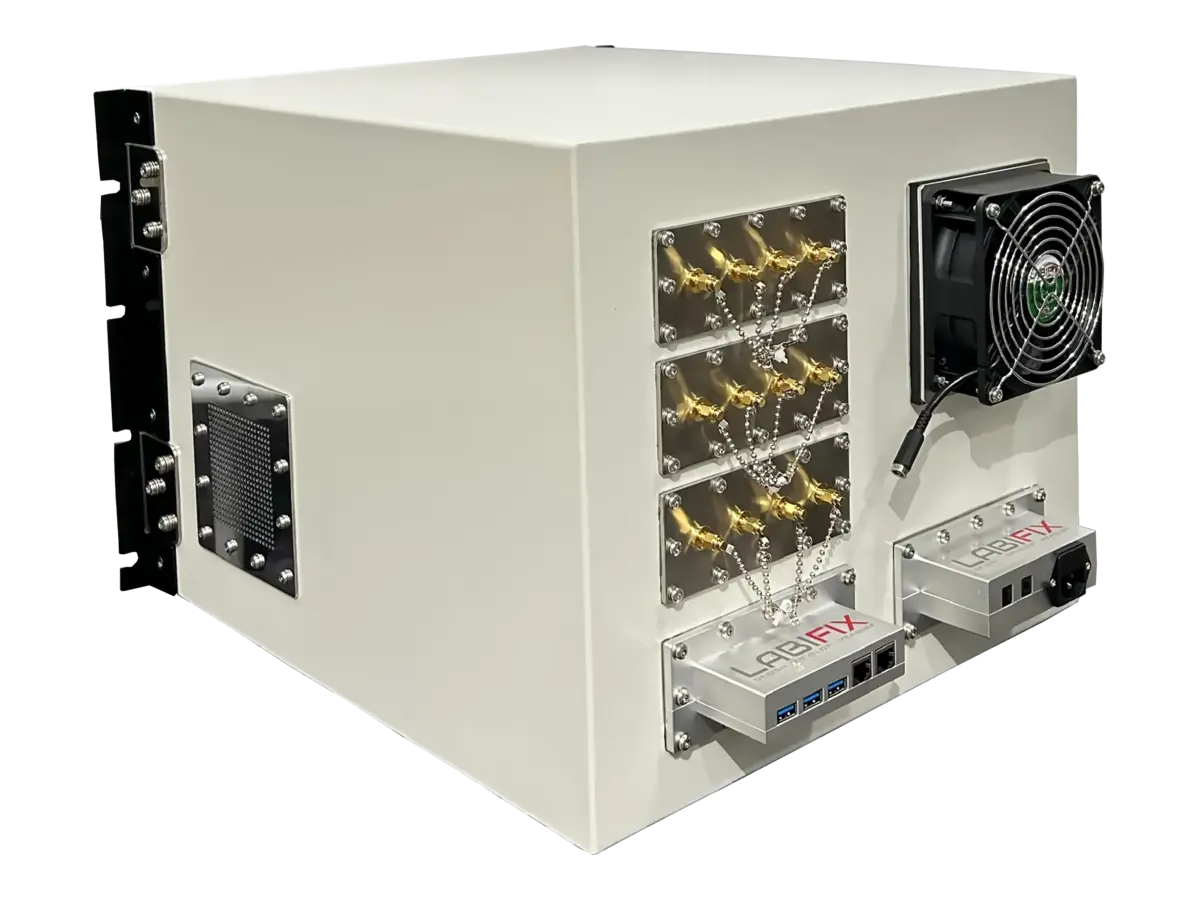

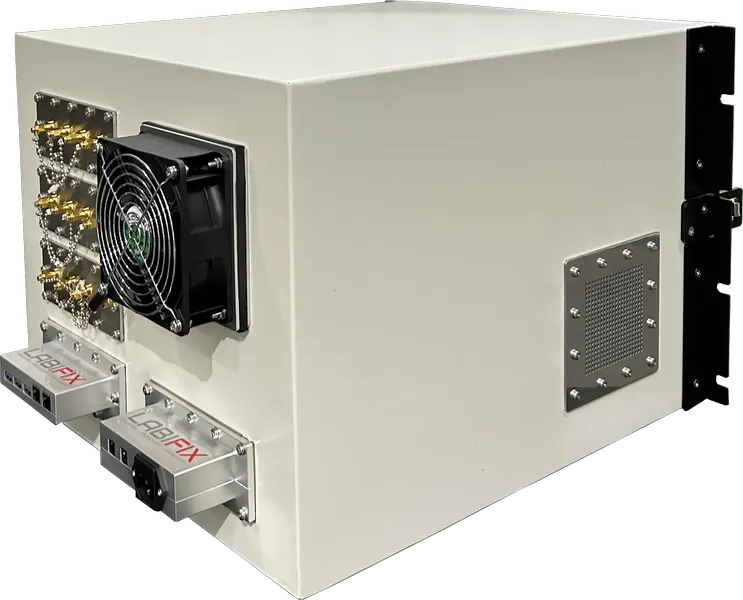

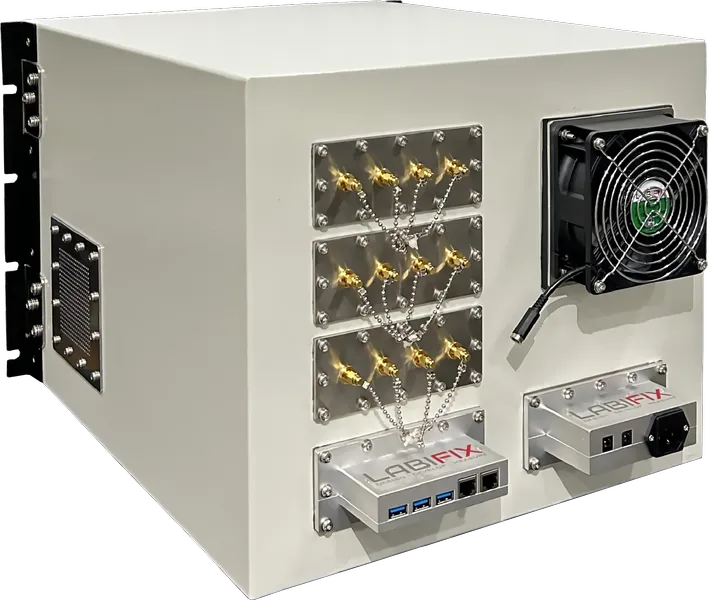

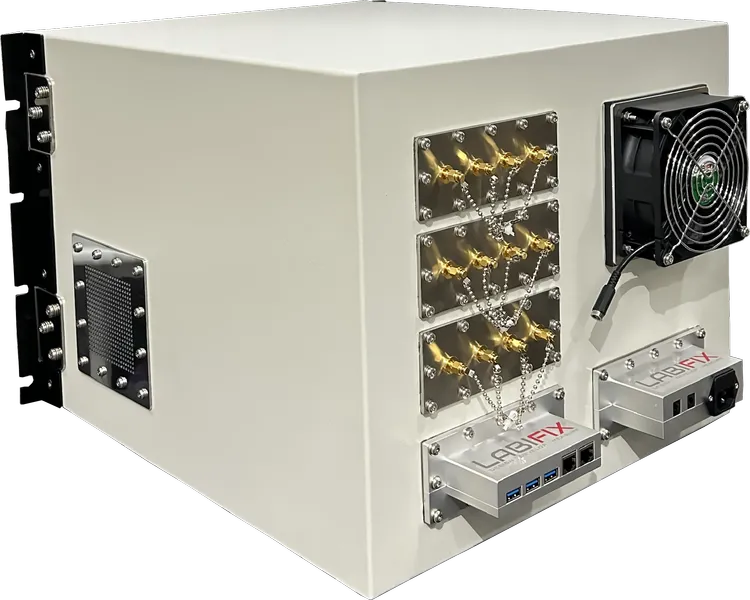

LBX4012 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered USB RS232
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm

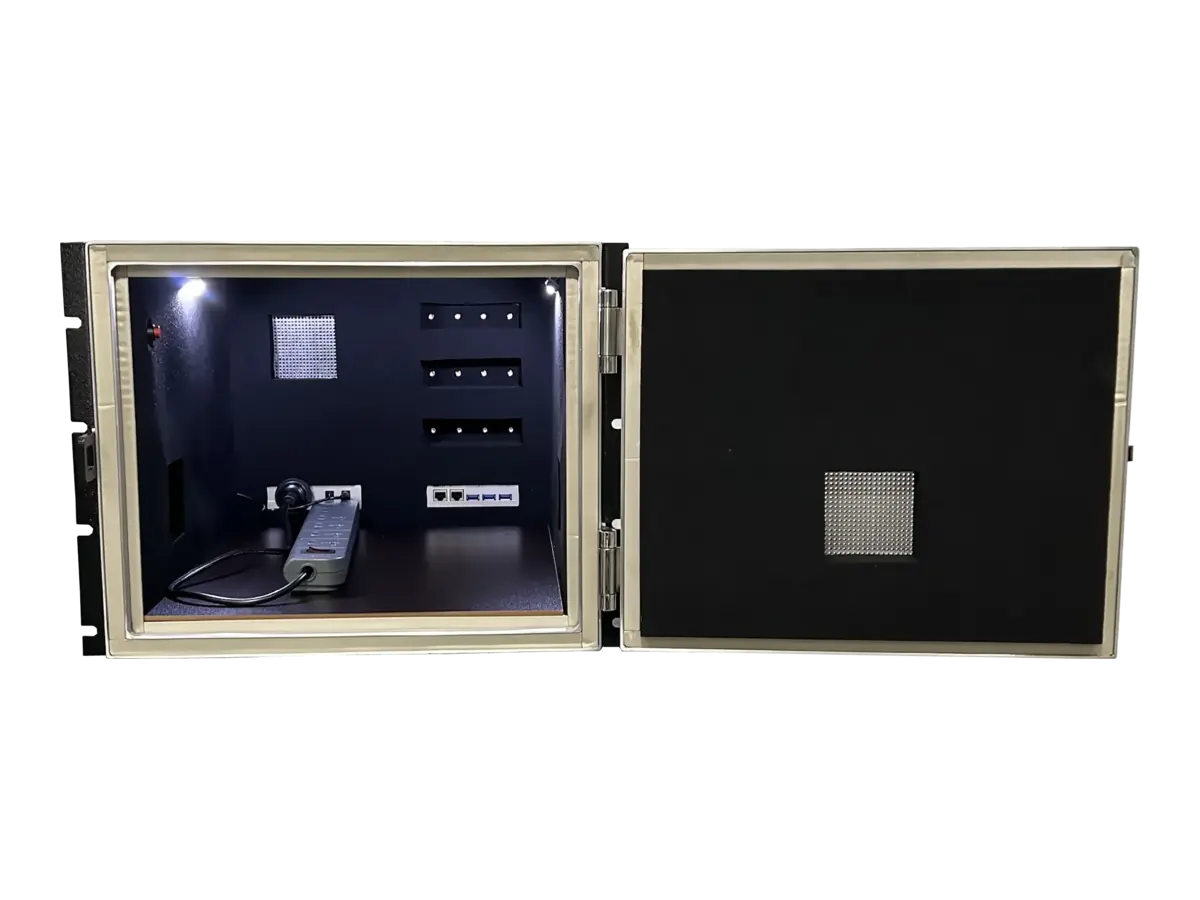

  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
