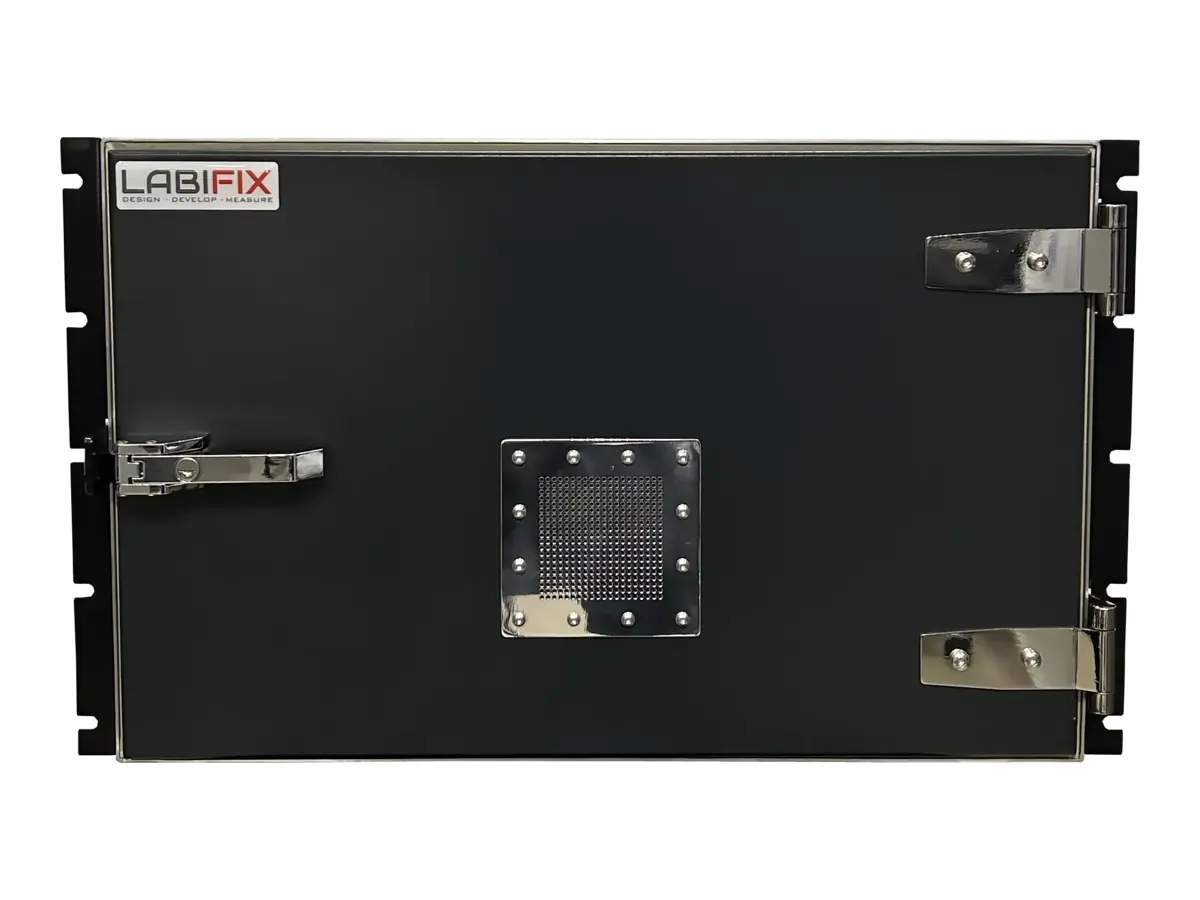

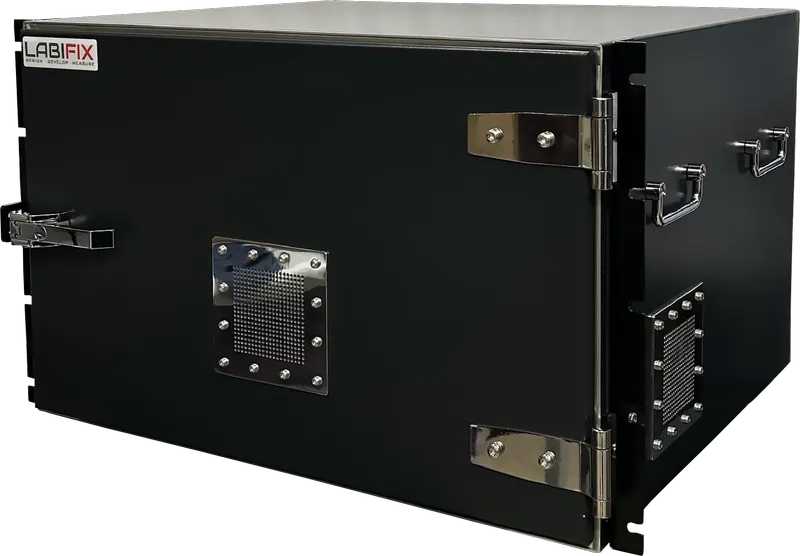

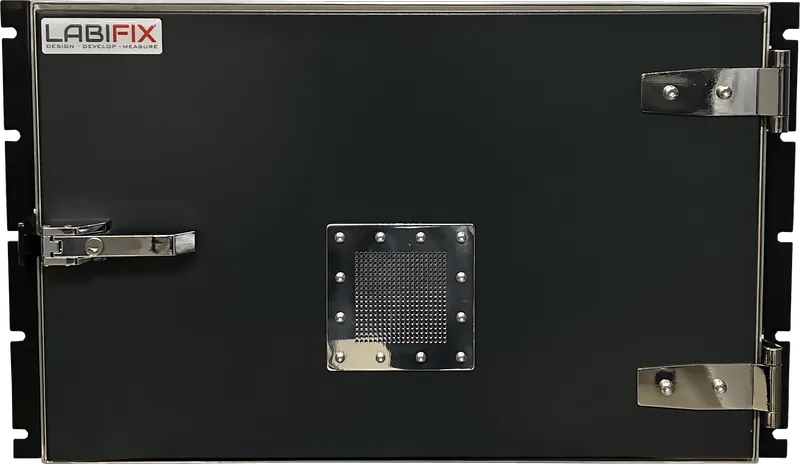

LBX5350 RF SHIELDED TEST ENCLOSURE

RF SHIELDED TEST ENCLOSURE

The LBX5350 is a test box with an RF shield designed for testing WLAN and wireless devices up to 12 GHz. High-performance RF-absorbing foam that is intended to deaden standing waves in the system and improve isolation is used to line the interior. Not only does it disable all wireless signals, but it also has shielded power filters that allow power to enter the box. An EMI filter on the data ports complements a robust enclosure made of welded steel.

Its solidly built structure is a result of its superb design, and its precise processing improves isolation for the device you are testing. Its I/O connections can be tailored to your exact specifications by using an infinite number of swappable plug-in radio frequency modules.

Description

Features
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • EMI filters on Data Ports and Power lines
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • Rugged Welded Construction
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Applications
  • R&D and Quality Assurance Tests
  • Wireless Device Testing
  • Cellular 4G,5G,LTE, Wimax
  • Wi-Fi 802.11 - All series
  • Bluetooth and Zigbee
  • Forensics and Security
  • Wireless Medical Device
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 16"H x 24"W x 22"D
  • Interior : 14"H x 22"W x 20"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

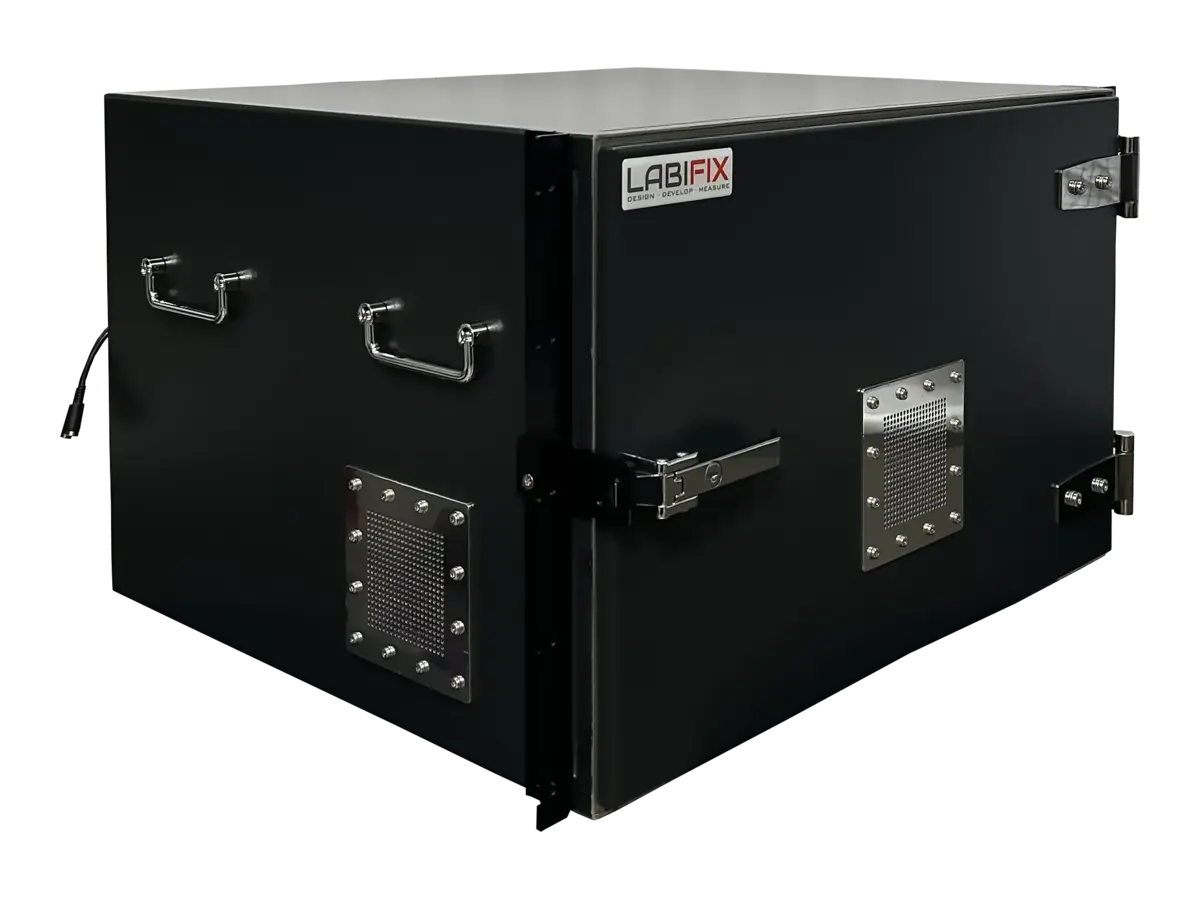

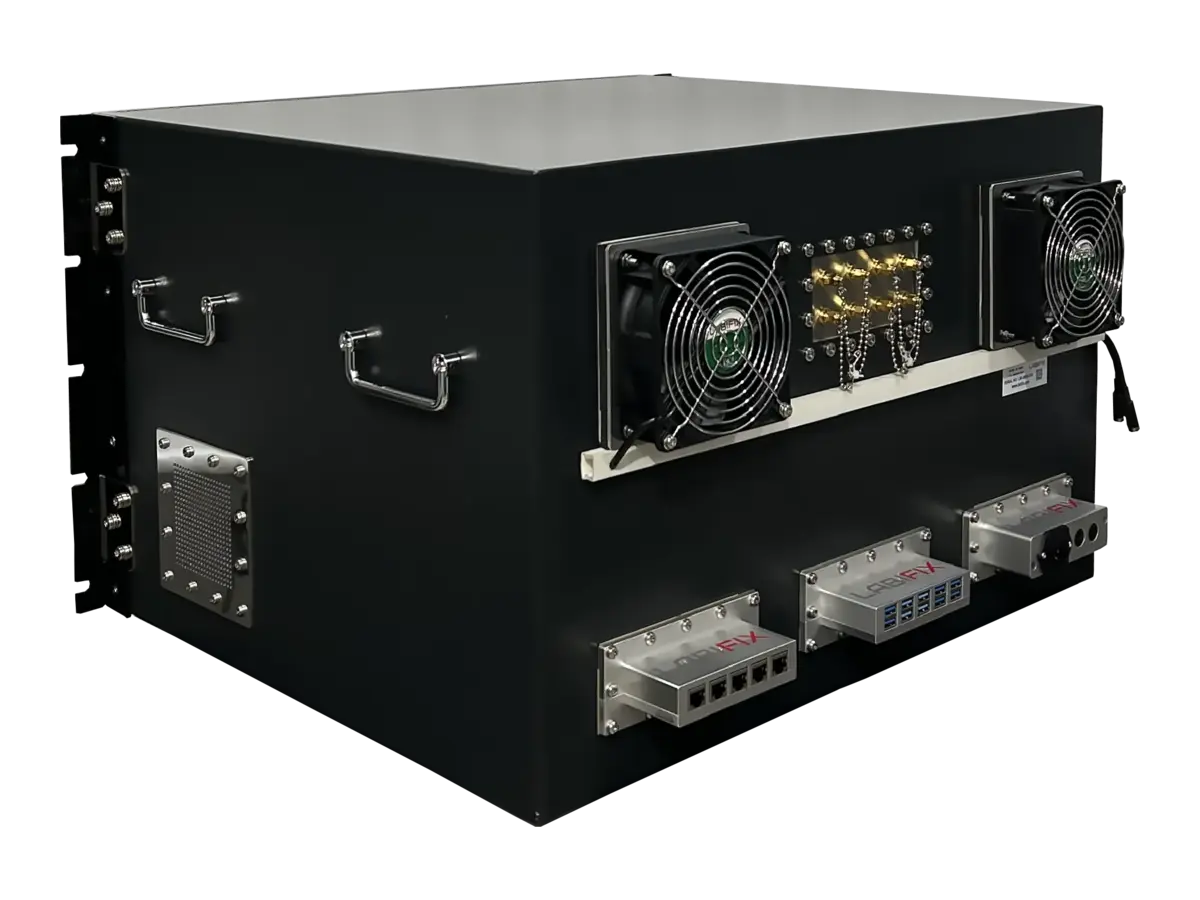

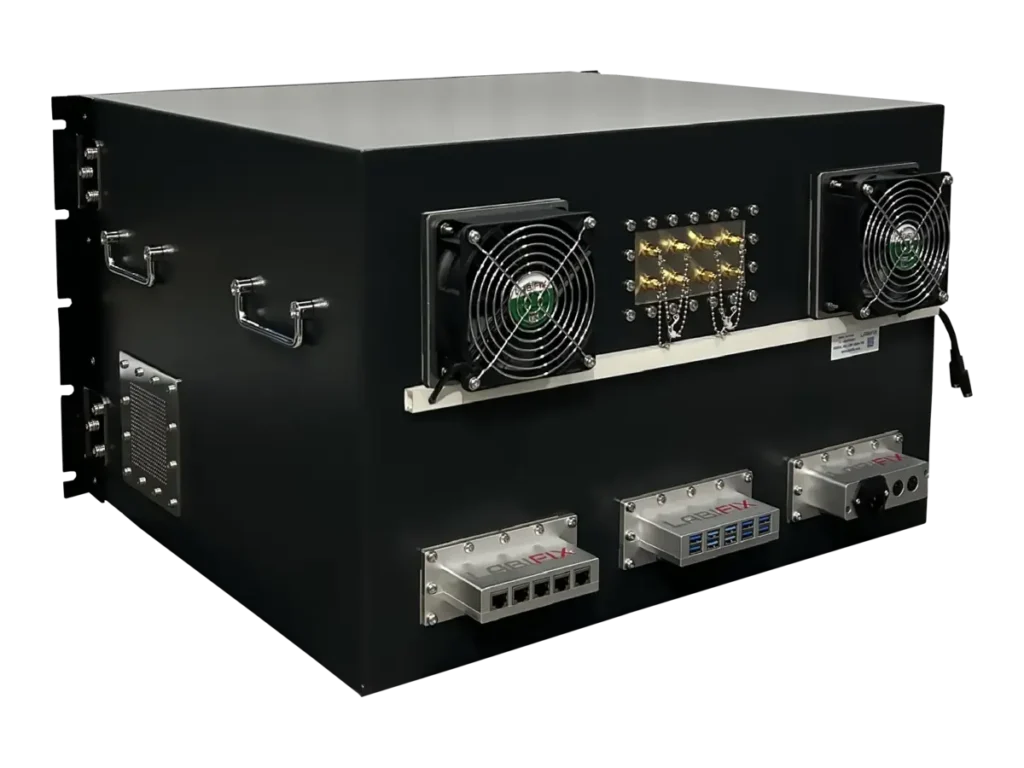

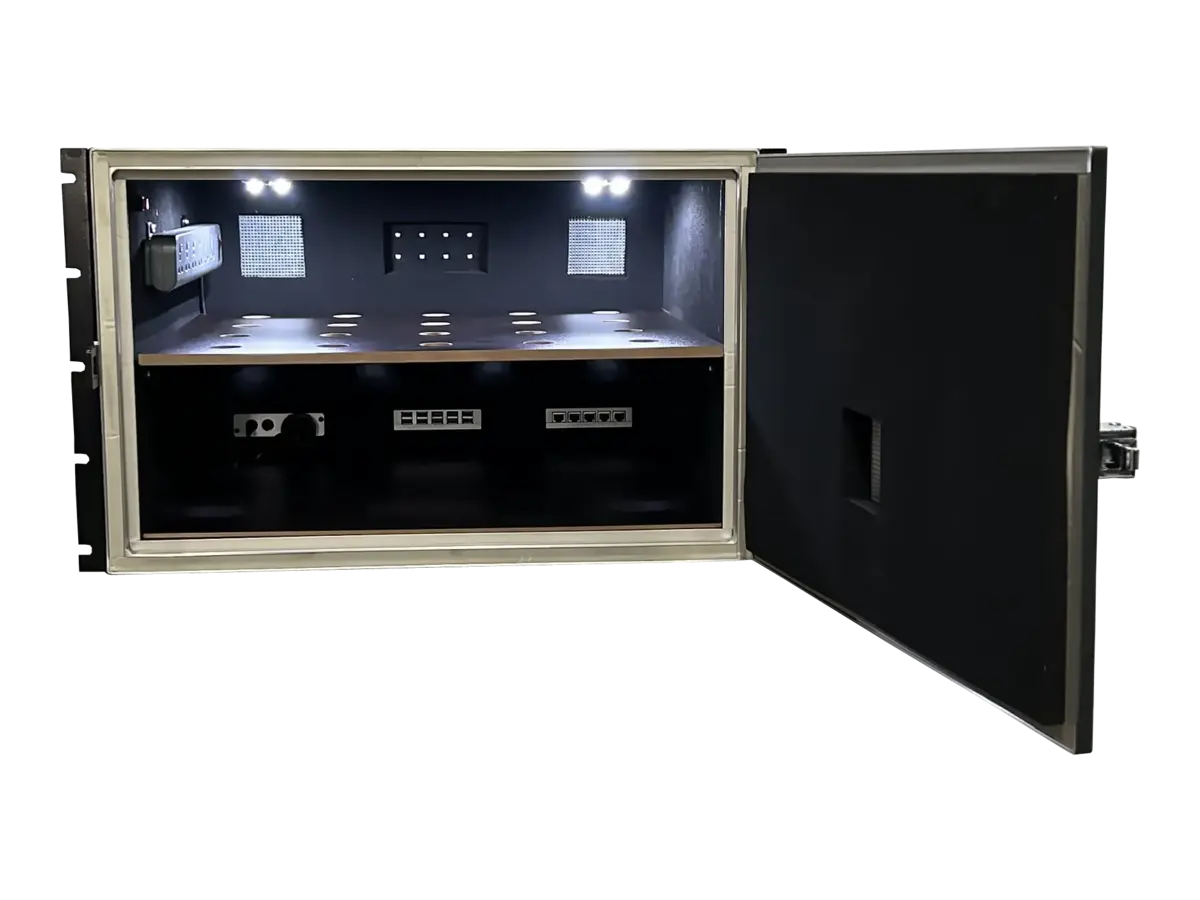

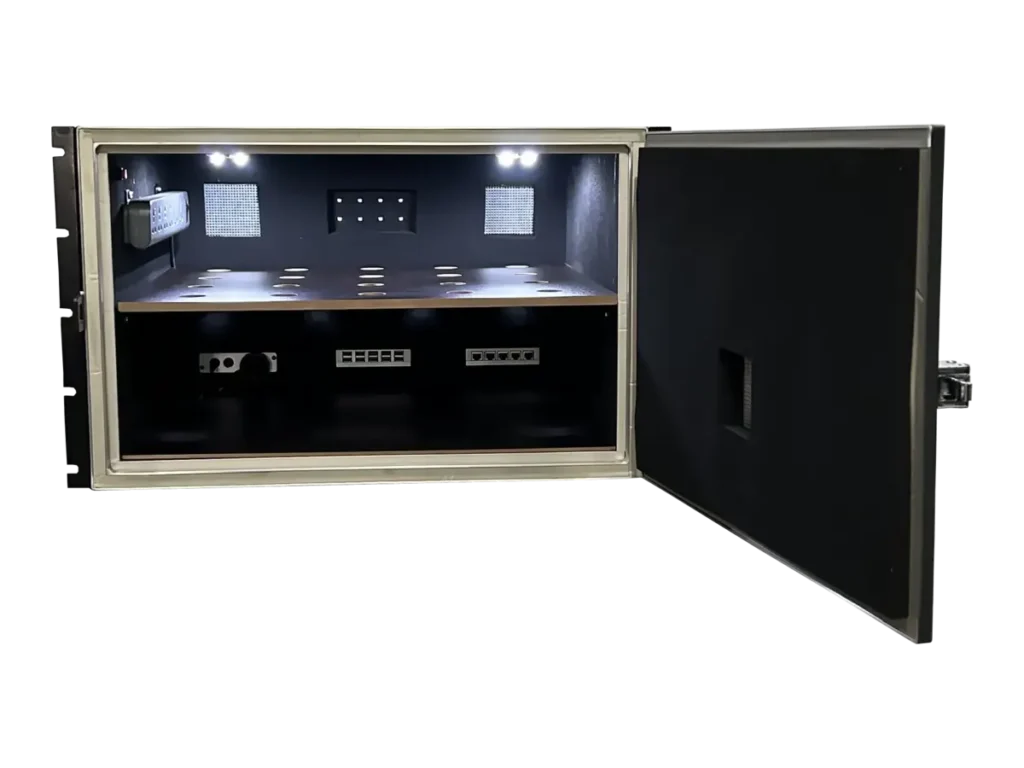

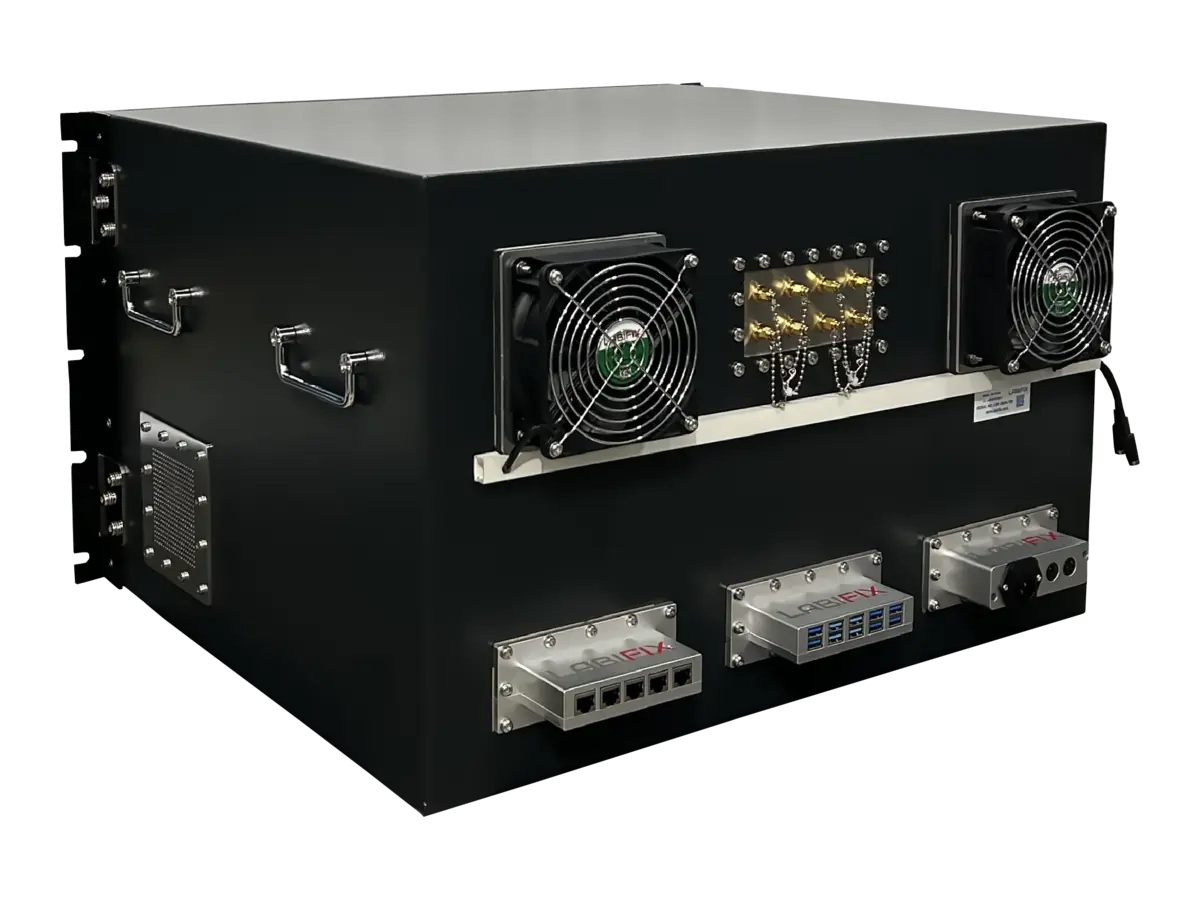

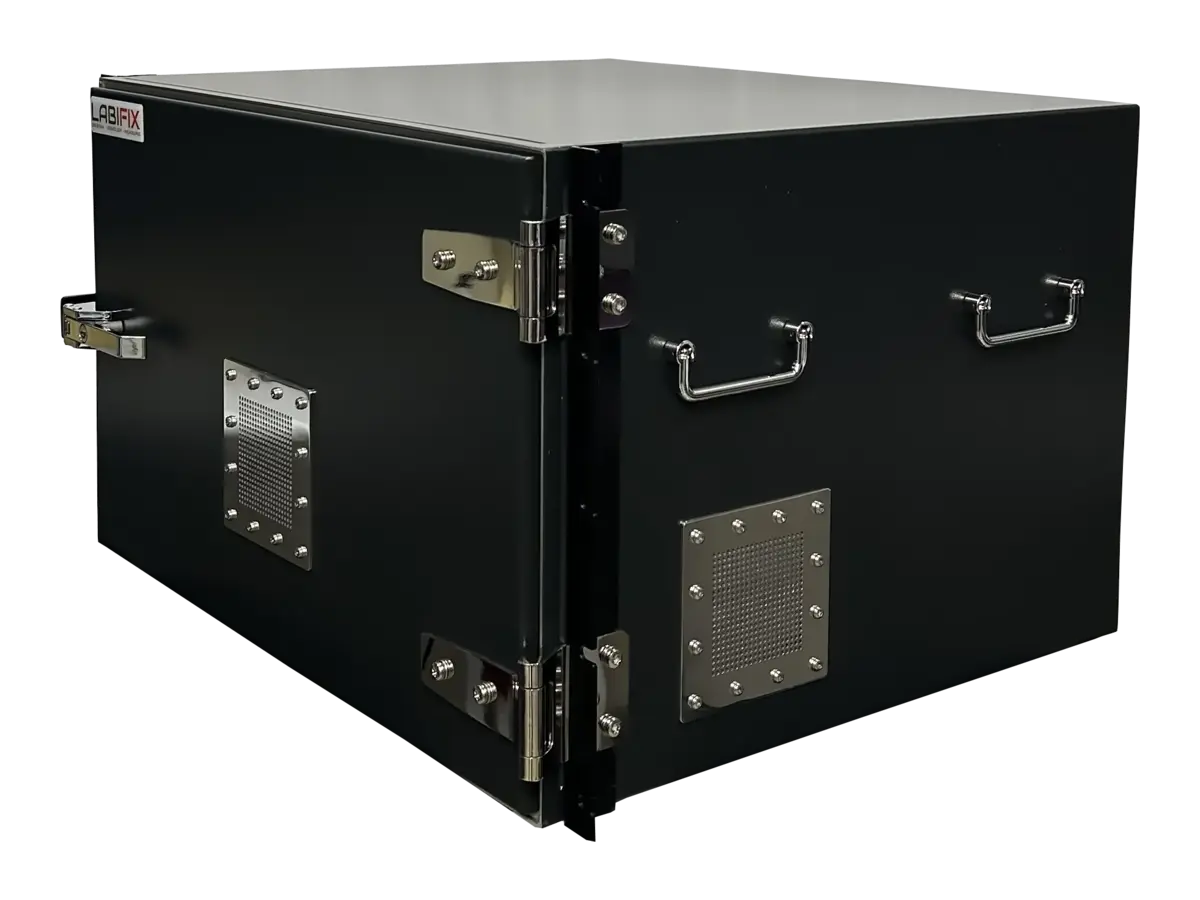

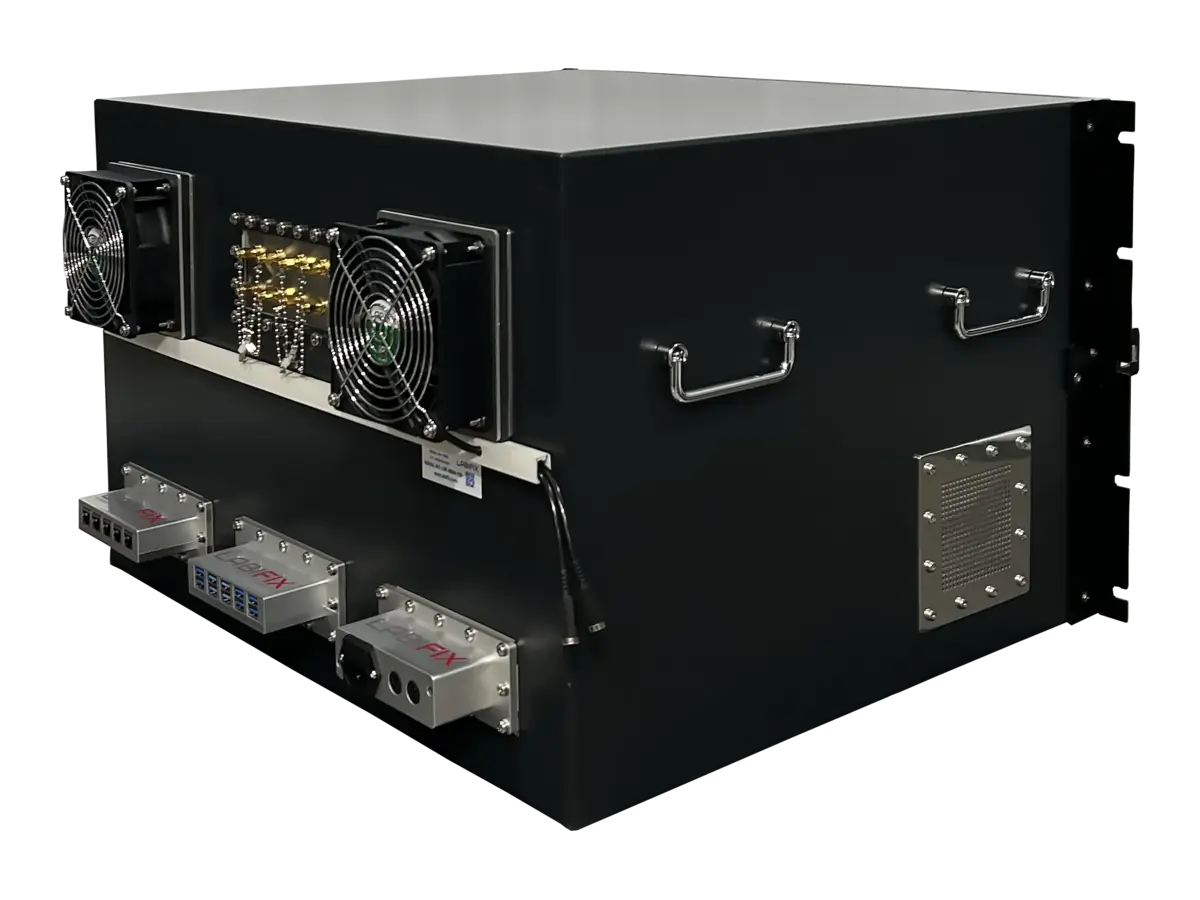

LBX5350 (1)
LBX5350 (2)
LBX5350 (3)
LBX5350 (4)
LBX5350 (5)
LBX5350 (6)
LBX5350 (7)
LBX5350 (8)
LBX5350 (9)
LBX5350 (10)
LBX5350 (11)

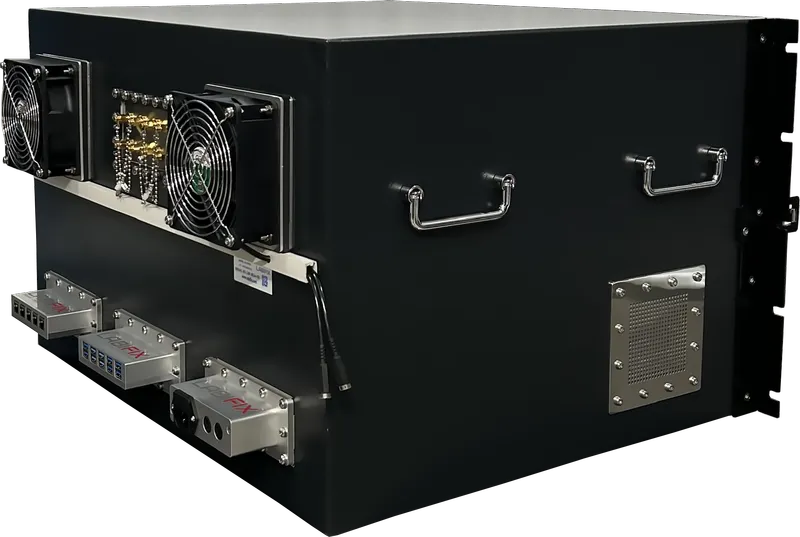

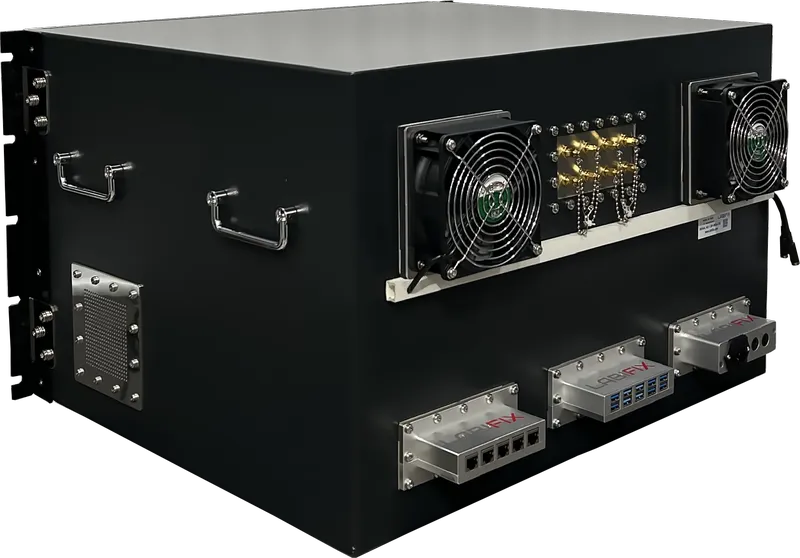

LBX5350 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • RF Ports : N Type Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm
  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
