RF Shielded Test Enclosure | Robust and Reliable | LabiFix

LBX1900

RF SHEILDED TEST ENCLOSURE

LBX5100 RF SHIELDED TEST ENCLOSURE

RF SHIELDED TEST ENCLOSURE

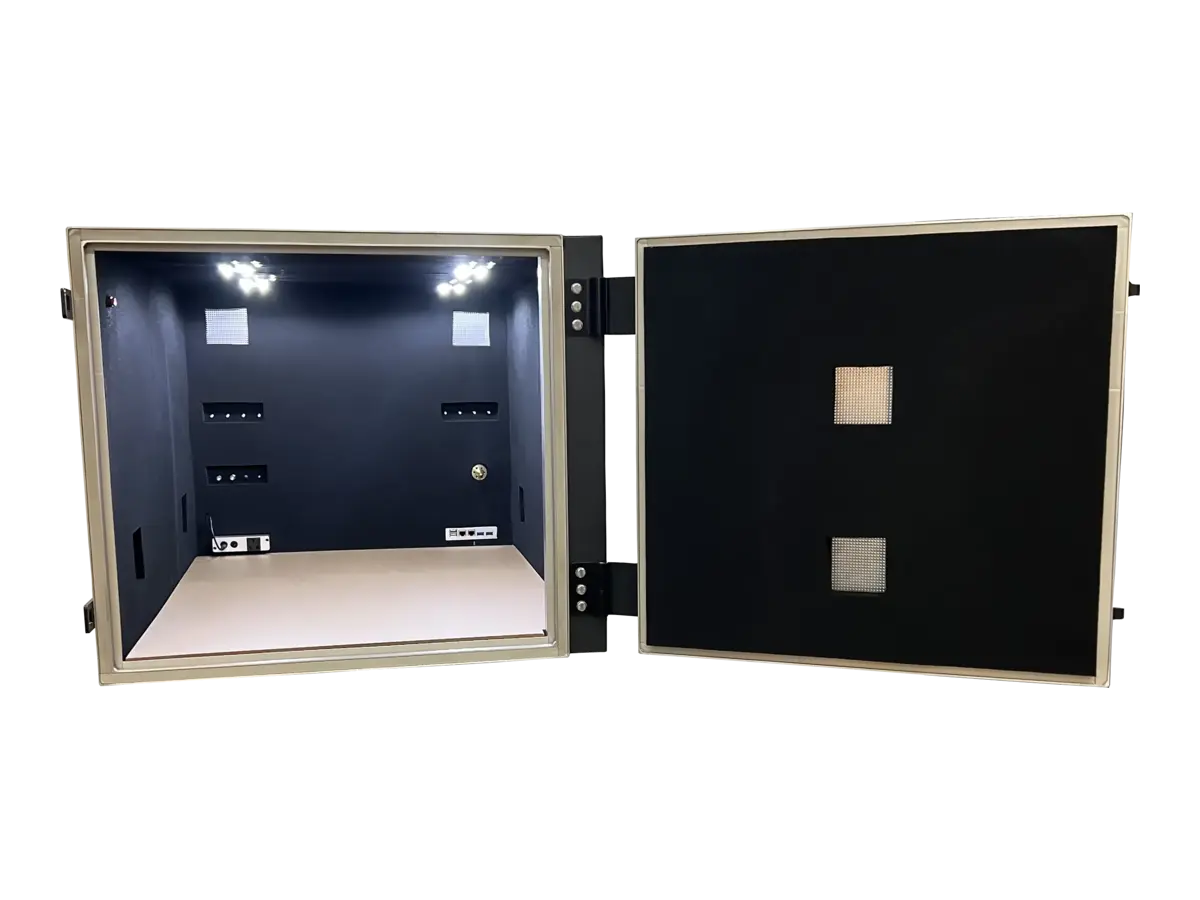

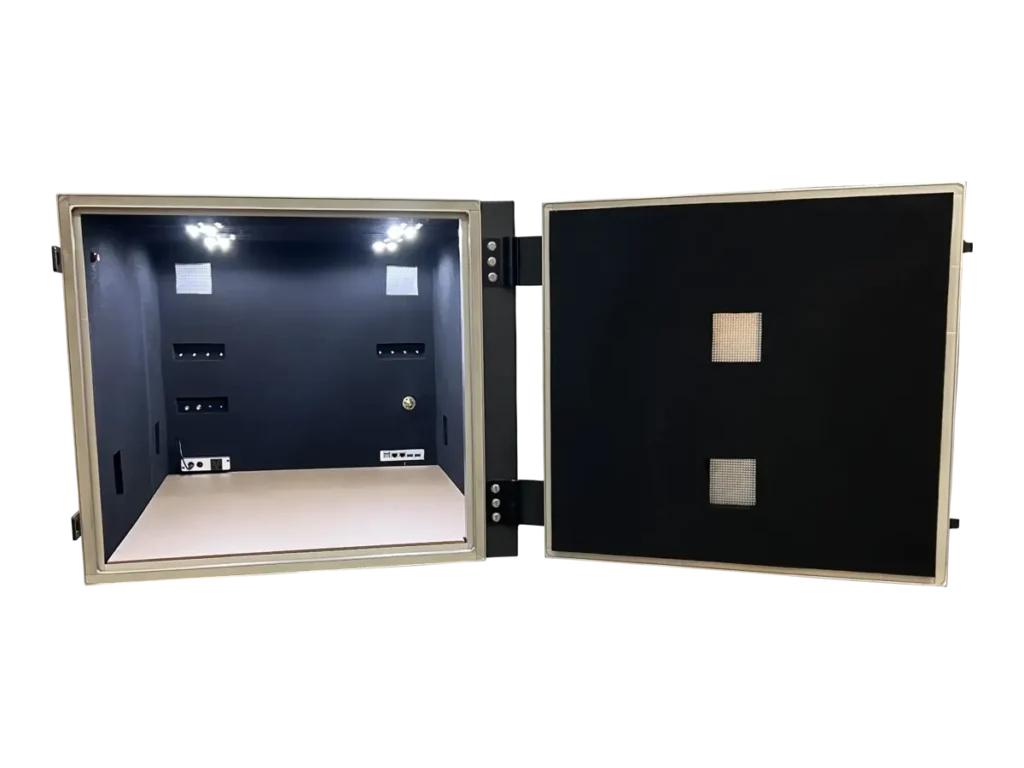

LBX5100 Shielded Test Enclosure for RF electronics, WLAN and Wireless Device Testing up to 12 GHz. The interior lining is lined with high-performance RF absorbing foam designed to deaden standing waves in the system and providebetter isolation. Our heavy duty hinges and caster wheels are tough, durable, and designed to withstand the wear-and-tear of everyday use.

They are fitted with a locking mechanism that is both easy to use and built to last, as well as a superior latch system that provides maximum durability and interior space inside the unit allows for larger devices to be tested while still providing high shielding effectiveness.

Description

Features
  • High Performance RF Absorber lining
  • EMI filters on Data Ports and Power lines
  • Rugged Welded Construction
  • Design and Develop for Wireless Device Testing
  • Completely Customizable Shielded Enclosure
  • User Defined & Interchangeable I/O Connector options
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Applications
  • Wi-Fi 802.11 - All series
  • Forensics and Security
  • R&D and Quality Assurance Tests
  • Bluetooth and Zigbee
  • Wireless Device Testing
  • Cellular 4G,5G,LTE, Wimax
  • Wireless Medical Device
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 24"H x 28"W x 36"D
  • Interior : 22"H x 26"W x 34"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Enclosure 1.0
RF Shielded Enclosure 1.1
RF Shielded Enclosure 1.2
RF Shielded Enclosure 1.3
RF Shielded Enclosure 1.4
RF Shielded Enclosure 1.5
RF Shielded Enclosure 1.6
RF Shielded Enclosure 1.7
RF Shielded Enclosure 1.8
RF Shielded Enclosure 1.9
Collaged

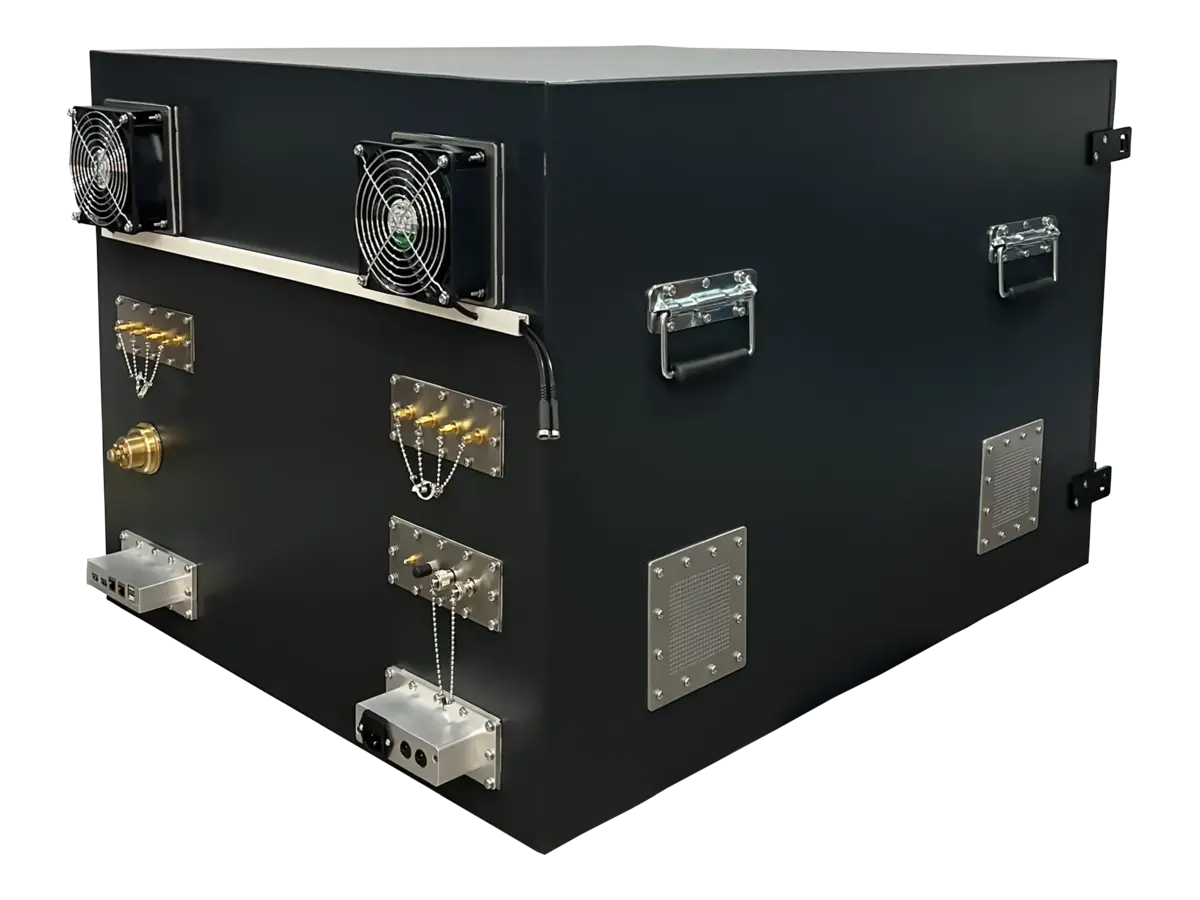

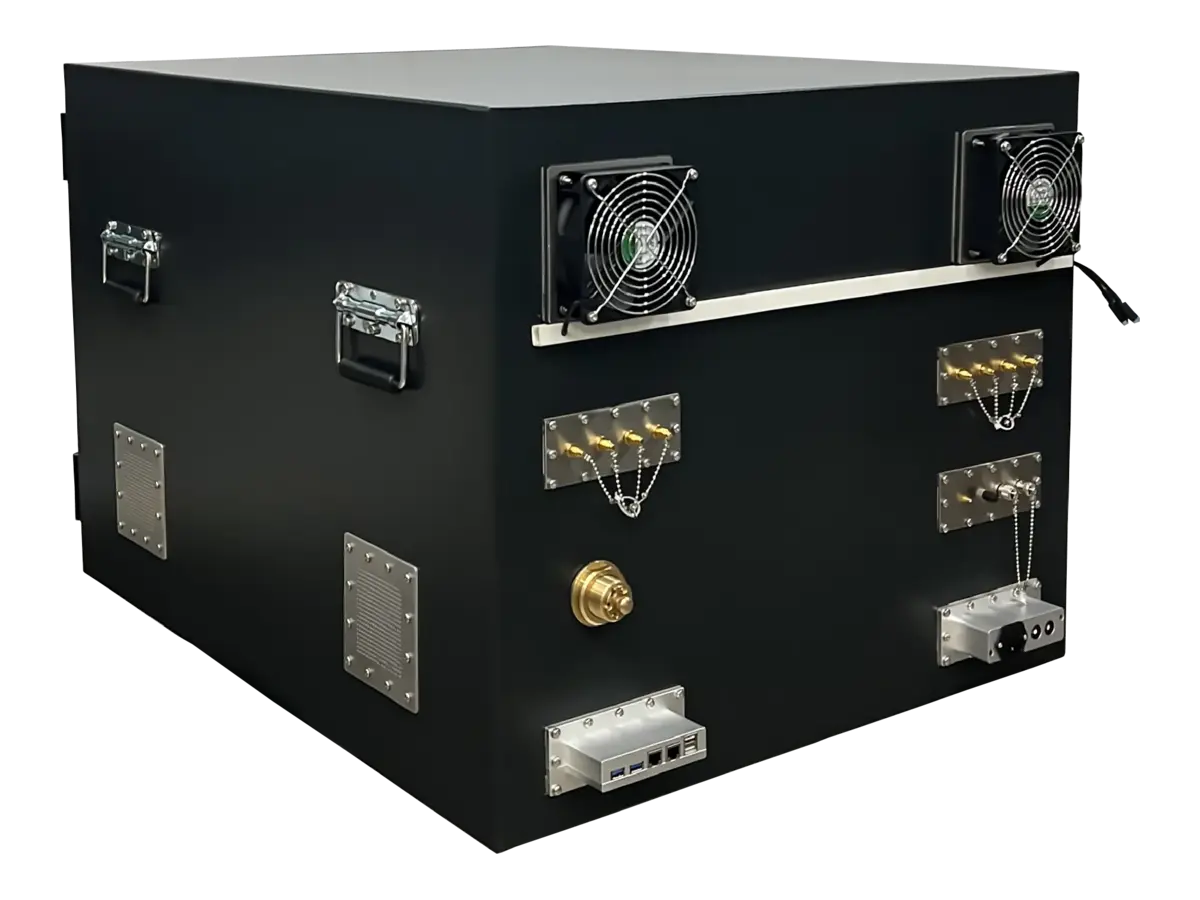

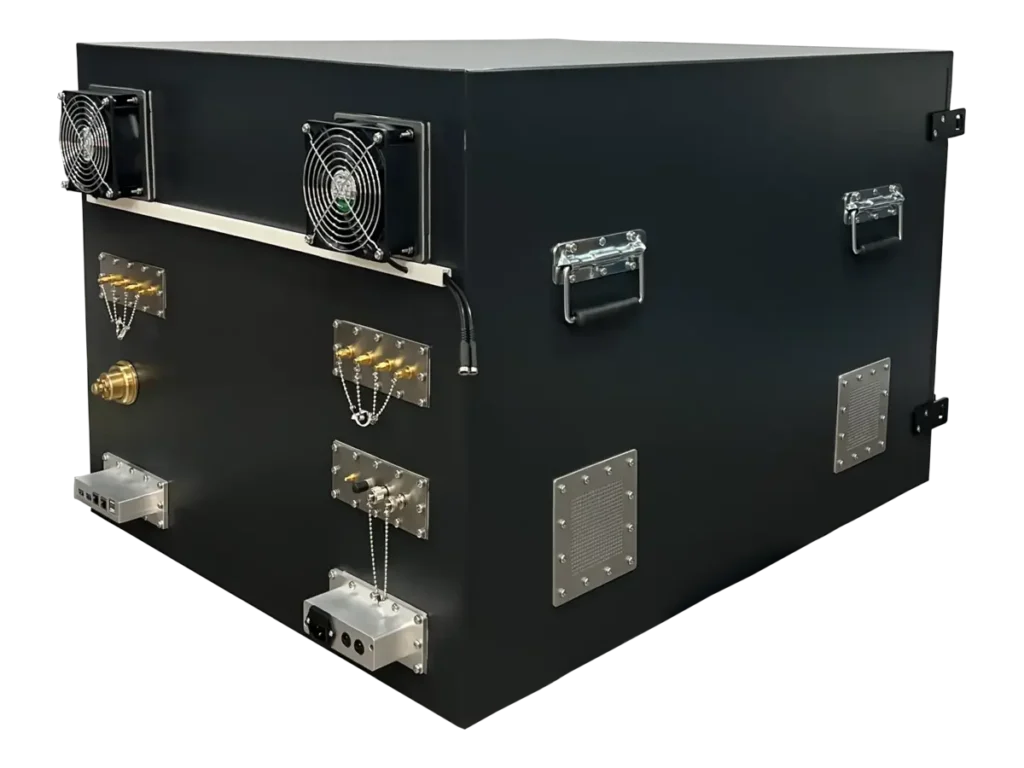

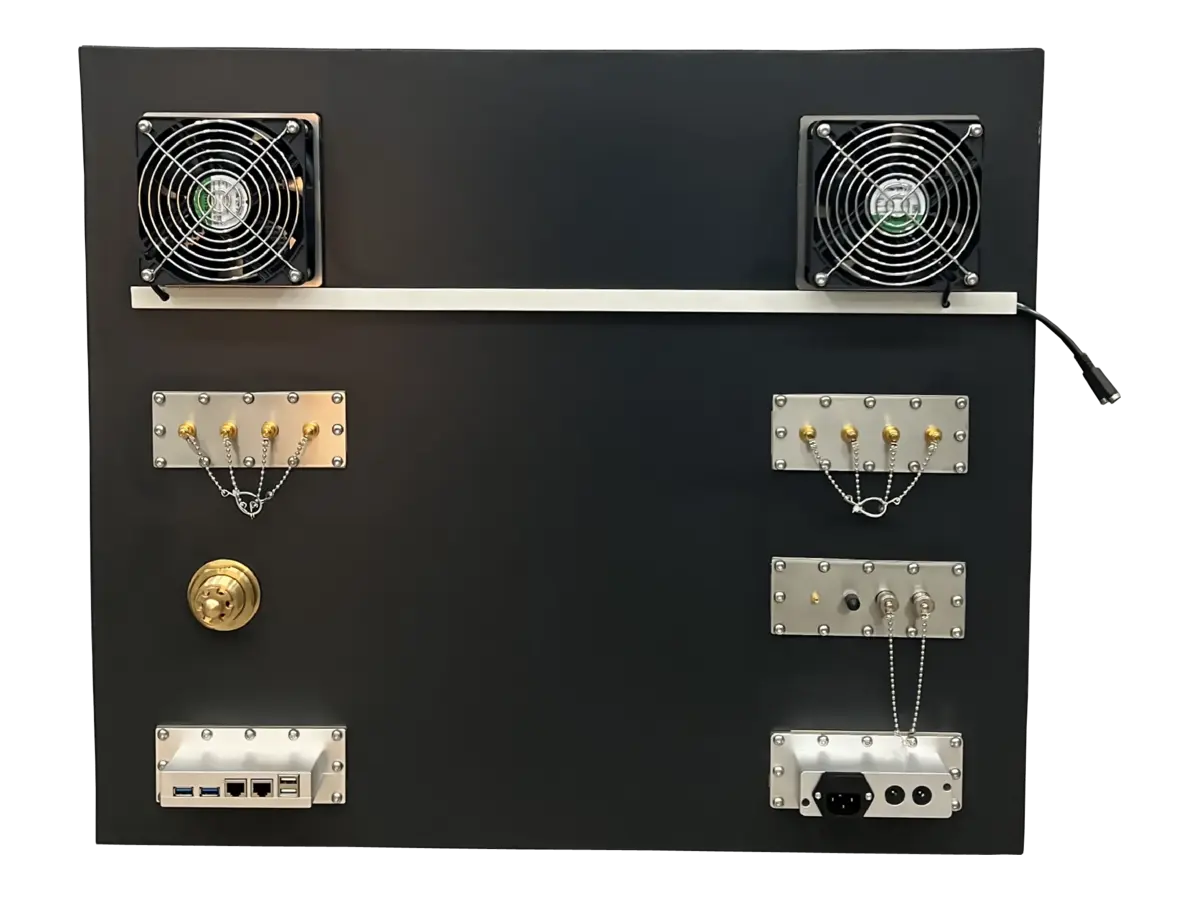

LBX5100 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered USB RS232
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm
  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
