What frequency ranges does LBX5680 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX5680

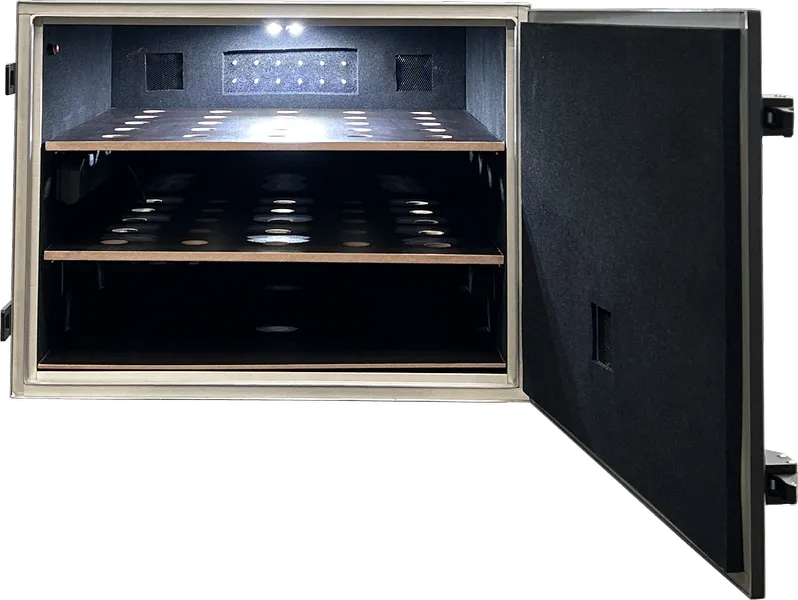

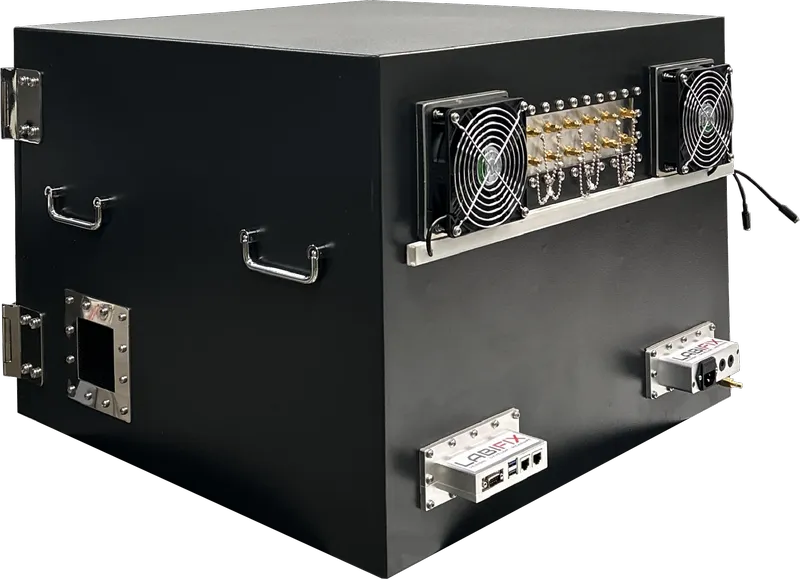

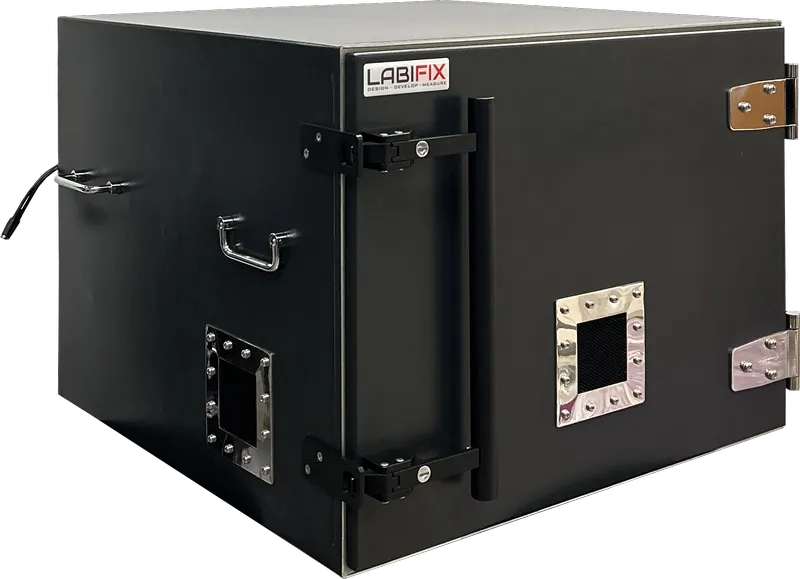

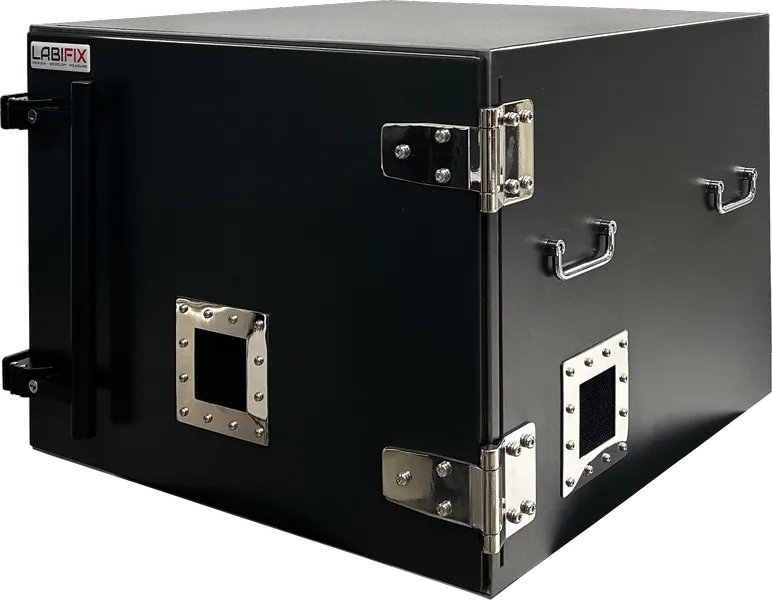

LBX5680 Digital Forensics LabiFix RF Shield Box - View 1 of 6

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX5680 RF Shield Box

Name: LBX5680 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX5680

LBX5680 is intended to make RF testing more controlled and easier to integrate into an existing laboratory workflow. With options such as RF Gasket System, the enclosure can be adapted to the equipment, interfaces and test method being used. That makes it a natural fit for EMI/EMC testing, the model offers a configurable platform for managing the RF conditions around the device, where a defined RF environment can help engineers work with greater consistency. For teams searching for a RF shielded chamber, LBX5680 can be considered as part of a tailored RF shielding solution.

Dimensions

Exterior (H x W x D)

19" (H) x 25" (W) x 25" (D)

Interior (H x W x D)

17" (H) x 23" (W) x 23" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX5680 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 25" (W) × 19" (H) × 25" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX5680 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 23" (W) × 17" (H) × 23" (D)RF Pyramidal Microwave Absorber Lining Boundary
