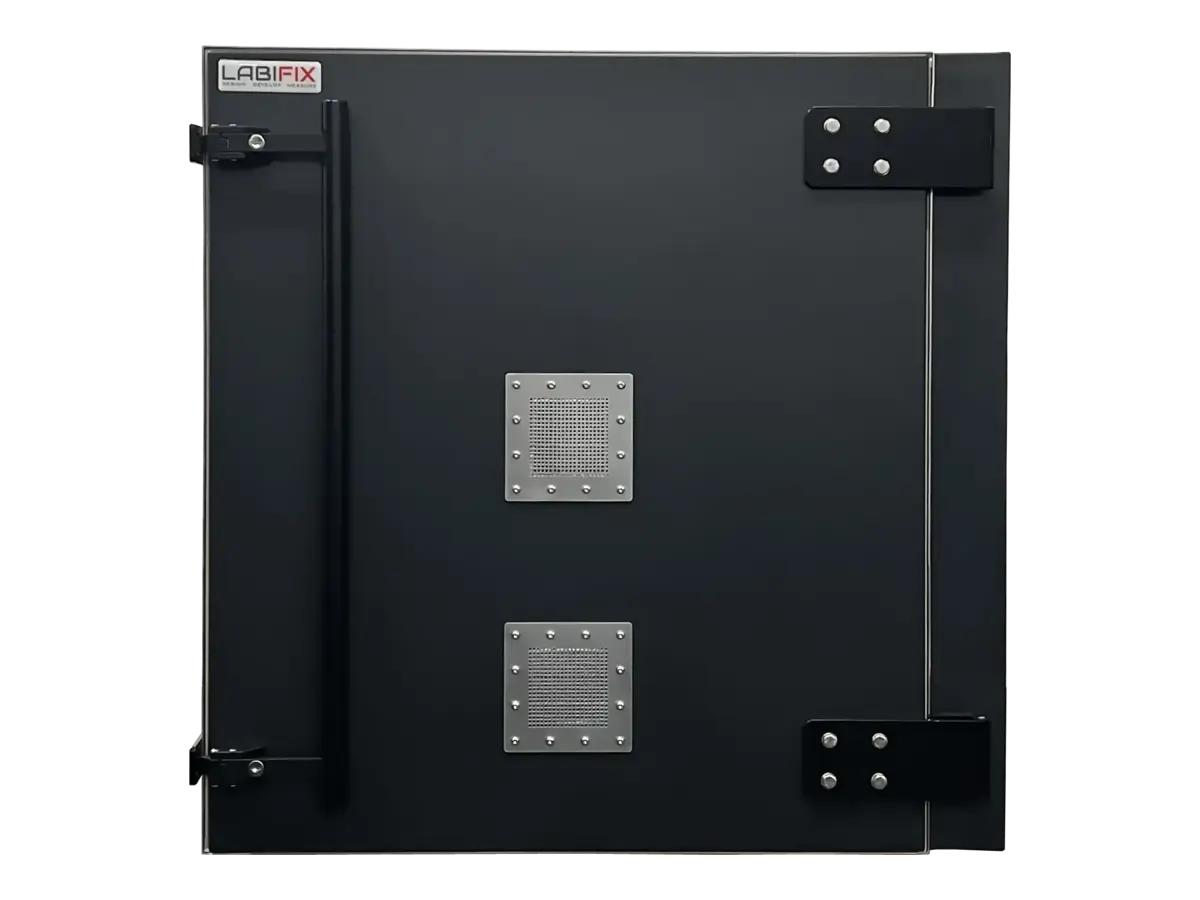

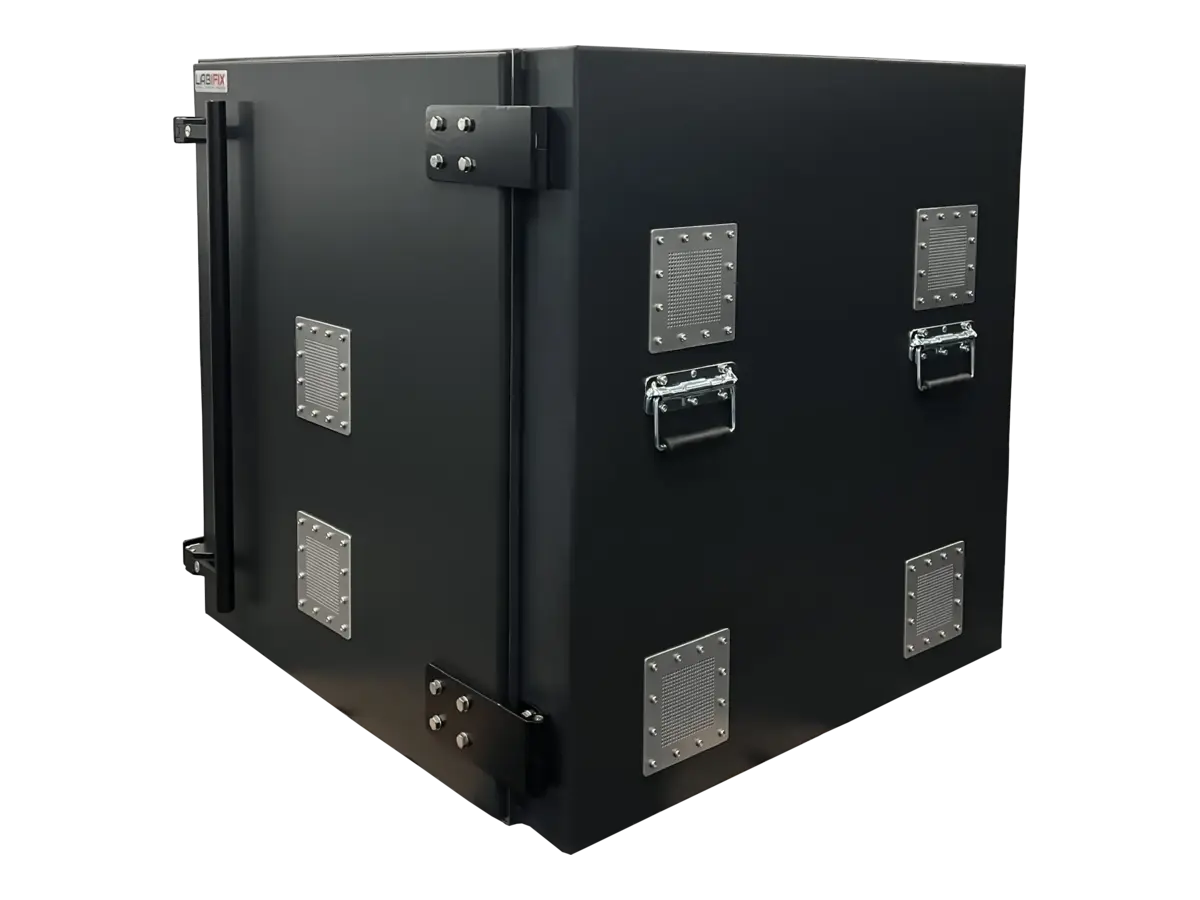

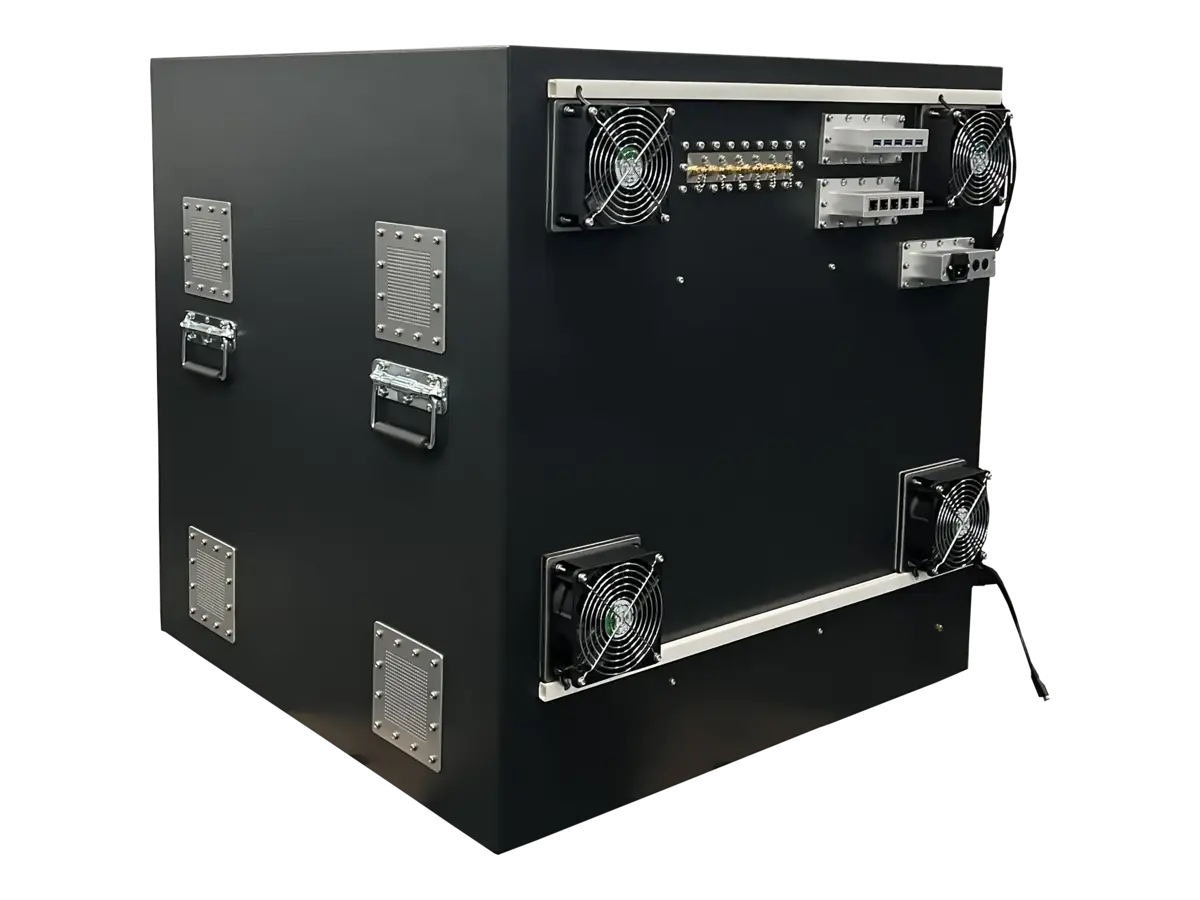

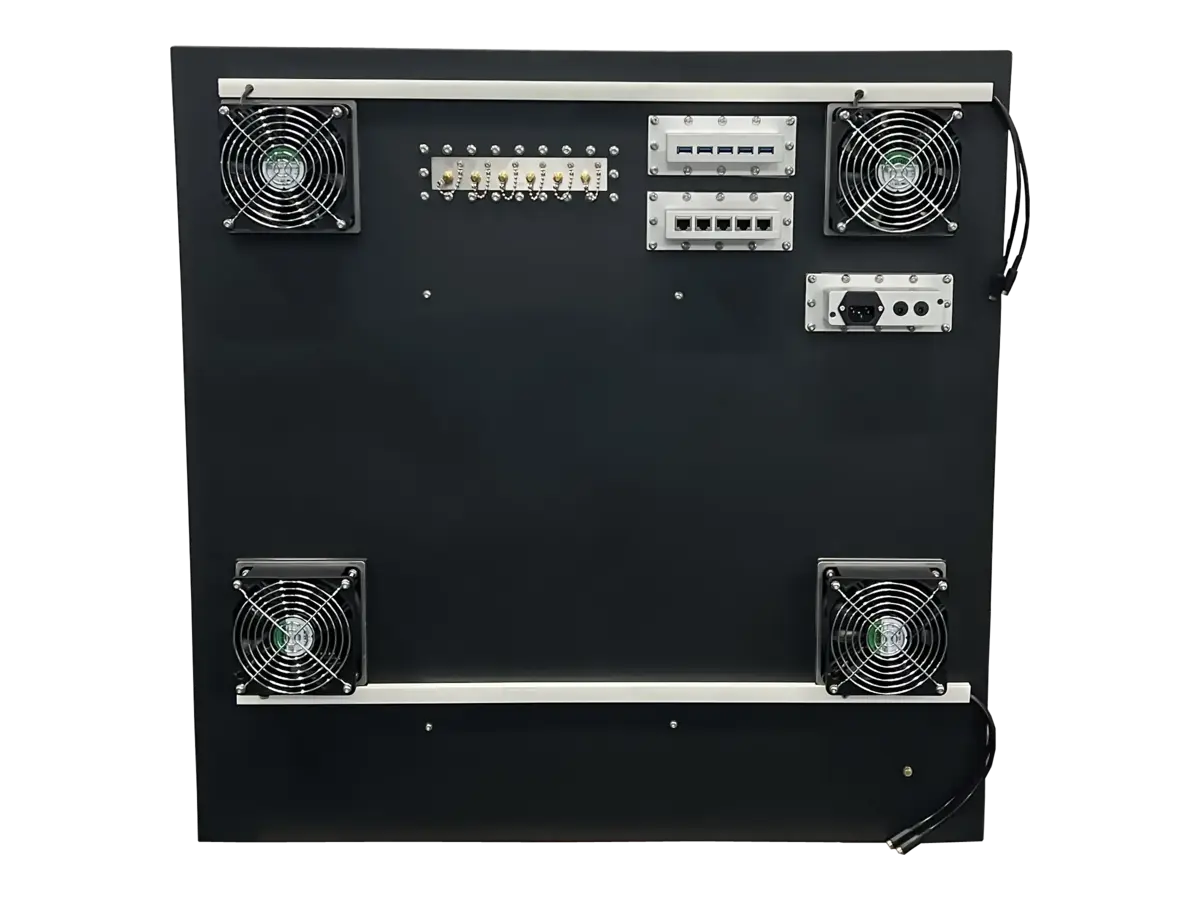

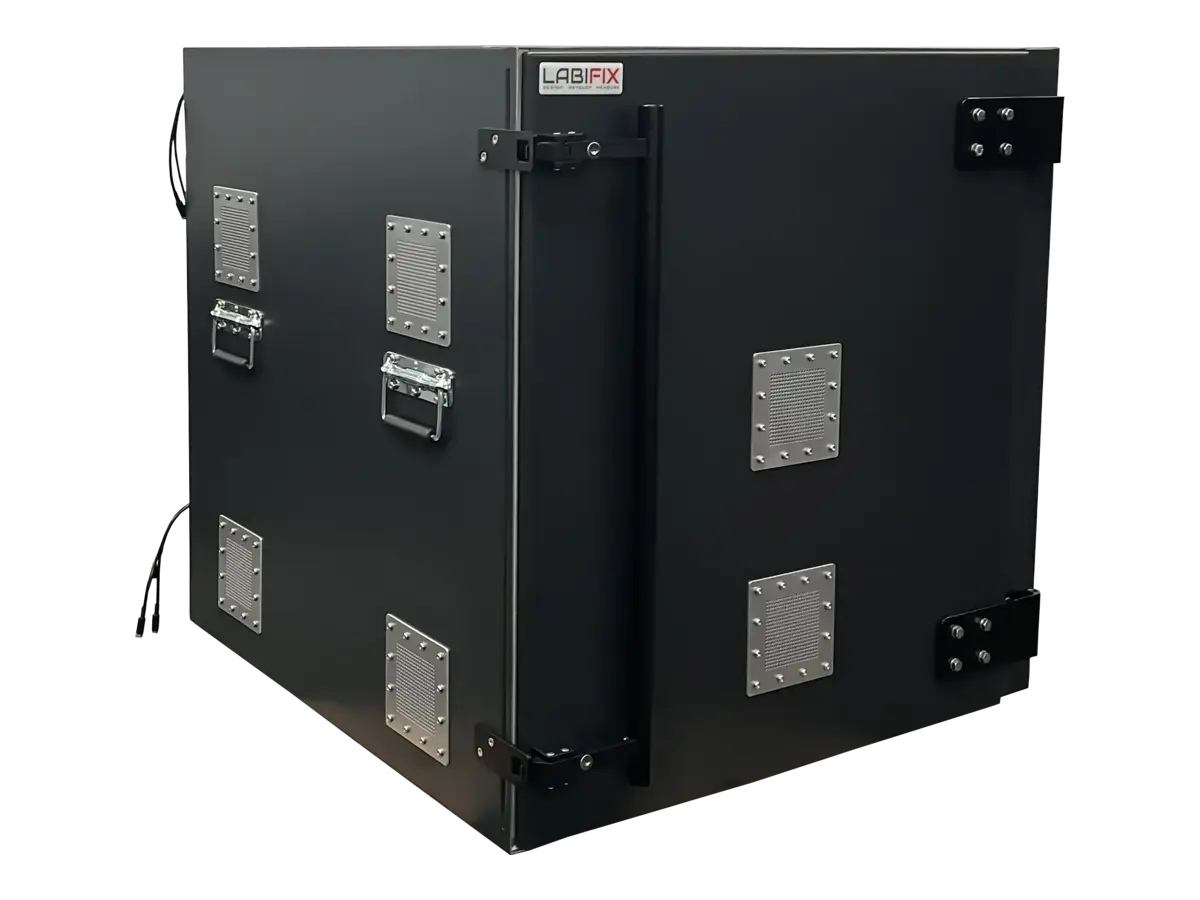

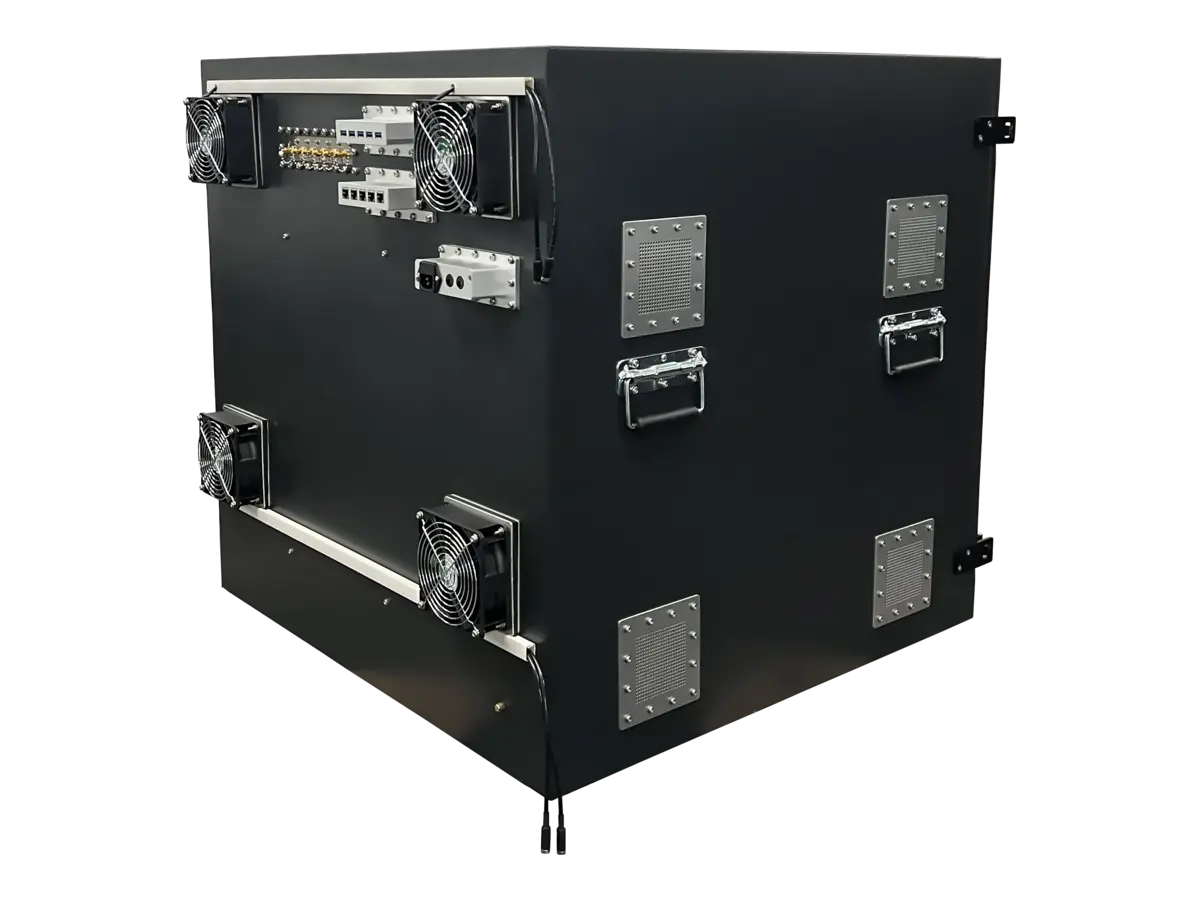

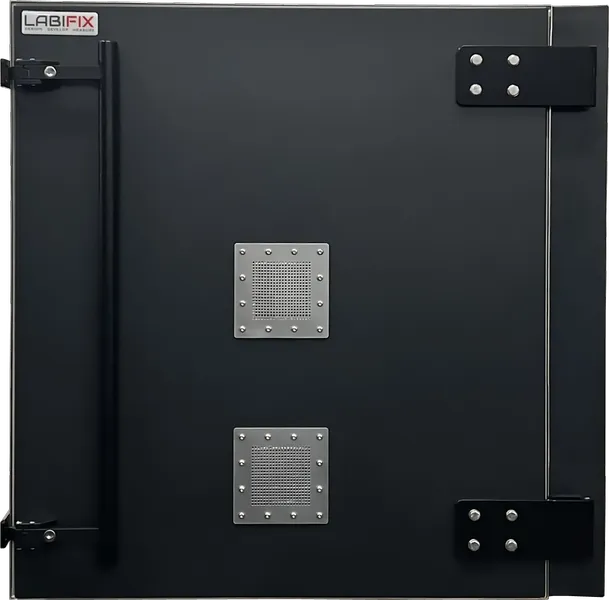

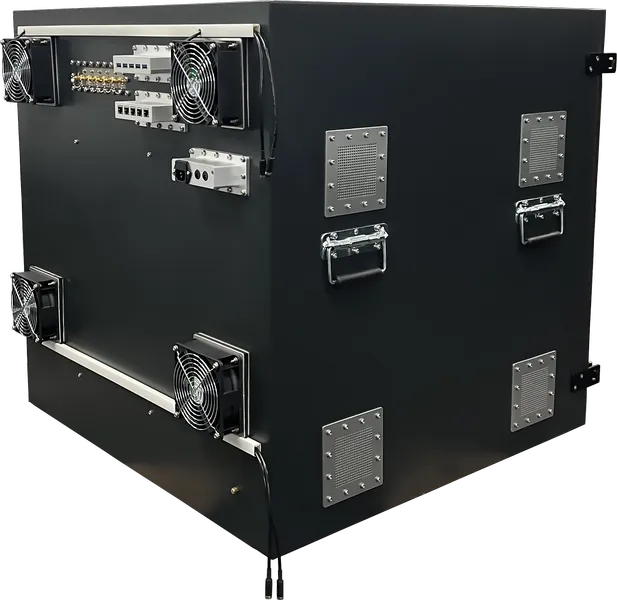

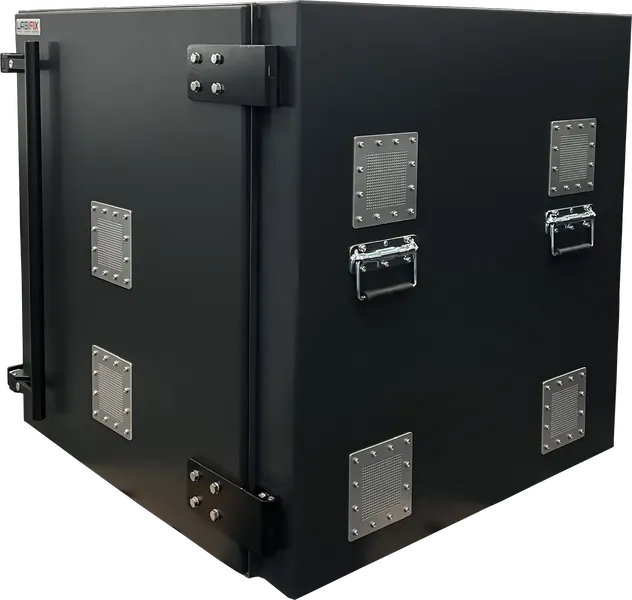

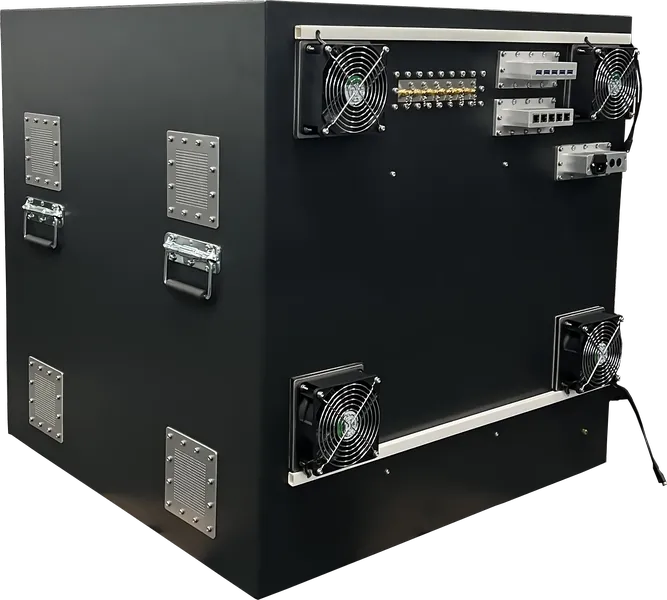

LBX6800 Desktop RF isolation box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX6800 RF Shield Box

LBX6800 RF Shielding Box is a compact manual enclosure designed for reliable wireless device testing in controlled environments. Its rugged construction helps isolate the device under test from external EMI and RFI while containing unwanted wireless emissions. The enclosure can be configured with AC or DC power filtering, EMI/RFI filtered USB 2.0 and USB 3.0 data connections, and customized I/O interfaces. It helps engineers create controlled, repeatable RF testing environments for laboratories, engineering benches, and production validation workflows

Dimensions
Exterior (H x W x D)
32" (H) x 32" (W) x 32" (D)
Interior (H x W x D)
30" (H) x 30" (W) x 30" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX6800 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
32"(EXTERIOR WIDTH)32"(EXTERIORHEIGHT)FRONT VIEW32"(EXTERIOR DEPTH)SIDE VIEW32"(EXTERIOR WIDTH)32"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 32" (W) × 32" (H) × 32" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX6800 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
30"(INTERIOR WIDTH)30"(INTERIORHEIGHT)INTERIOR FRONT VIEW30"(INTERIOR DEPTH)INTERIOR SIDE VIEW30"(INTERIOR WIDTH)30"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 30" (W) × 30" (H) × 30" (D)RF Pyramidal Microwave Absorber Lining Boundary
