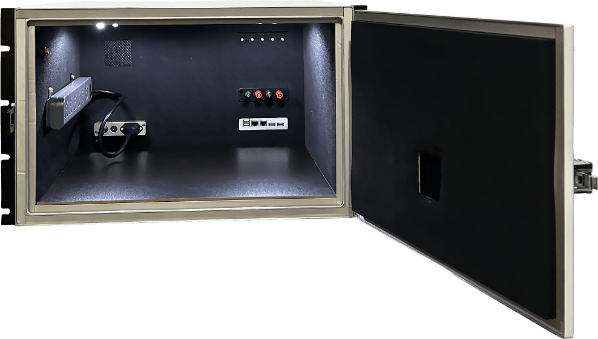

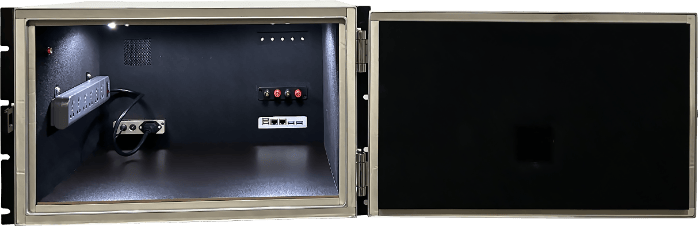

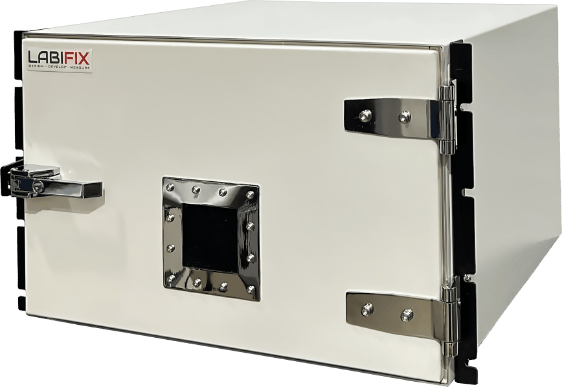

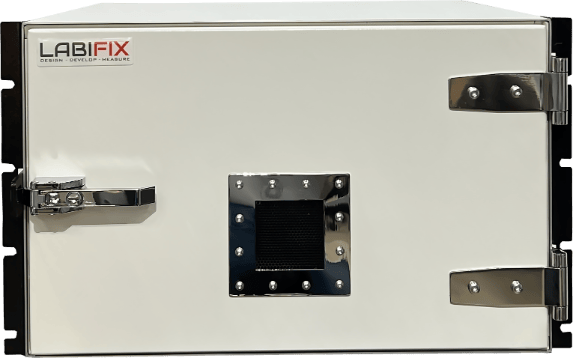

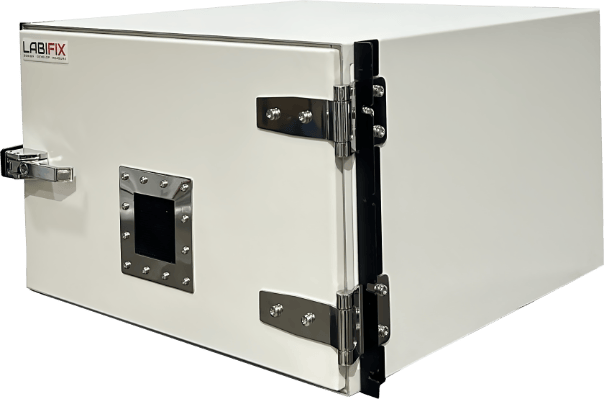

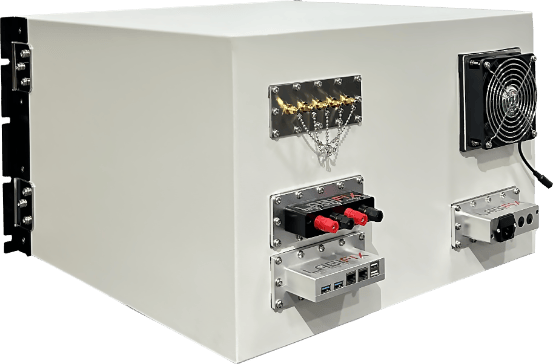

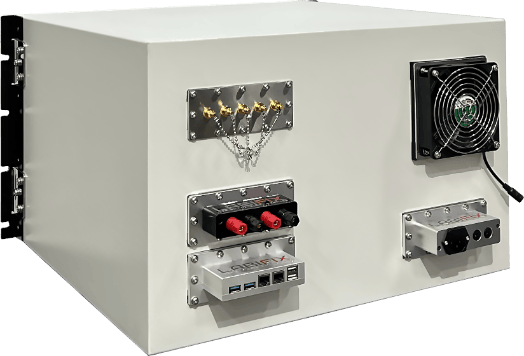

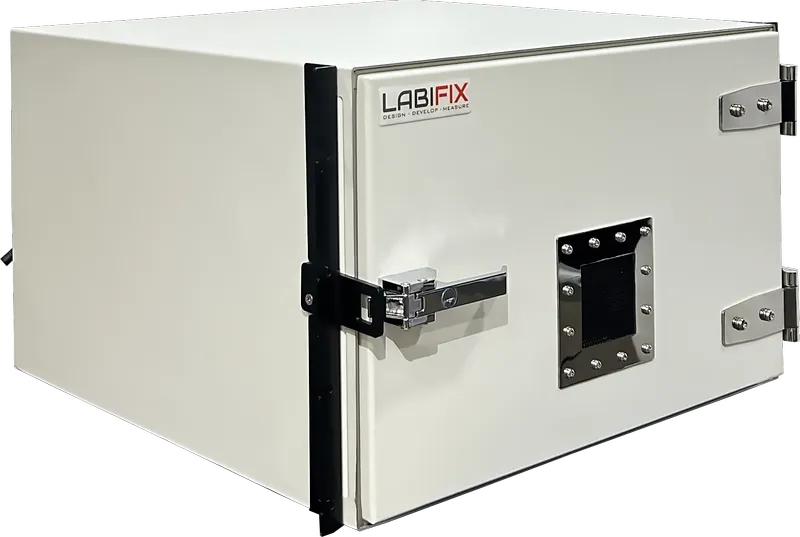

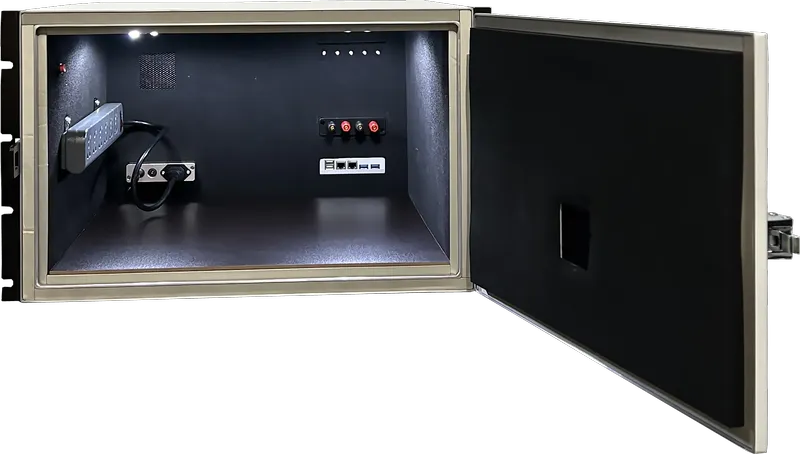

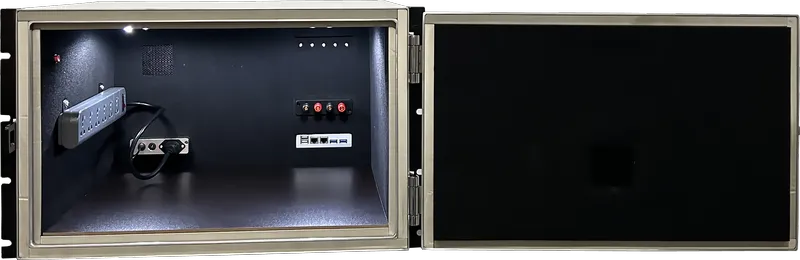

LBX4650 Wi-Fi 6E Testing Shielded Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

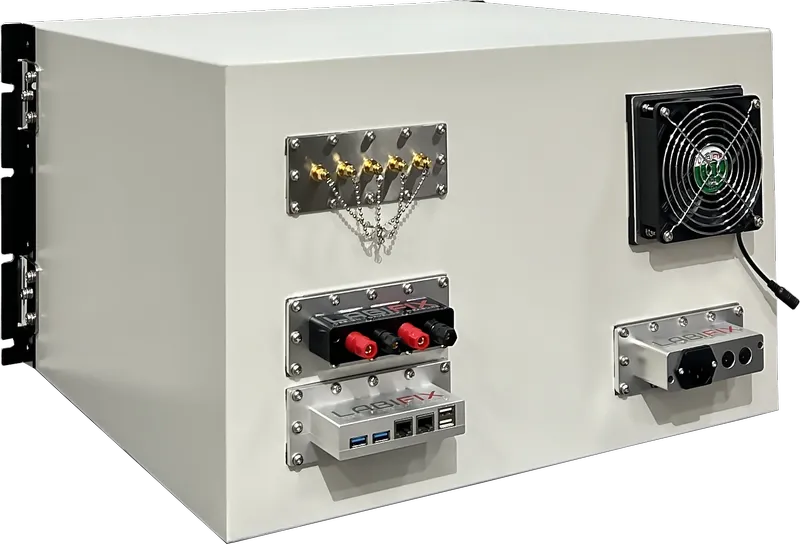

LBX4650 RF Shield Box

LBX4650 provides a flexible way to control RF isolation for engineers who work with wireless devices and electronic systems. Key setup choices involve the RF Gasket System and customizable, swapable I/O Connector options. This makes it a good choice for testing LTE, 4G, and 5G networks.The enclosure provides a way to set up controlled RF testing at the device level, allowing engineers to work in a consistent RF environment. For teams looking for a benchtop shielded enclosure, the LBX4650 can be included as part of a customized RF shielding solution.

Dimensions
Exterior (H x W x D)
14" (H) x 22" (W) x 22" (D)
Interior (H x W x D)
12" (H) x 20" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4650 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)14"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 14" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4650 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)12"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 12" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
