LBX1900

RF SHEILDED TEST ENCLOSURE

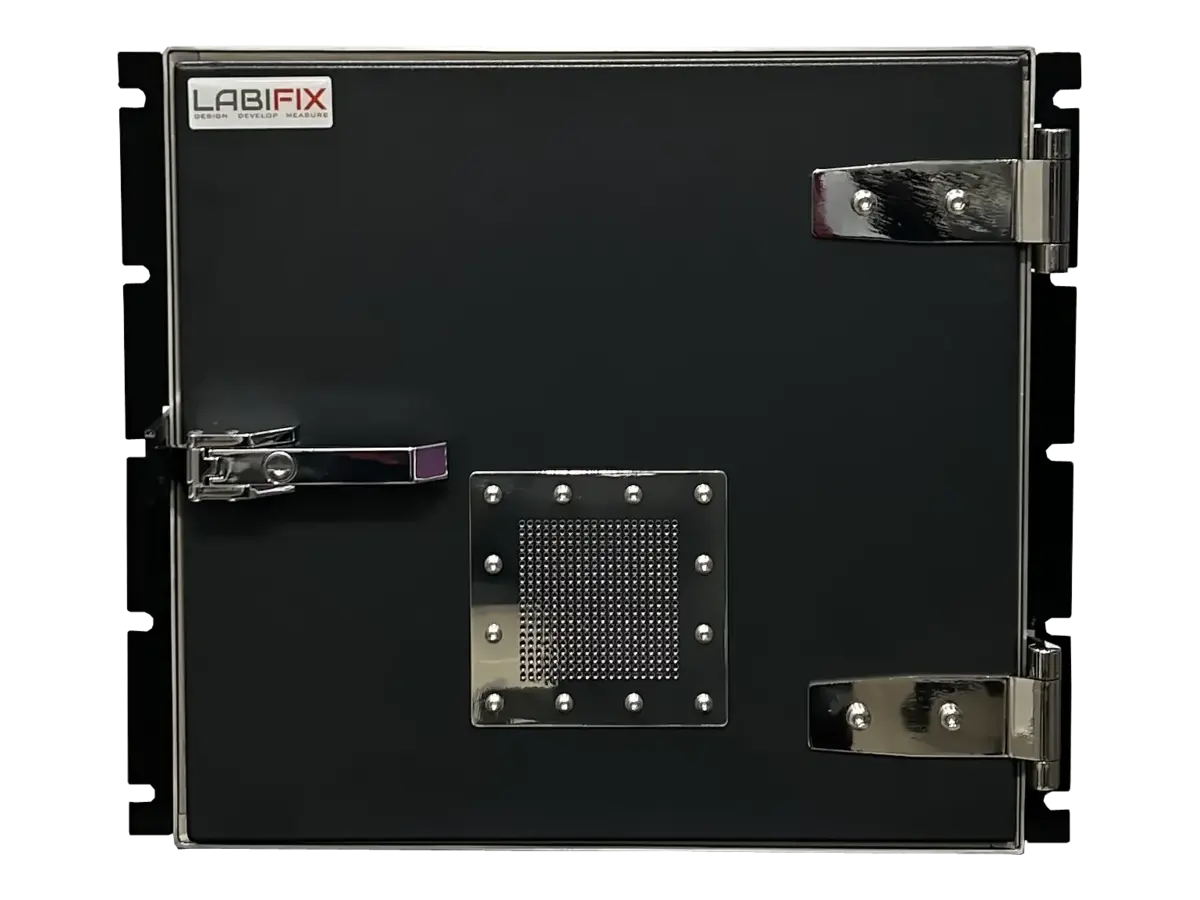

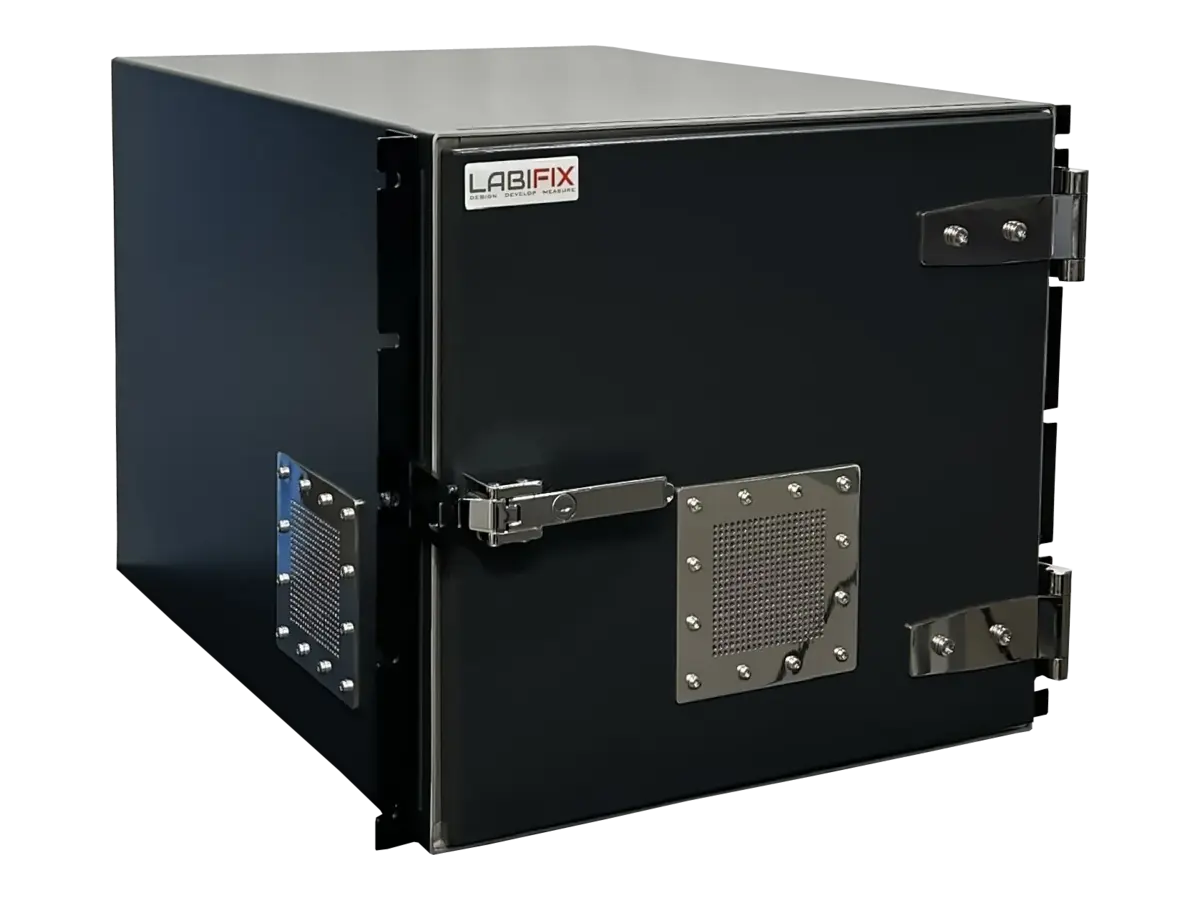

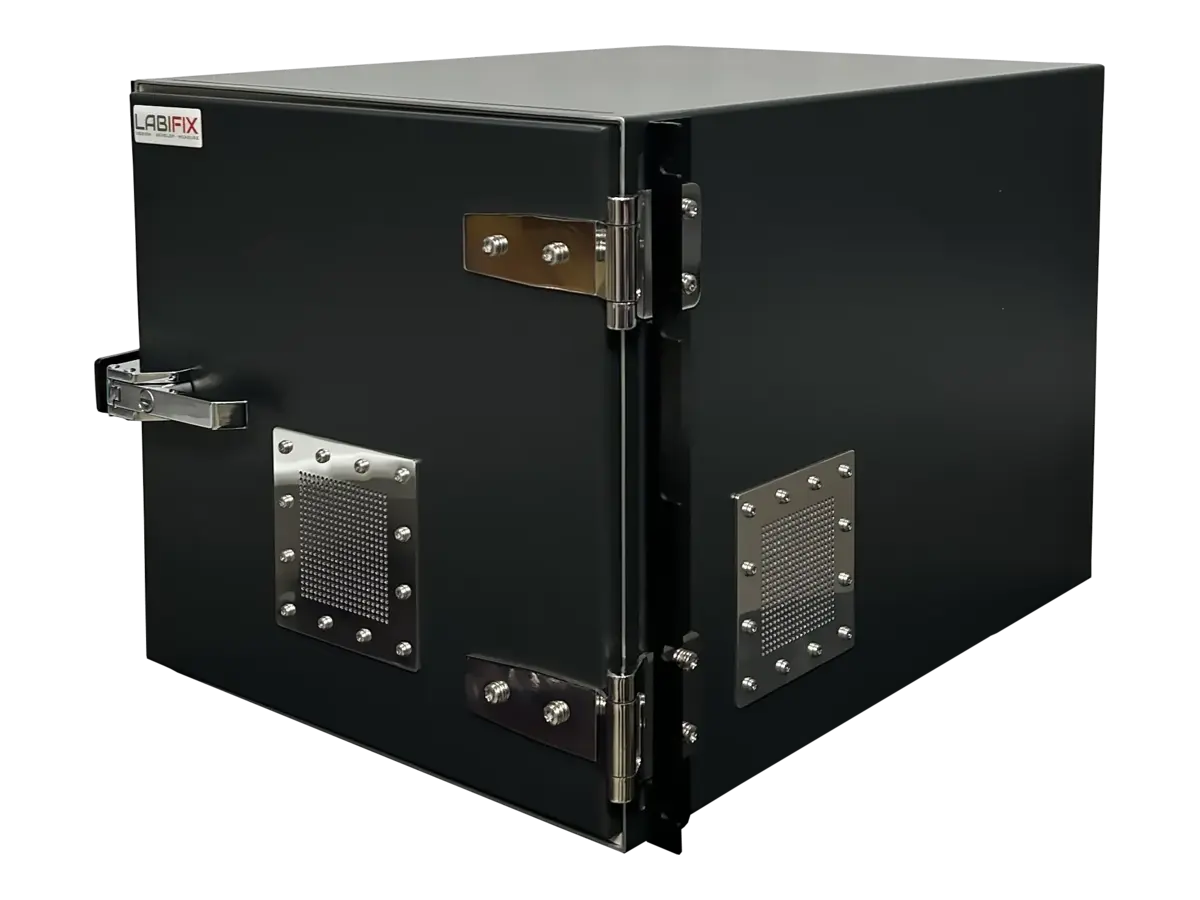

LBX4000A RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

The purpose of the LBX 4000A RF shielded test enclosure is to test the performance, functionality, and compatibility of wireless devices. High shielding > 90dB against all EMI/RFI types is provided, particularly for contemporary wireless communication technologies like Bluetooth, Wi-Max, 3G, 4G, and 5G LTE, as well as Wi-Fi 802.11 – all series.

By creating the I/O connections with an infinite number of swappable plug-in radio frequency modules, the product can be completely tailored to your unique specifications. There are two designs for the RF Shielded Enclosure: a standalone and a 19″ Rack mountable version. Selecting from a multitude of options is made flexible by the shielded enclosure design.

Description

Features
  • Completely Customizable Shielded Enclosure
  • RF Gasket System
  • Design and Develop for Wireless Device Testing
  • Rugged Welded Construction
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • EMI filters on Data Ports and Power lines
  • High performance shielded Air Vents for adequate air flow
Applications
  • Bluetooth and Zigbee
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Medical Device
  • Forensics and Security
  • Wireless Device Testing
  • Cellular 4G,5G,LTE, Wimax
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 16"H x 17"W x 23"D
  • Interior : 14"H x 15"W x 21"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

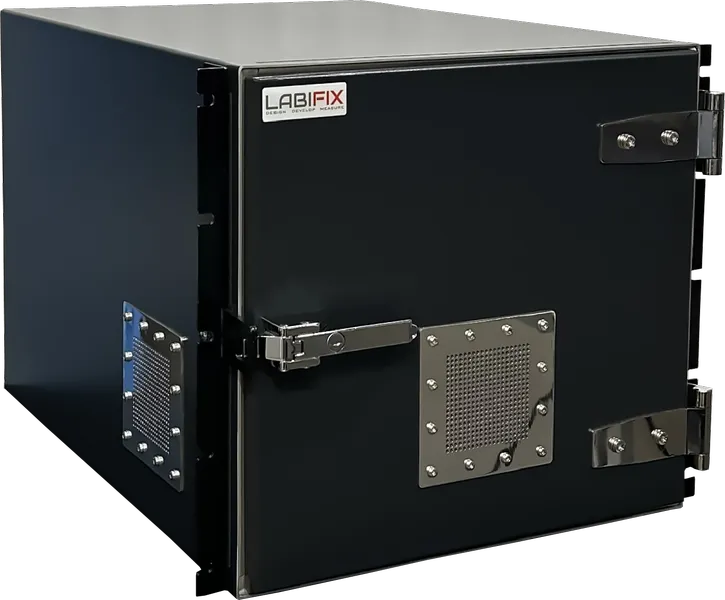

LBX4000A (1)
LBX4000A (2)
LBX4000A (3)
LBX4000A (4)
LBX4000A (5)
LBX4000A (6)
LBX4000A (7)
LBX4000A (8)
LBX4000A (9)
LBX4000A (10)

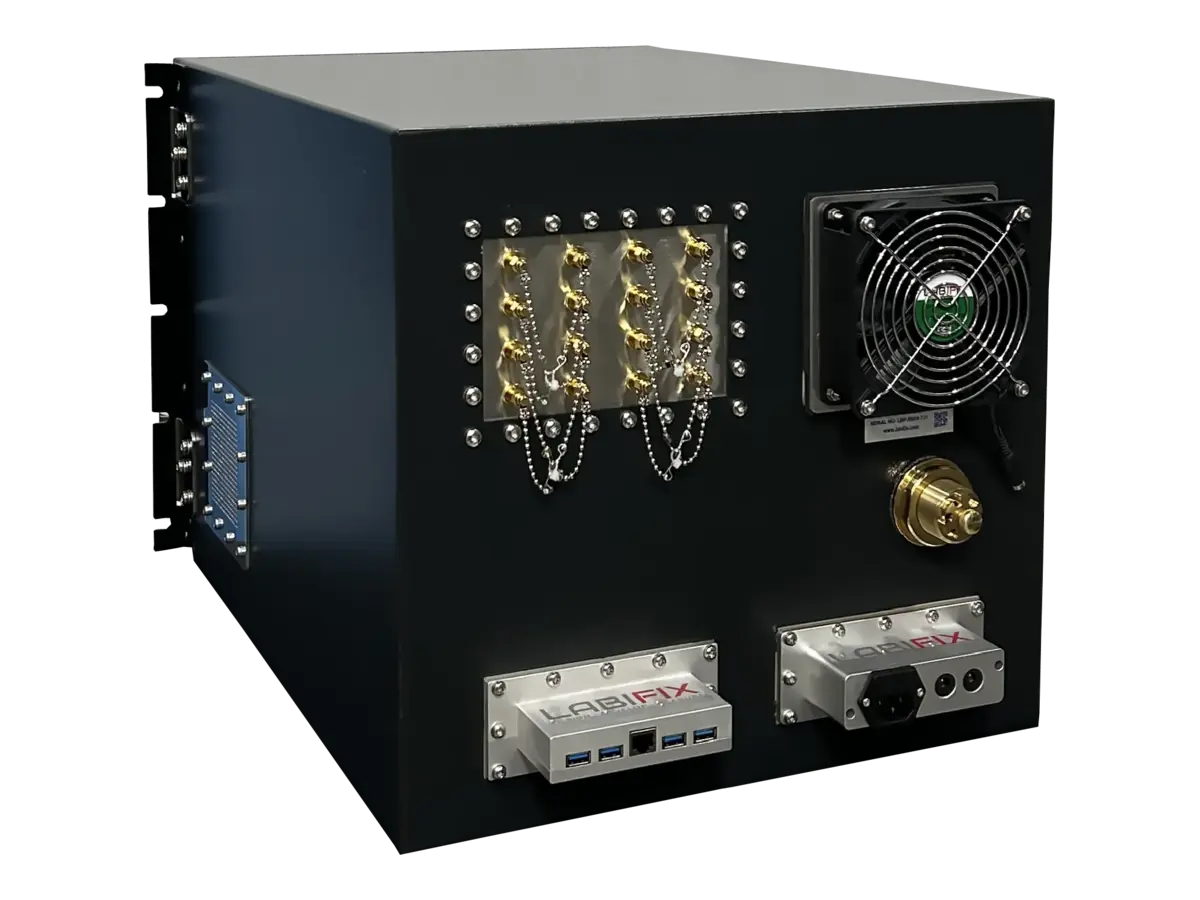

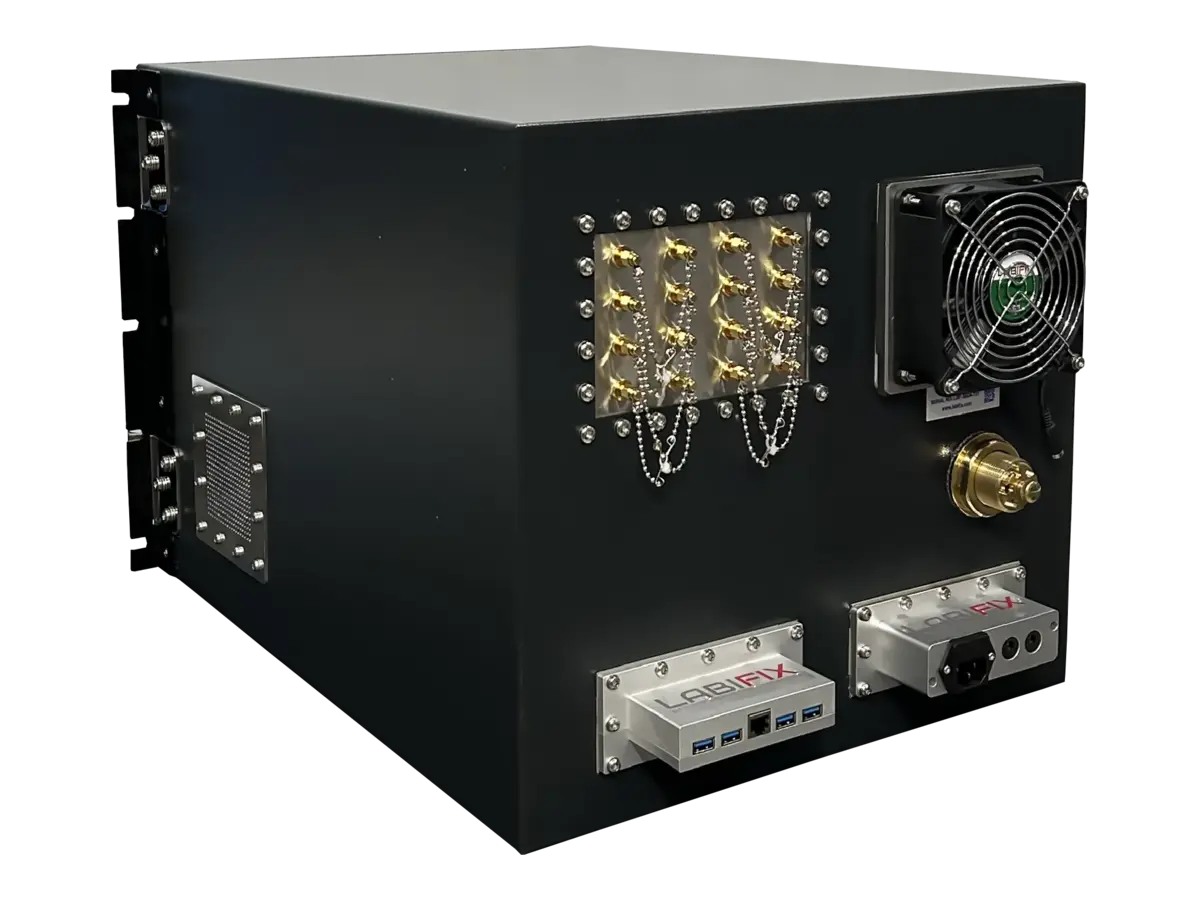

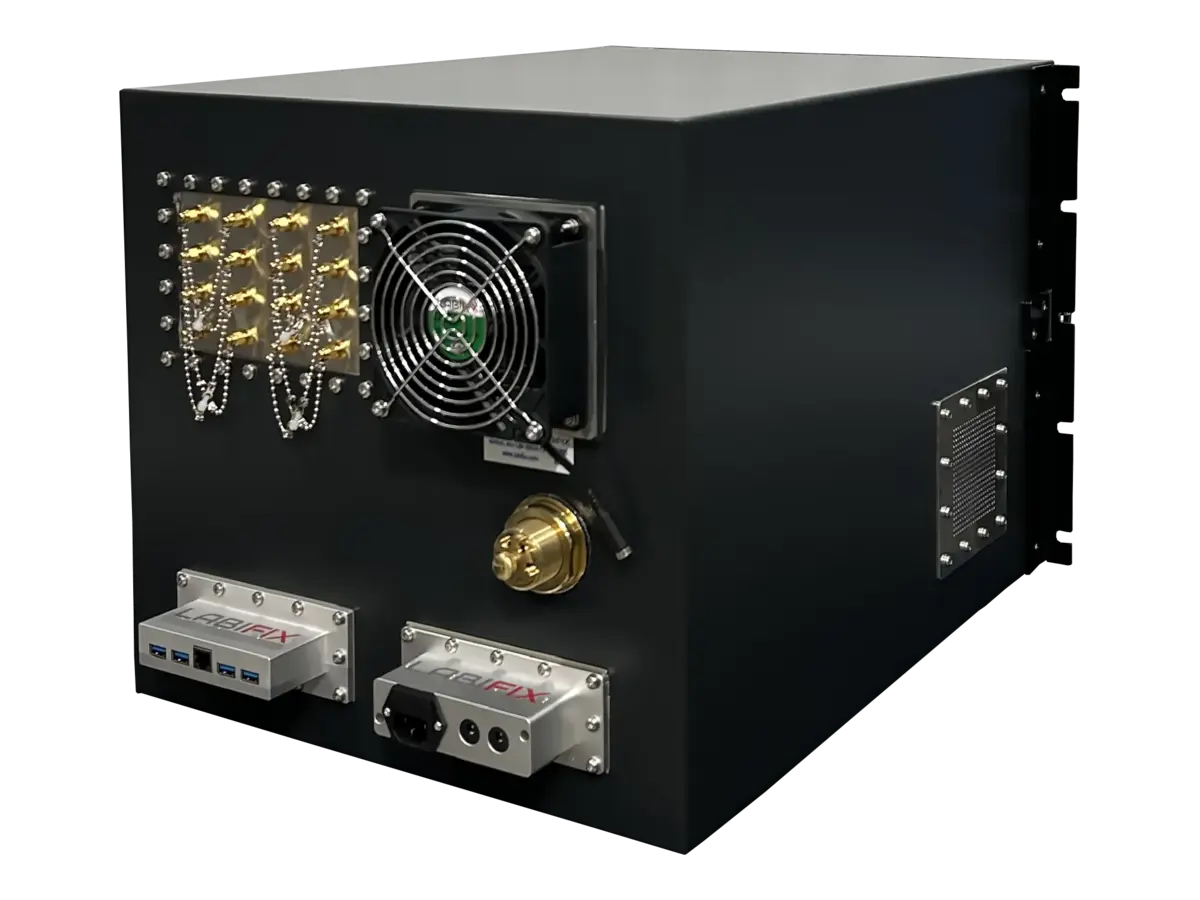

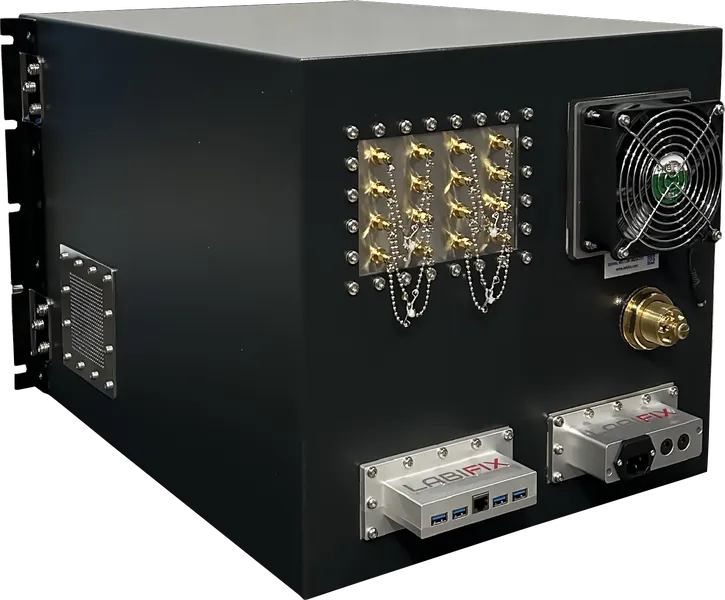

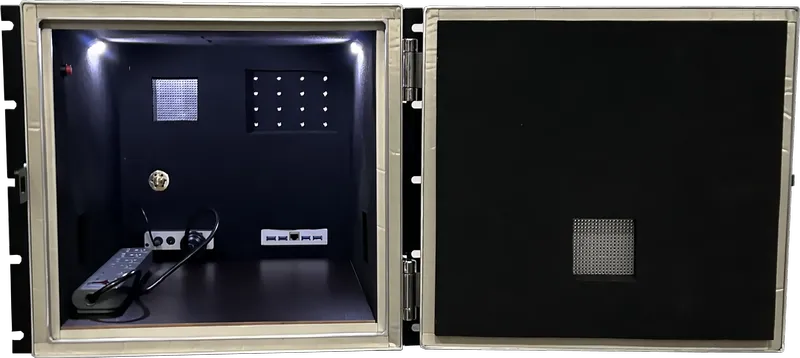

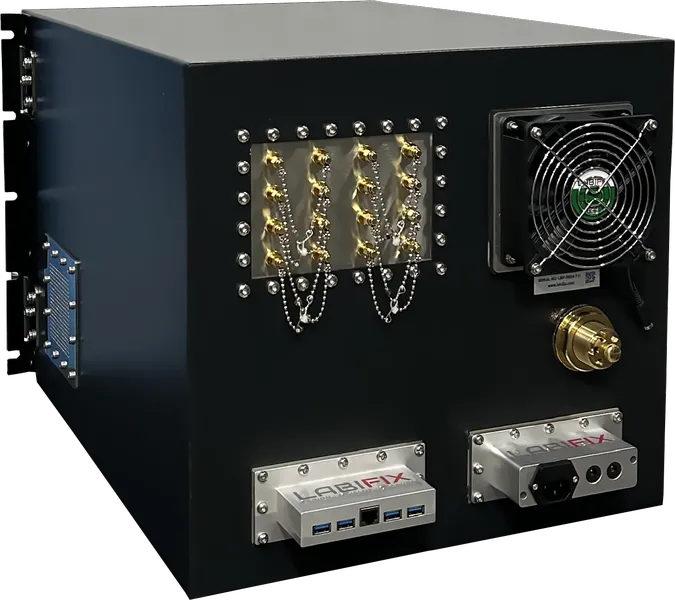

LBX4000A Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered USB RJ45
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector
  • Honeycomb Air Vents 120 mm x 120 mm

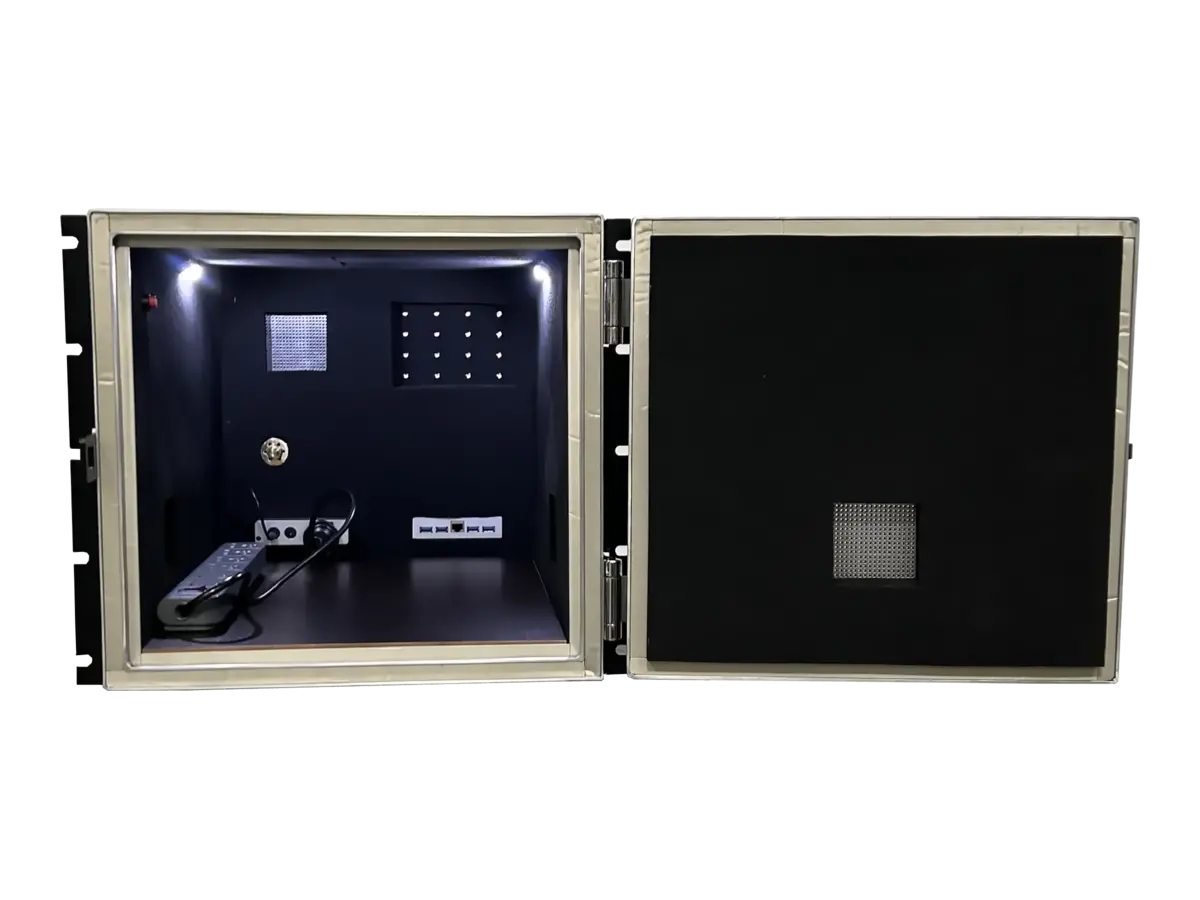

  • 1” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
