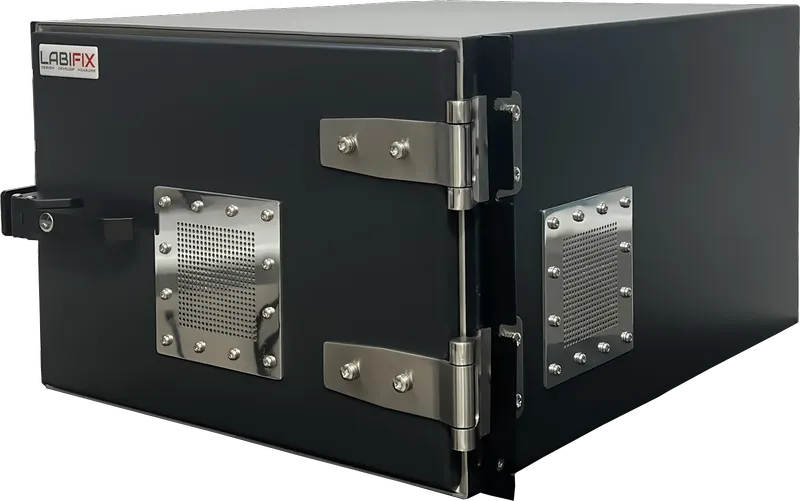

LBX2005 Manual Shielding RF Test Box LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX2005 RF Shield Box

The LBX2005 Maual Shielding box is designed based on a simple concept: to isolate the device being tested while maintaining the necessary connectivity and access for testing purposes. Its configuration can integrate with EMI filters Data Ports and Power lines, allowing engineers to achieve a balance between shielding, connectivity. LBX2005 Shield box is particularly suitable for controlled RF validation, development, and production testing workflows where consistency is crucial. For teams in need of an RF shield enclosure, the LBX2005 can be regarded as a component of a customized RF shielding solution.

Dimensions
Exterior (H x W x D)
12" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX2005 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 12" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX2005 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 10" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
