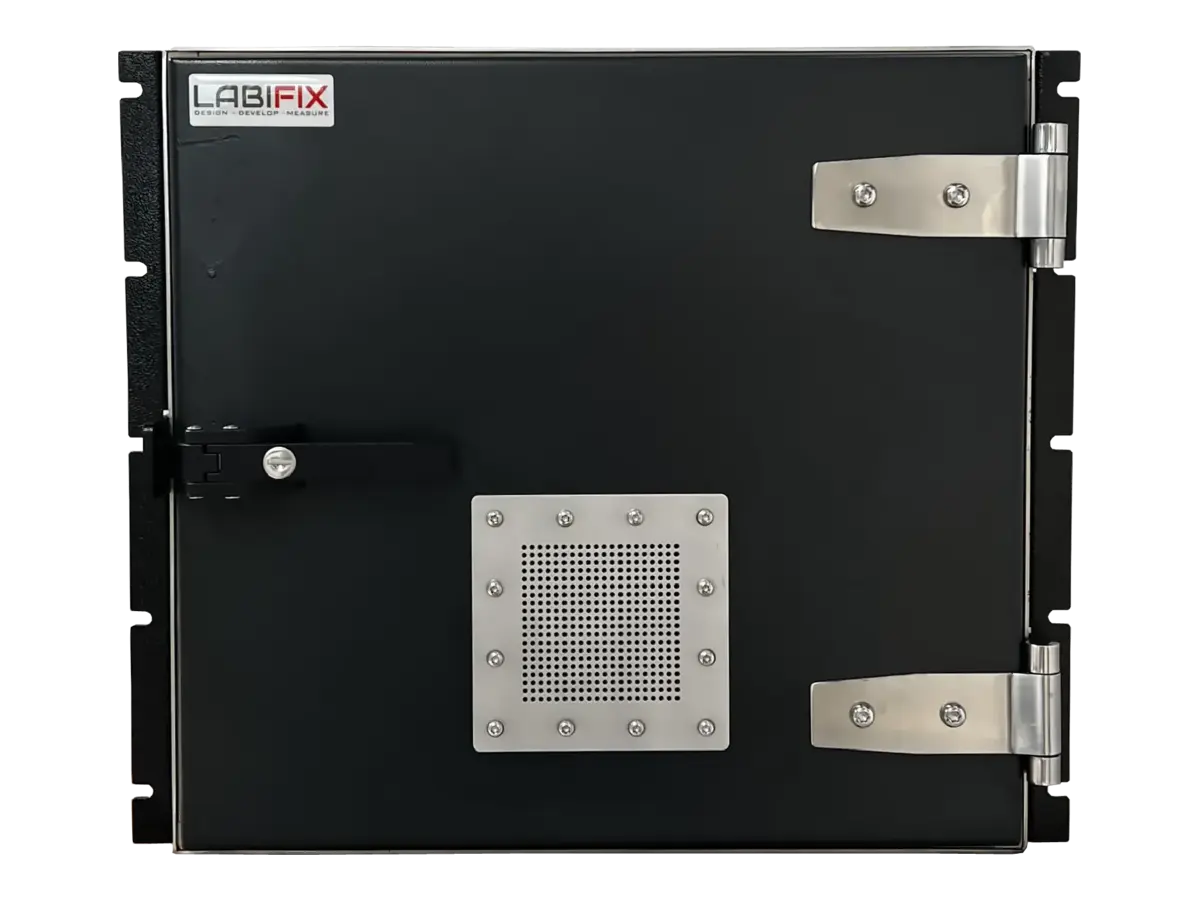

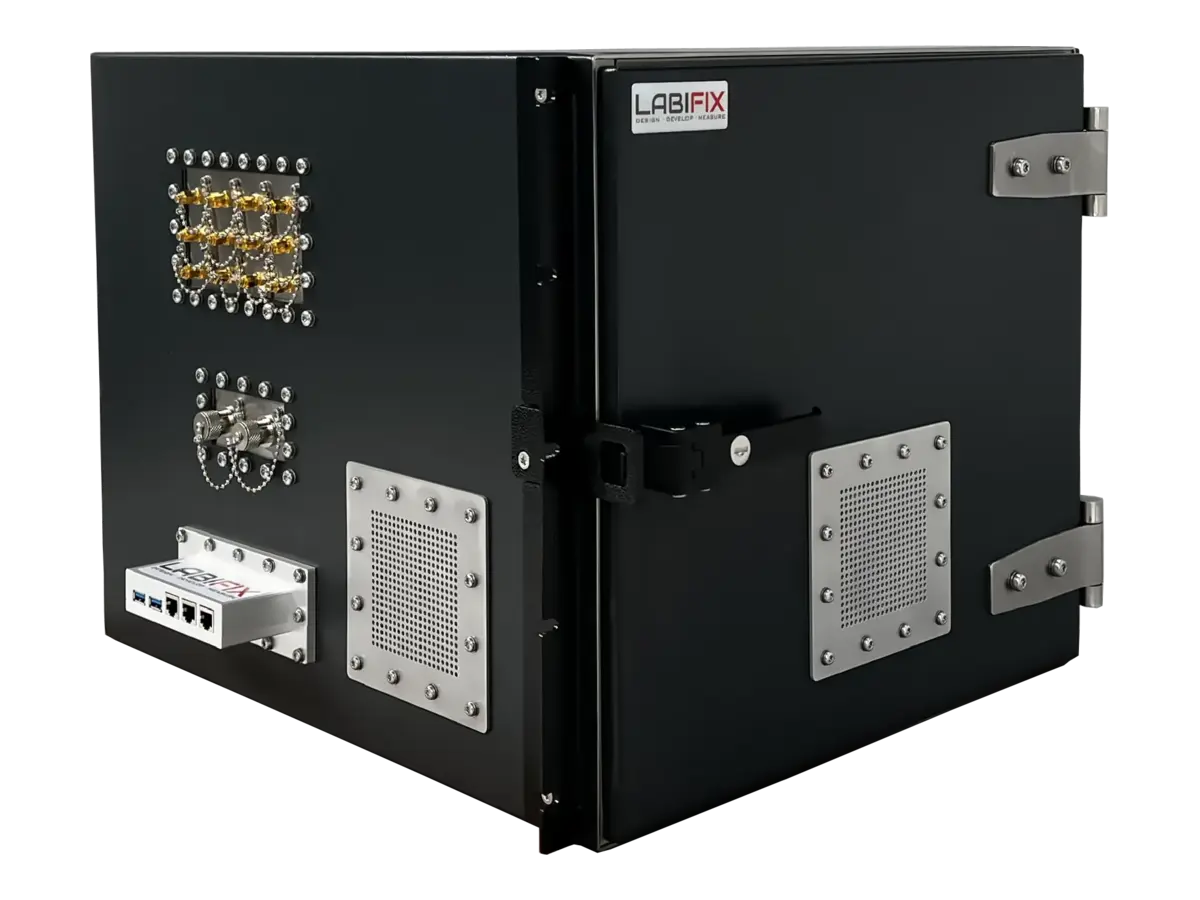

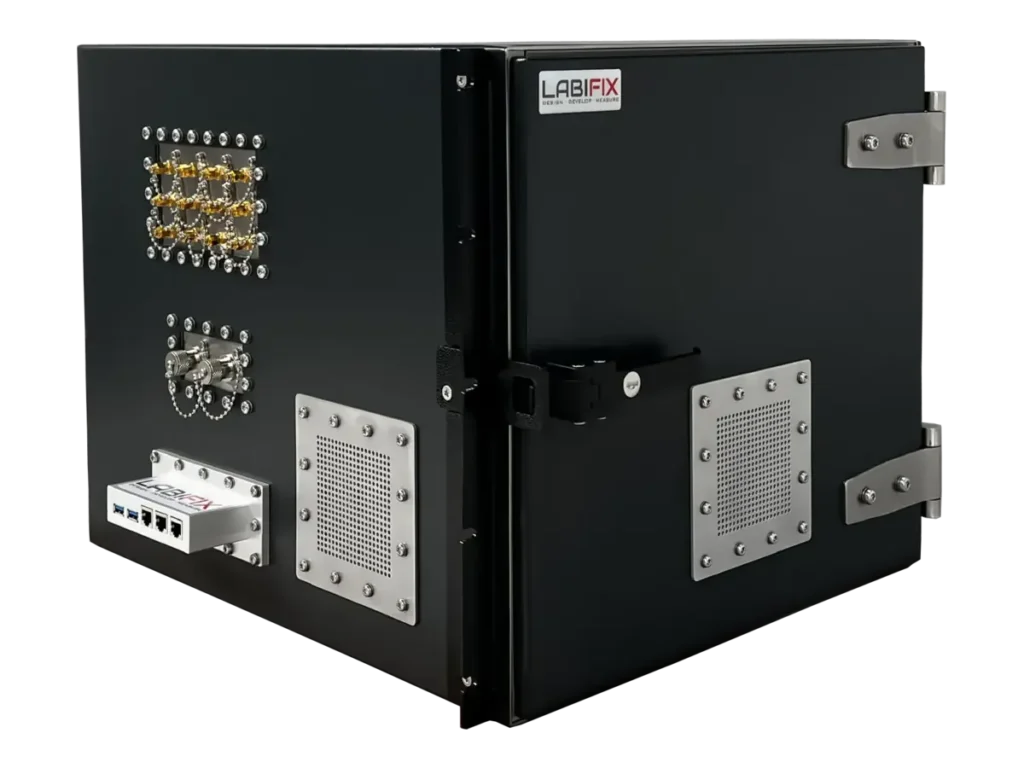

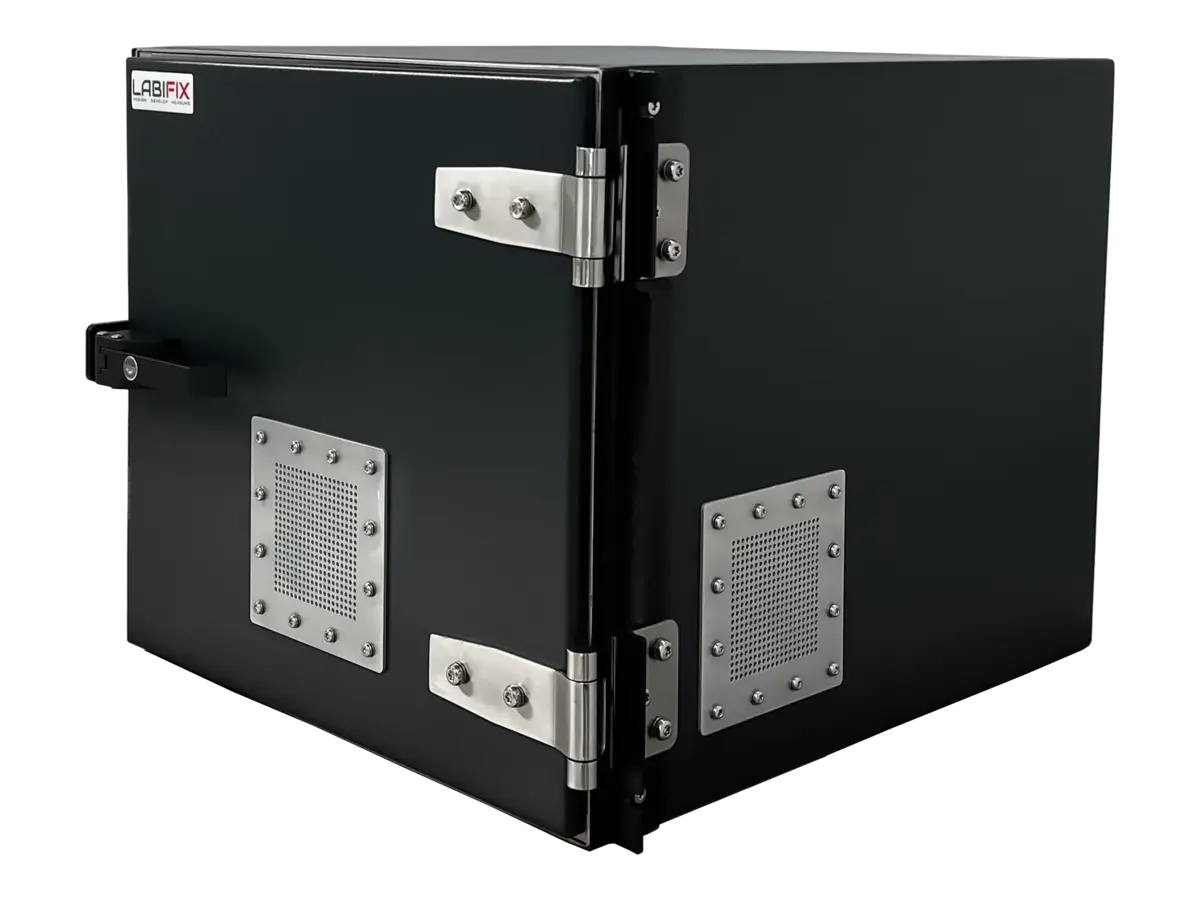

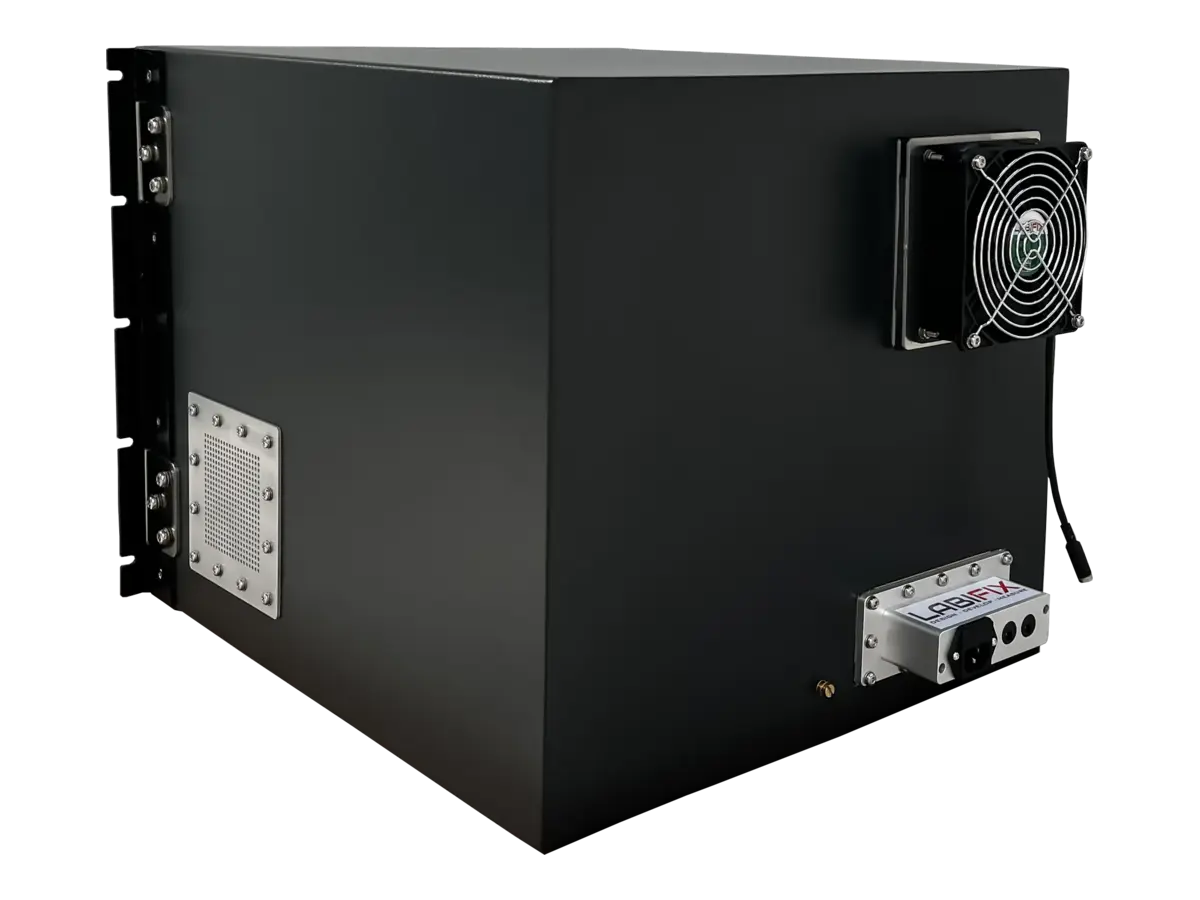

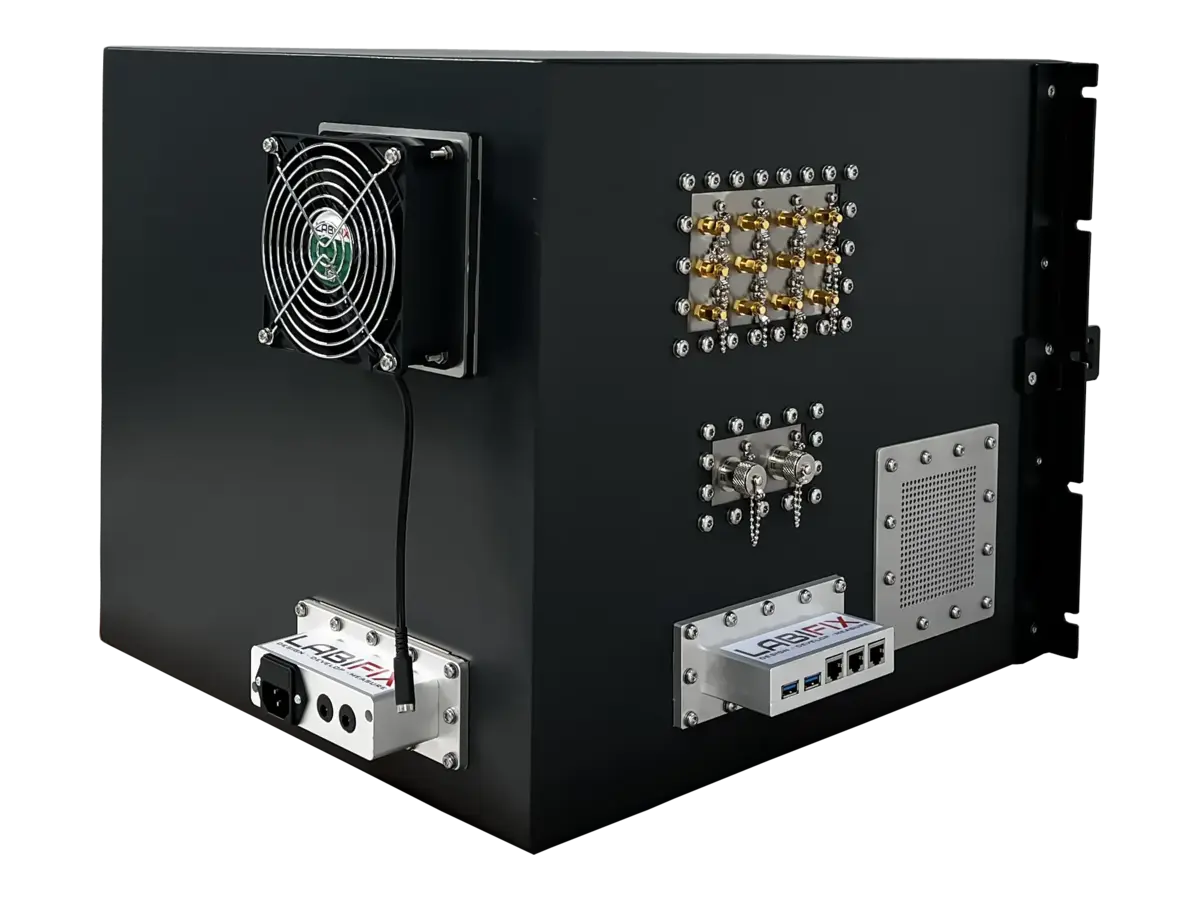

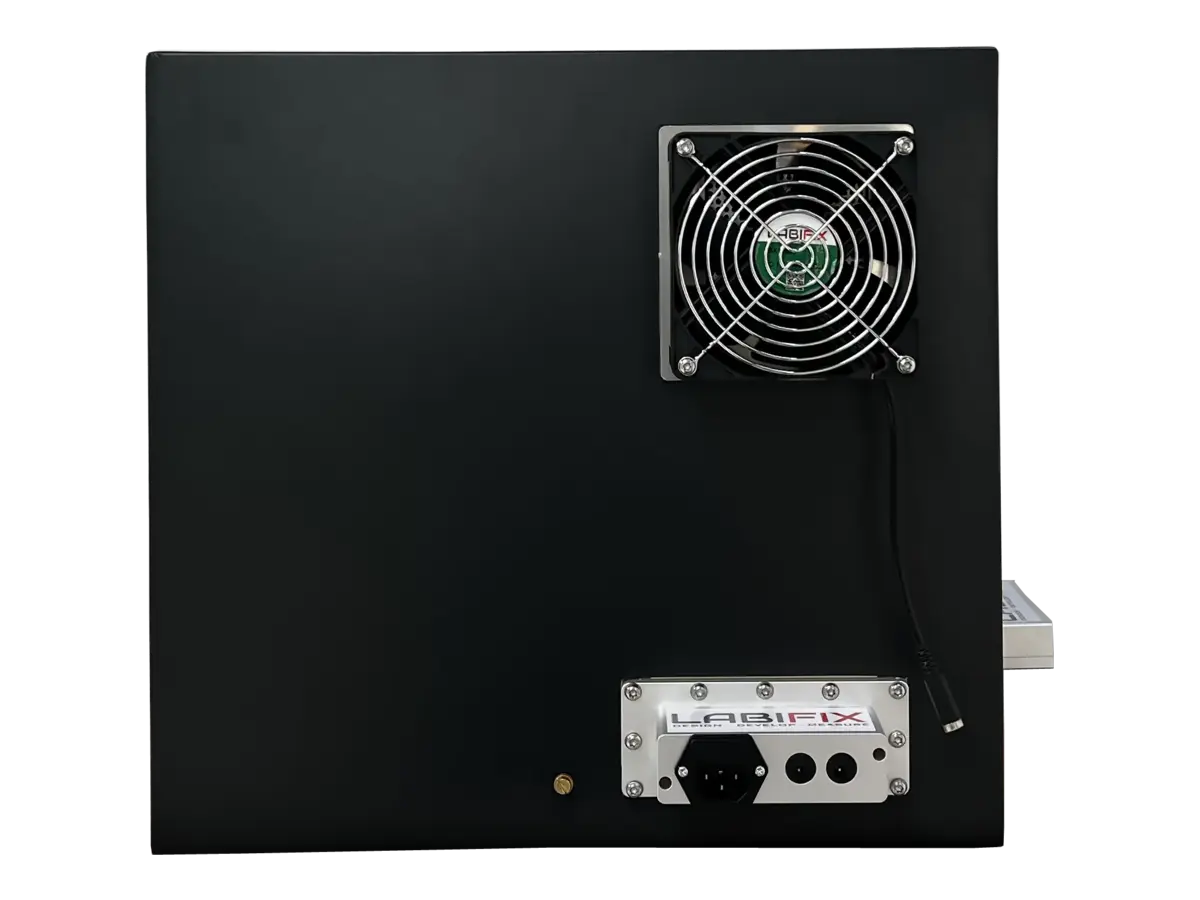

LBX4030 RF Isolation box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX4030 RF Shield Box

LBX4030 Wifi Bluetooth Testing RF Shield Box is available in 19”Rack mountable and standalone designs. The shielded enclosure design offers flexibility to choose from a wide range of options. Provides high shielding >90dB against all types of EMI/RFI, especially for modern wireless communication technologies such as 3G, 4G, 5G LTE, Wi-Fi 802.11 - all series, Wi-Max and Bluetooth etc. The product can be fully customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules

Dimensions
Exterior (H x W x D)
16" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
14" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4030 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)16"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 16" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4030 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)14"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 14" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
