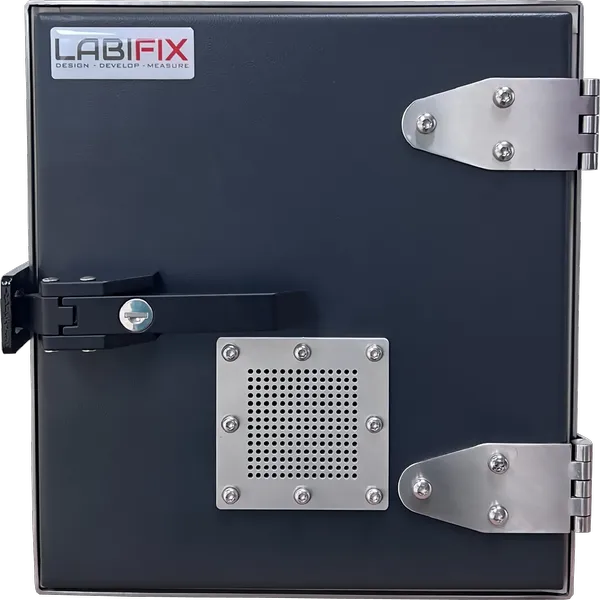

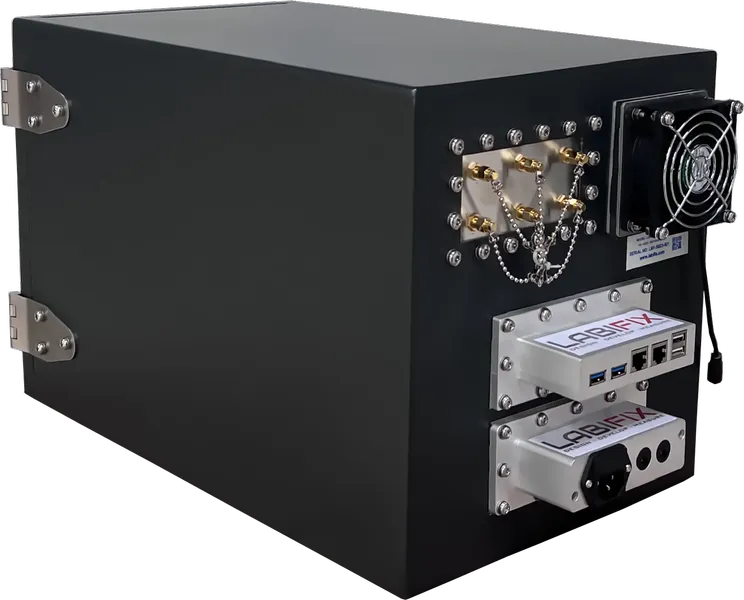

LBX1750 Tabletop Shield Box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

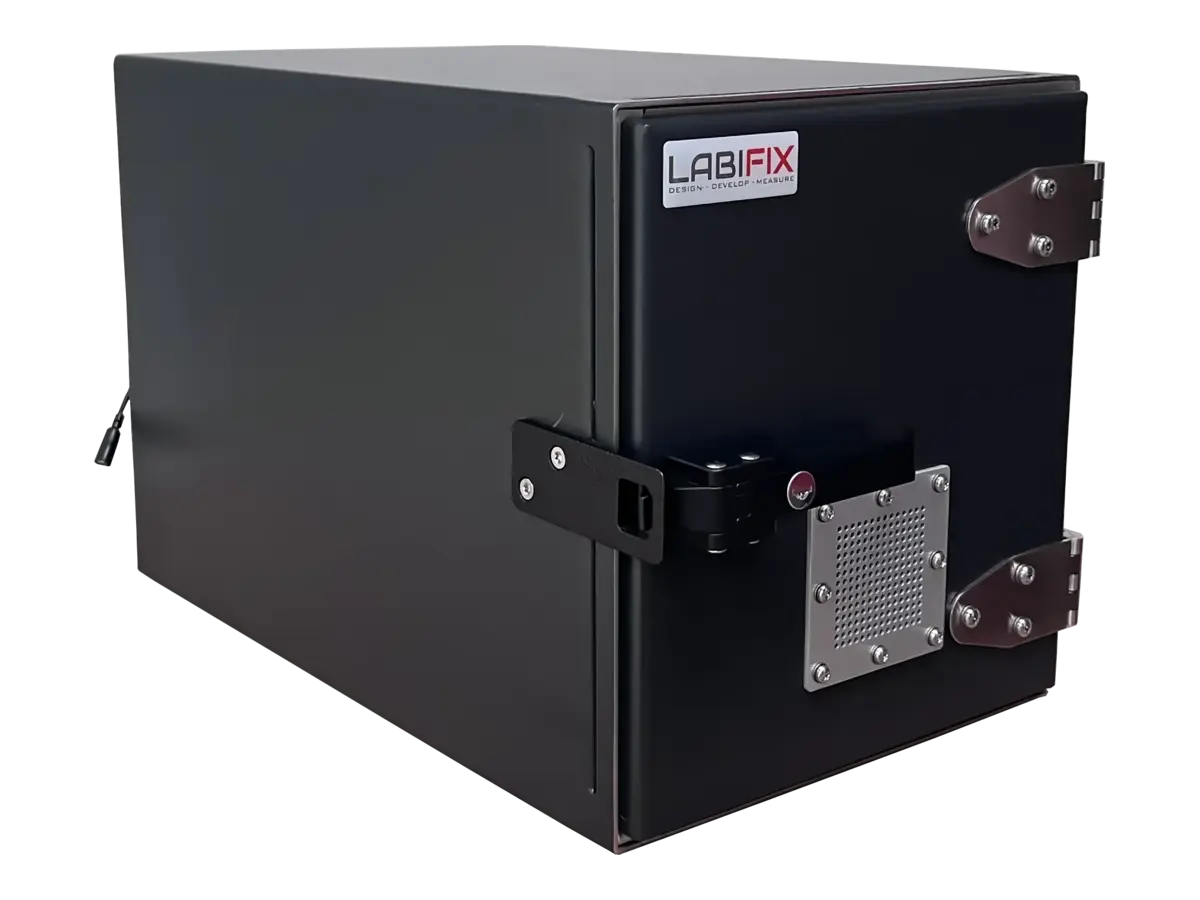

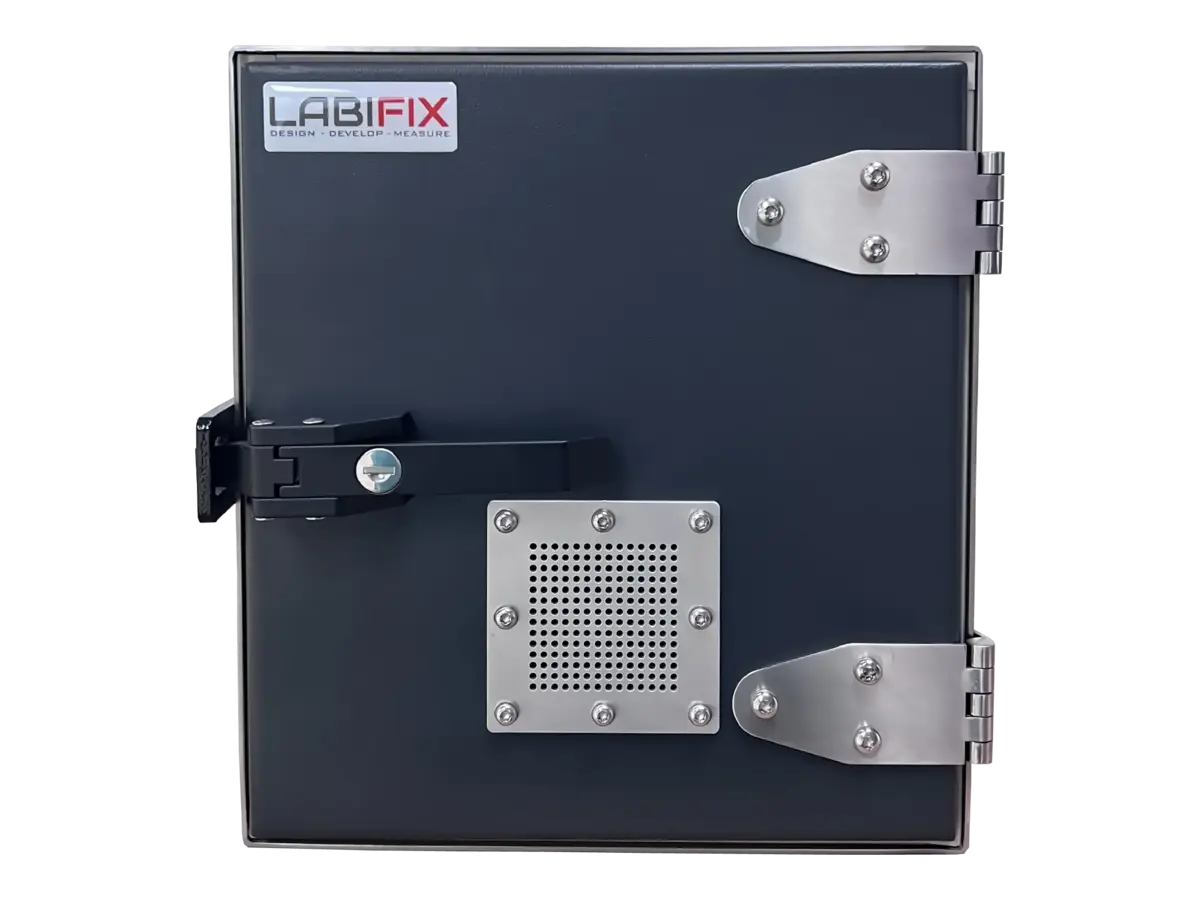

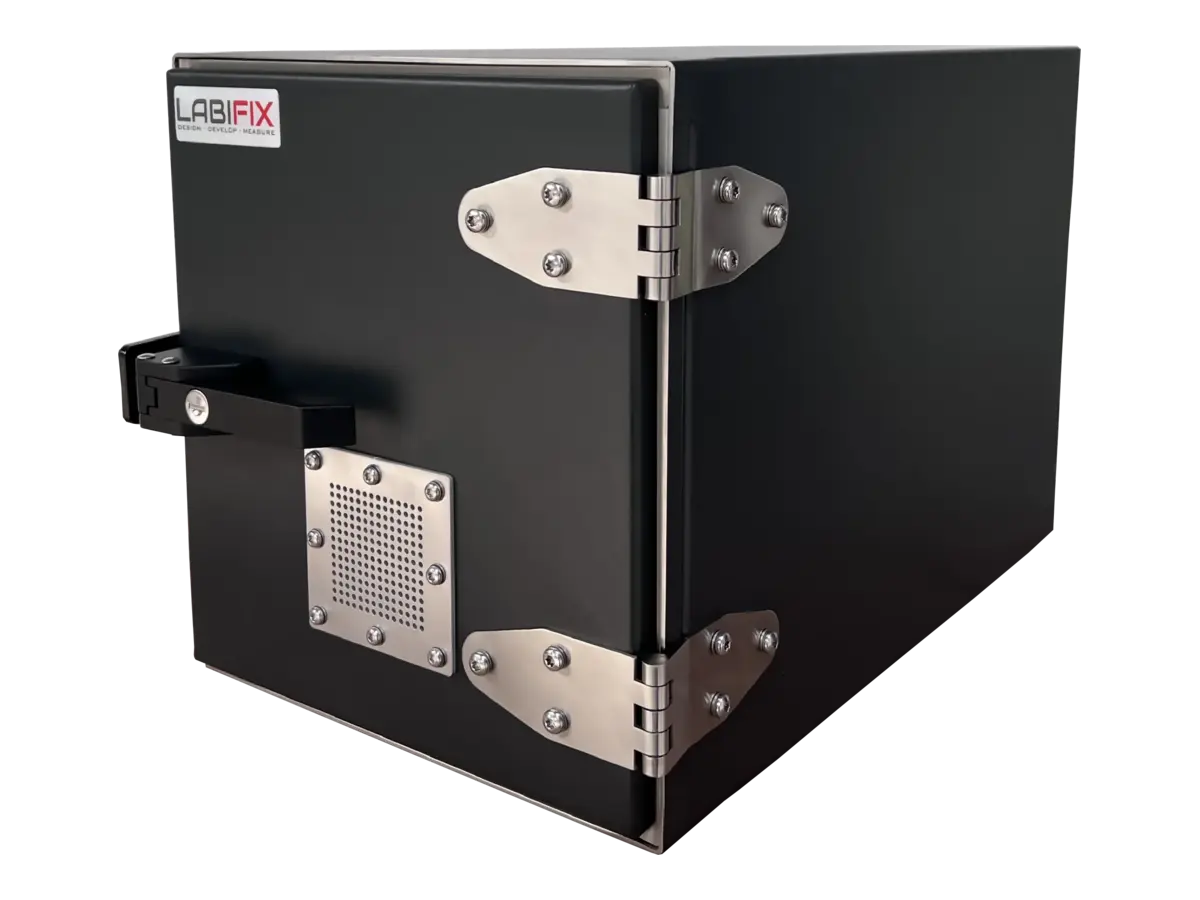

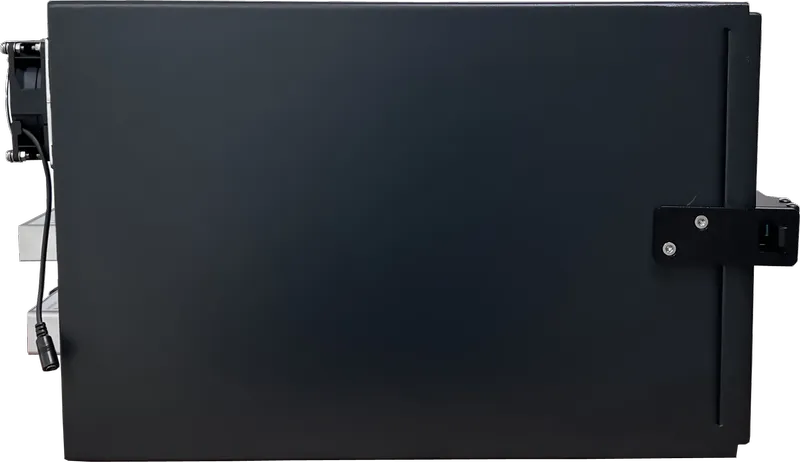

LBX1750 RF Shield Box

LBX1750 RF Enclosure is a practical choice when the test requires reliable RF isolation together with usable connectivity. The enclosure can be configured with Completely Customizable Shielded Enclosure and User Defined & Interchangeable I/O Connector options, depending on the requirements of the application. That makes it a natural fit for design validation testing, where a defined RF environment can help engineers work with greater consistency. As a RF shielded enclosure, LBX1750 can be configured around the DUT and the way it needs to be tested.

Dimensions
Exterior (H x W x D)
12" (H) x 11" (W) x 18" (D)
Interior (H x W x D)
10" (H) x 09" (W) x 16" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

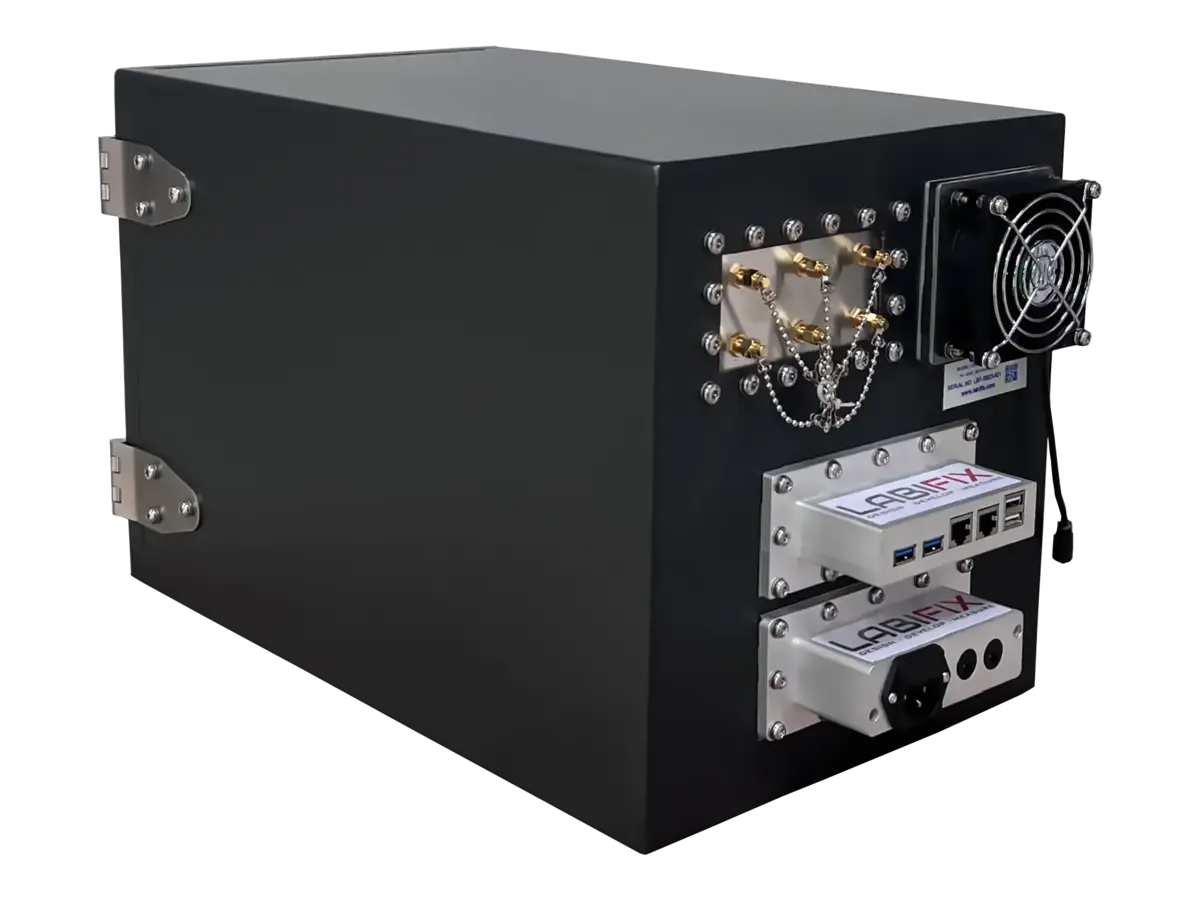

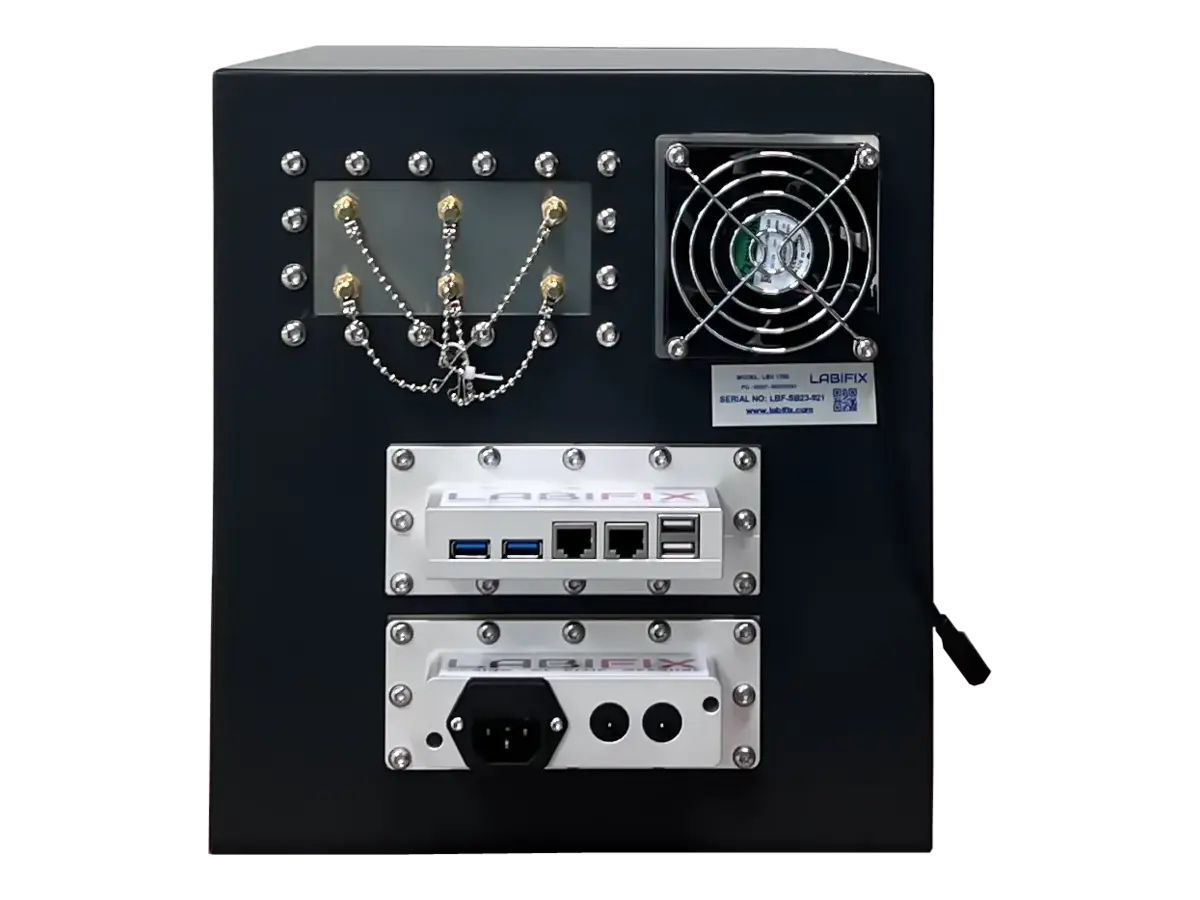

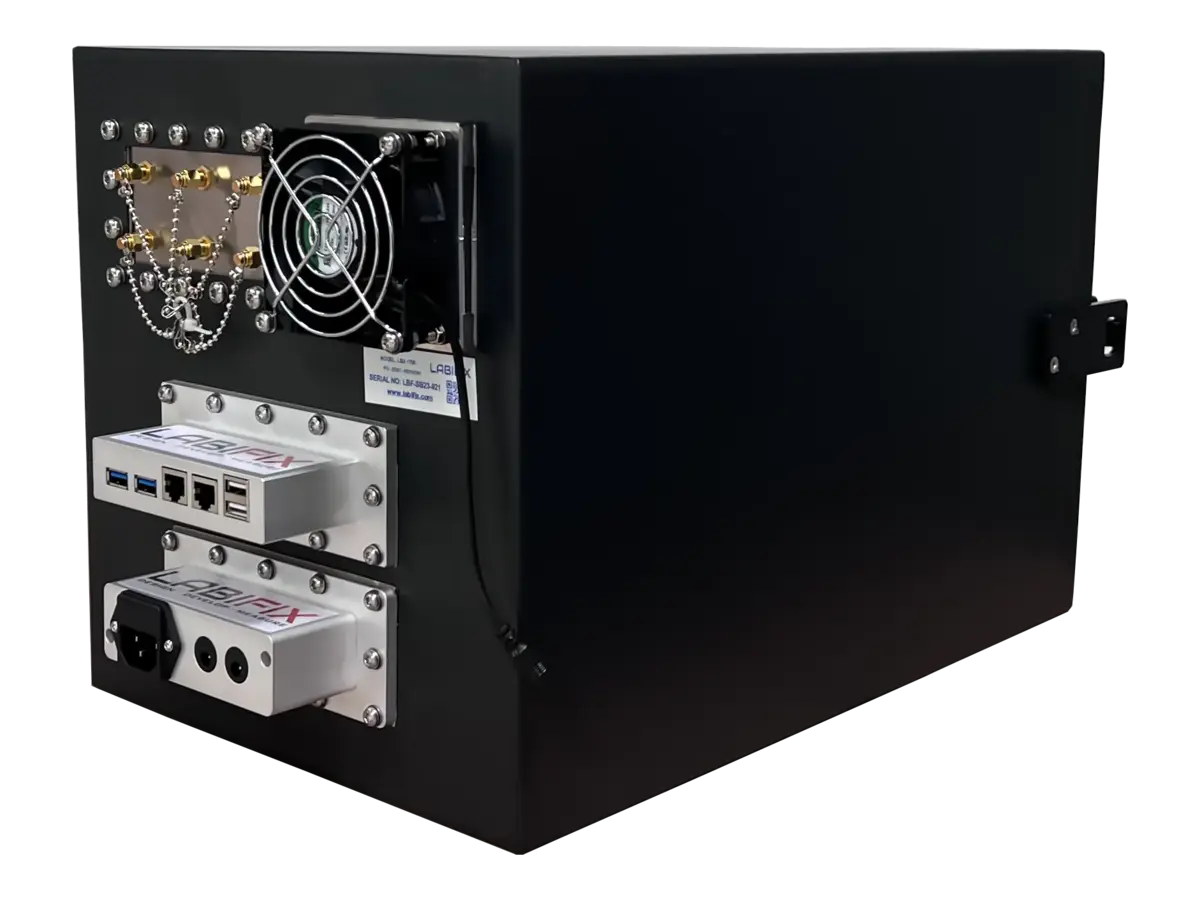

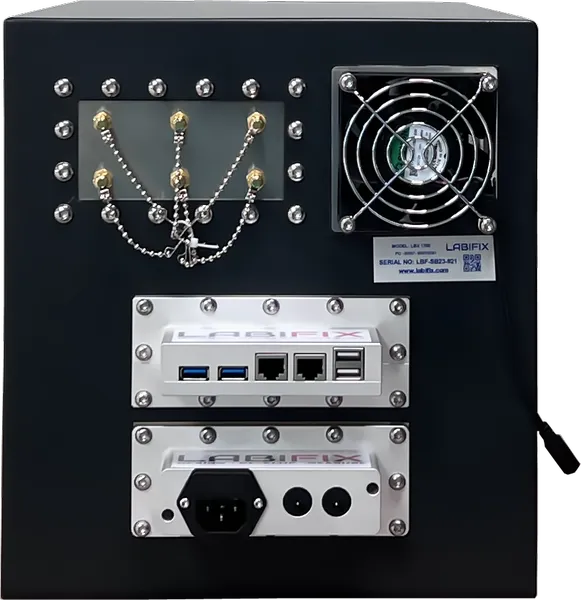

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX1750 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
11"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW18"(EXTERIOR DEPTH)SIDE VIEW11"(EXTERIOR WIDTH)18"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 11" (W) × 12" (H) × 18" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX1750 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
9"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW16"(INTERIOR DEPTH)INTERIOR SIDE VIEW9"(INTERIOR WIDTH)16"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 9" (W) × 10" (H) × 16" (D)RF Pyramidal Microwave Absorber Lining Boundary
