What frequency ranges does LBX3800 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX3800

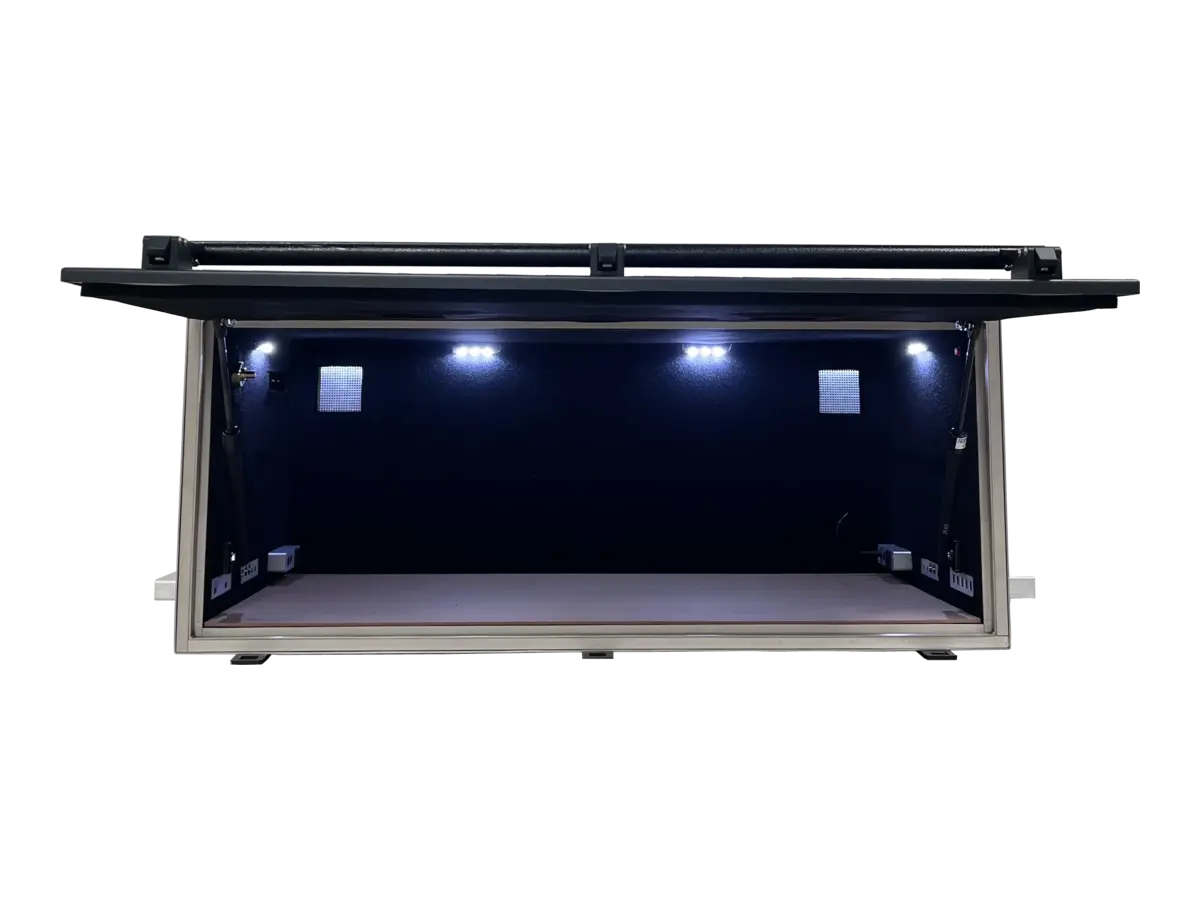

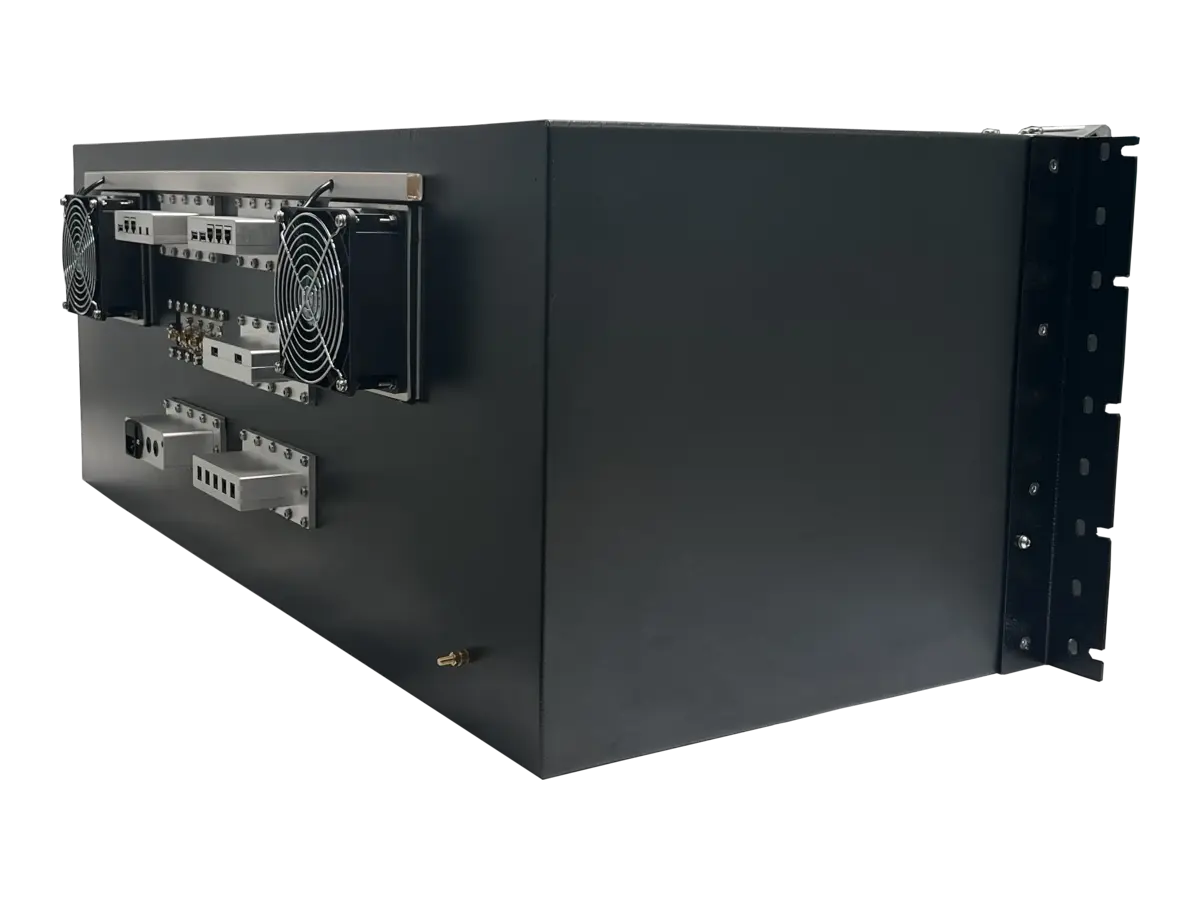

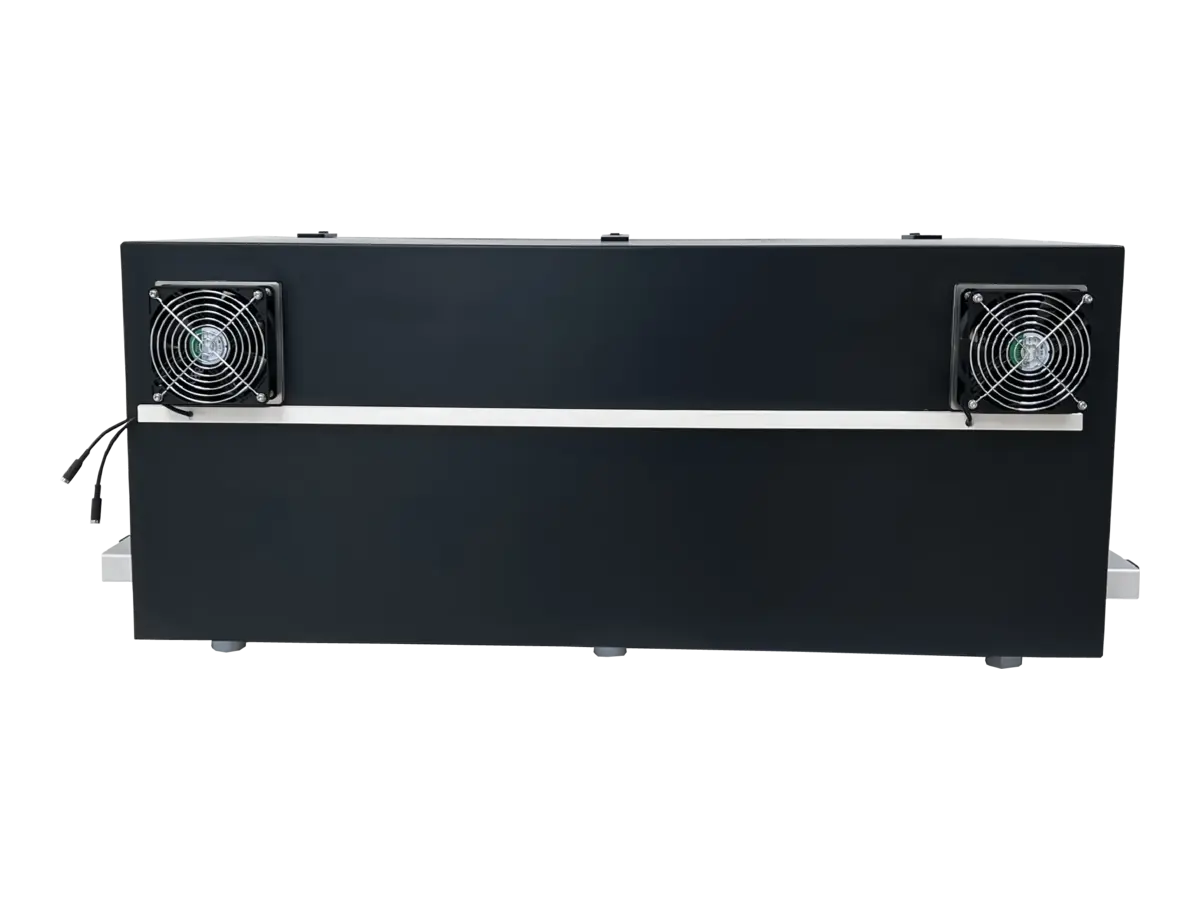

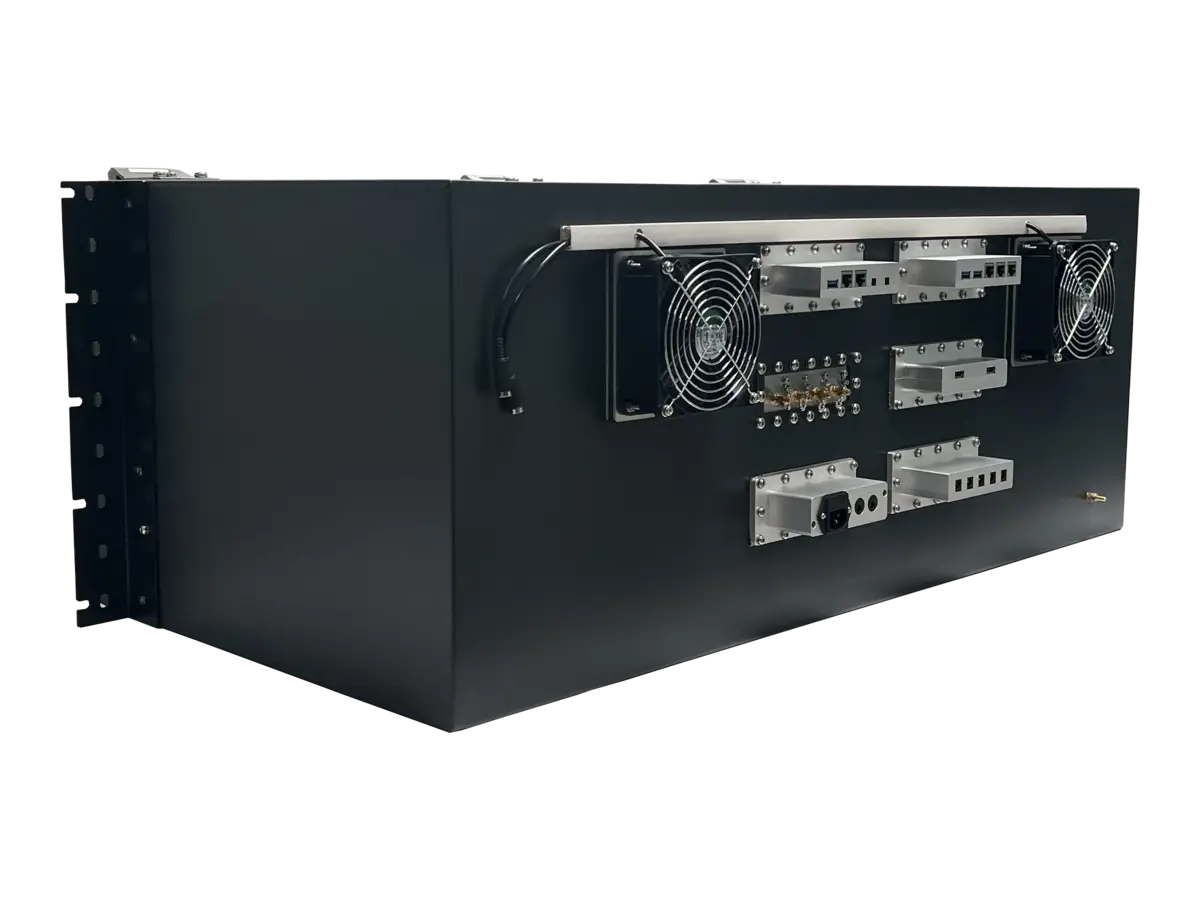

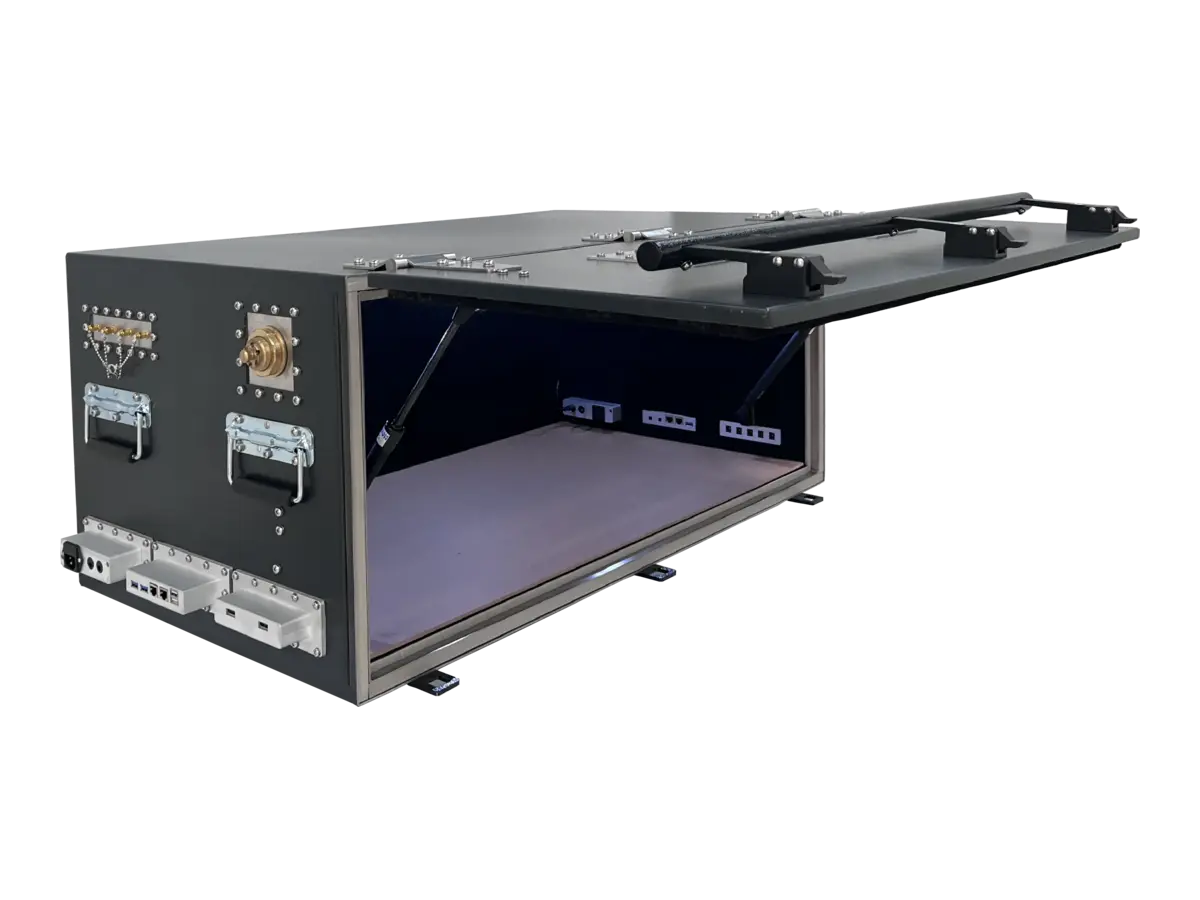

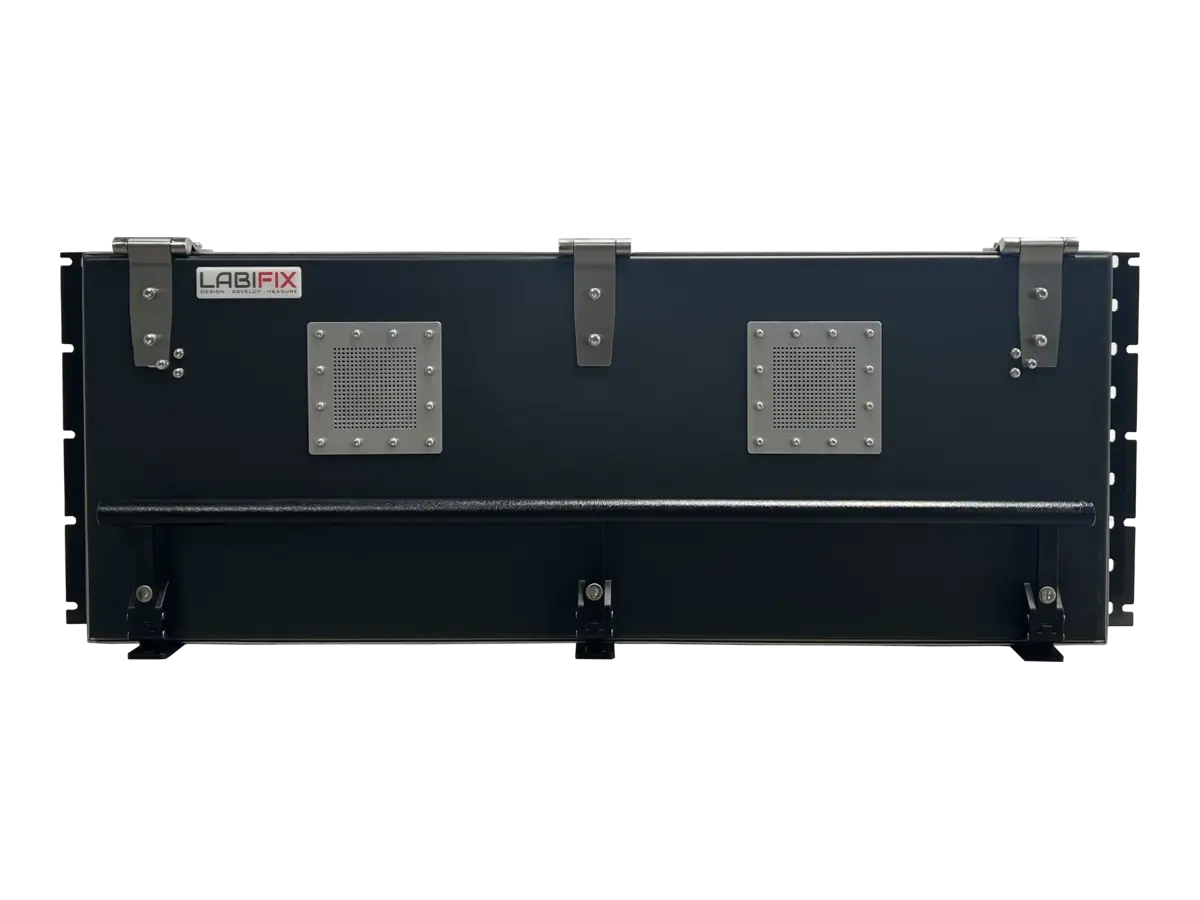

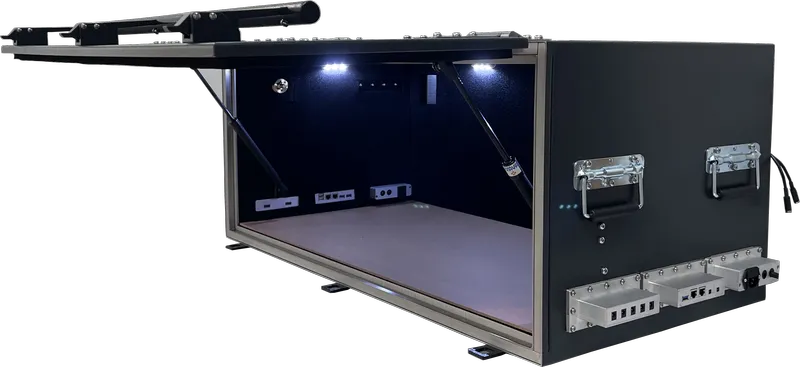

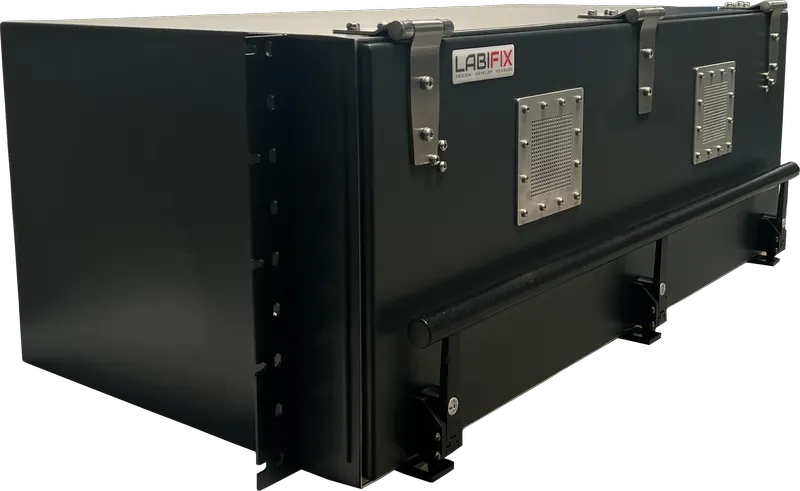

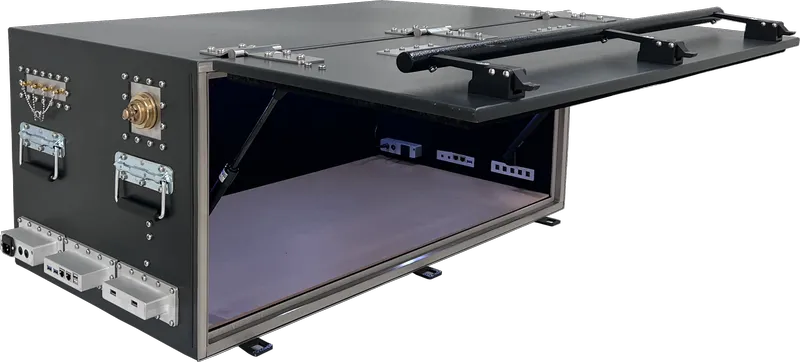

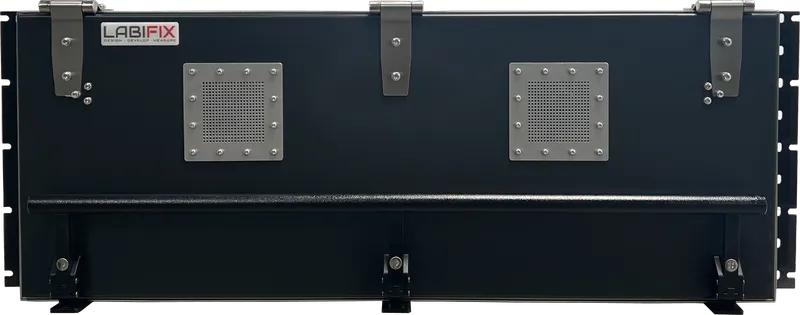

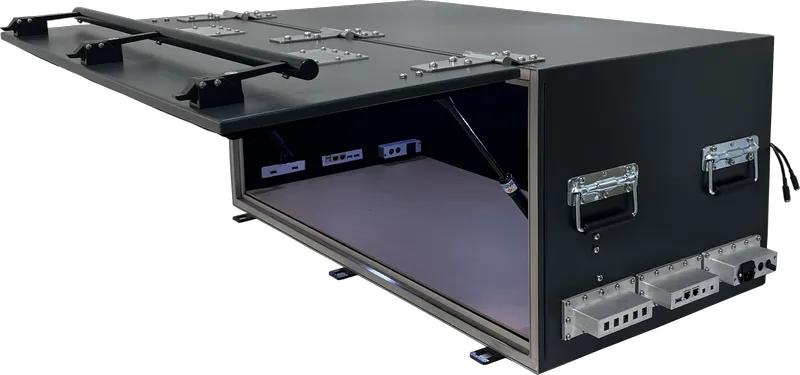

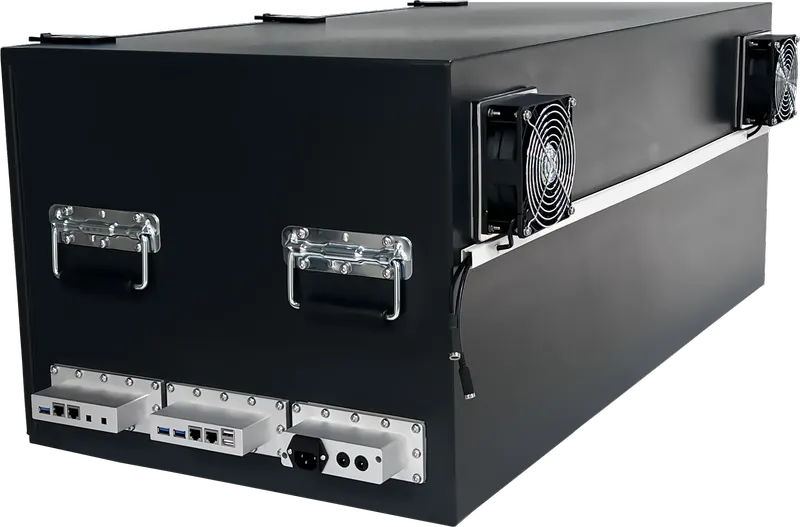

LBX3800 Top Opening RF Shielded Enclousre LabiFix RF Shield Box - View 1 of 8

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX3800 RF Shield Box

Name: LBX3800 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX3800

The LBX3800 rf shield box for cellular and iot device testing brings together features intended for Cellular and IoT device testing; shielding above 90 dB against EMI/RFI; 3G, 4G, 5G LTE, Wi-Fi 802.11 series, Wi-Max and Bluetooth; customizable I/O connections with interchangeable plug-in RF modules; tailor-made testing solutions. This approach is useful for development, validation, manufacturing or quality-oriented RF test activities where applicable.

Dimensions

Exterior (H x W x D)

17" (H) x 41" (W) x 22" (D)

Interior (H x W x D)

15" (H) x 39" (W) x 20" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX3800 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 41" (W) × 17" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX3800 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 39" (W) × 15" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary

LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

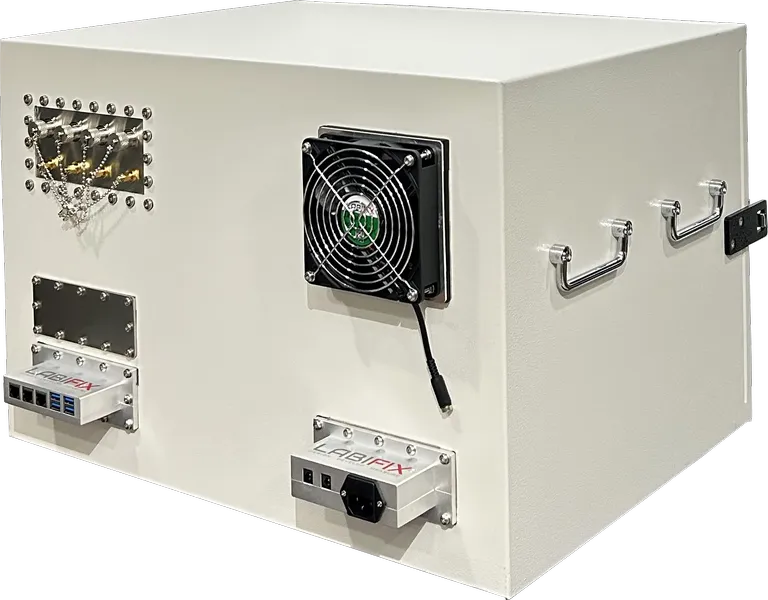

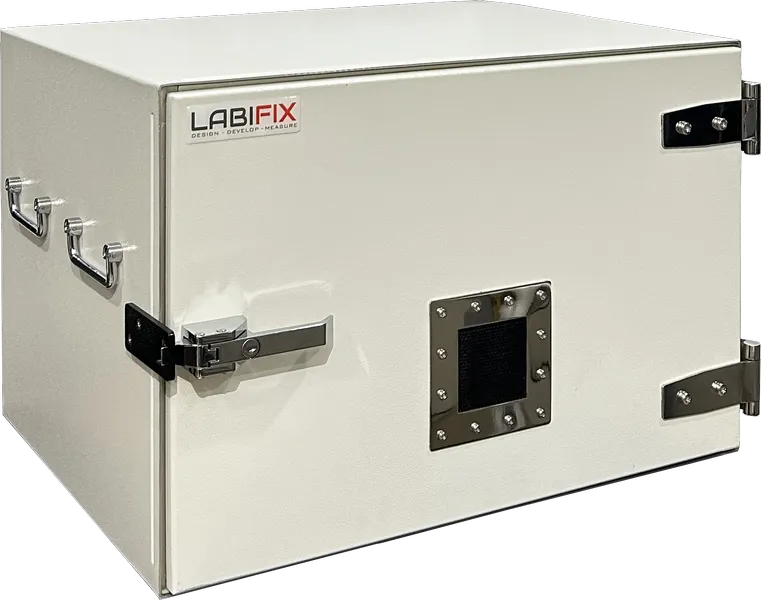

LBX1200 RF SHEILDED TEST ENCLOSURE

The LBX1200 RF Shield Box is ideal for testing wireless devices under test, including Bluetooth, Zigbee, Wimax, and cellular. Along with outstanding RF

View Details

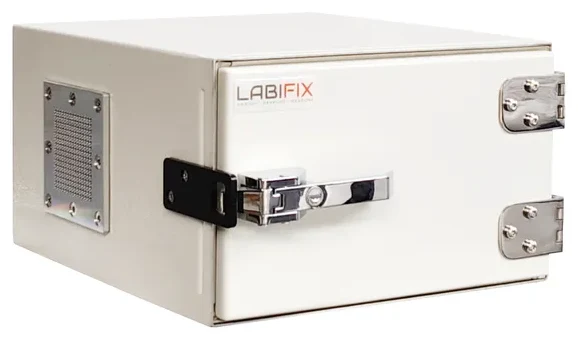

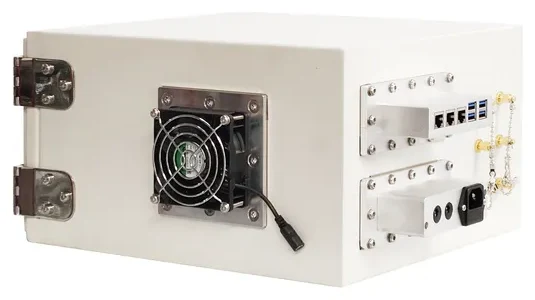

LBX1650 RF TEST ENCLOSURE
