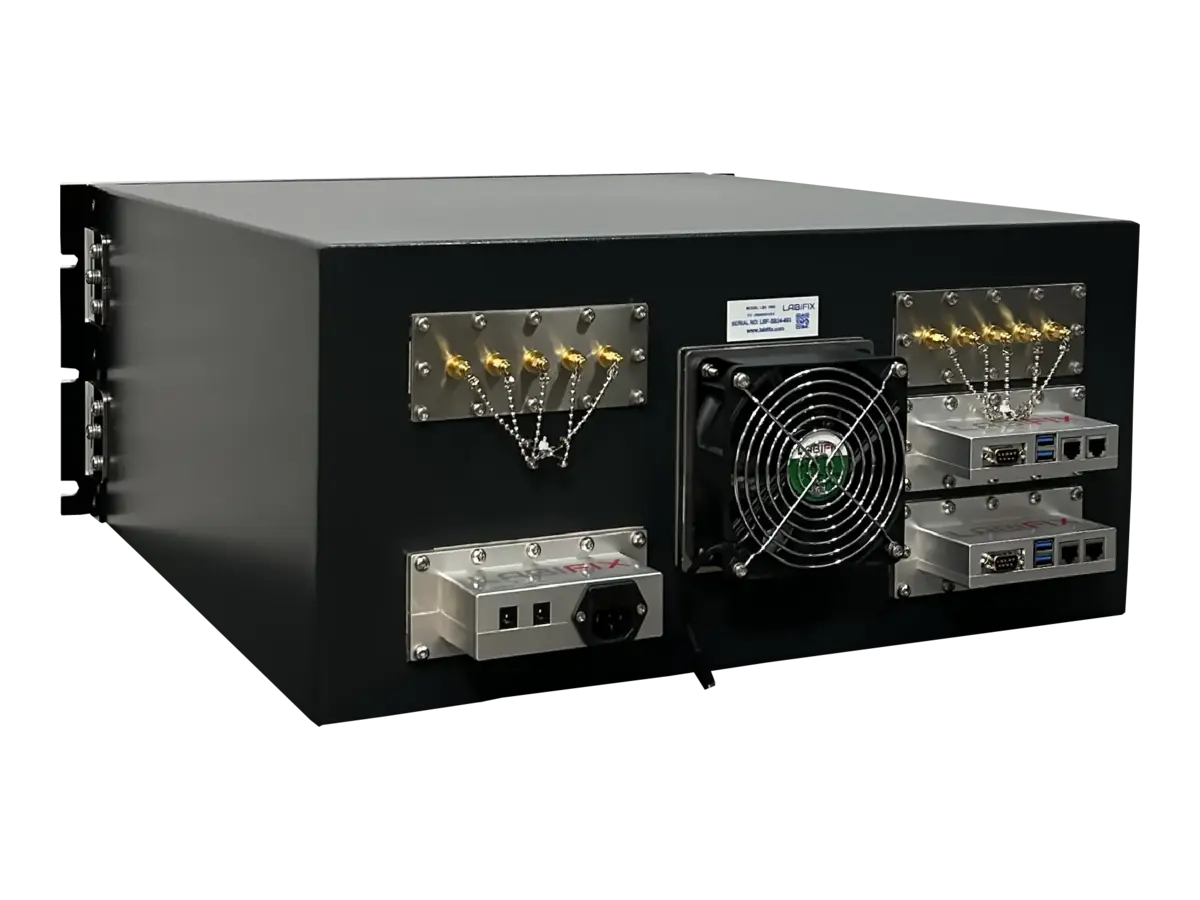

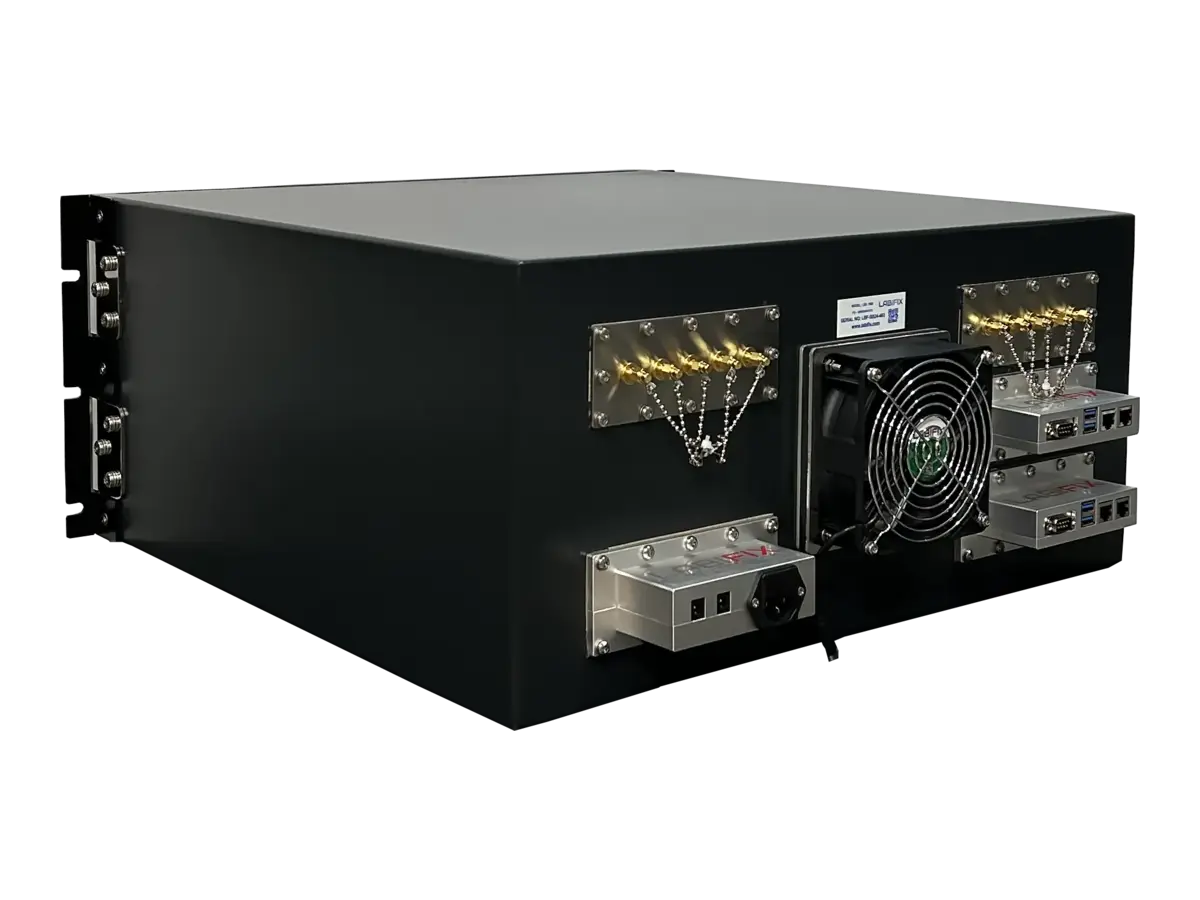

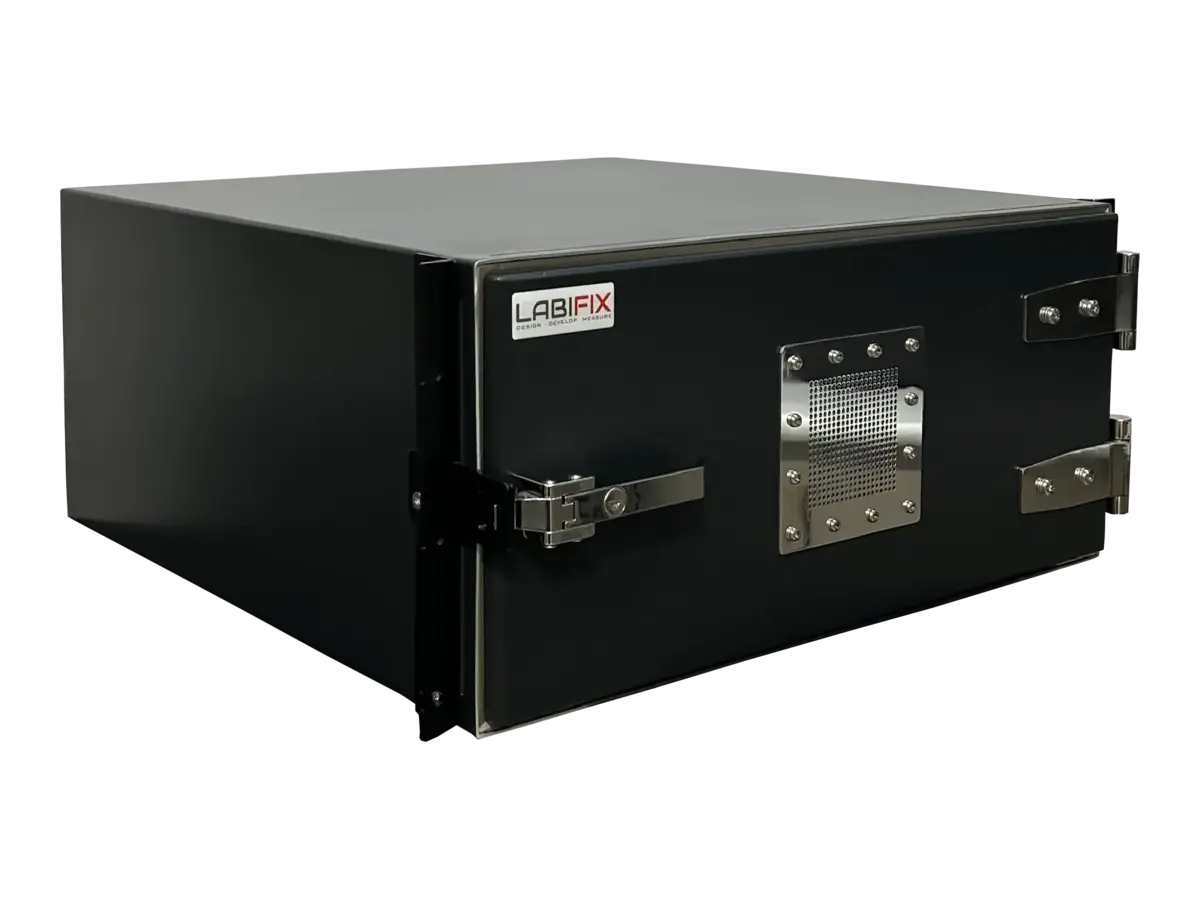

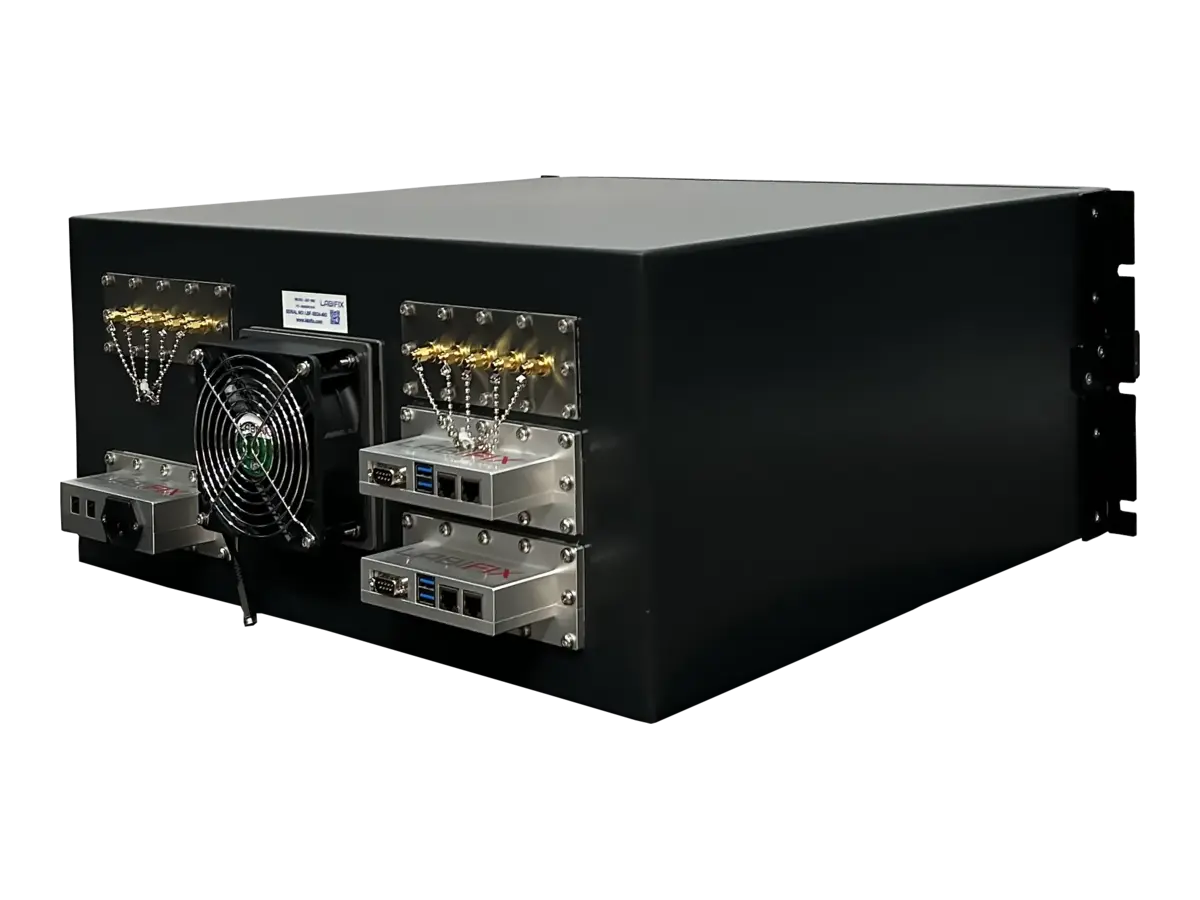

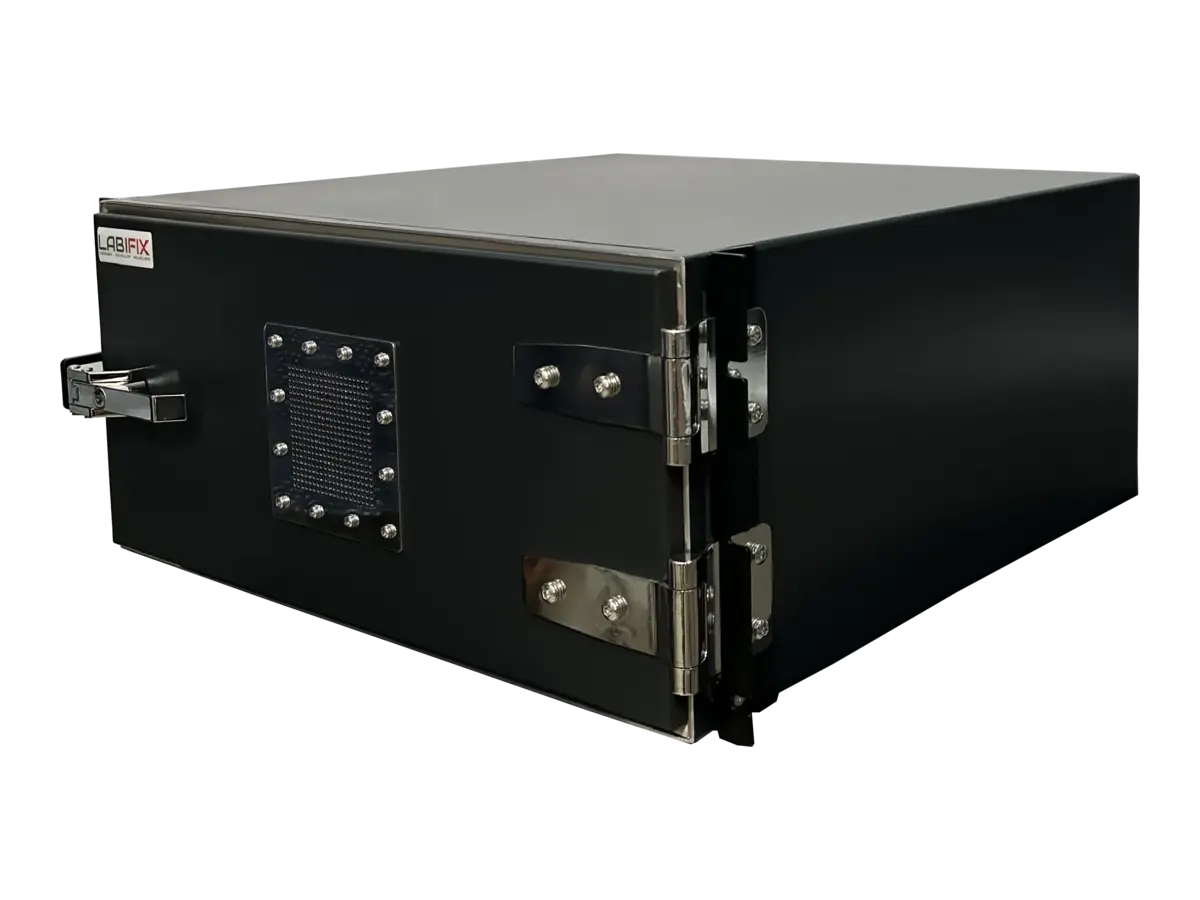

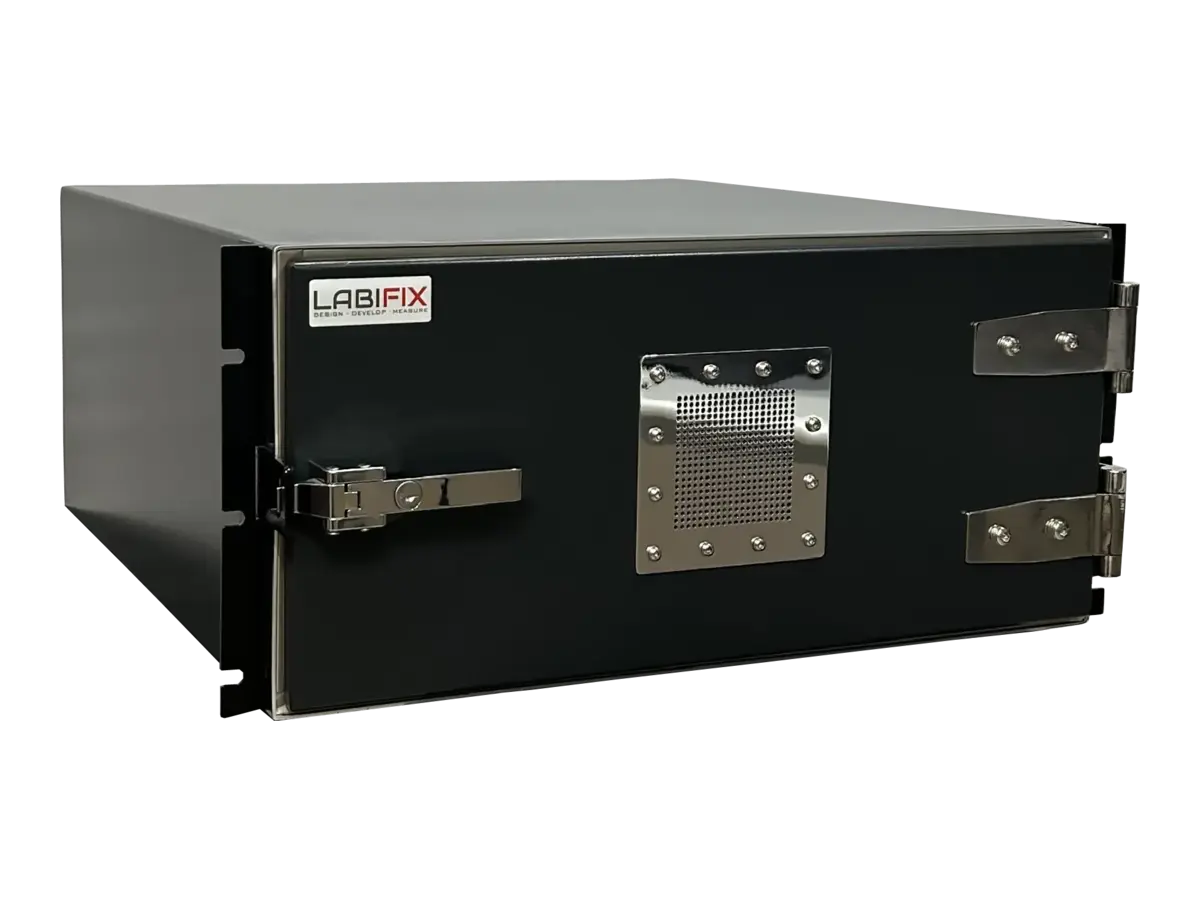

LBX2200 Mobile phone RF blocking box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX2200 RF Shield Box

Labifix offers a wide range of custom-made RF-shielded enclosures enabling engineers to analyze and achieve various wireless device testing objectives in the R&D, Development and production environment. Our bench top LBX2200 RF Shield box is well suited for all such types of tests, such as Cellular, Bluetooth, Zigbee, WiMax and other wireless device under test. Our standard size bench top RF enclosure box is ideal for cellular, Bluetooth and Zigbee applications

Dimensions
Exterior (H x W x D)
10" (H) x 22" (W) x 22" (D)
Interior (H x W x D)
08" (H) x 20" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

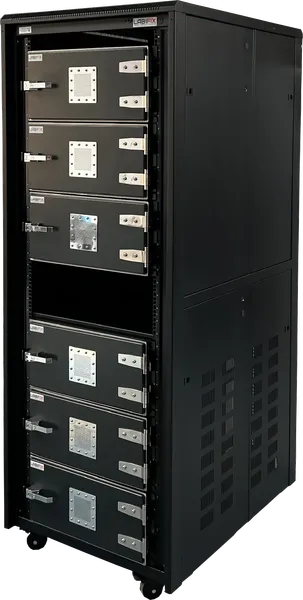

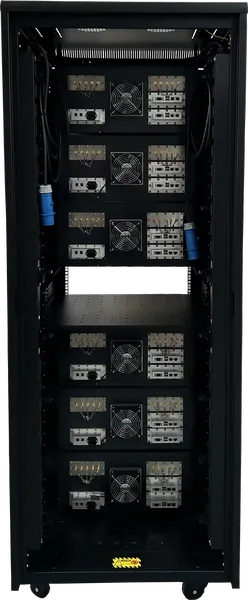

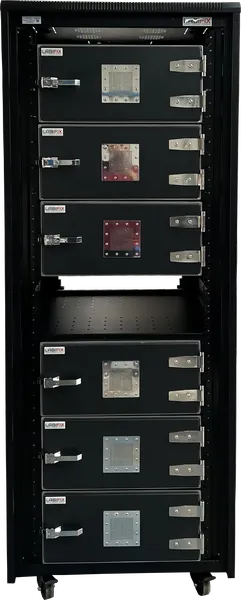

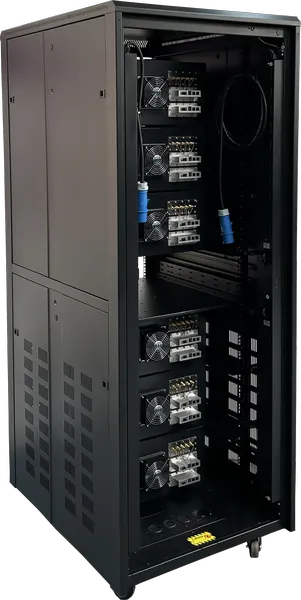

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX2200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)10"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 10" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

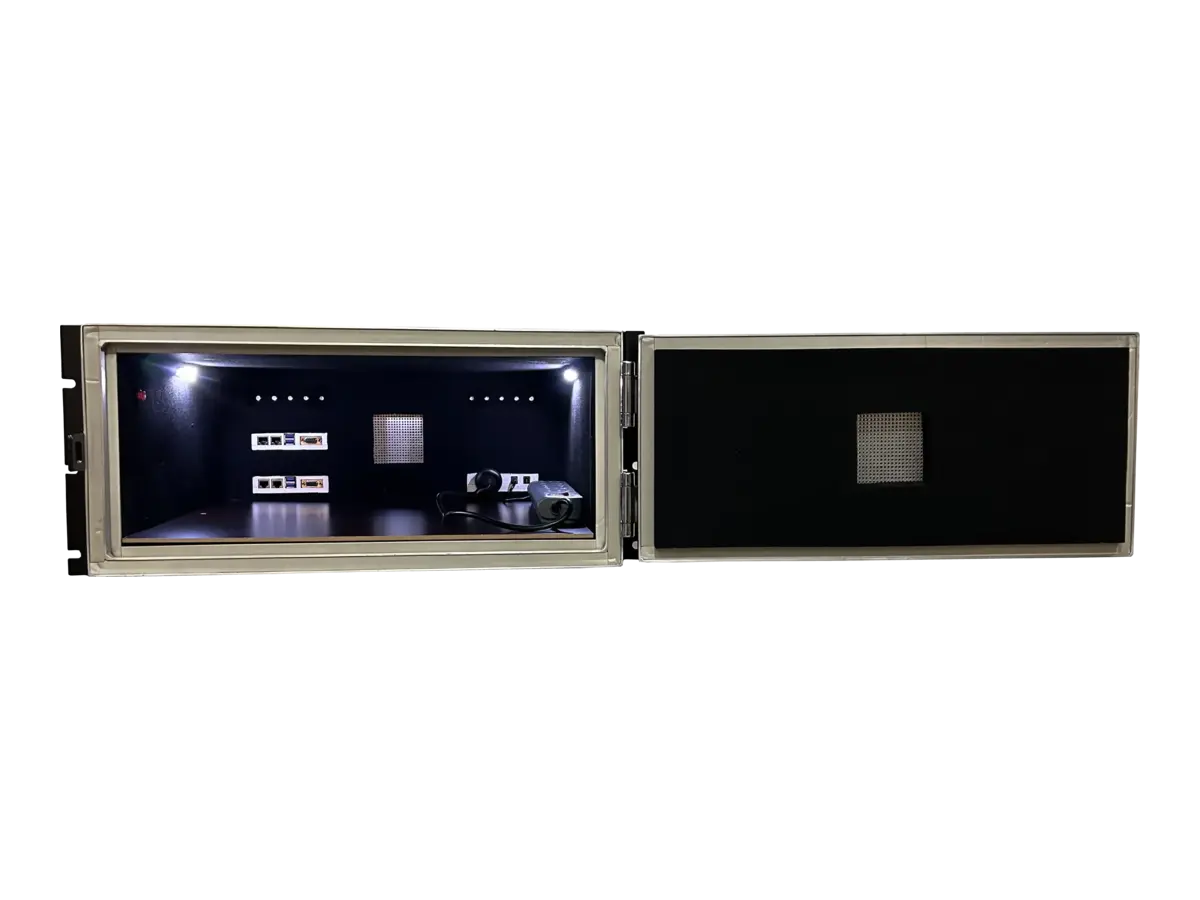

LBX2200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)8"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 8" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
