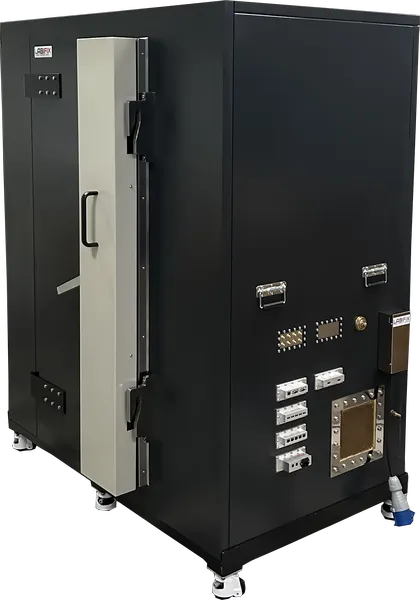

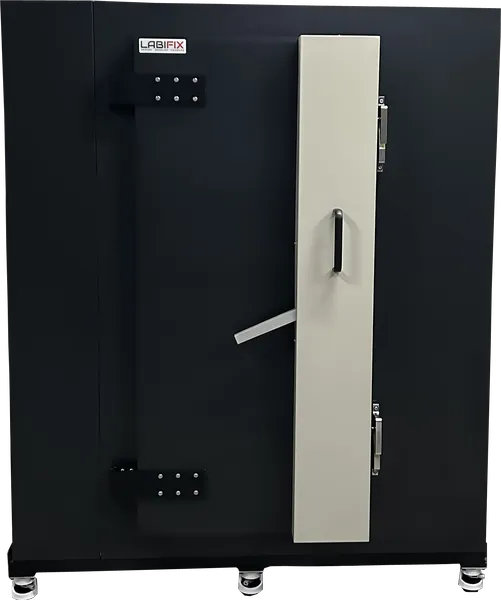

LBX9595 RF Chamber LabiFix RF Shield Box - View 1 of 5
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX9595 RF Shield Box

This rugged LBX9595 RF shielding Chamber is designed to turn demanding wireless test environments into controlled spaces for repeatable measurements. Its heavy-duty enclosure limits external interference and contains internal RF emissions, while RF absorber materials help reduce reflections. Honeycomb ventilation and cooling options support extended operation without excessive heat buildup. Modular I/O panels allow filtered power, USB, SMA, Ethernet, and other interfaces to be integrated as needed. It is suitable for R&D, production testing, pre-compliance, automotive, telecom, aerospace, and defense applications. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, wireless validation, product development, characterization, production testing, and modern devices.

Dimensions
Exterior (H x W x D)
75" (H) x 65" (W) x 38.5" (D)
Interior (H x W x D)
68" (H) x 58" (W) x 31.5" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX9595 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
65"(EXTERIOR WIDTH)75"(EXTERIORHEIGHT)FRONT VIEW38.5"(EXTERIOR DEPTH)SIDE VIEW65"(EXTERIOR WIDTH)38.5"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 65" (W) × 75" (H) × 38.5" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX9595 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
58"(INTERIOR WIDTH)68"(INTERIORHEIGHT)INTERIOR FRONT VIEW31.5"(INTERIOR DEPTH)INTERIOR SIDE VIEW58"(INTERIOR WIDTH)31.5"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 58" (W) × 68" (H) × 31.5" (D)RF Pyramidal Microwave Absorber Lining Boundary
