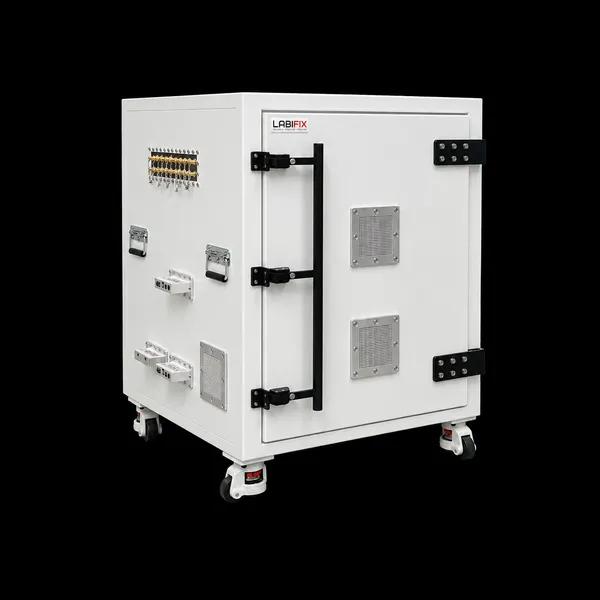

LBX6750 Wireless device isolation box LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX6750 RF Shield Box

LBX6750 RF Shielded Test Enclosure is a spacious solution for testing and measuring wireless and RF communication equipment. Heavy-duty caster wheels allow convenient movement between laboratory or production areas. Its RF absorber material helps reduce unwanted reflections, while shielding performance above 100 dB provides a controlled environment for larger DUTs. Honeycomb ventilation supports airflow and helps prevent overheating without compromising the enclosure design. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, product development, troubleshooting, characterization, laboratory workflows, and quality assurance.

Dimensions
Exterior (H x W x D)
32" (H) x 32" (W) x 34" (D)
Interior (H x W x D)
30" (H) x 30" (W) x 32" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX6750 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
32"(EXTERIOR WIDTH)32"(EXTERIORHEIGHT)FRONT VIEW34"(EXTERIOR DEPTH)SIDE VIEW32"(EXTERIOR WIDTH)34"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 32" (W) × 32" (H) × 34" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX6750 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
30"(INTERIOR WIDTH)30"(INTERIORHEIGHT)INTERIOR FRONT VIEW32"(INTERIOR DEPTH)INTERIOR SIDE VIEW30"(INTERIOR WIDTH)32"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 30" (W) × 30" (H) × 32" (D)RF Pyramidal Microwave Absorber Lining Boundary
