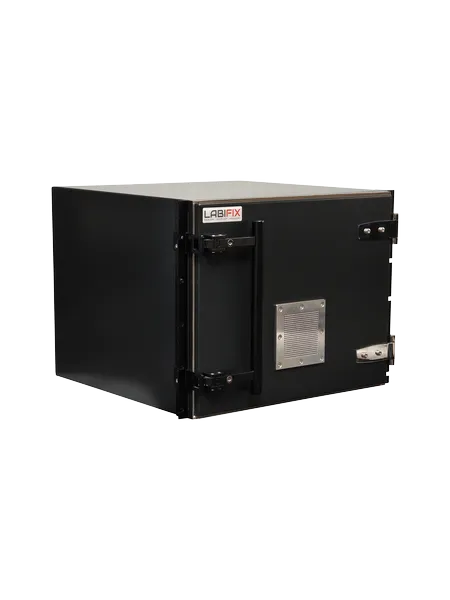

LBX5620 RF Shield Box
LBX5620 provides a practical platform for engineers who need repeatable RF testing with application-specific configuration. Depending on the application, it can be specified with Completely Customizable Shielded Enclosure and User Defined & Interchangeable I/O Connector options. This approach keeps the enclosure practical for day-to-day engineering work while maintaining a controlled space around the device under test. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF shielded enclosure, LBX5620 can be configured around the DUT and the way it needs to be tested.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining

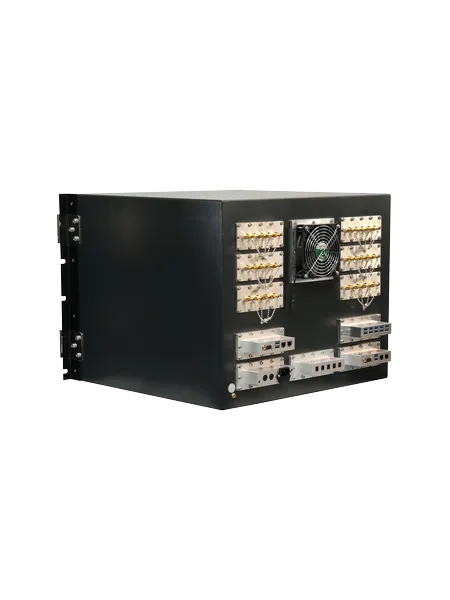

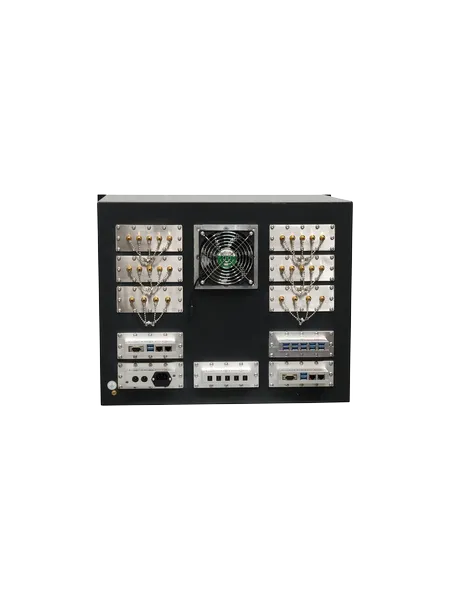

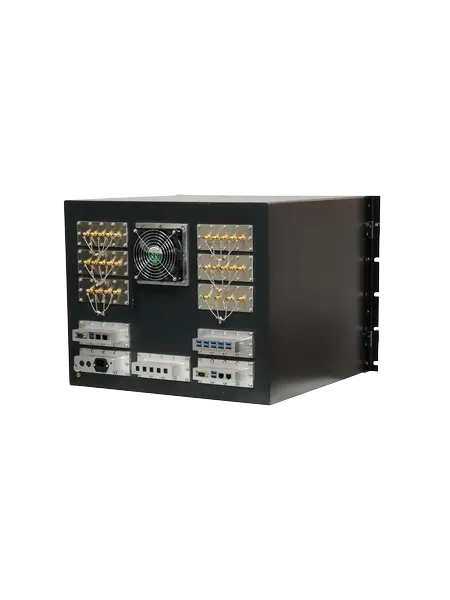

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
