IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

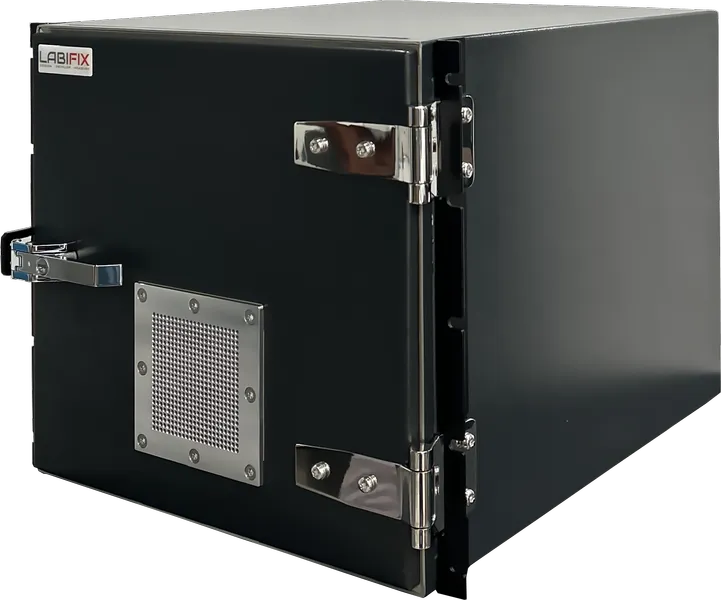

LBX4720 RF Shield Box
LBX4720 is designed to give engineers a controlled environment for RF and wireless testing. The configuration can include High Performance RF Absorber lining, giving the test setup the flexibility to accommodate the DUT and its required interfaces. That makes it a natural fit for a personalized shield box, this model can be assessed as a configurable RF isolation platform, where a defined RF environment can help engineers work with greater consistency. As a RF test enclosure, LBX4720 can be configured around the DUT and the way it needs to be tested
Dimensions
Exterior (H x W x D)
16" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
14" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

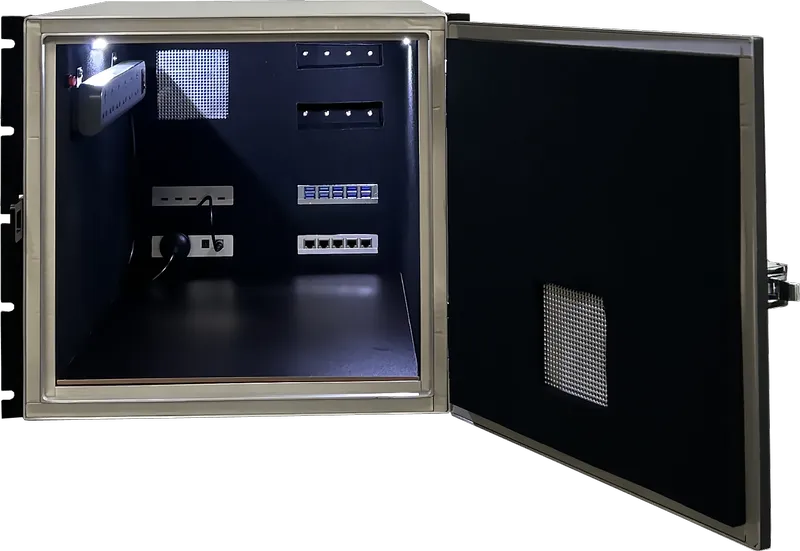

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction

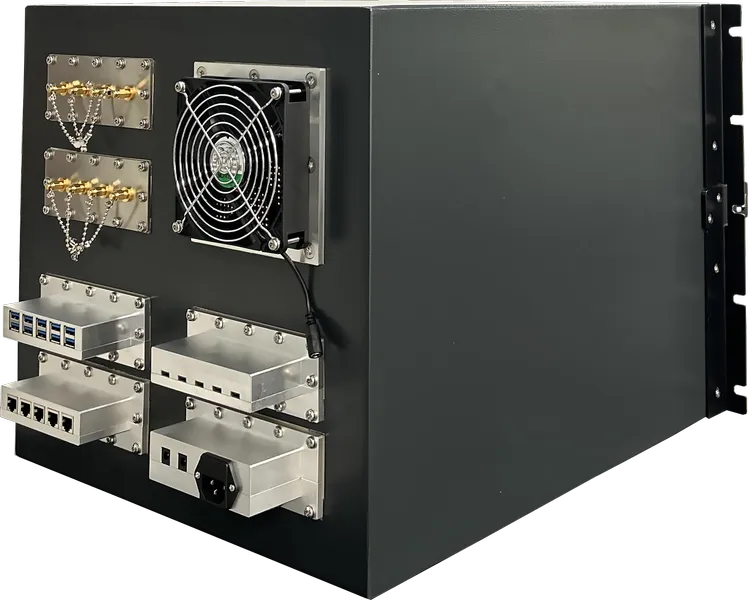

EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

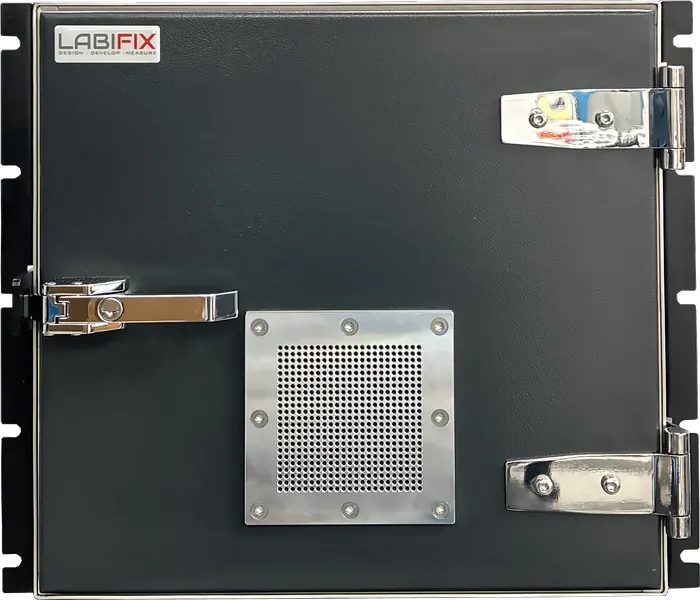

High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
