IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

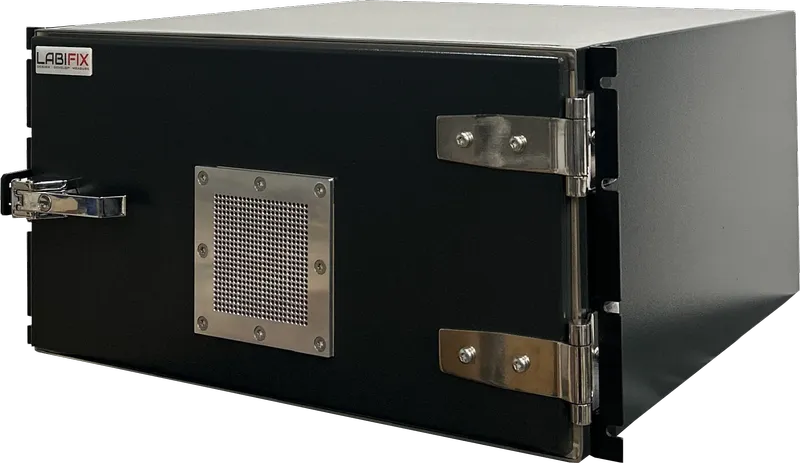

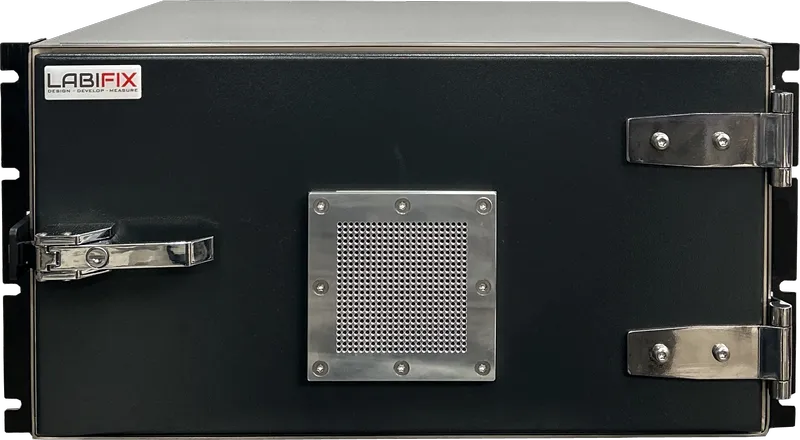

LBX2750 RF Shield Box
The LBX2750 is designed to make RF testing easier to incorporate into an existing laboratory workflow and more controlled. Options like Rugged Welded Construction and High Performance RF Absorber lining allow the enclosure to be customized to fit the equipment, interfaces, and test methodology. It works well in controlled RF validation, development, and production test processes where consistency is important. The LBX2750, an RF-shielded enclosure, can be set up to accommodate the DUT and the testing method.
Dimensions
Exterior (H x W x D)
12" (H) x 22" (W) x 22" (D)
Interior (H x W x D)
10" (H) x 20" (W) x 20" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

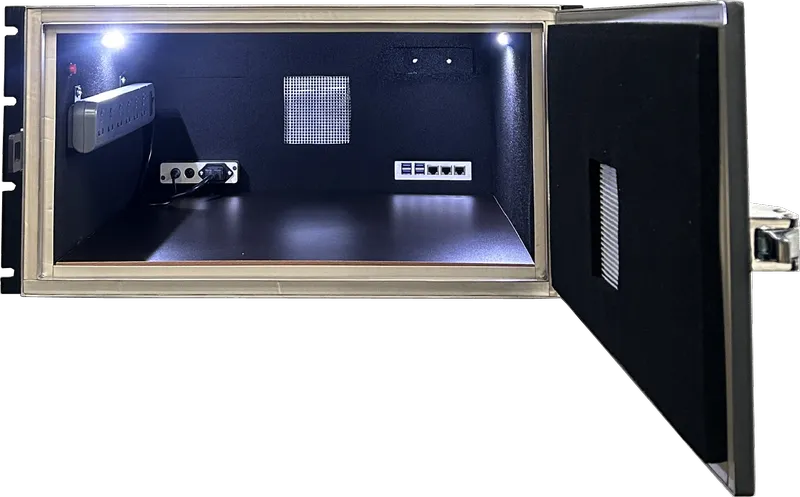

High Performance Pyramidal RF Microwave Absorber lining

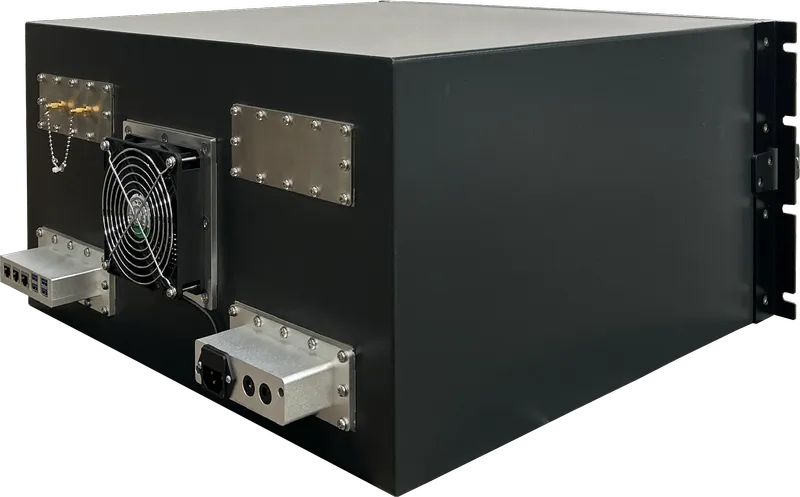

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
