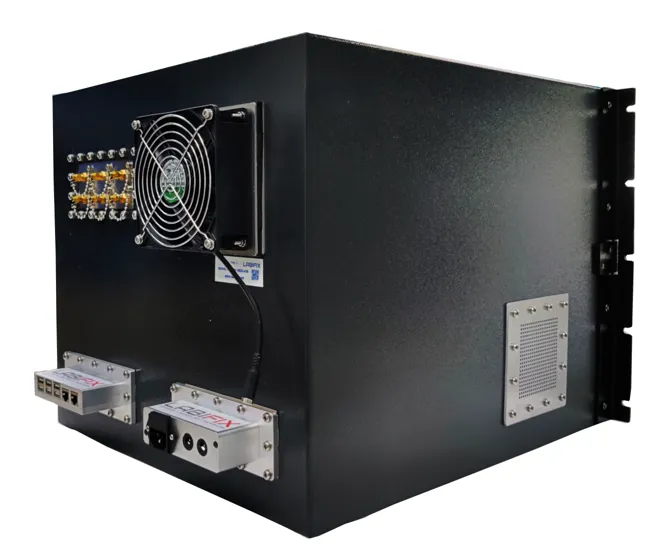

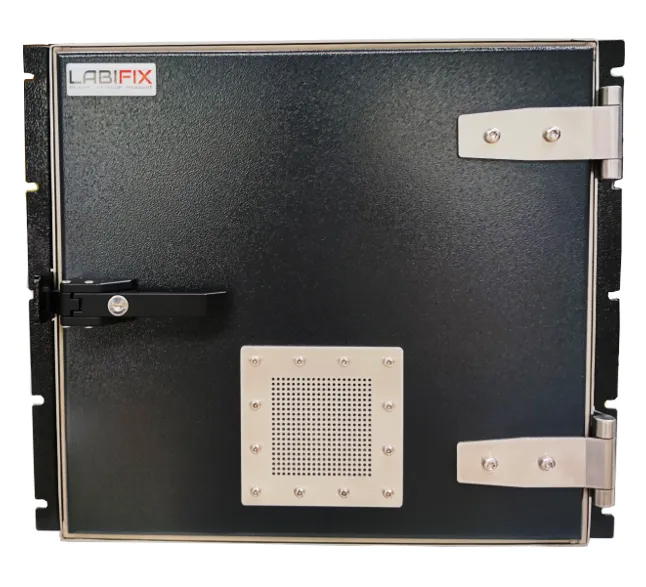

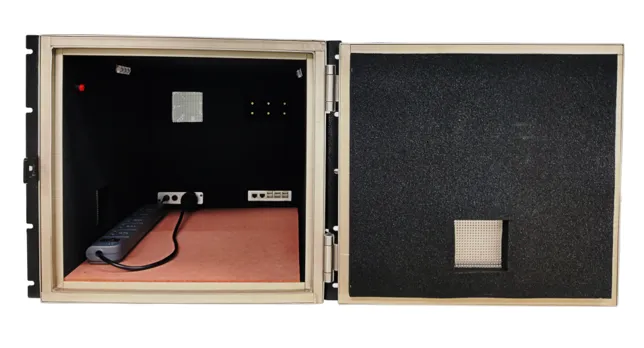

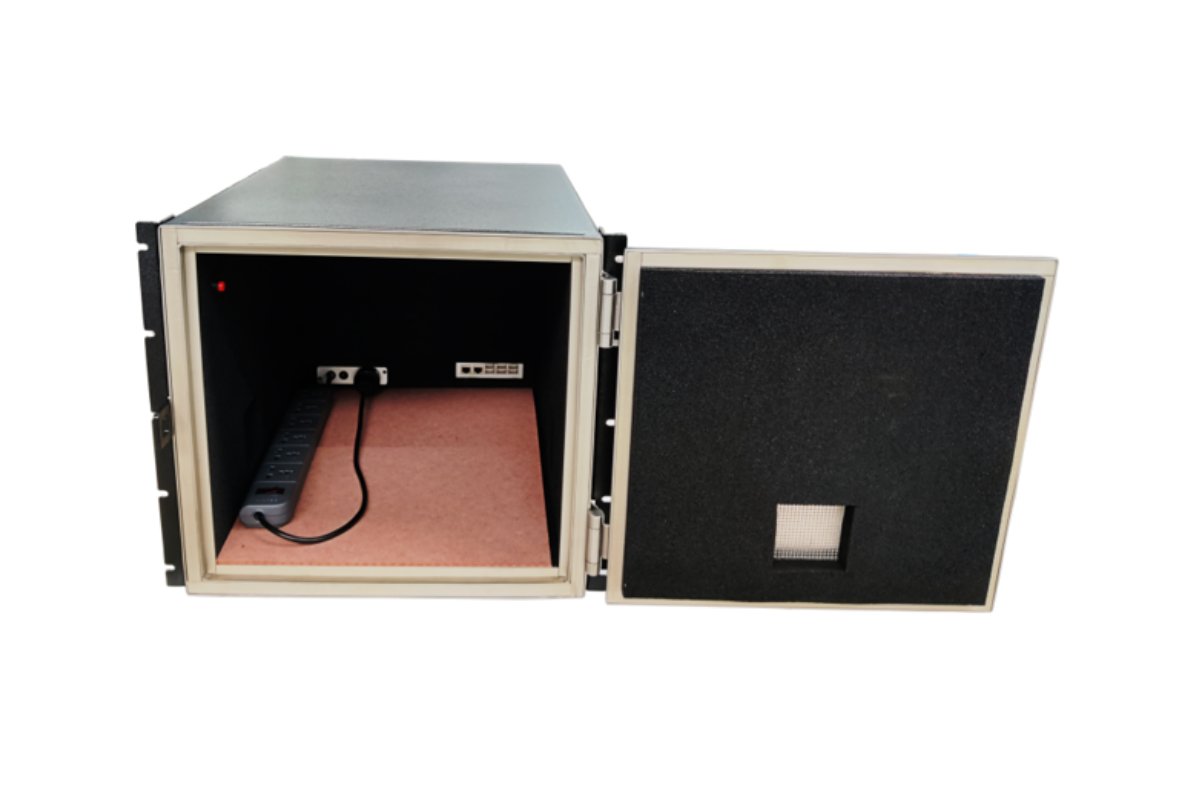

LBX4010 RF Electronics EMC and R&D Shielded Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked
RF SHIELD BOX

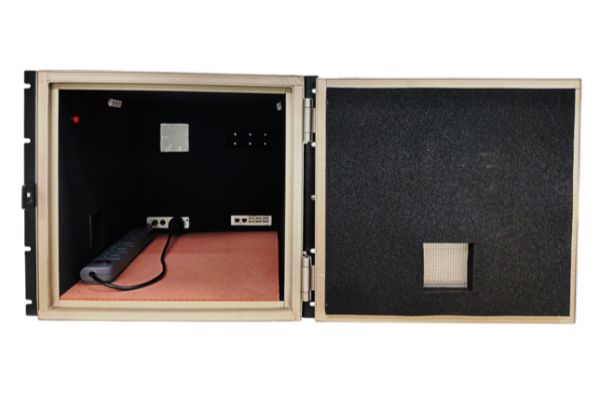

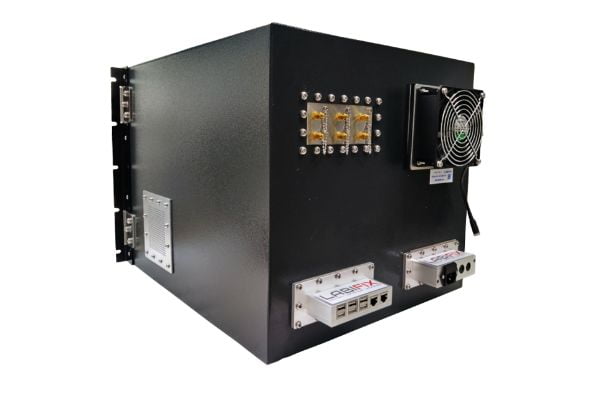

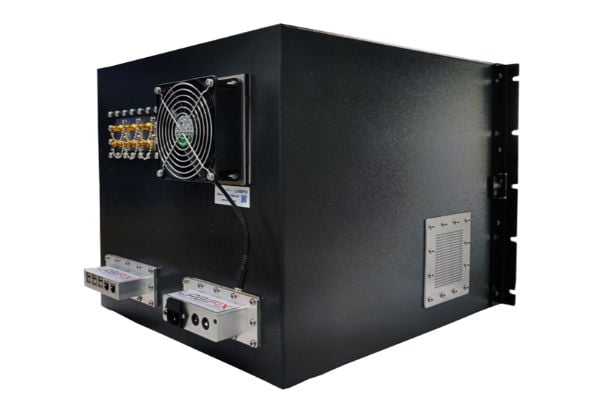

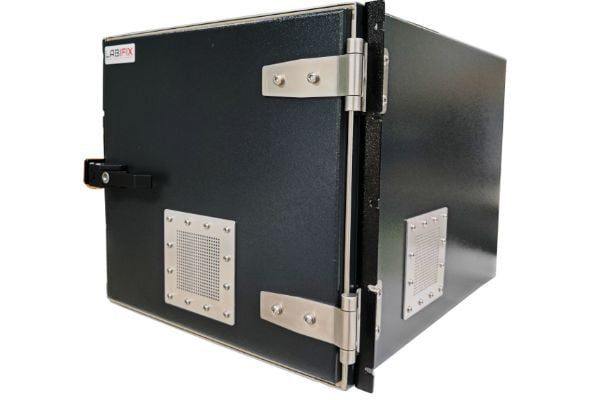

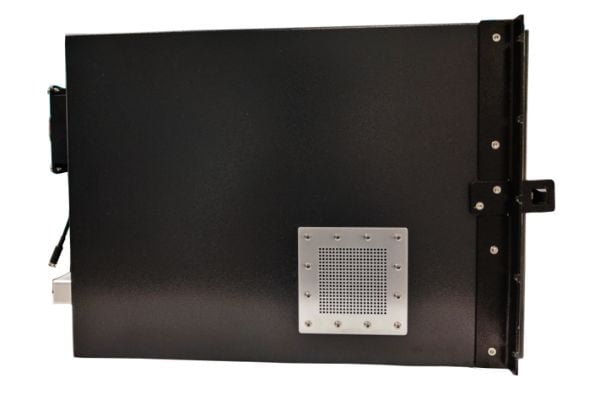

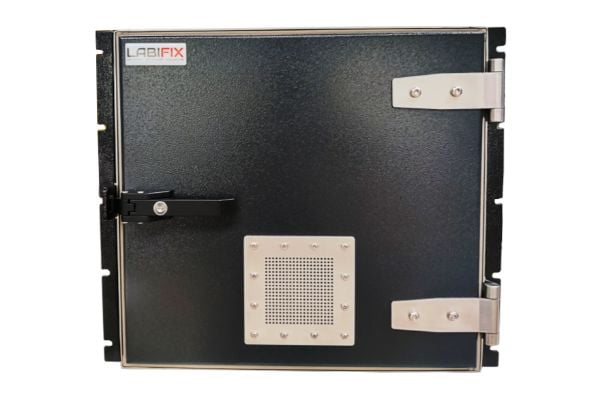

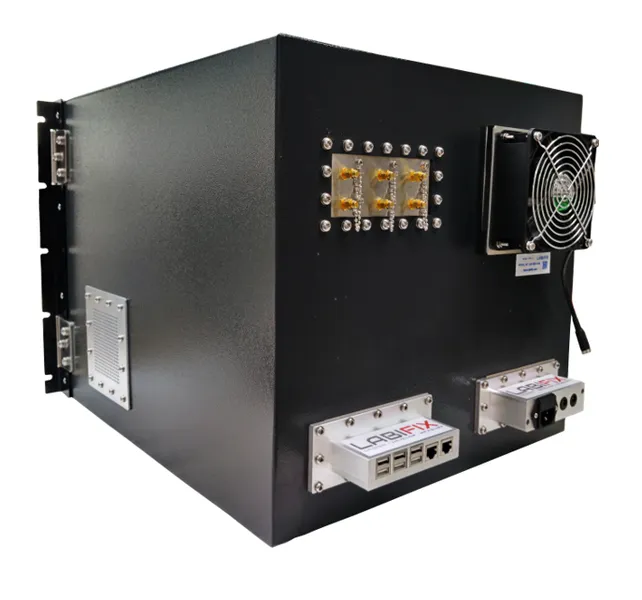

LBX4010 RF Shield Box

The LBX4010 RF shielded Test enclosure is designed for wireless device testing, compatibility, functionality and performance. Provides high shielding >90dB against all types of EMI /RFI, especially for modern wireless communication technologies such as 3G, 4G, 5G LTE, Wi-Fi 802.11 - all series, Wi-Max and Bluetooth etc. The product can be fully customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules. The RF Shielded Enclosure is available in 19”Rack mountable and standalone designs. The shielded enclosure design offers flexibility to choose from a wide range of options.

Dimensions
Exterior (H x W x D)
16" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
14" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

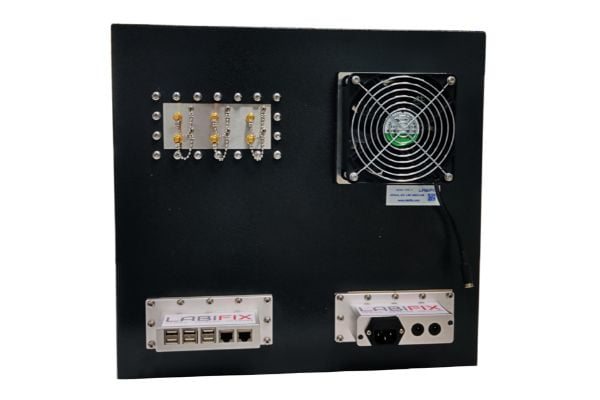

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4010 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)16"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 16" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4010 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)14"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 14" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

LBX4012 RF SHIELDED TEST ENCLOSURE

LBX4012 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, front viewLBX4012 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, rear view

Explore the LabiFix LBX4012 RF Shield Box. Features >85dB attenuation up to 8GHz, custom I/O filter panels, and ISO 9001 quality. Request…

View Details

LBX4005 RF SHIELDED TEST ENCLOSURE

LBX4005 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, front viewLBX4005 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, rear view

The LabiFix LBX4005 is a front-loading RF shielded chamber engineered for rack-mount integration and rapid device loading. Featuring an…

View Details

LBX4015 RF SHIELDED TEST ENCLOSURE

LBX4015 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, front viewLBX4015 RF SHIELDED TEST ENCLOSURE - LabiFix RF Shield Box, rear view

Explore the LabiFix LBX4015 RF Shield Box. Features >85dB attenuation up to 8GHz, custom I/O filter panels, and ISO 9001 quality. Request…

View Details

Get in Touch with Engineering

Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.

Call Us Direct
+91 8792387614

Request Technical Datasheet (PDF)
