IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

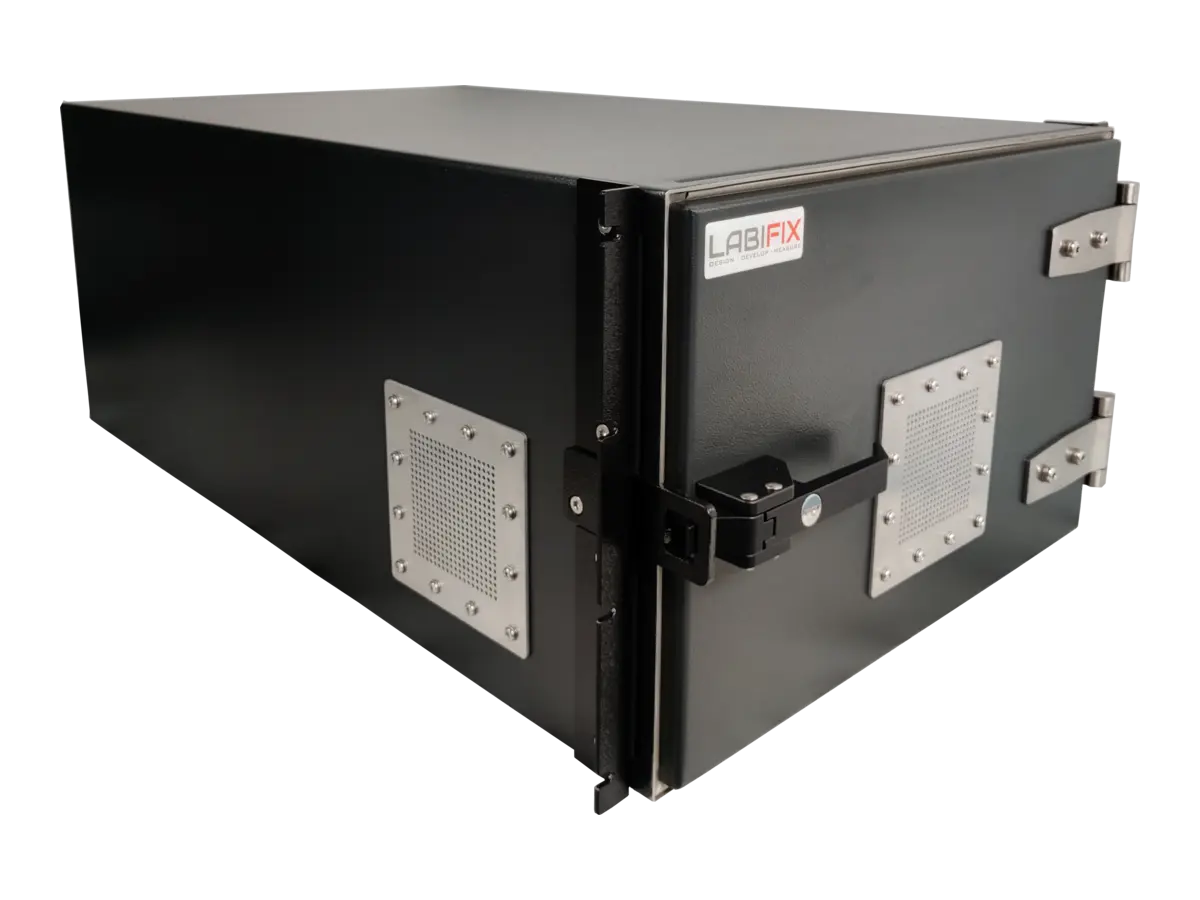

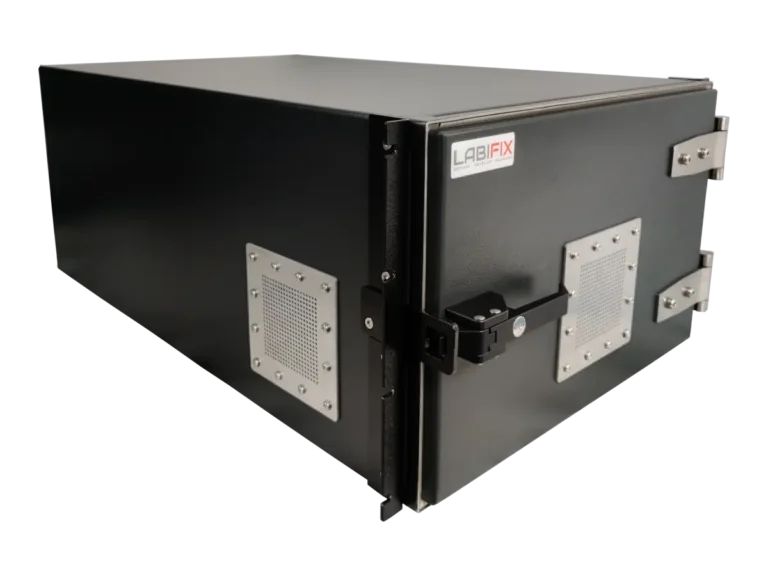

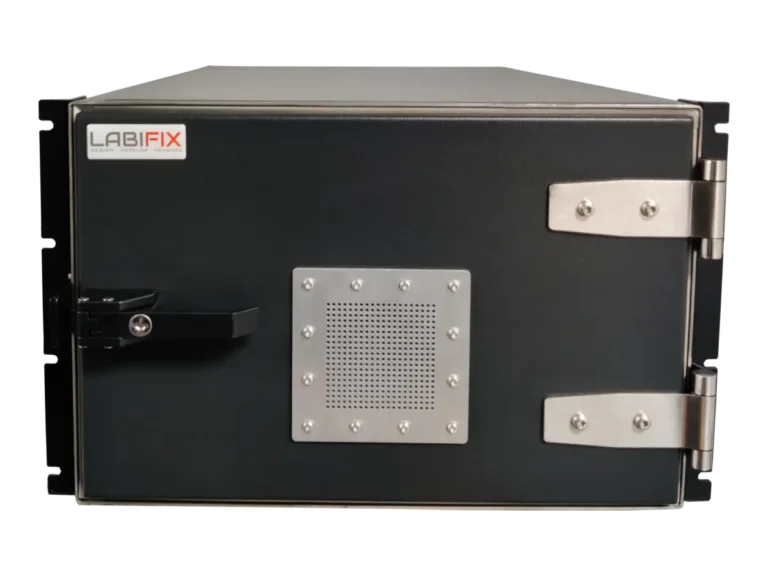

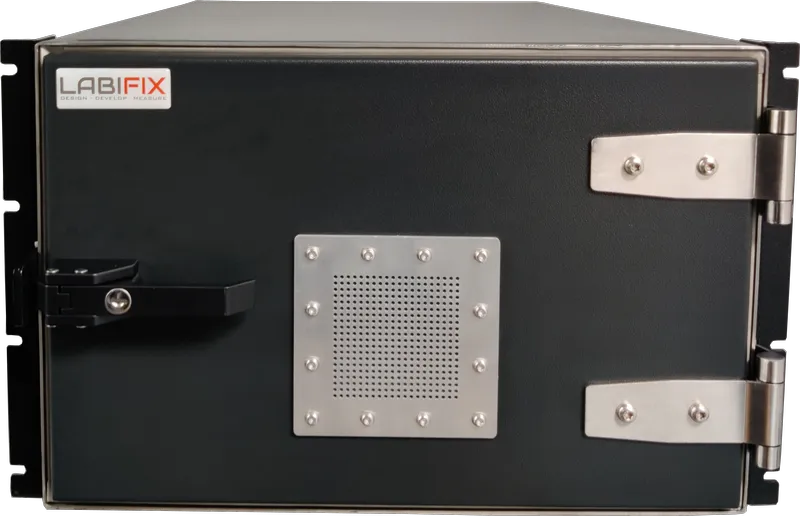

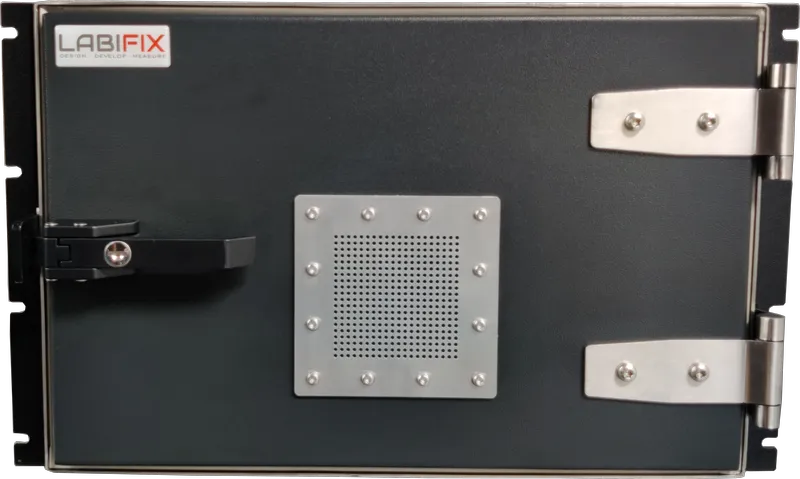

LBX2040 RF Shield Box
The LBX2040 serves as an effective option when tests necessitate dependable RF isolation alongside functional connectivity.This adaptability makes it particularly suitable for Wi-Fi 6E testing, as the enclosure can support project-specific interfaces and shielding requirements, thereby creating a defined RF environment that enables engineers to operate with enhanced consistency. As an RF shielded enclosure, the LBX2040 can be customized around the Device Under Test (DUT) and the specific testing requirements.
Dimensions
Exterior (H x W x D)
12" (H) x 18" (W) x 30" (D)
Interior (H x W x D)
10" (H) x 16" (W) x 28" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

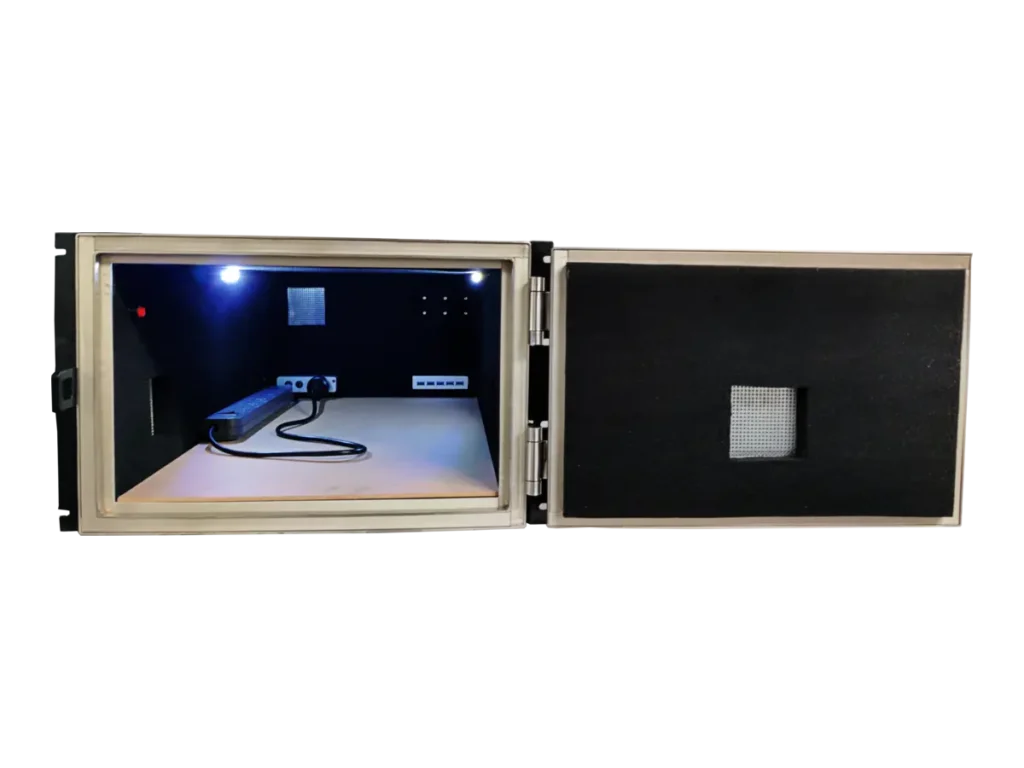

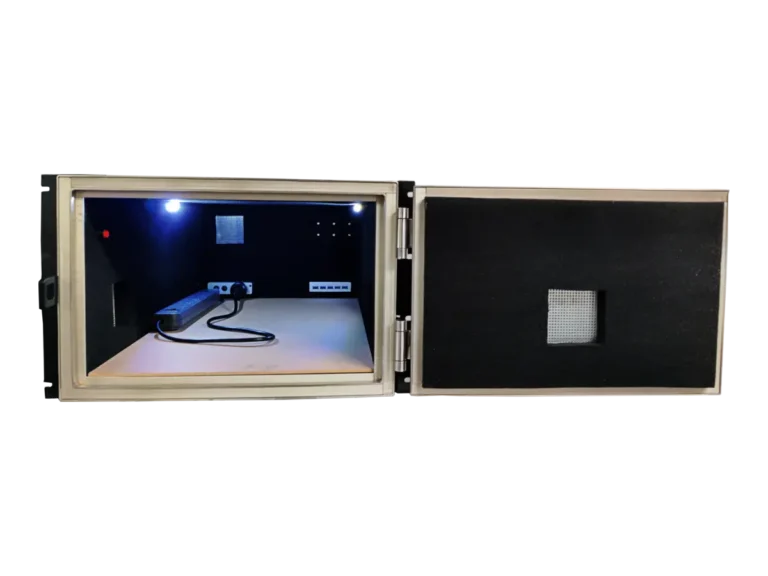

High Performance Pyramidal RF Microwave Absorber lining

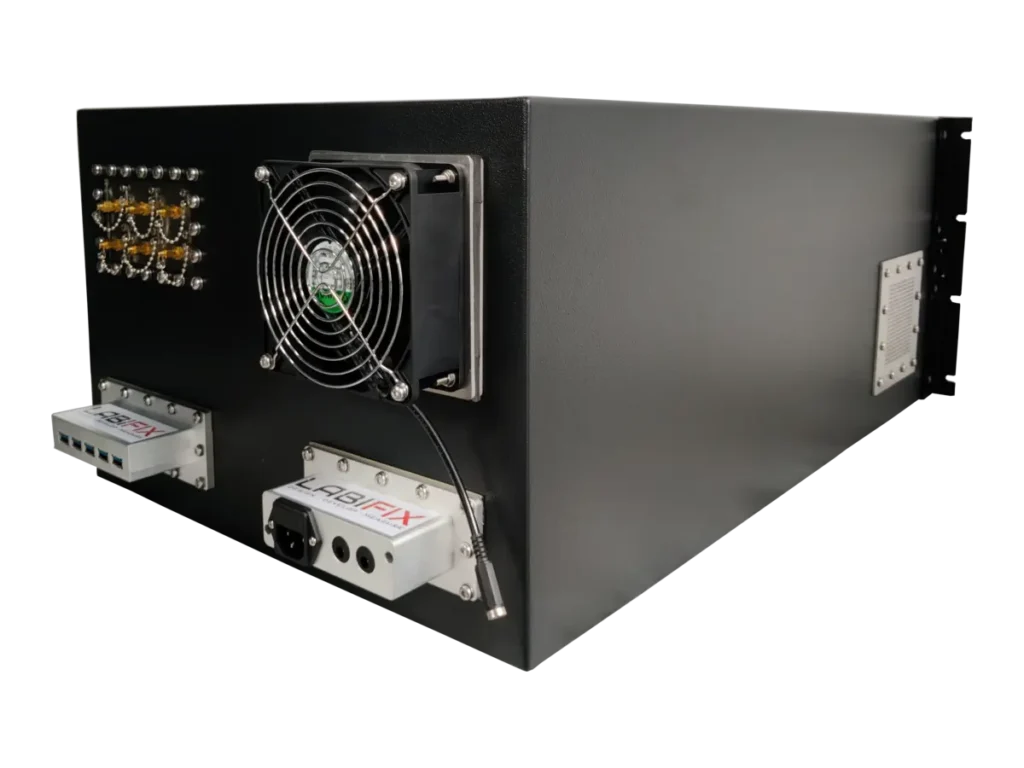

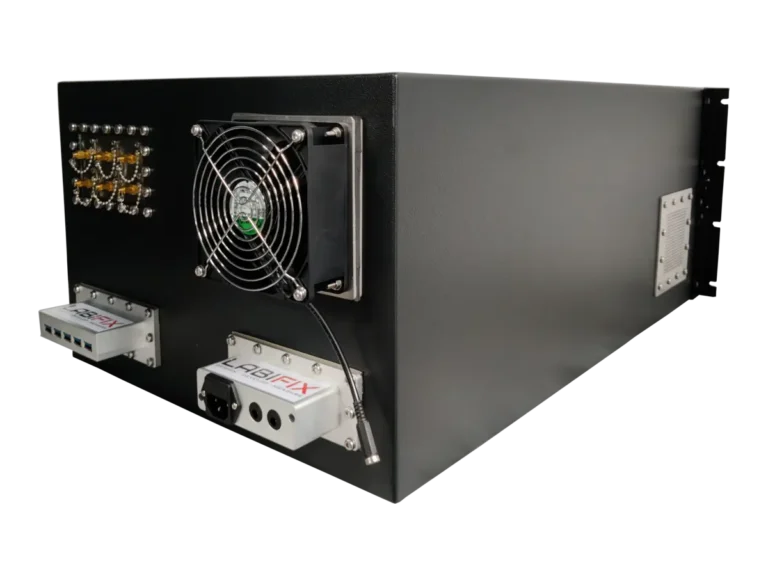

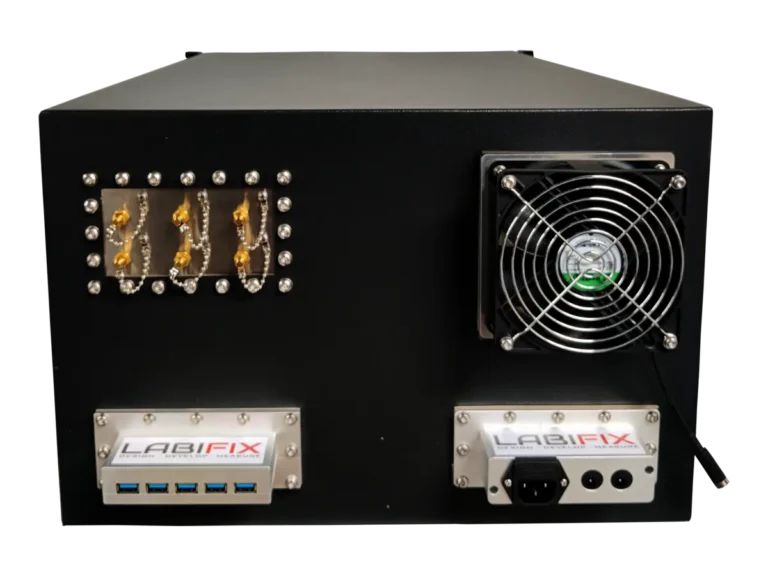

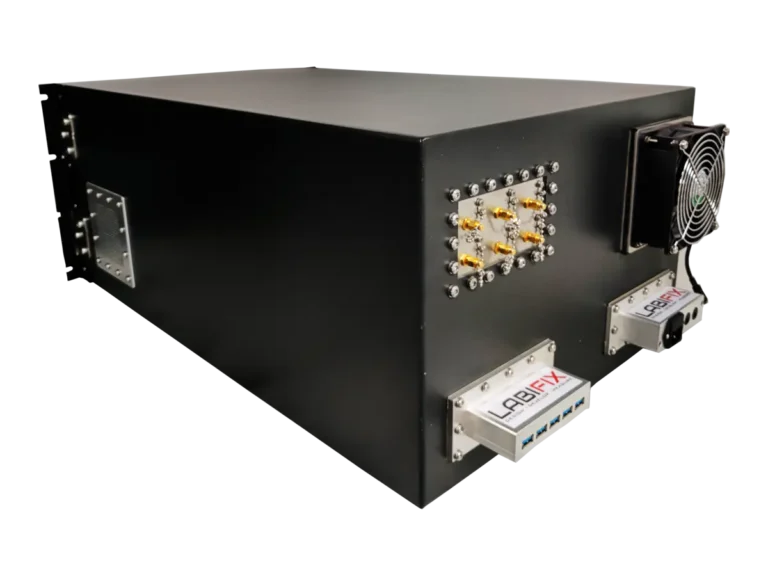

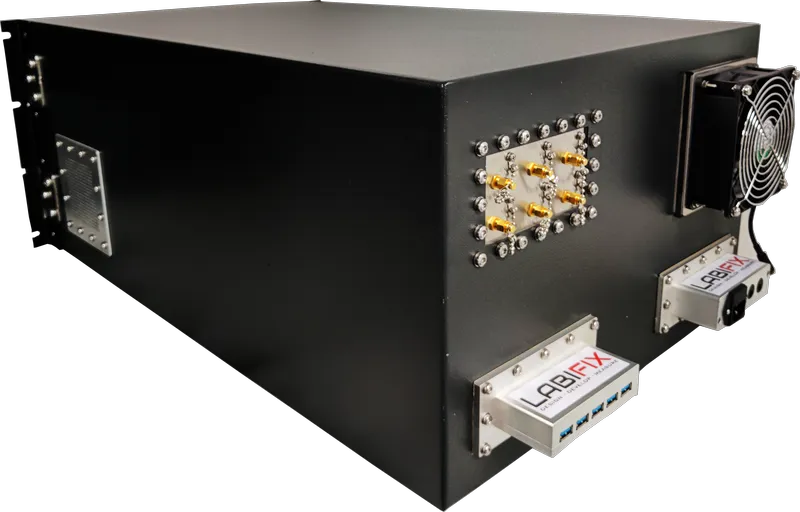

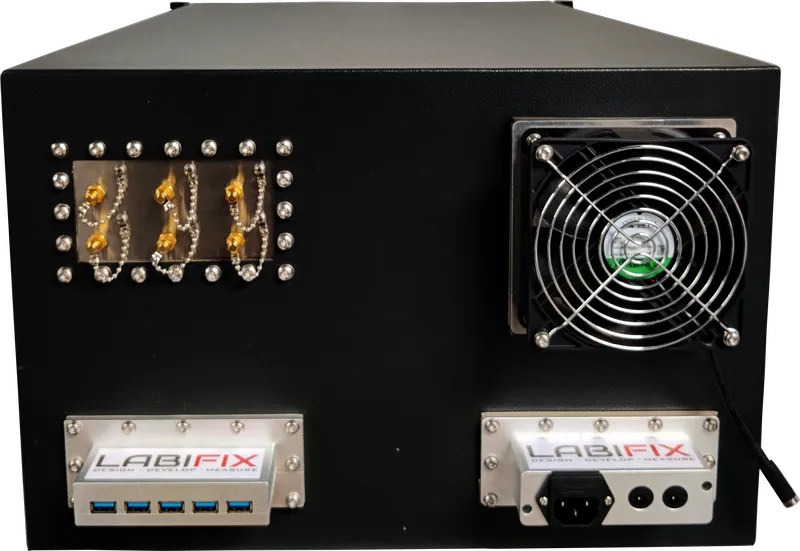

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
