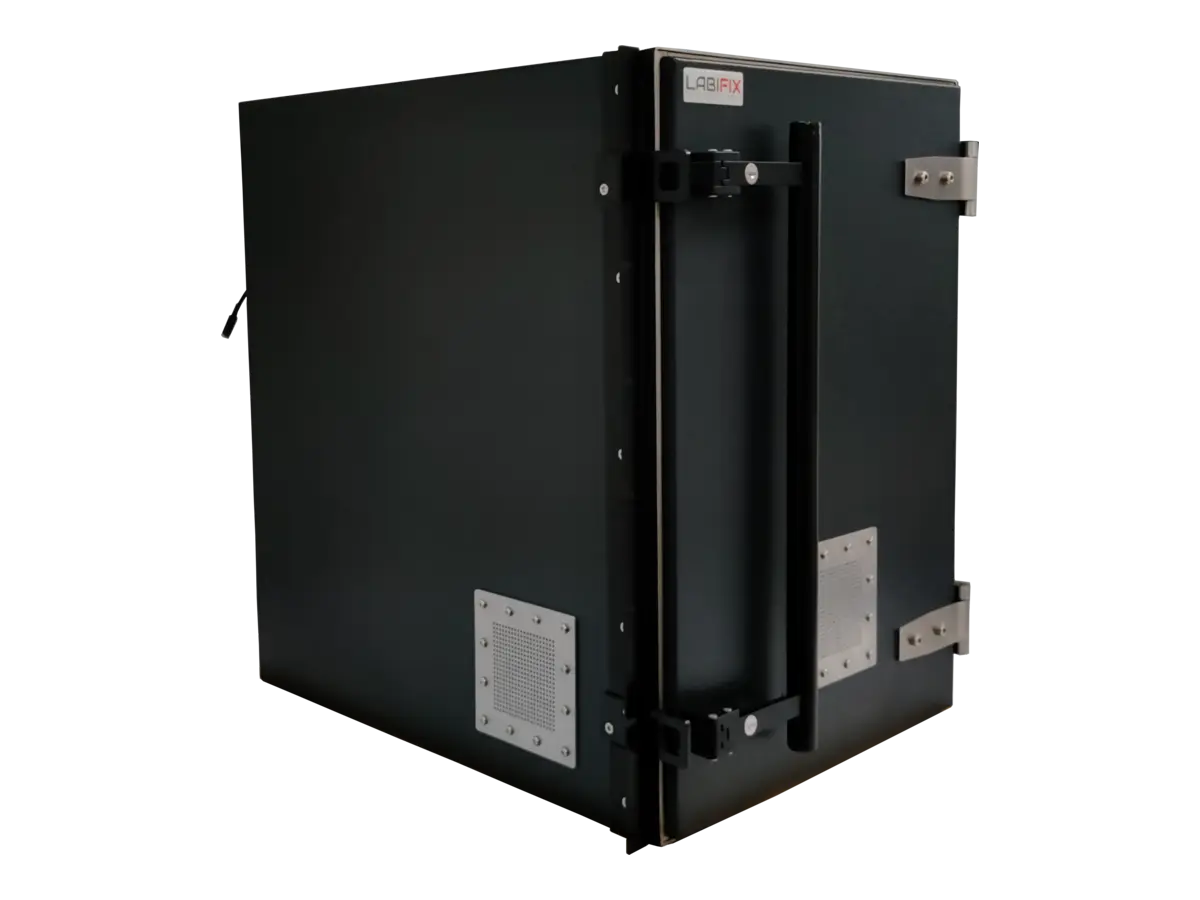

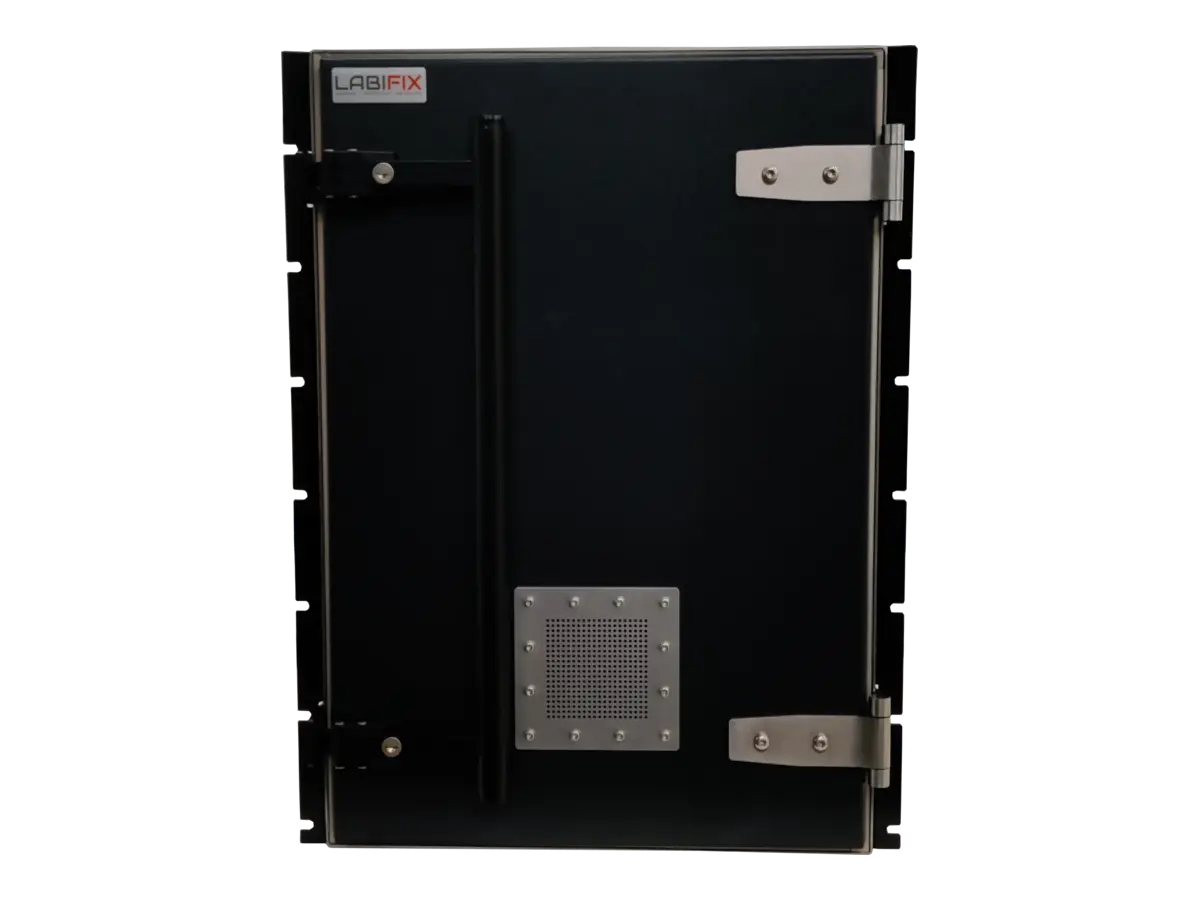

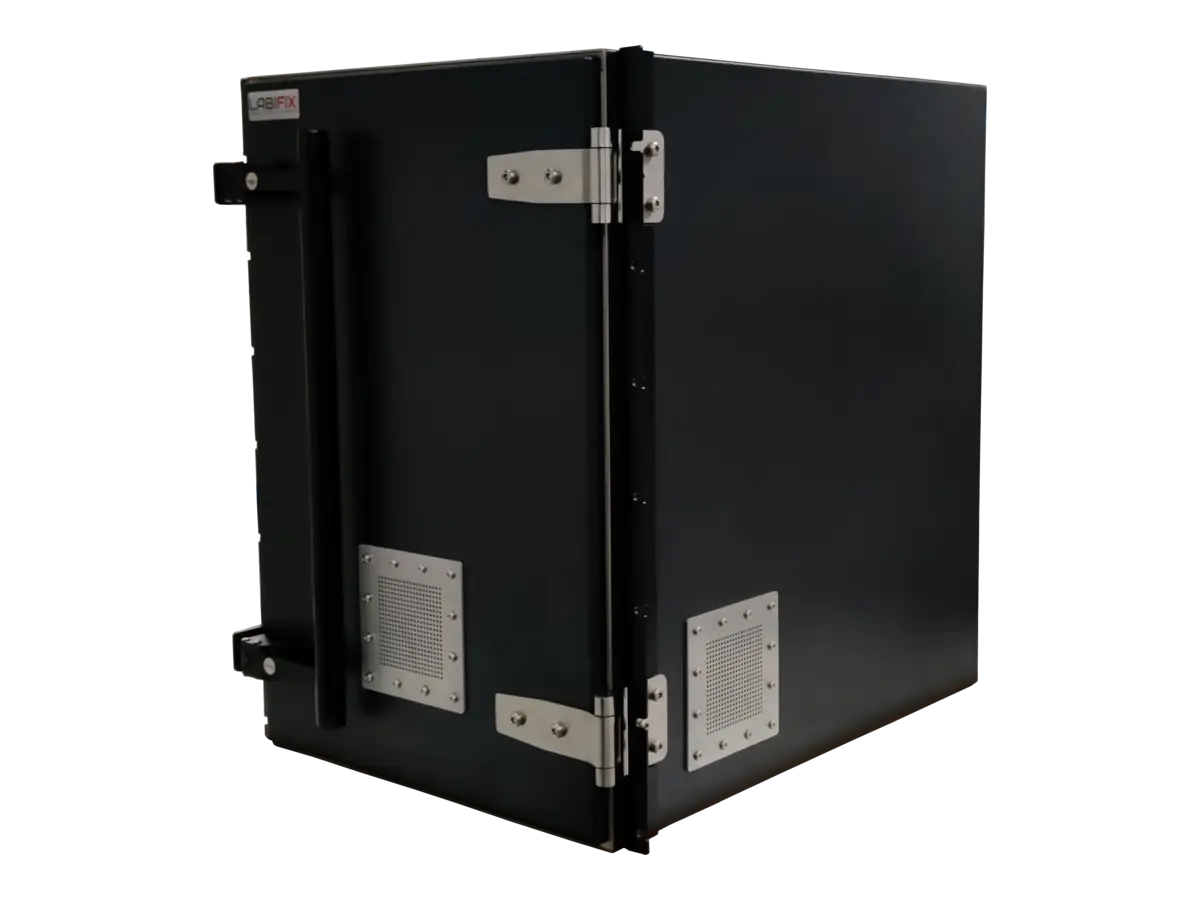

LBX4020 RF Shield Box

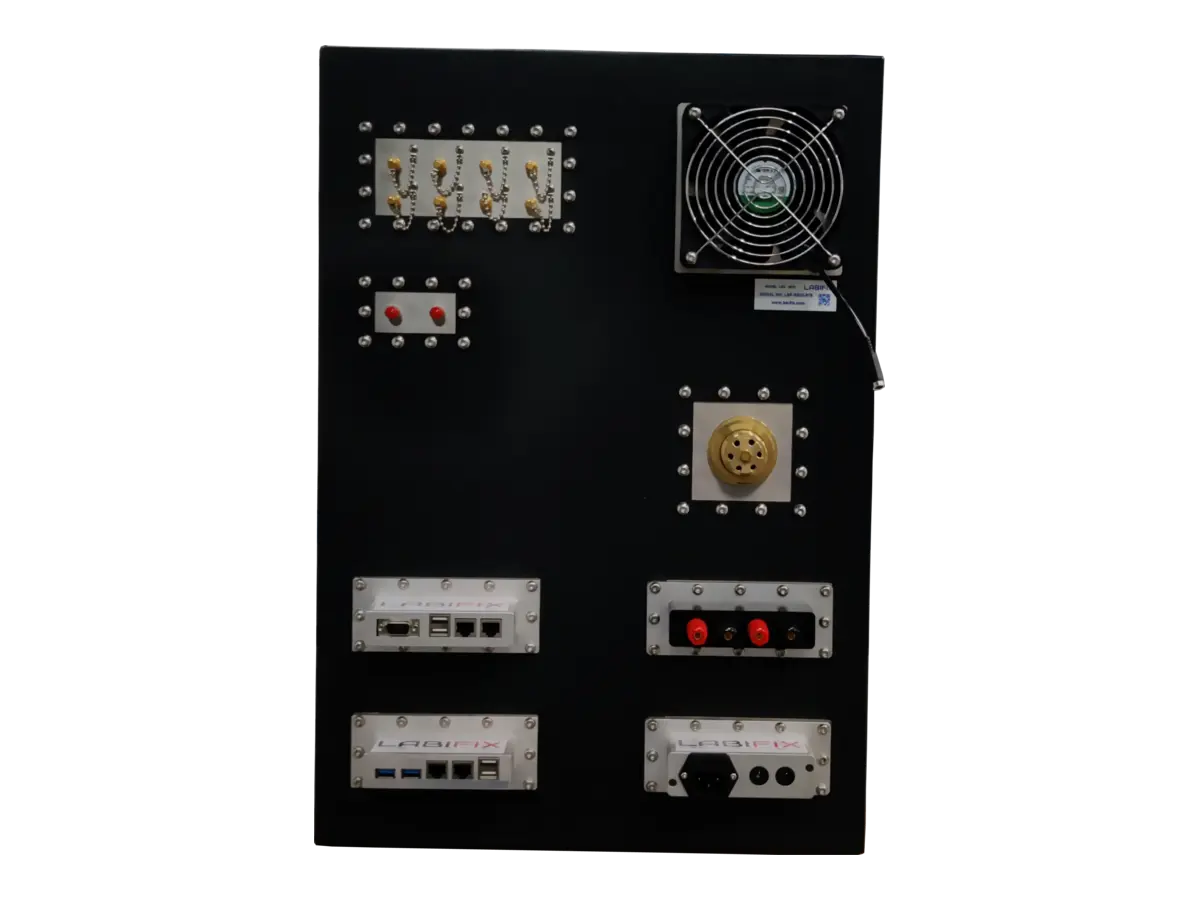

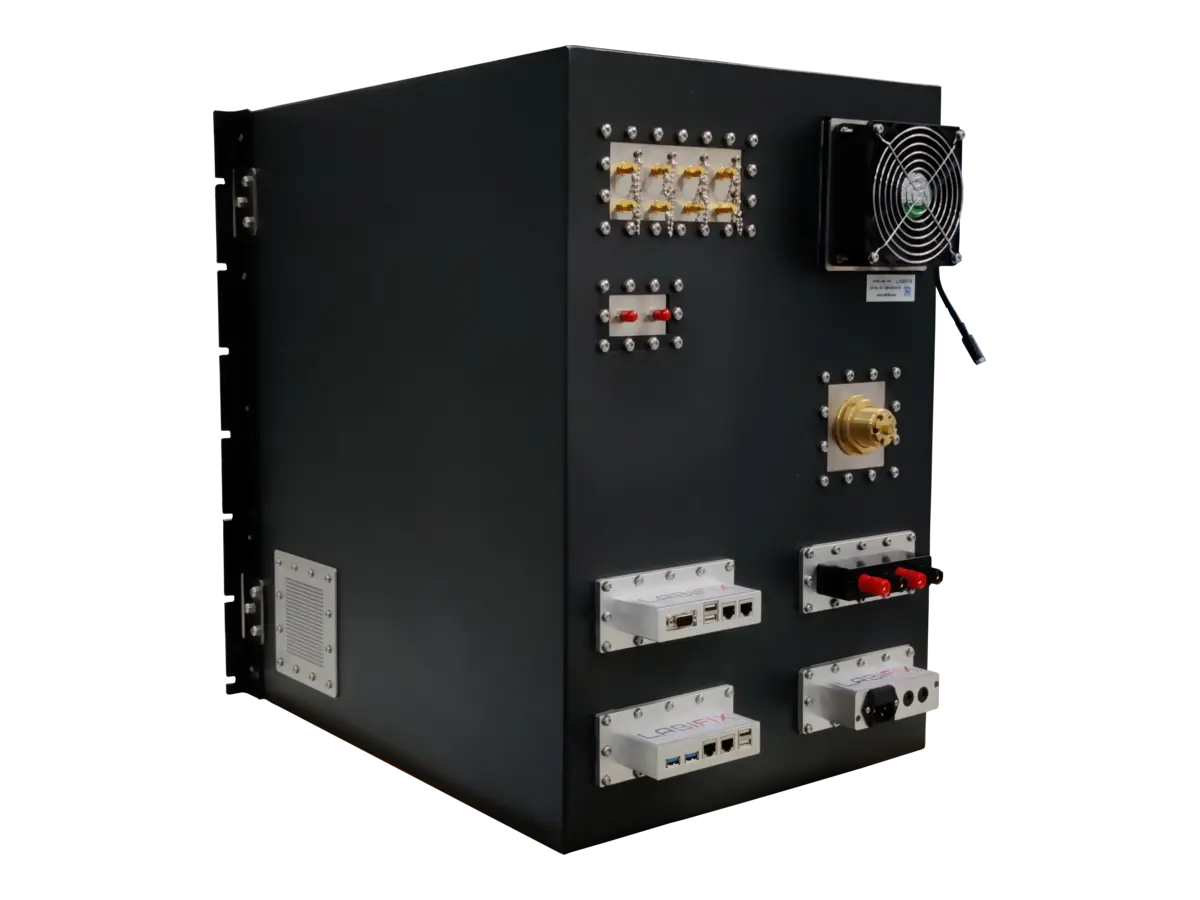

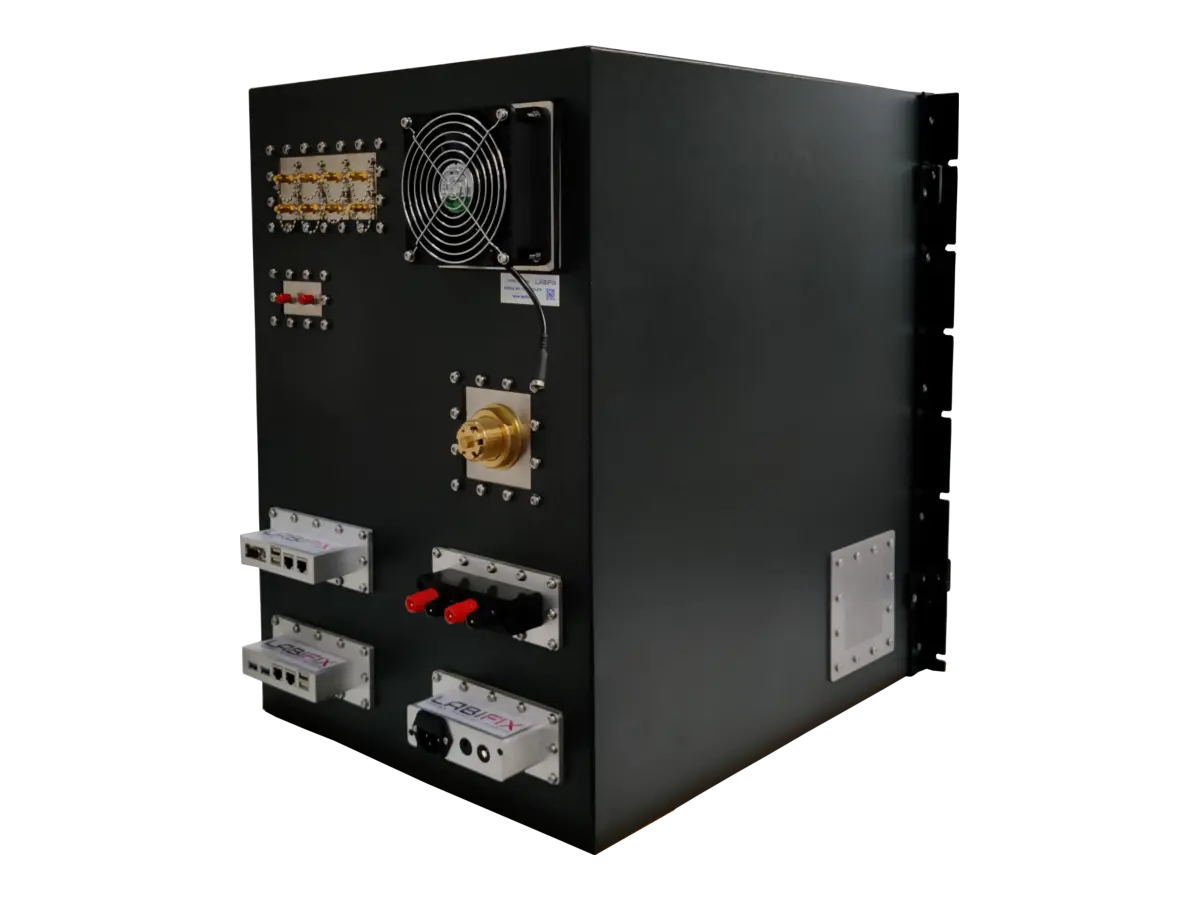

LBX4020 high-performance RF shielded enclosure for Wi-Max, GNSS and Bluetooth supports Operating Frequency Range from 800MHz to 12GHz which is Completely Customizable to suit the wireless device testing specified requirement. The RF Shield isolation box is a rugged welded Enclosure construction that provides superior RF Isolation >90dB powered by AC and DC Power line filters with a standard 1 year warranty. With waveguide for fiber insertion and a variety of data ports such as Filtered USB 2.0, USB 3.0, and HDMI, audio and video connections, you will have all the necessary features to ensure your wireless device testing is working flawlessly.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

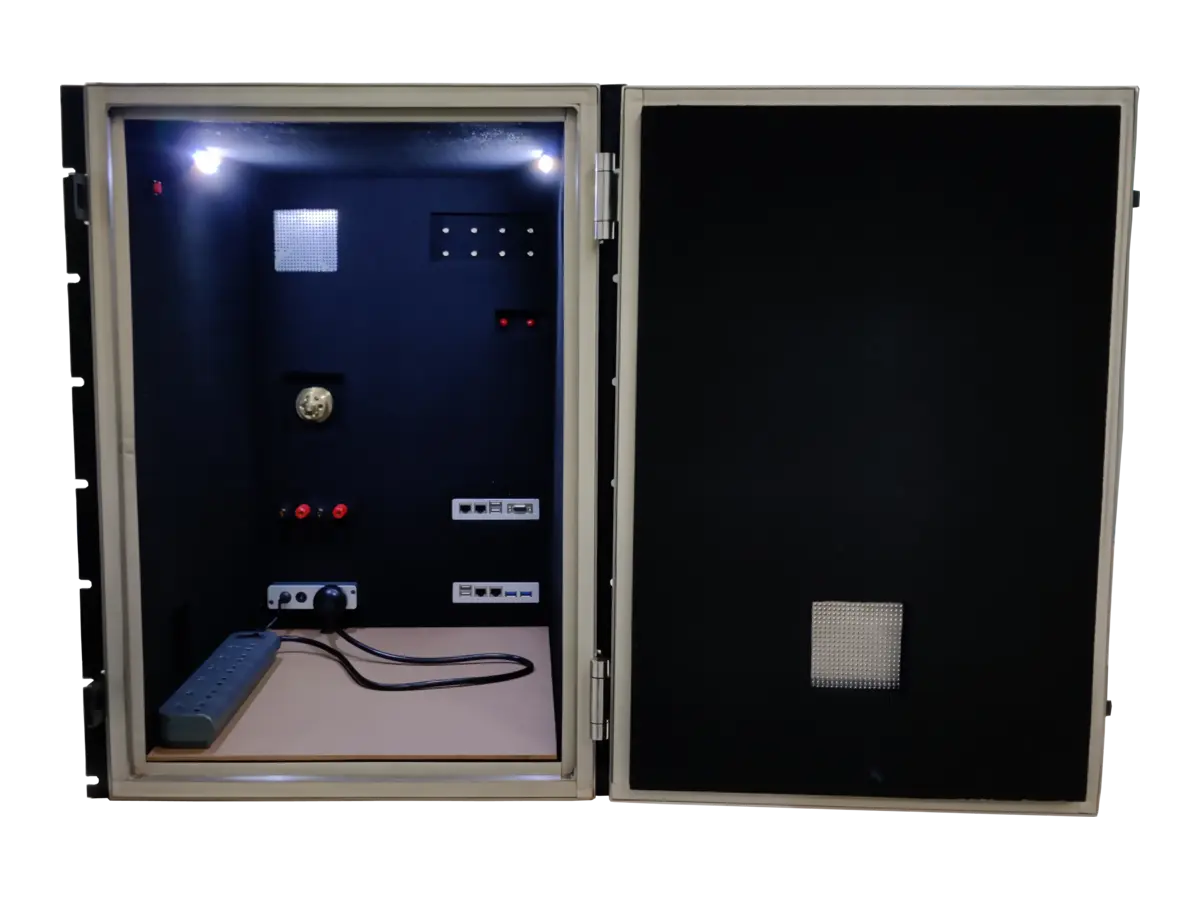

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
