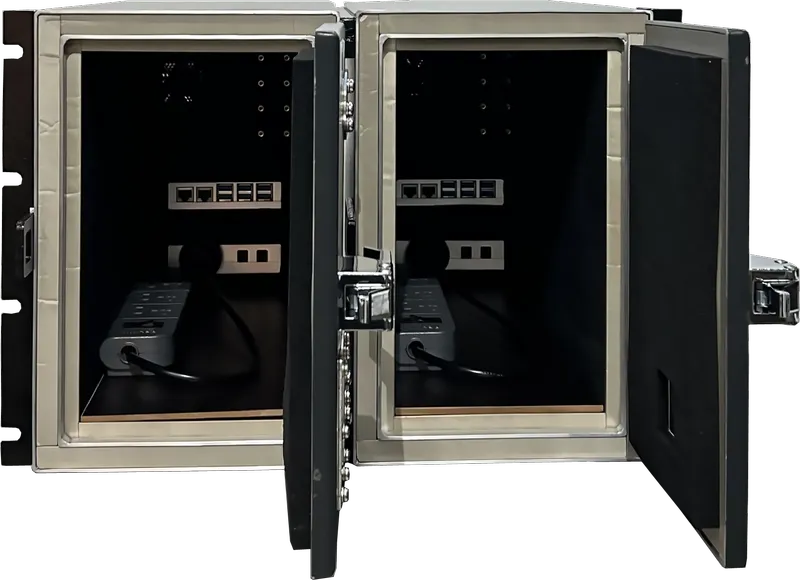

LBX1700 RF Shielded cabinet LabiFix RF Shield Box - View 1 of 6
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

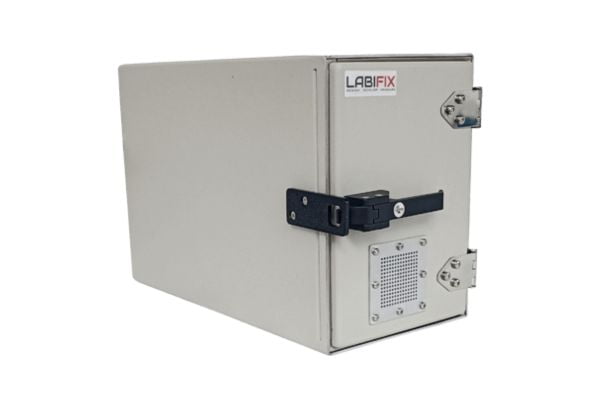

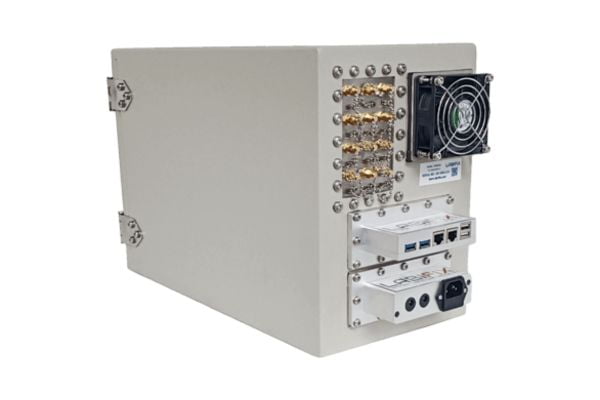

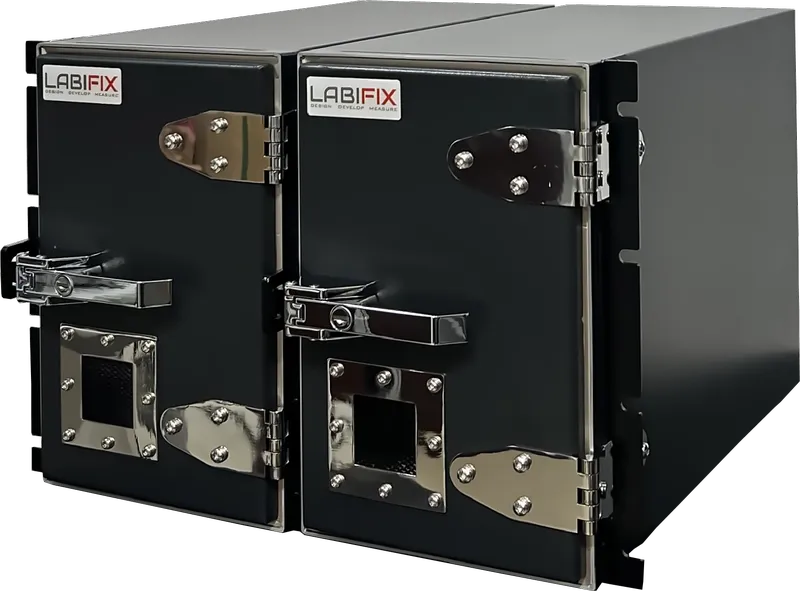

LBX1700 RF Shield Box

LBX1700 RF Shield box is well suited for all types of tests, such as Cellular, Bluetooth, Zigbee, Wimax and other wireless device under test. With various IO RF connectors, data port, and power options used to test devices in both product research and development and production efficiency enhancement without limitations, plus superior RF absorber materials that help reduce the signal inside the RF Box. This box is ideal for engineers to create an inexpensive manual test environment with each validation needs to isolate their device from outside interference.

Dimensions
Exterior (H x W x D)
12" (H) x 8.5" (W) x 18" (D)
Interior (H x W x D)
10" (H) x 6.5" (W) x 16" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

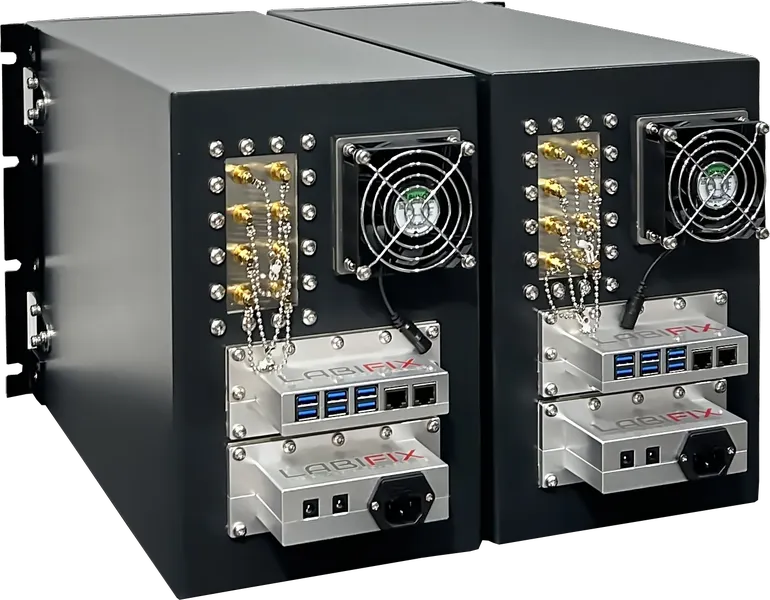

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

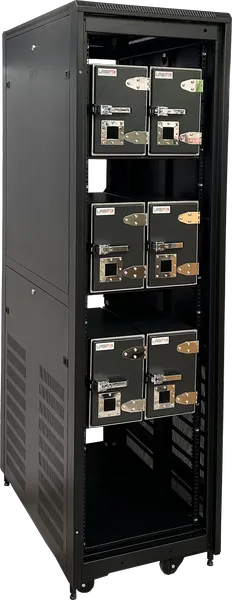

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX1700 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
8.5"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW18"(EXTERIOR DEPTH)SIDE VIEW8.5"(EXTERIOR WIDTH)18"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 8.5" (W) × 12" (H) × 18" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX1700 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
6.5"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW16"(INTERIOR DEPTH)INTERIOR SIDE VIEW6.5"(INTERIOR WIDTH)16"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 6.5" (W) × 10" (H) × 16" (D)RF Pyramidal Microwave Absorber Lining Boundary
LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

LBX9200 RF MODULAR 5G IOT UE VERIFICATION SHIELDED ENCLOSURE

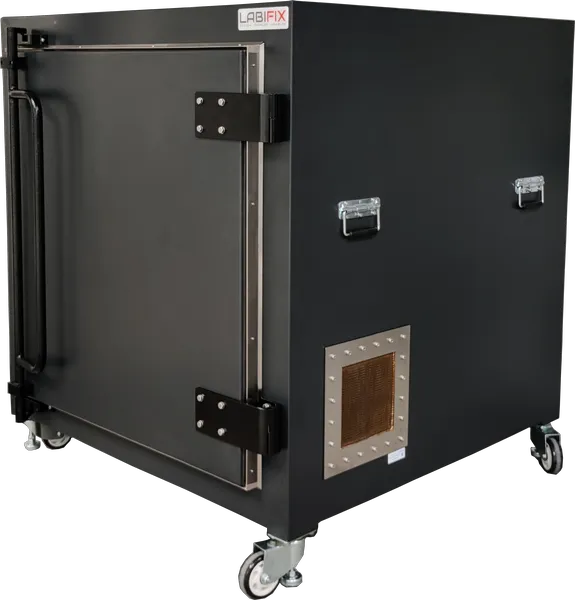

LBX9200 RF MODULAR 5G IOT UE VERIFICATION SHIELDED ENCLOSURE - LabiFix RF Shield Box, front viewLBX9200 RF MODULAR 5G IOT UE VERIFICATION SHIELDED ENCLOSURE - LabiFix RF Shield Box, rear view

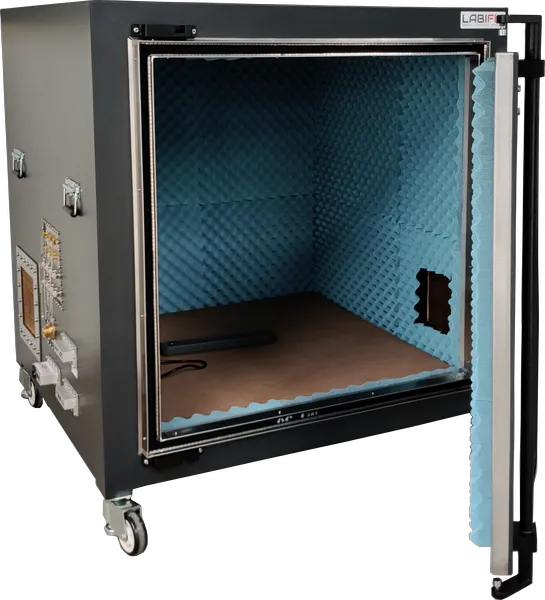

The LBX9200 Modular MIMO OTA validation Shielded Enclosure is a relatively inexpensive solution, but

View Details

LBX9100 RF SHIELDED ENCLOSURE

LBX9100 RF SHIELDED ENCLOSURE - LabiFix RF Shield Box, front viewLBX9100 RF SHIELDED ENCLOSURE - LabiFix RF Shield Box, rear view

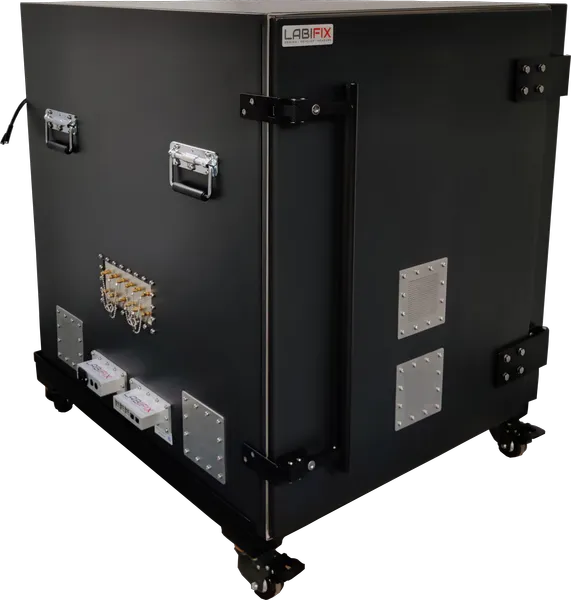

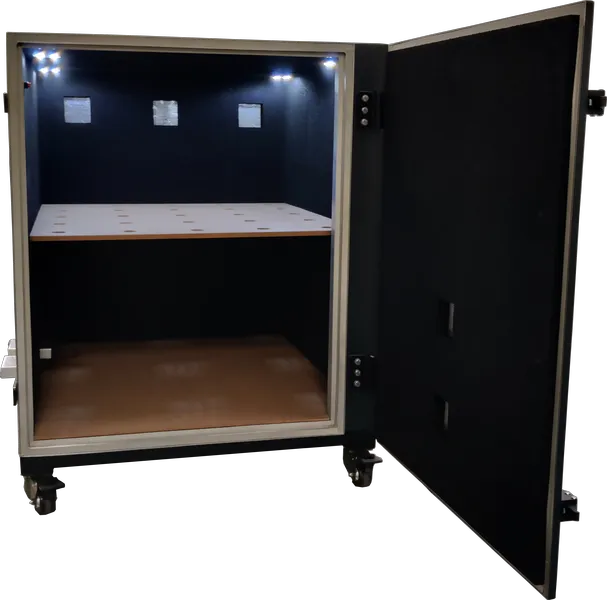

The LBX9100 RF Shielded Test Enclosure is ideal for testing and measuring wireless, Radio Frequency (RF)

View Details

LBX7500 PORTABLE RF ANECHOIC BOX

LBX7500 PORTABLE RF ANECHOIC BOX - LabiFix RF Shield Box, front viewLBX7500 PORTABLE RF ANECHOIC BOX - LabiFix RF Shield Box, rear view

LBX7500 Portable RF Anechoic Box is the perfect solution to your EMI, RFI and communication testing requirements.

View Details

Get in Touch with Engineering

Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.

Call Us Direct
+91 8792387614
Email Inquiry
business@labifix.com

Request Technical Datasheet (PDF)
