What frequency ranges does LBX7240 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX7240

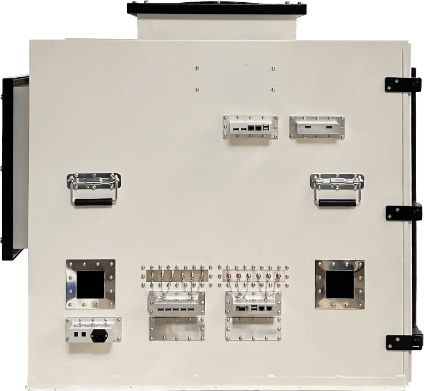

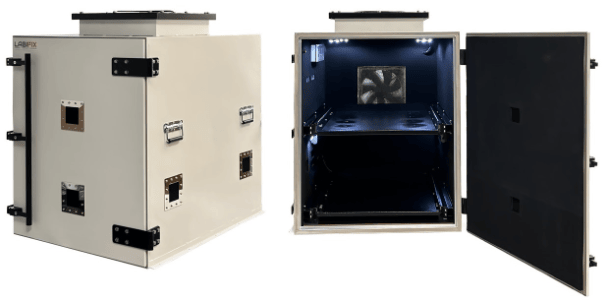

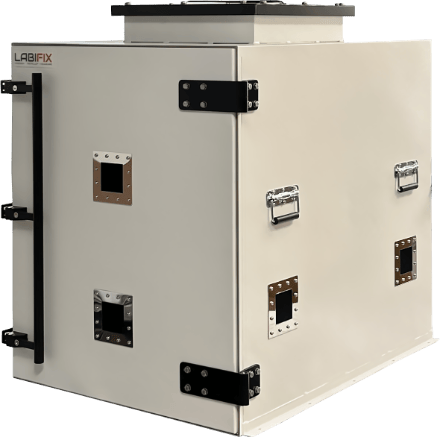

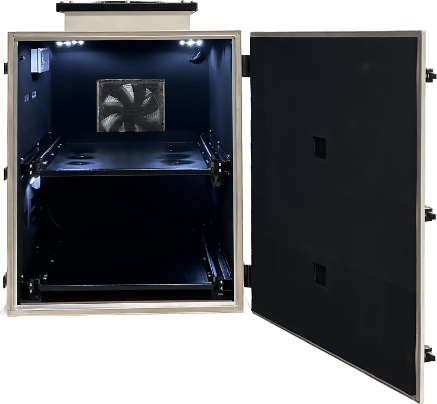

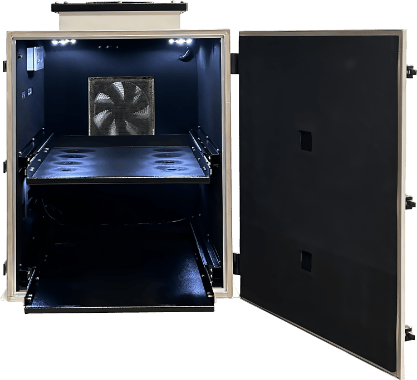

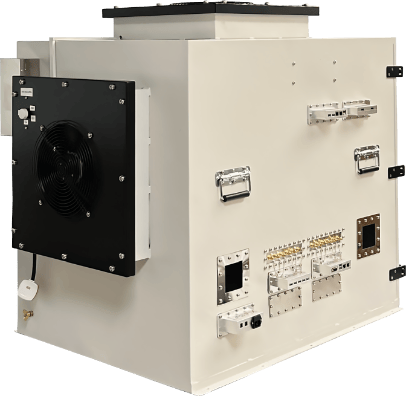

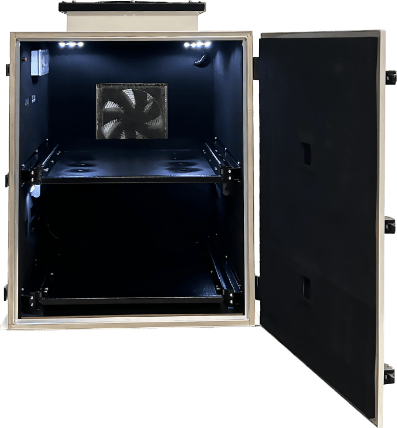

LBX7240 High Cooling Test Chamber LabiFix RF Shield Box - View 1 of 8

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX7240 RF Shield Box

Name: LBX7240 Standalone RF Shielded Enclosure | LabiFix
Brand: Labifix Innovations
SKU: LBX7240

For applications requiring exceptional isolation across challenging frequency ranges, the LBX7240 delivers >90dB shielding from 0.8GHz to 8GHz. This pneumatic enclosure provides stable, effective shielding performance across all frequency bands, making it particularly well-suited for Wi-Fi products, smart meters, and cellular devices. The automatic door operation integrates smoothly into production workflows, while the ample ventilation ensures consistent thermal management during extended test sessions. Multiple power options—AC/DC, 12V DC, or 230VAC power line filters—provide installation flexibility. If you're looking for a production-ready shielding solution that combines high isolation with practical usability, the LBX7240 is the answer.

Dimensions

Exterior (H x W x D)

35.4" (H) x 29.5" (W) x 39.3" (D)

Interior (H x W x D)

33.4" (H) x 27.5" (W) x 37.3" (D)

Shielding Effectiveness
