IEEE-299 Certified
•MIL-STD-285
•CE Marked (RED)
RF SHIELD BOX

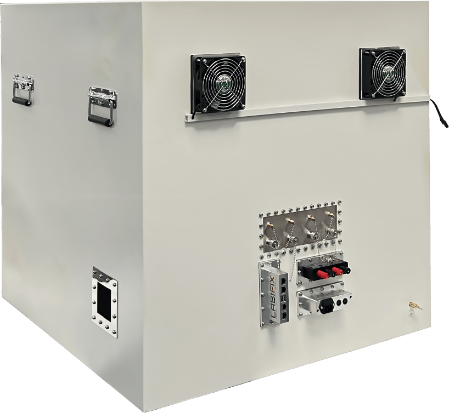

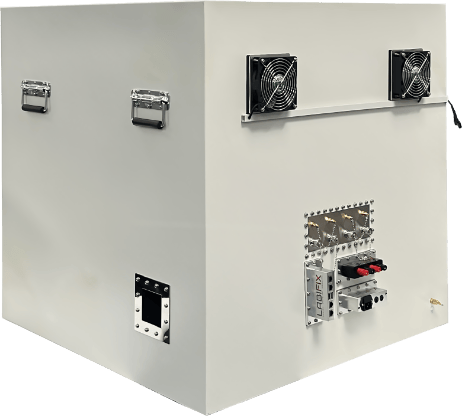

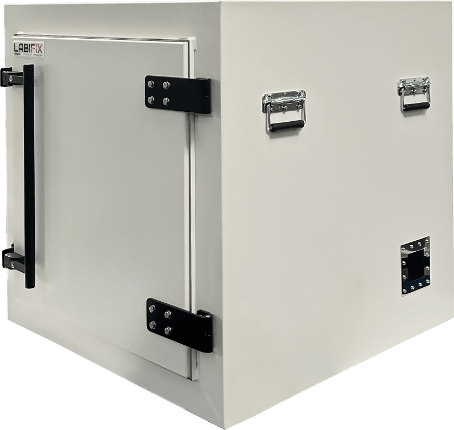

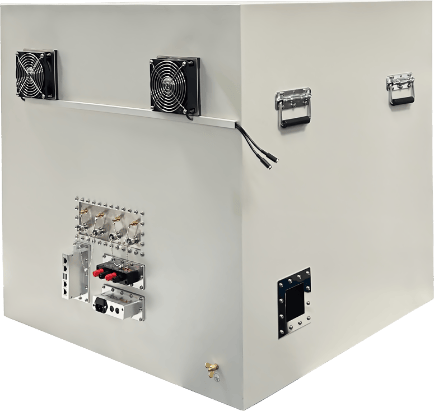

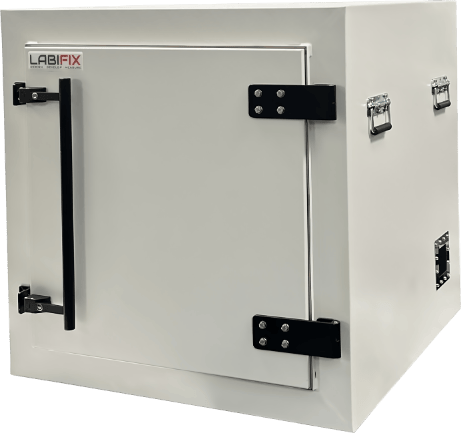

LBX6075 RF Shield Box
LBX6075 offers a configurable approach to RF isolation for engineers working with wireless devices and electronic systems. Key configuration possibilities include High Performance RF Absorber lining. That makes it a natural fit for a Faraday box, this model can be assessed as a configurable RF isolation platform, where a defined RF environment can help engineers work with greater consistency. As a RF test enclosure, LBX6075 can be configured around the DUT and the way it needs to be tested.
Dimensions
Exterior (H x W x D)
33" (H) x 33" (W) x 33" (D)
Interior (H x W x D)
31" (H) x 31" (W) x 31" (D)
Shielding Effectiveness
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

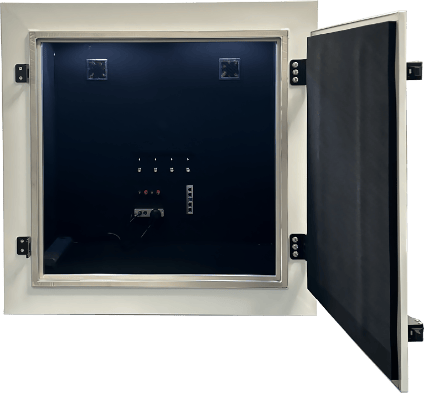

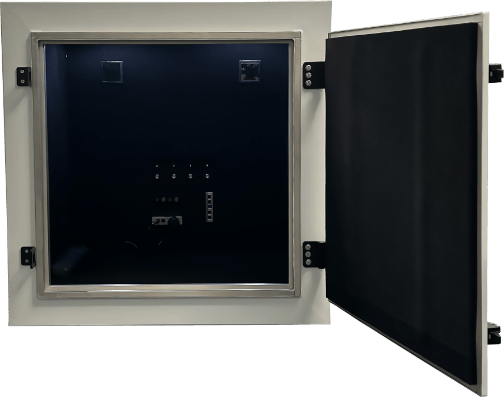

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
LABIFIX RF PRODUCT PORTFOLIO
Related RF Shielding Enclosures
Explore complementary RF test boxes and isolation enclosures engineered for precision testing
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
