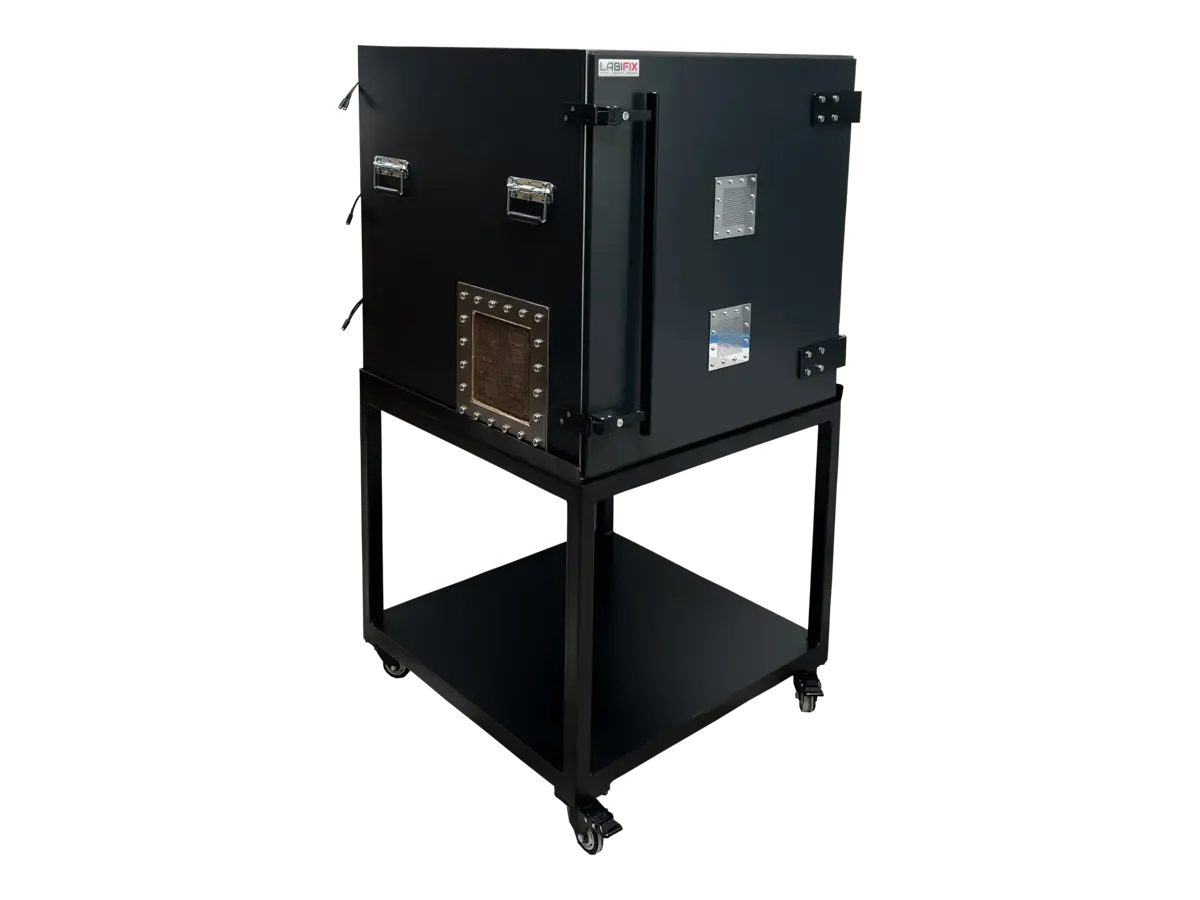

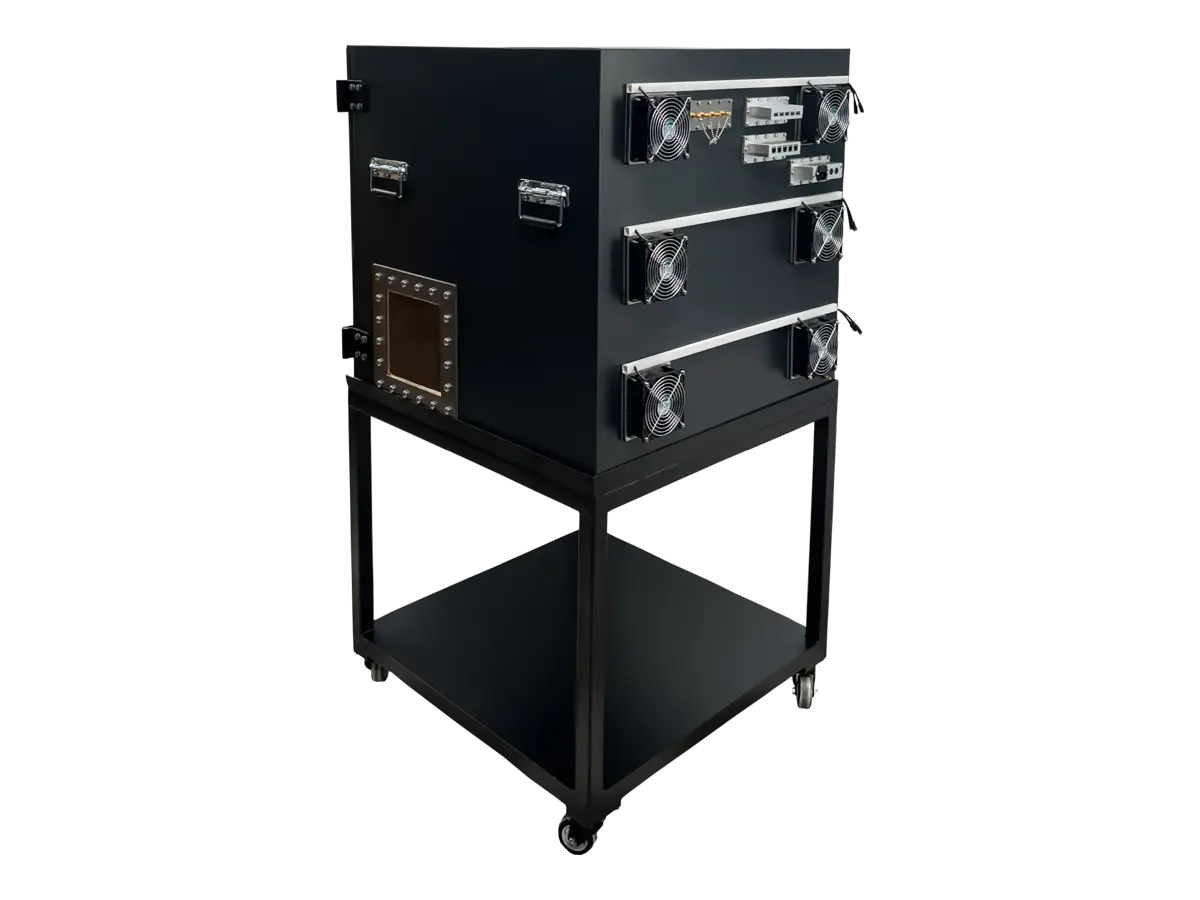

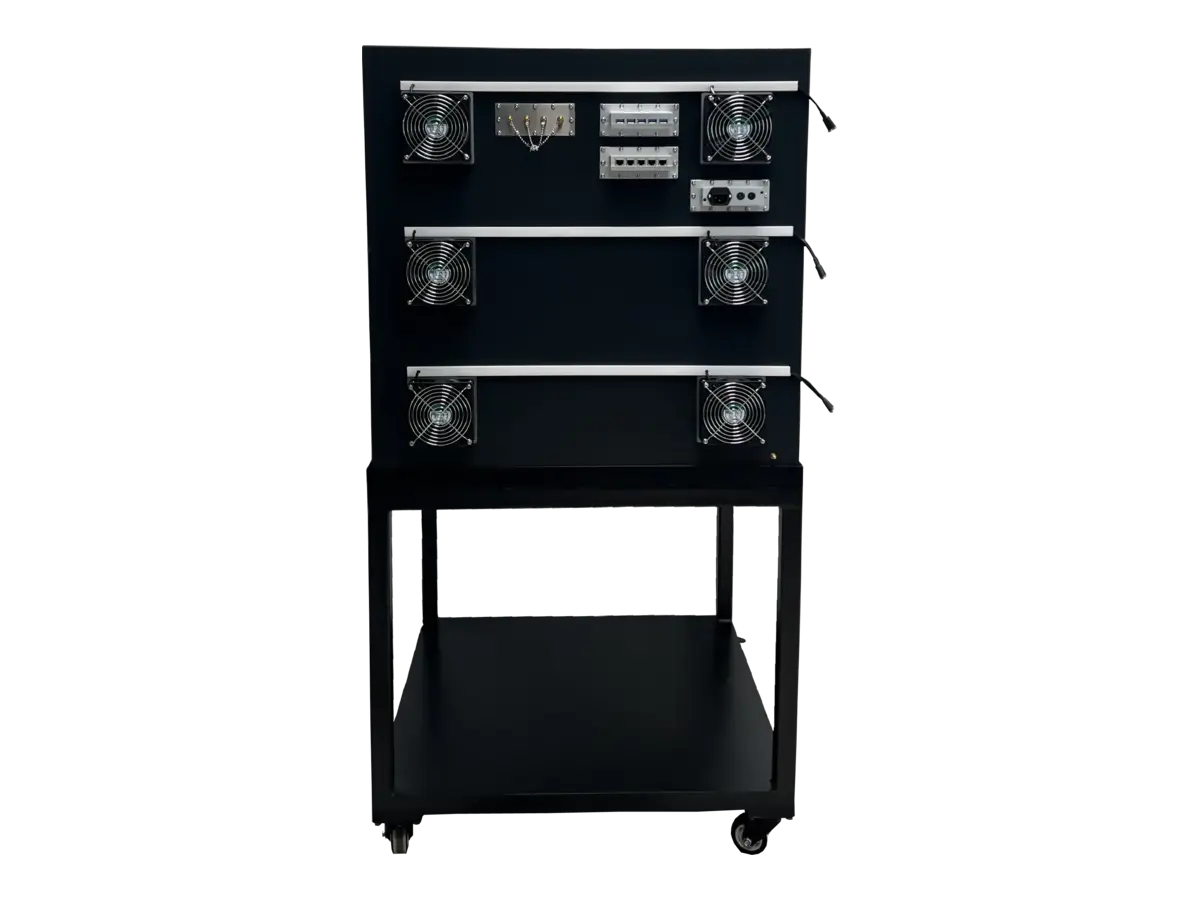

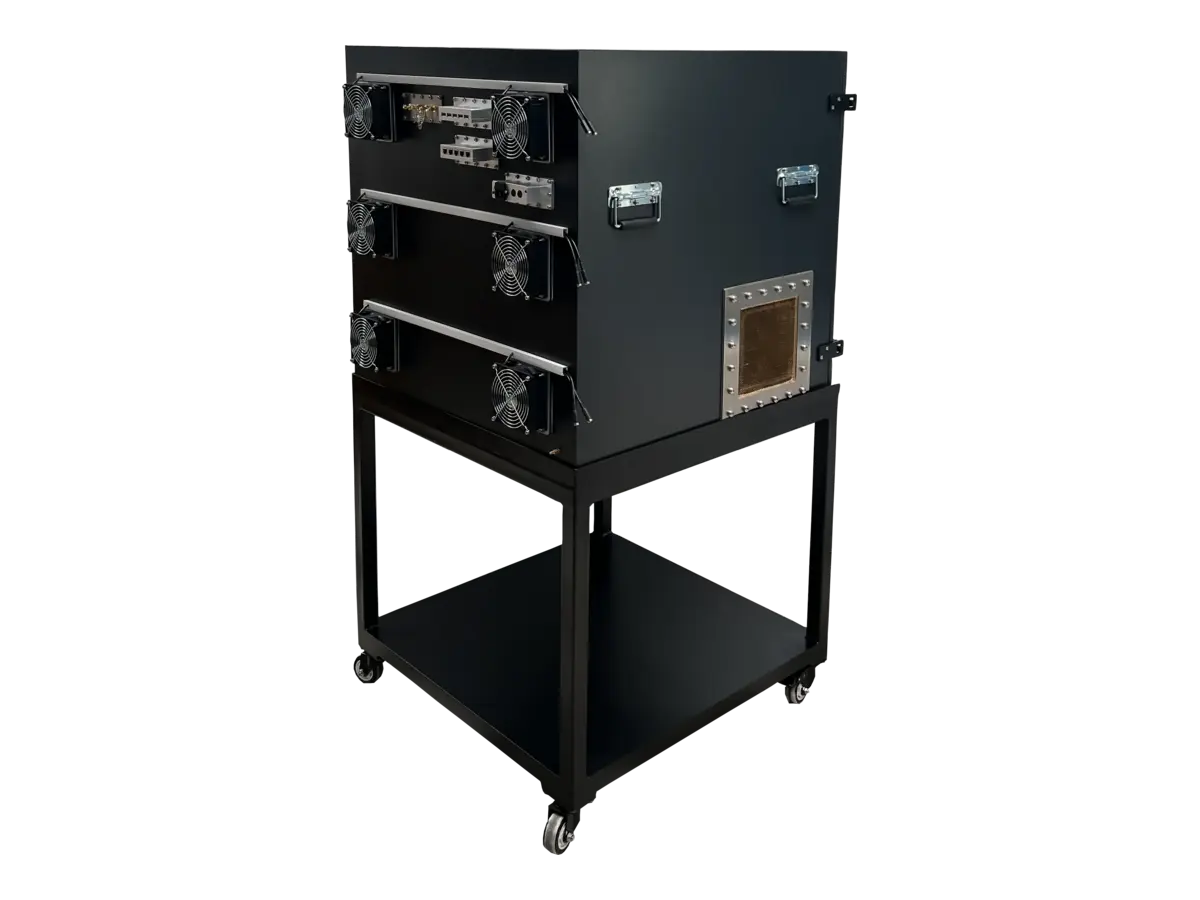

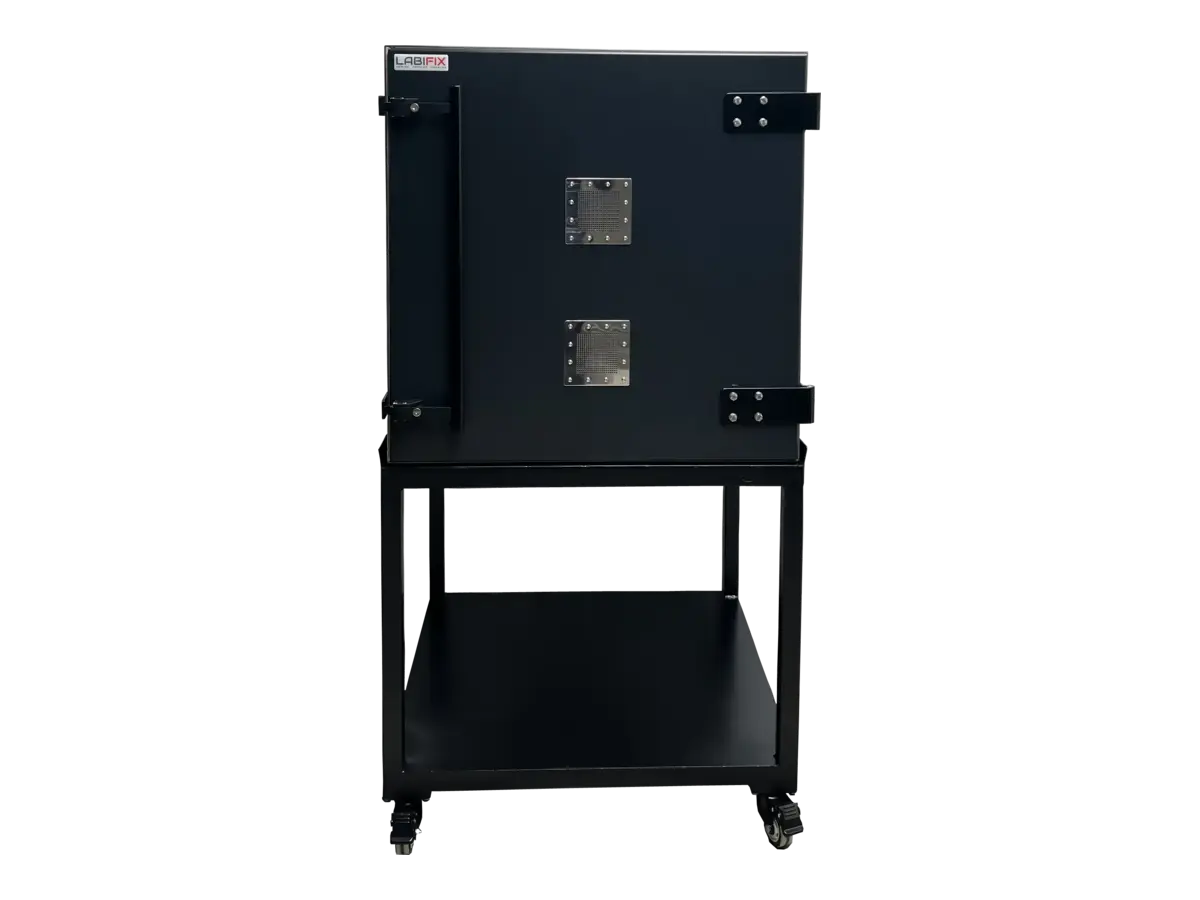

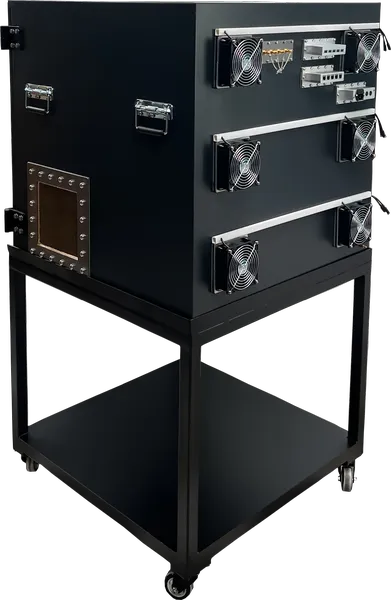

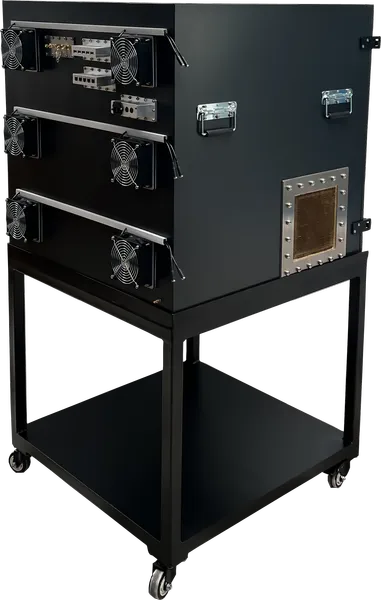

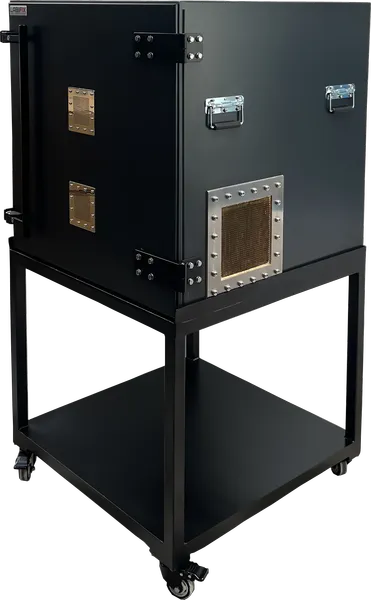

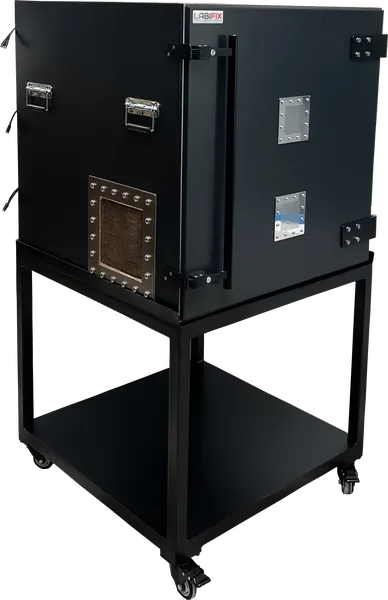

LBX7800 RF Shield Box
This RF LBX7800 shielded enclosure is optimized for automotive and V2X testing, helping engineers evaluate connected vehicle technologies without excessive ambient RF interference. It can support testing of keyless entry systems, vehicle communication modules, infotainment electronics, radar-related sensors, and autonomous driving components. Configurable RF ports, filtered power lines, data interfaces, and absorber materials help establish repeatable conditions. Its robust construction is suitable for laboratory development, validation, troubleshooting, and production environments where reliable RF measurements are important for connected automotive technologies. It helps engineers create controlled, repeatable RF testing environments for connected automotive technology development, validation, and production testing.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

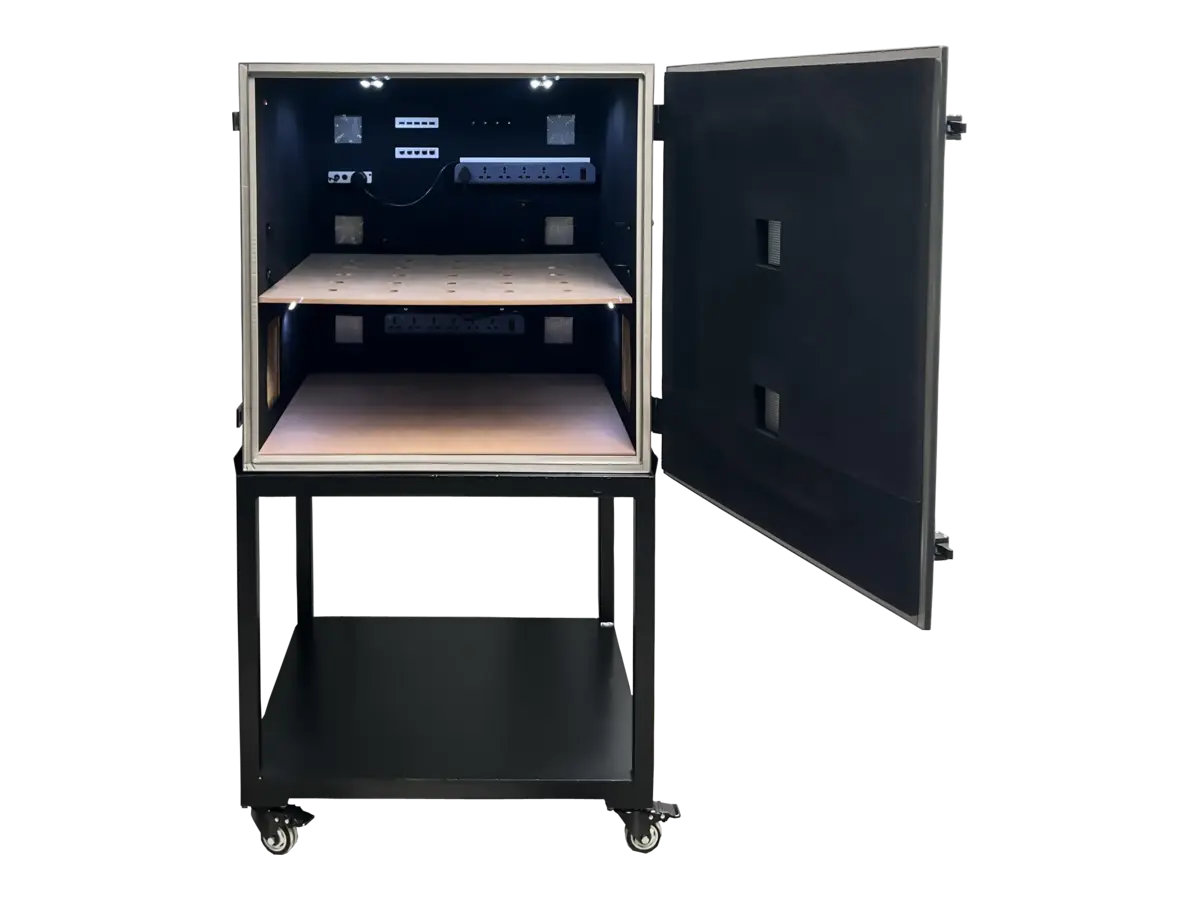

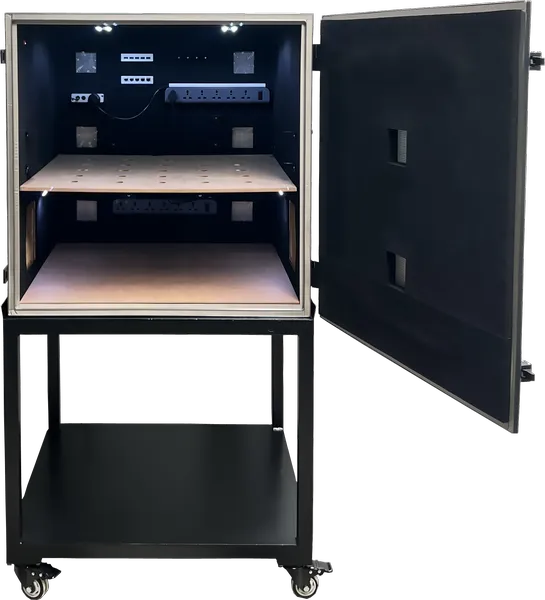

High Performance Pyramidal RF Microwave Absorber lining

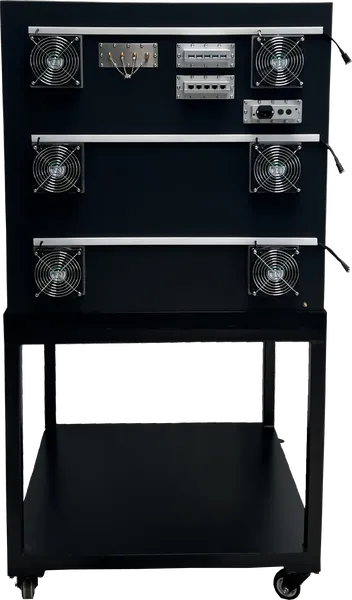

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
