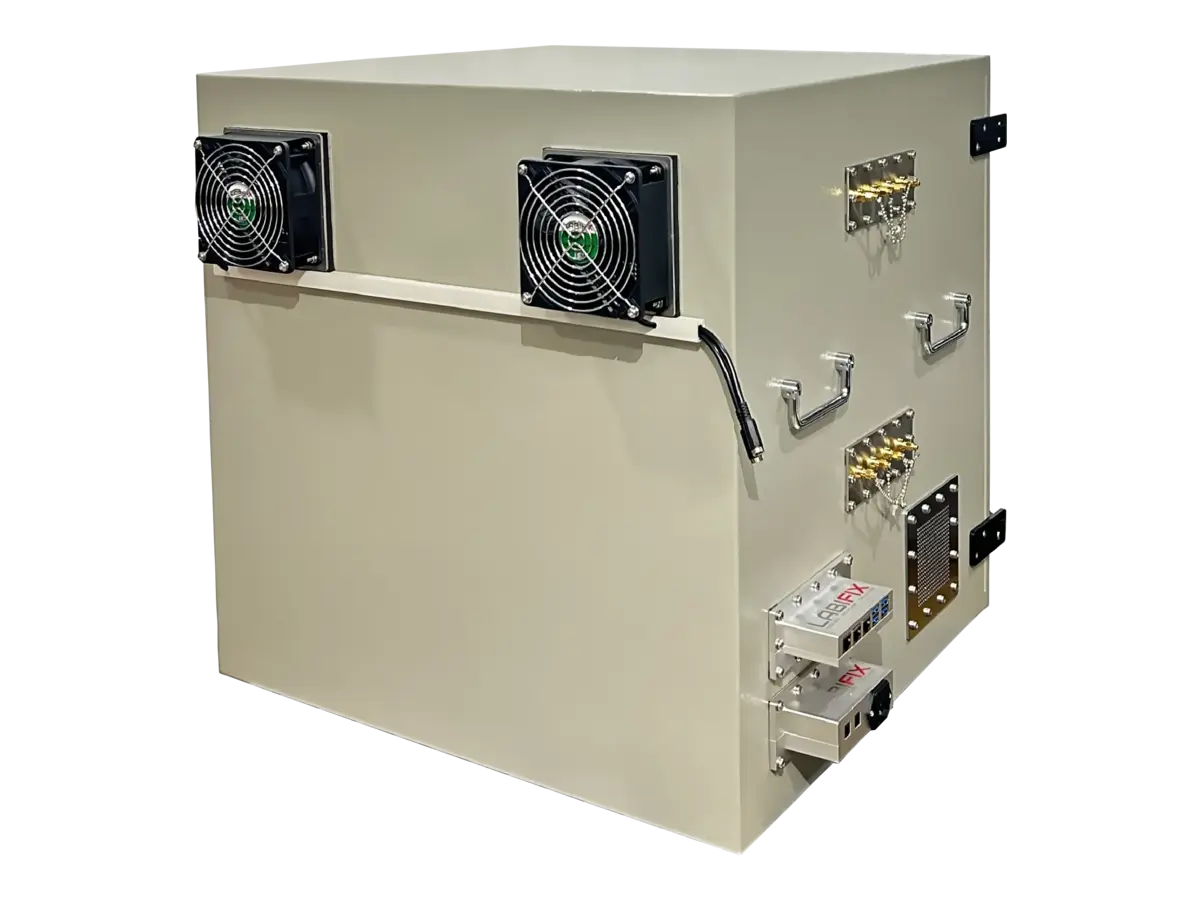

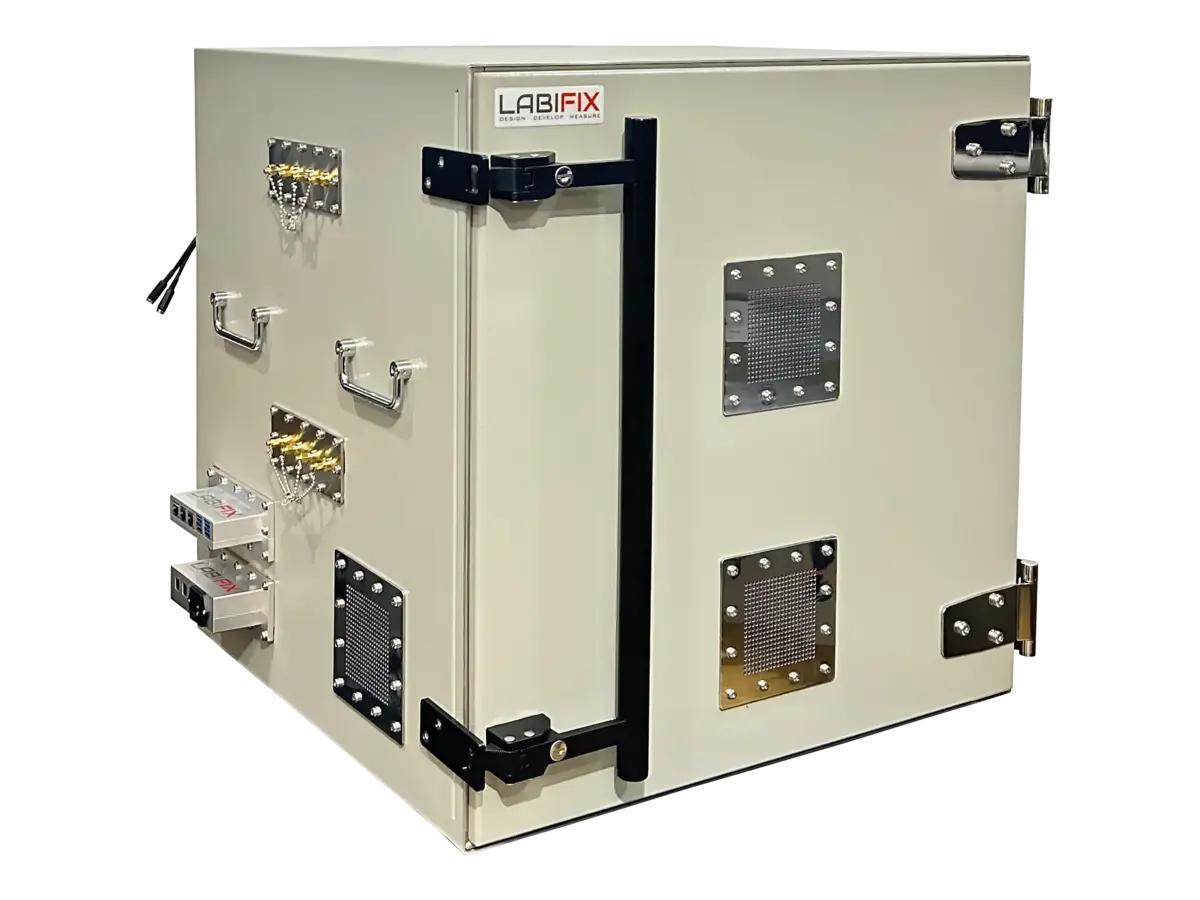

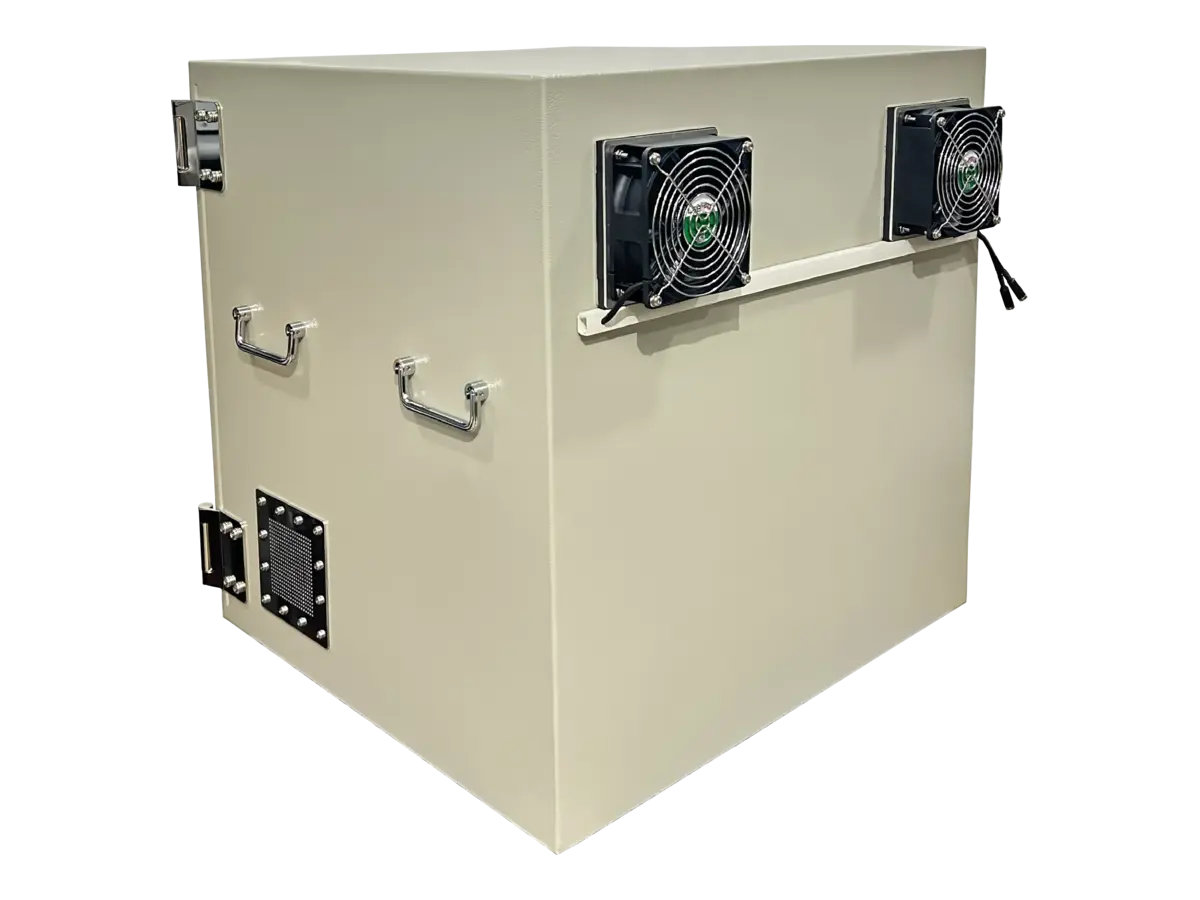

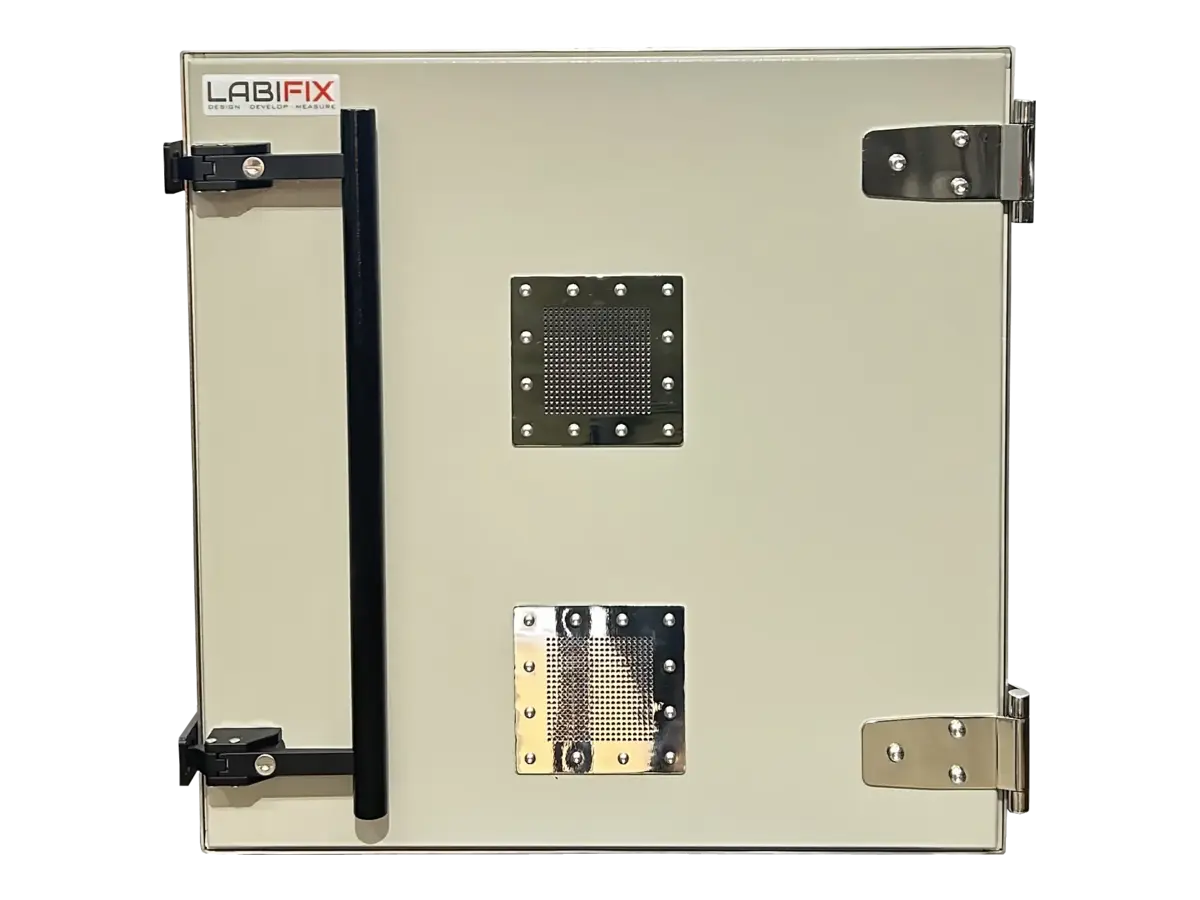

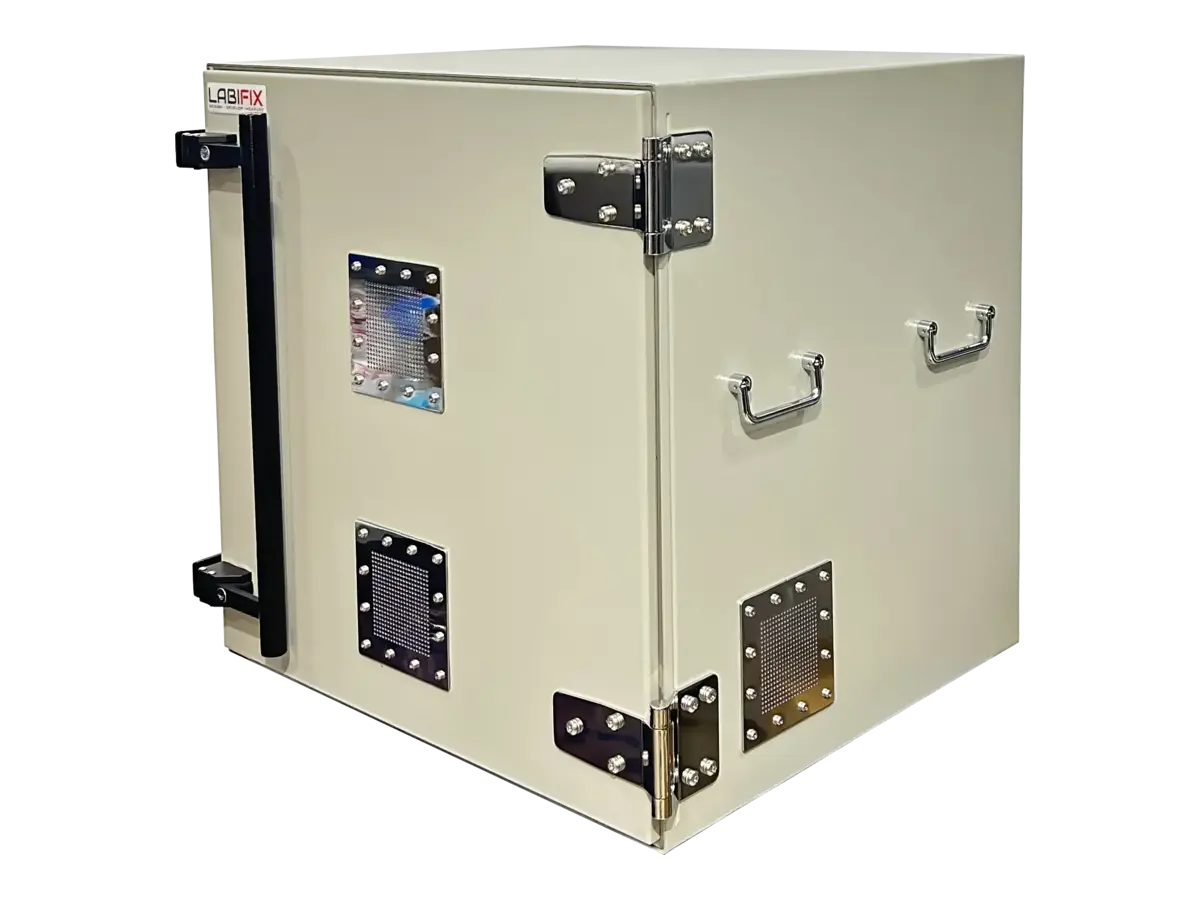

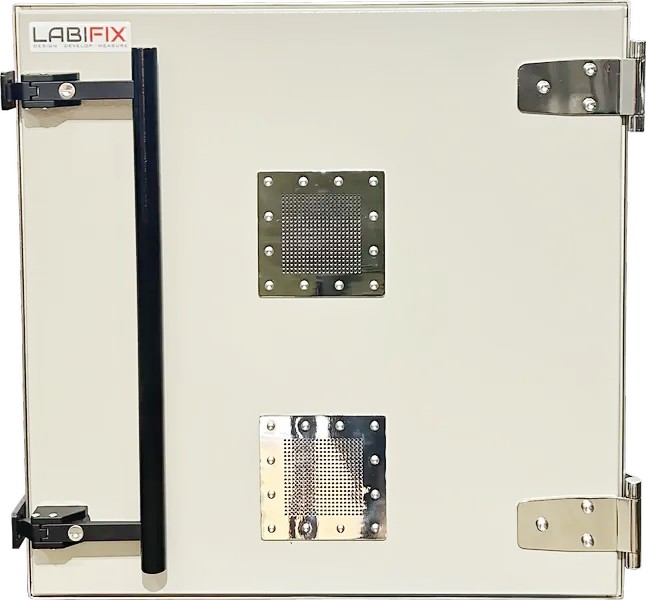

LBX6550 OTA Test box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked
RF SHIELD BOX

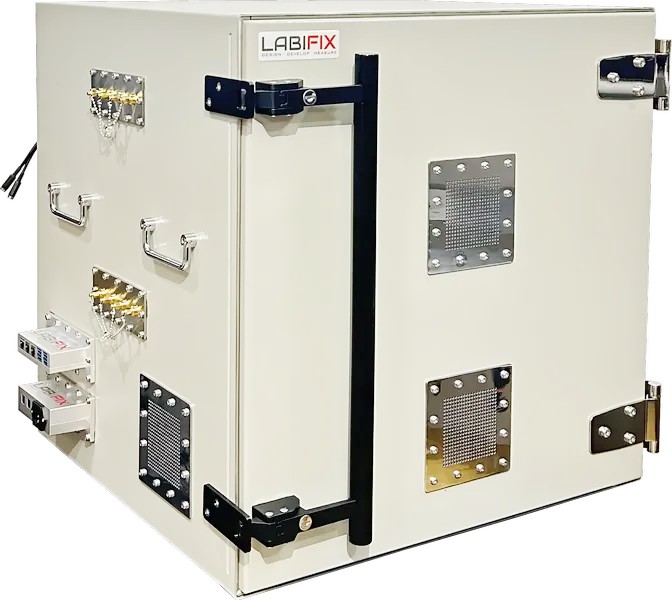

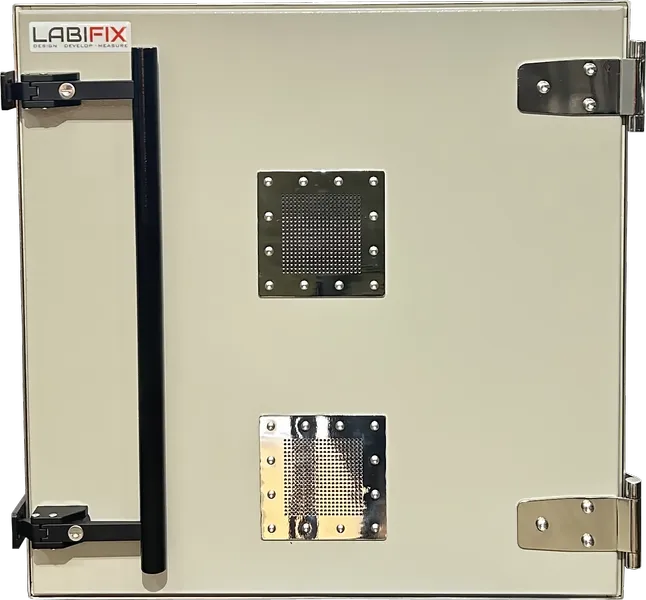

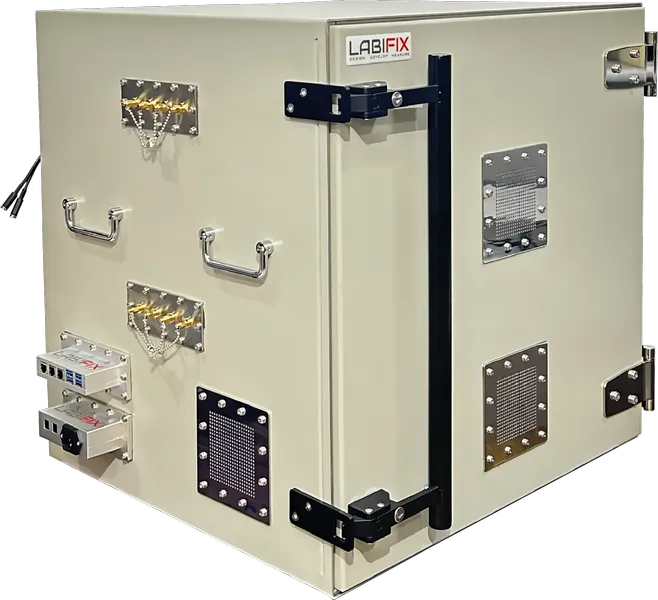

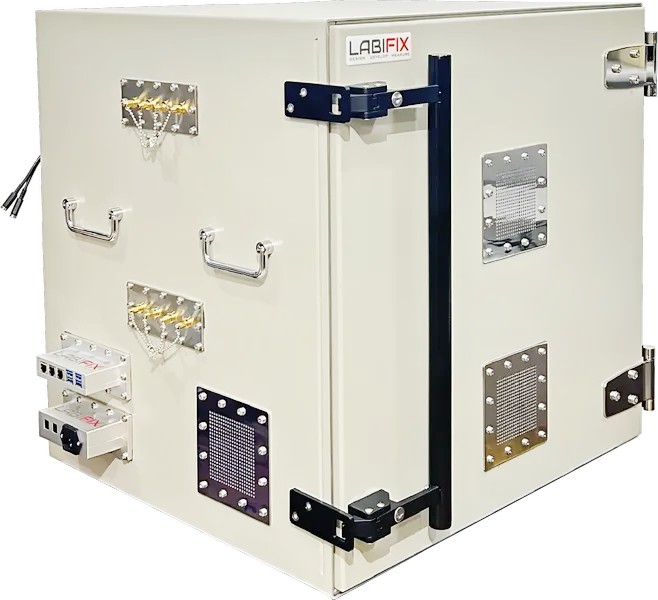

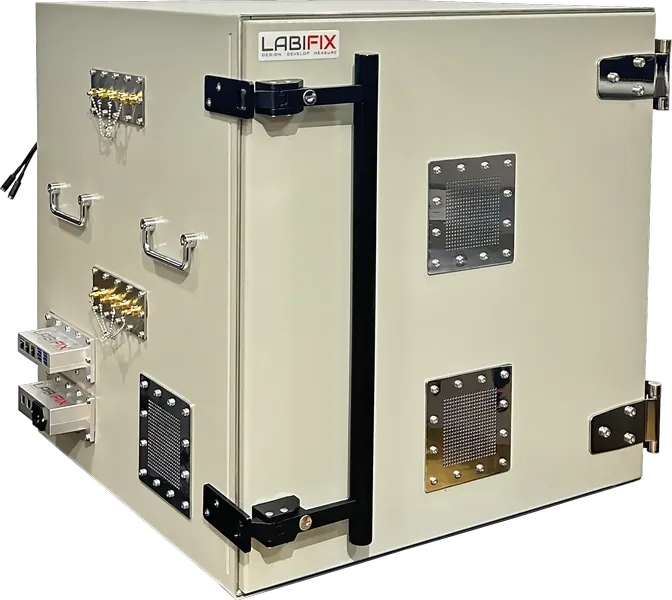

LBX6550 RF Shield Box

LBX6550 RF Shielded Enclosure is a high-performance solution for wireless testing across frequencies from approximately 800 MHz to 12 GHz. Its rugged welded steel construction provides dependable mechanical strength and shielding performance above 90 dB. The enclosure supports filtered AC/DC power, fiber insertion through waveguide interfaces, and multiple data connections including USB, HDMI, audio, and video. It helps engineers create controlled, repeatable RF testing environments for wireless validation, product development, troubleshooting, characterization, production testing, laboratory workflows, quality assurance, and repeatable results.

Dimensions
Exterior (H x W x D)
24" (H) x 24" (W) x 22" (D)
Interior (H x W x D)
22" (H) x 22" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX6550 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
24"(EXTERIOR WIDTH)24"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW24"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 24" (W) × 24" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

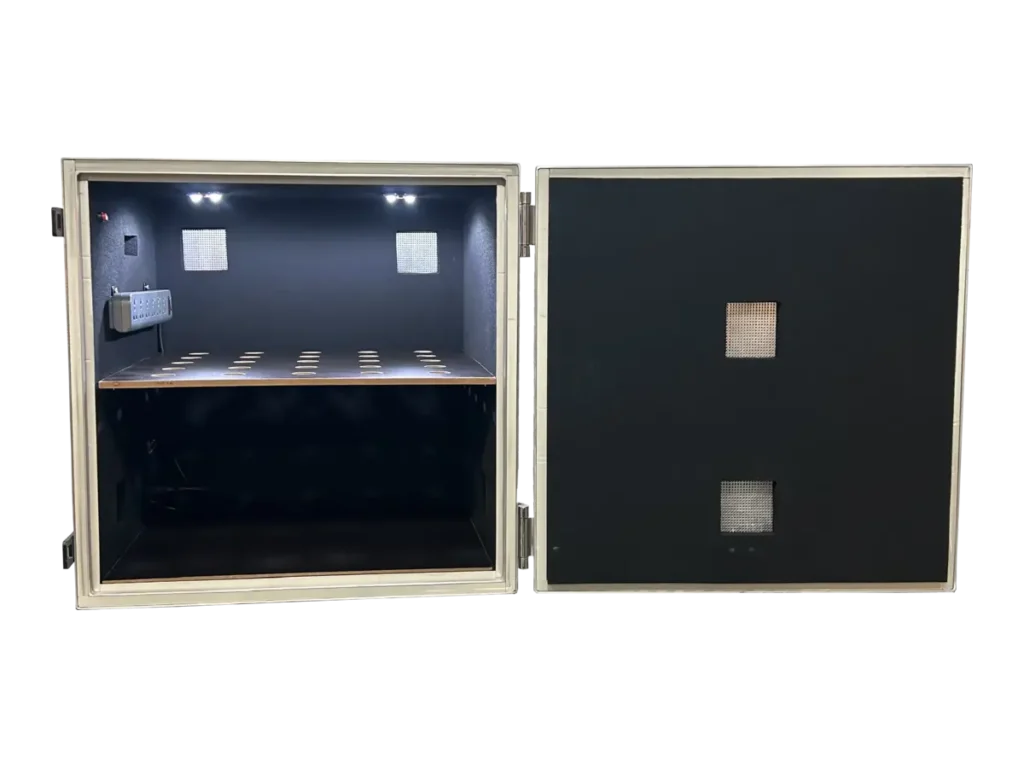

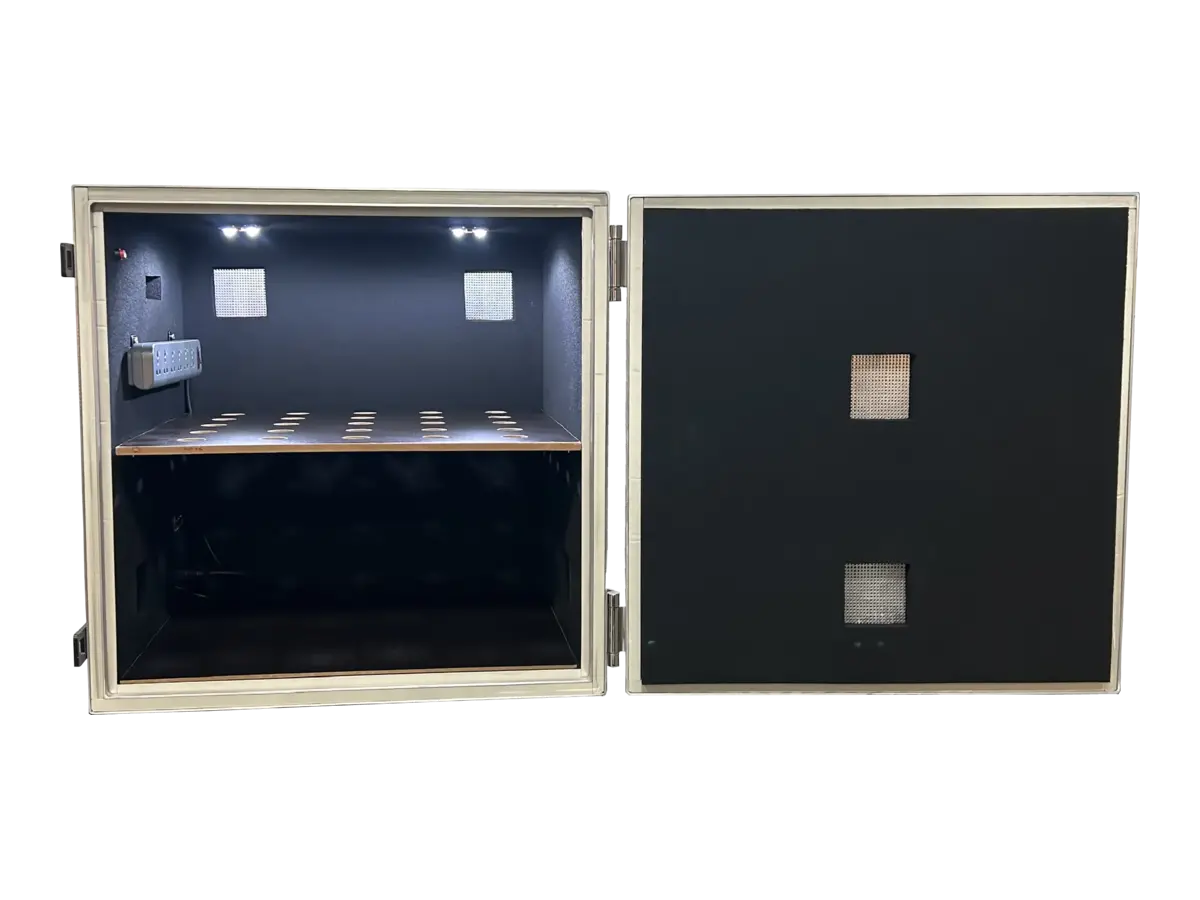

LBX6550 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
22"(INTERIOR WIDTH)22"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW22"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 22" (W) × 22" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
