LBX1900

RF SHEILDED TEST ENCLOSURE

LBX9400 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

The LBX9400 Modular validation Shielded Enclosure is a relatively inexpensive solution, but it has all of the features you need. It’s also flexible, being able to host both medium size wireless devices and larger communications devices under test. Multiple RF ports and data transfer options along with AC power line filters are only some of its features.

The LBX9400 RF chamber is easy to move around thanks to its trolley for easy movement. With all of these features, RF engineers will have RF isolation chambers to ensure that their test environment is stable.

Description

Features
  • Design and Develop for Wireless Device Testing
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • EMI filters on Data Ports and Power lines
  • Completely Customizable Shielded Enclosure
  • Rugged Welded Construction
  • RF Gasket System
  • High performance shielded Air Vents for adequate air flow
Applications
  • Wireless Device Testing
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Bluetooth and Zigbee
  • Forensics and Security
  • Cellular 4G,5G,LTE, Wimax
  • Wireless Medical Device
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 50"H x 50"W x 50"D
  • Interior : 42"H x 42"W x 42"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

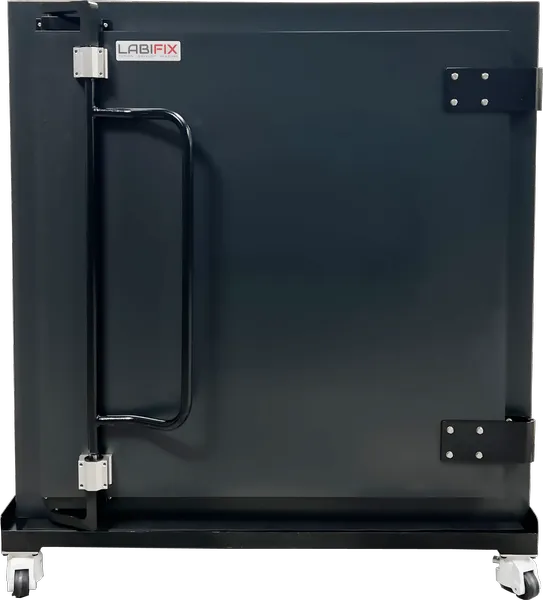

RF Shielded Chamber 1.0
RF Shielded Chamber 1.1
RF Shielded Chamber 1.2

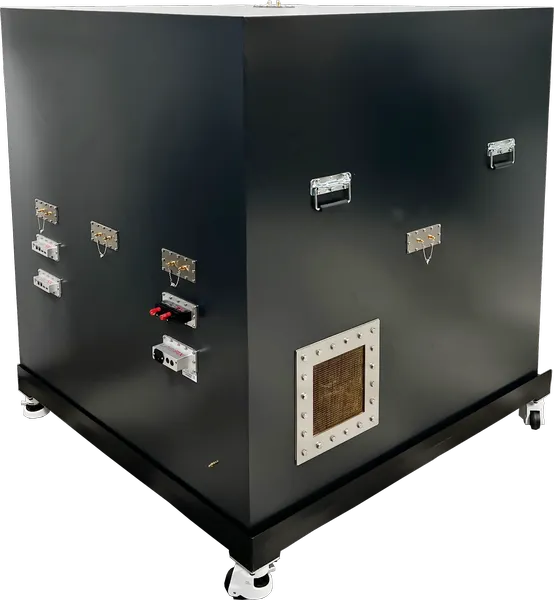

RF Shielded Chamber 1.3
RF Shielded Chamber 1.4
RF Shielded Chamber 1.5
RF Shielded Chamber 1.6
Collaged
RF Shielded Chamber 1.7

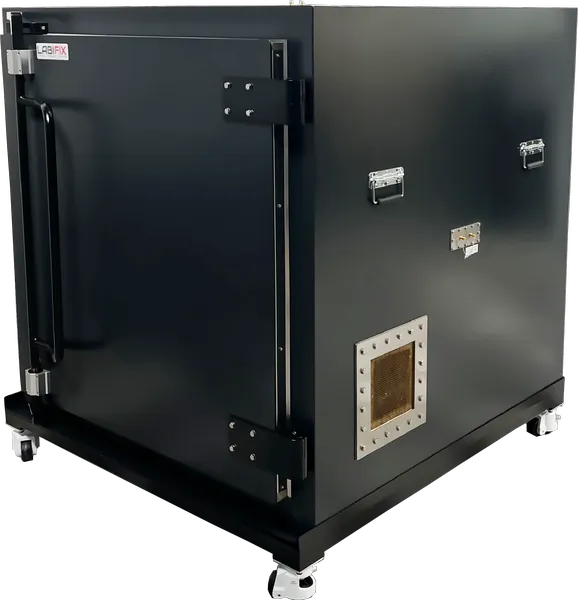

RF Shielded Chamber 1.8
RF Shielded Chamber 1.9

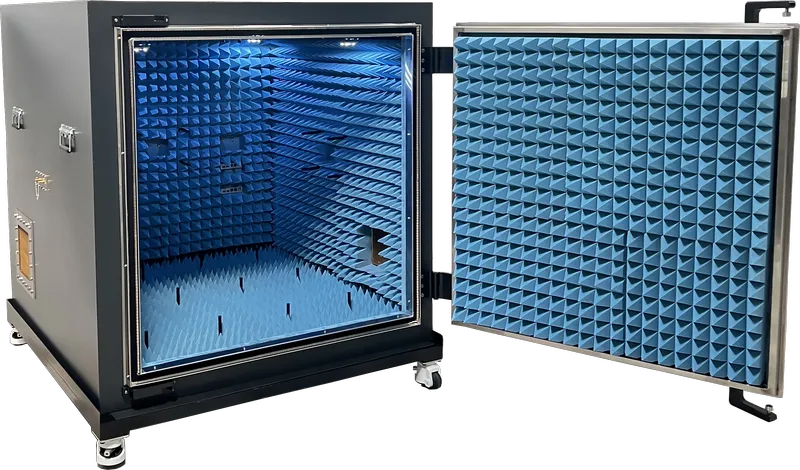

RF Shielded Chamber 1.10
RF Shielded Chamber 1.11

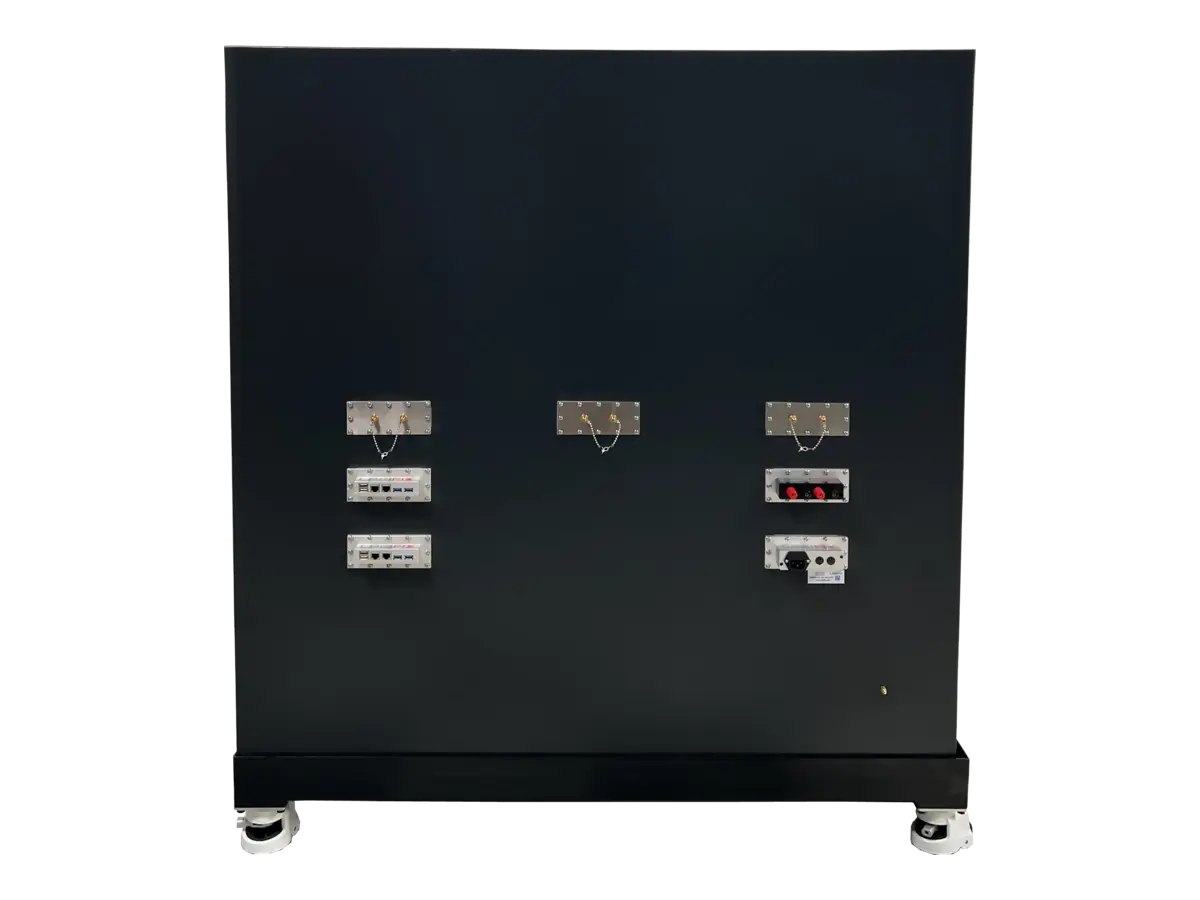

LBX8500 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead Connector
  • Filtered USB 2.0
  • Filtered USB 3.0
  • Filtered RS232
  • Filtered Ethernet
  • AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
  • DC Power - 5A Jack Connector

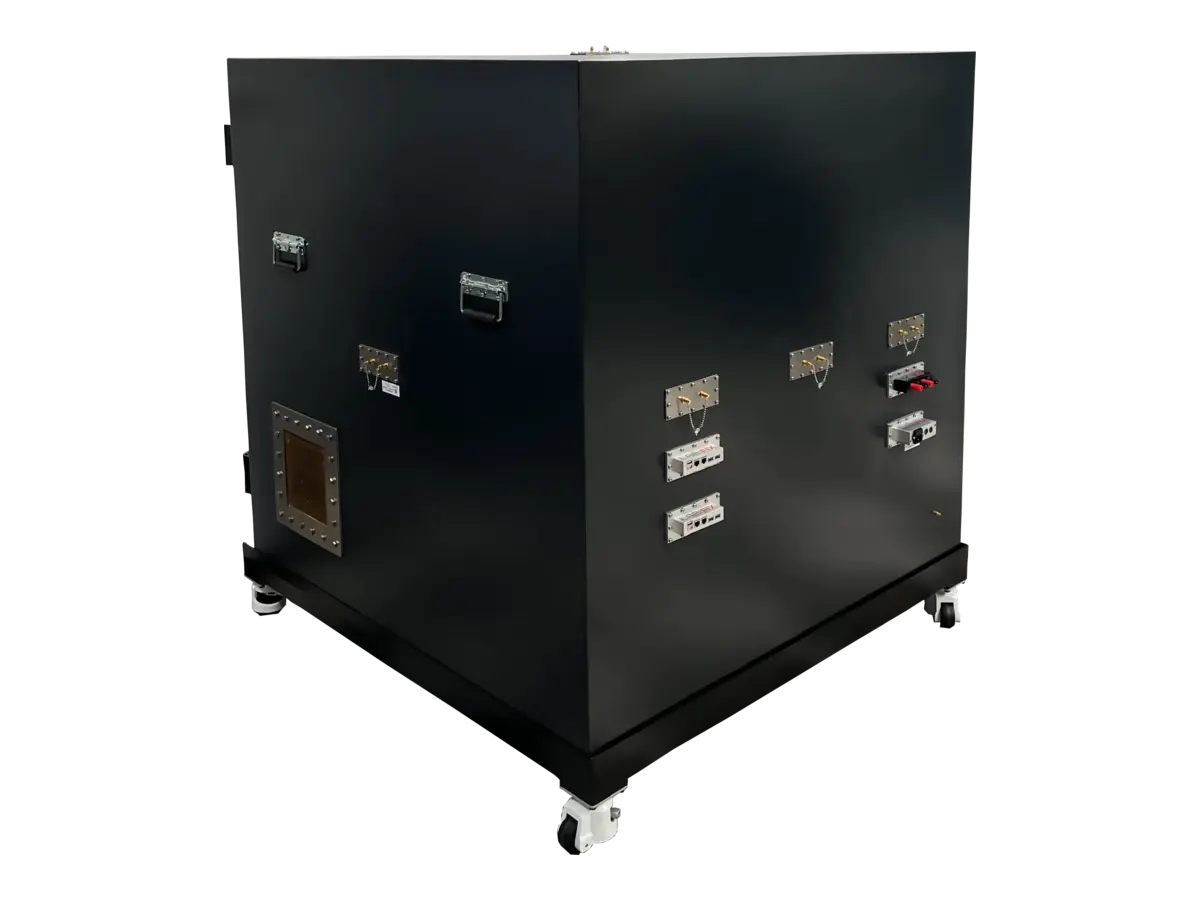

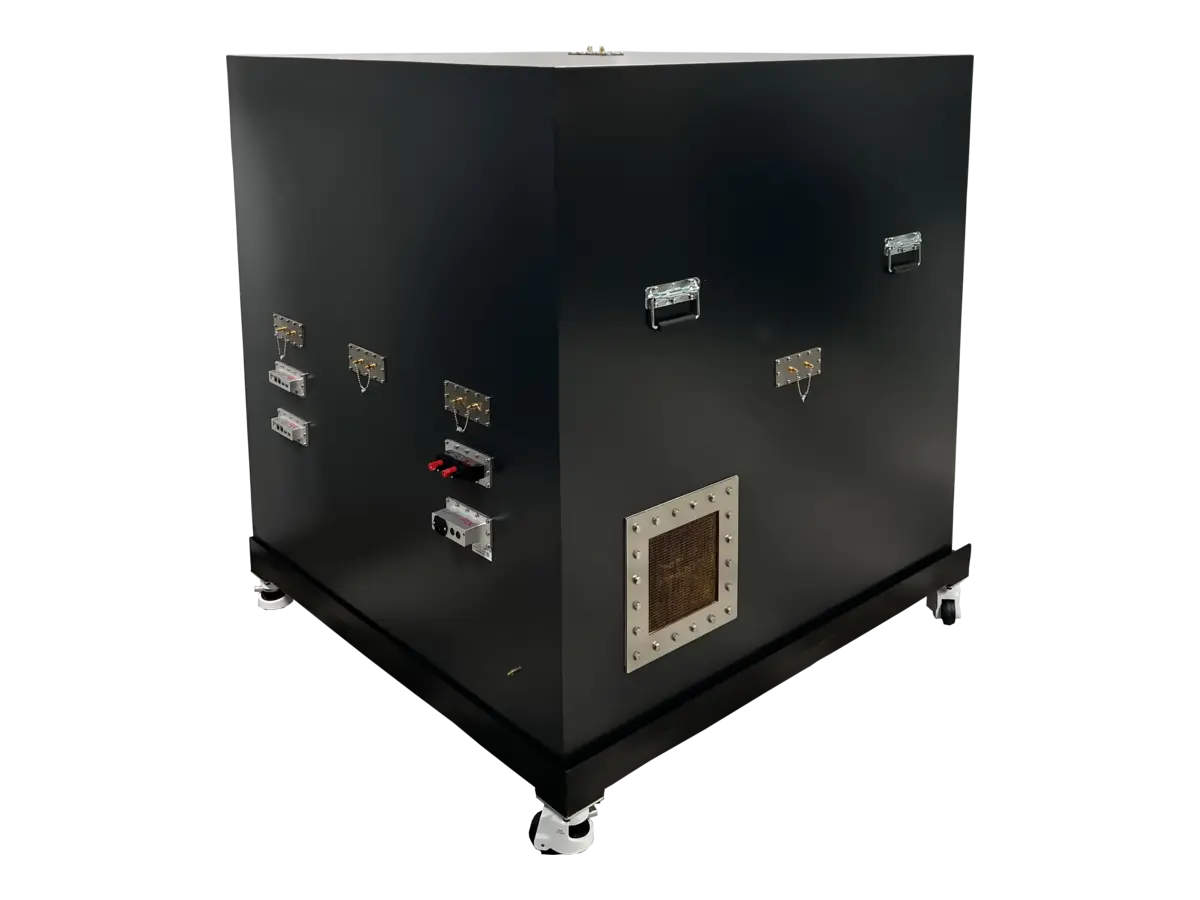

  • Honeycomb Air Vents 200 mm x 200 mm

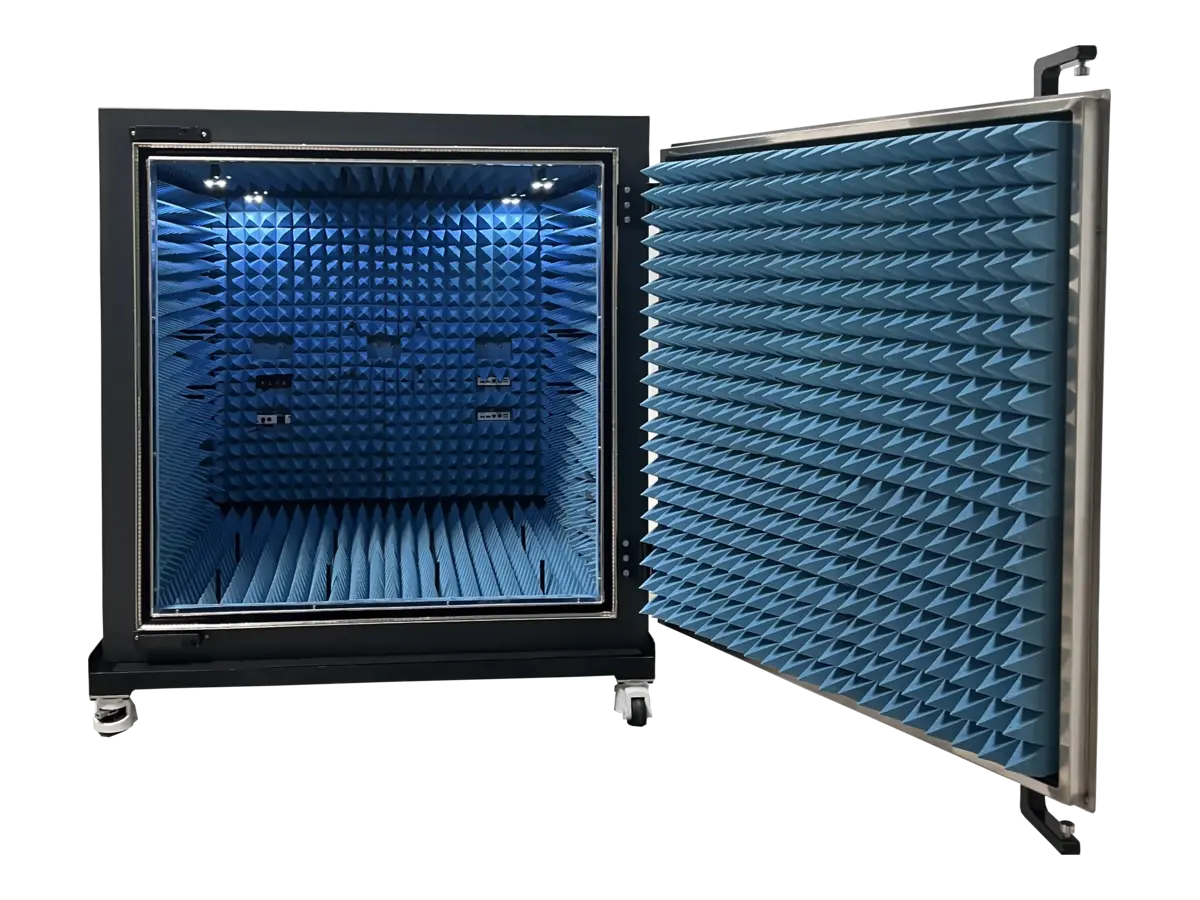

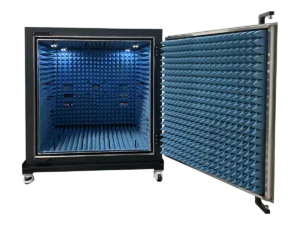

  • 4” RF Absorber for dampening internal signal reflections
  • Higher CFM Fan size of 120mm
  • Base wooden plate to place DUT
  • IEC Power cords
  • Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
