Pneumatic RF Shield Box for Automated Device Testing | LabiFix

LBX5600 RF SHEILDED TEST ENCLOSURE

RF SHEILDED TEST ENCLOSURE

LabiFix’s LBX5600 is an RF Shielded Test Box for WLAN and Wireless Device Testing up to 12 GHz. The interior lining is lined with high-performance RF absorbing foam designed to deaden standing waves in the system and provide better isolation. In addition to blocking all wireless signals, it is equipped with shielded power filters to connect power to the box. A durable welded steel enclosure is complemented by an EMI filter on the data ports. The excellent design makes its structure strong and the precision processing provides better isolation for your device under test and can be customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules.

Our Solutions & Benefits
  • Excellent shielding performance
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Fitted Gasket System
  • Powered by AC / DC Power Filter lines
  • Lightweight Rack Mountable or Tabletop Options
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 20"H x 30"W x 30"D
  • Interior : 18"H x 28"W x 28"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

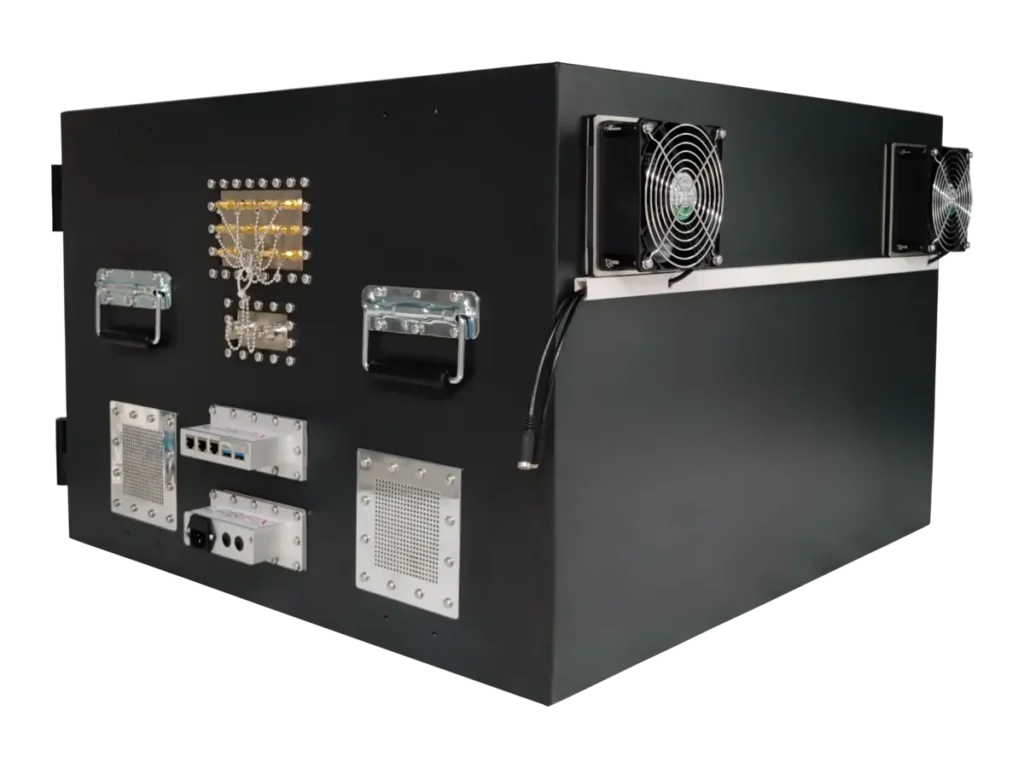

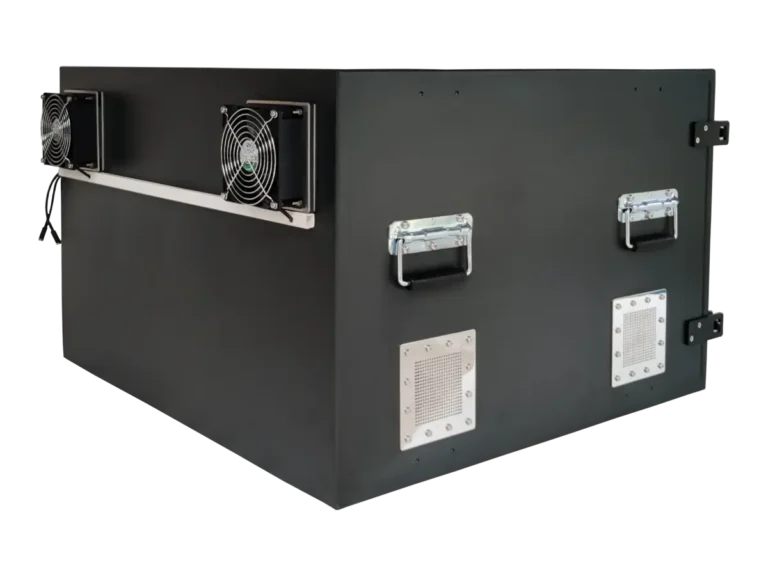

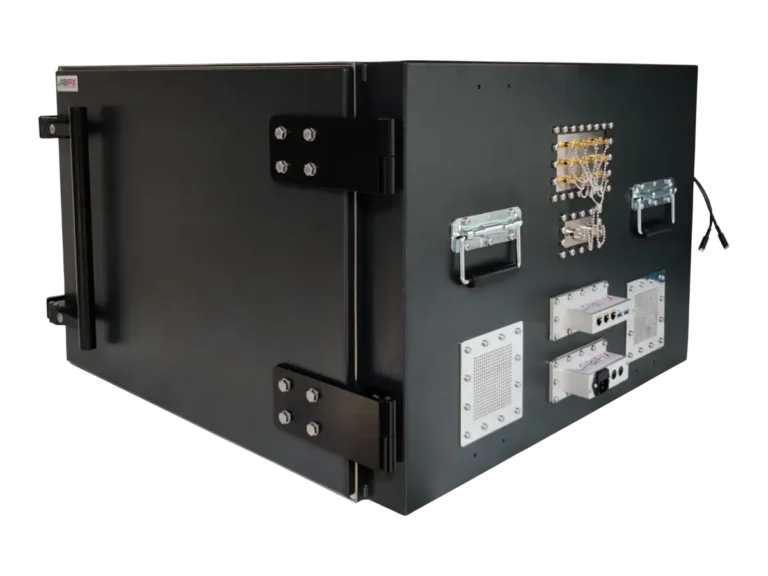

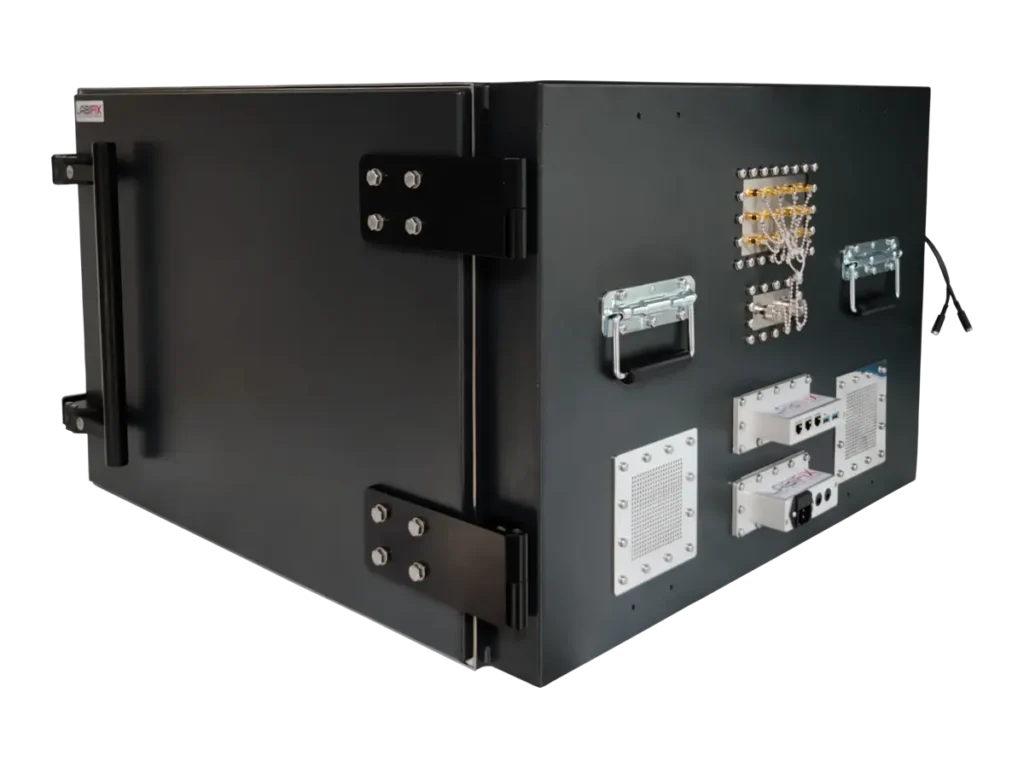

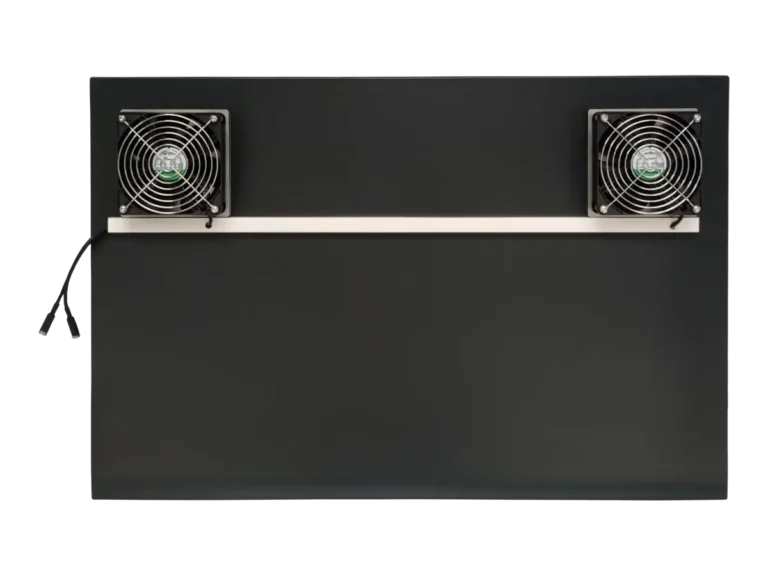

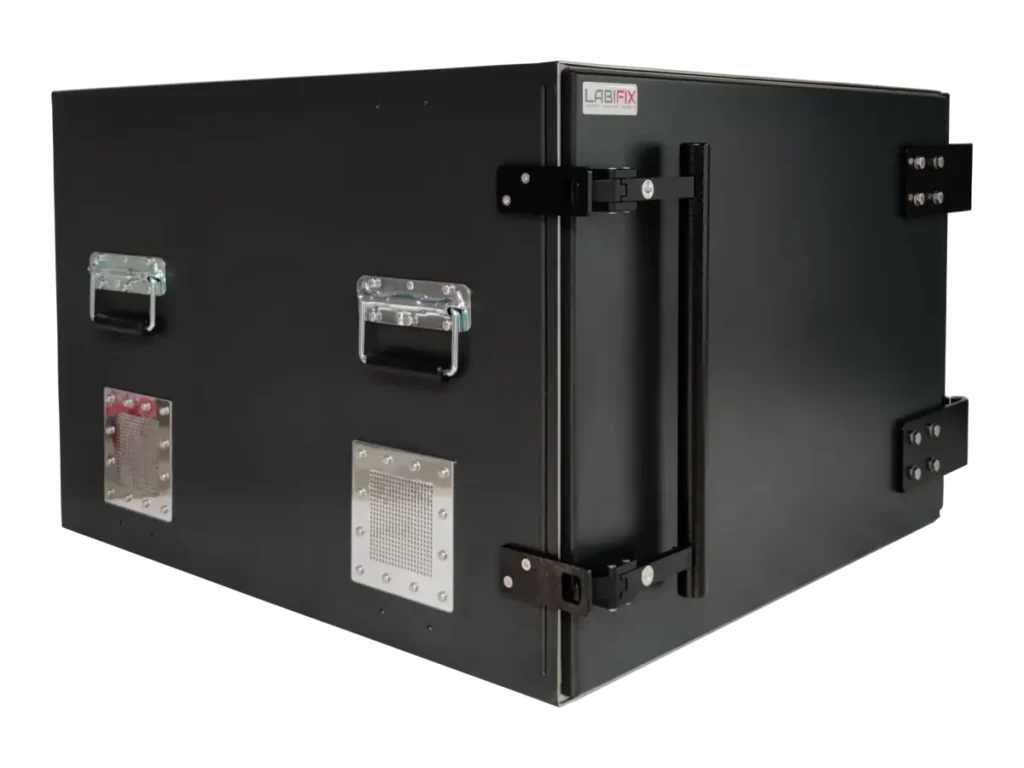

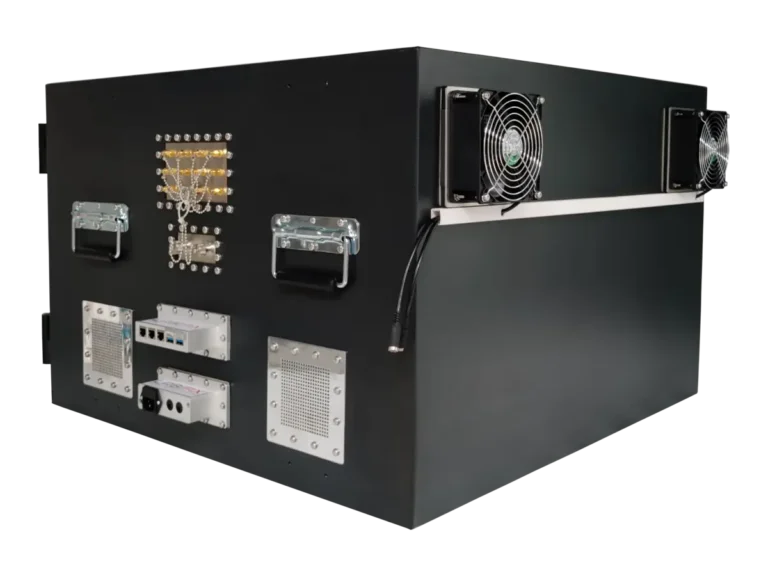

LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
LBX5600 RF Shielded test box for RF and Microwave devices testing
TECHNOLOGIES SUPPORT
  • Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
LBX5600 RF Shielded test box for RF and Microwave devices testing
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G
  • Filtered USB 2.0 & 3.0
  • AC / DC Power filter
  • Signal transmission RF connectors​
  • RF Ports: SMA, SMB, BNC, TNC, UHF.
  • Fiber optics: ST Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • Air ventilation with AC or DC fan
  • High performance shielded Air Vents
LBX5600 RF Shielded test box for RF and Microwave devices testing
