RF SHIELD BOX

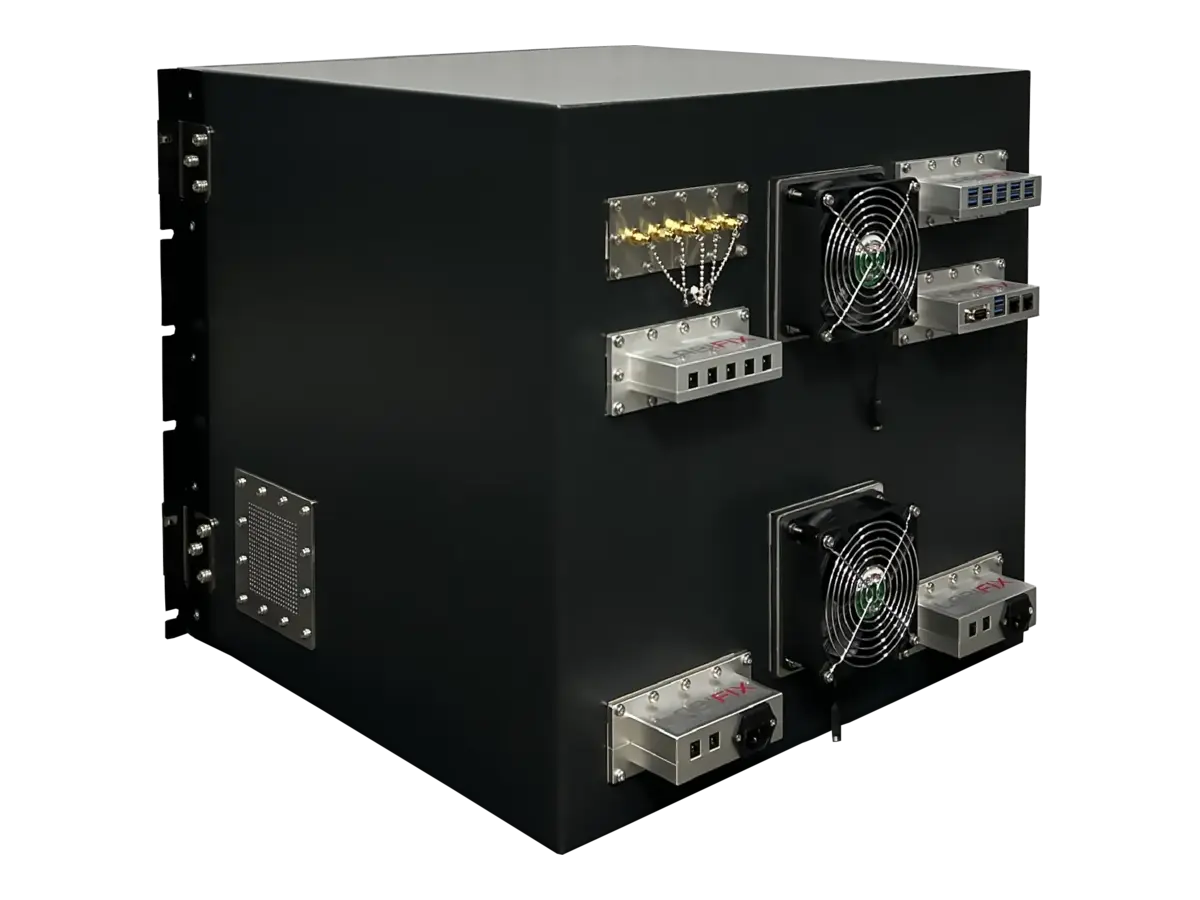

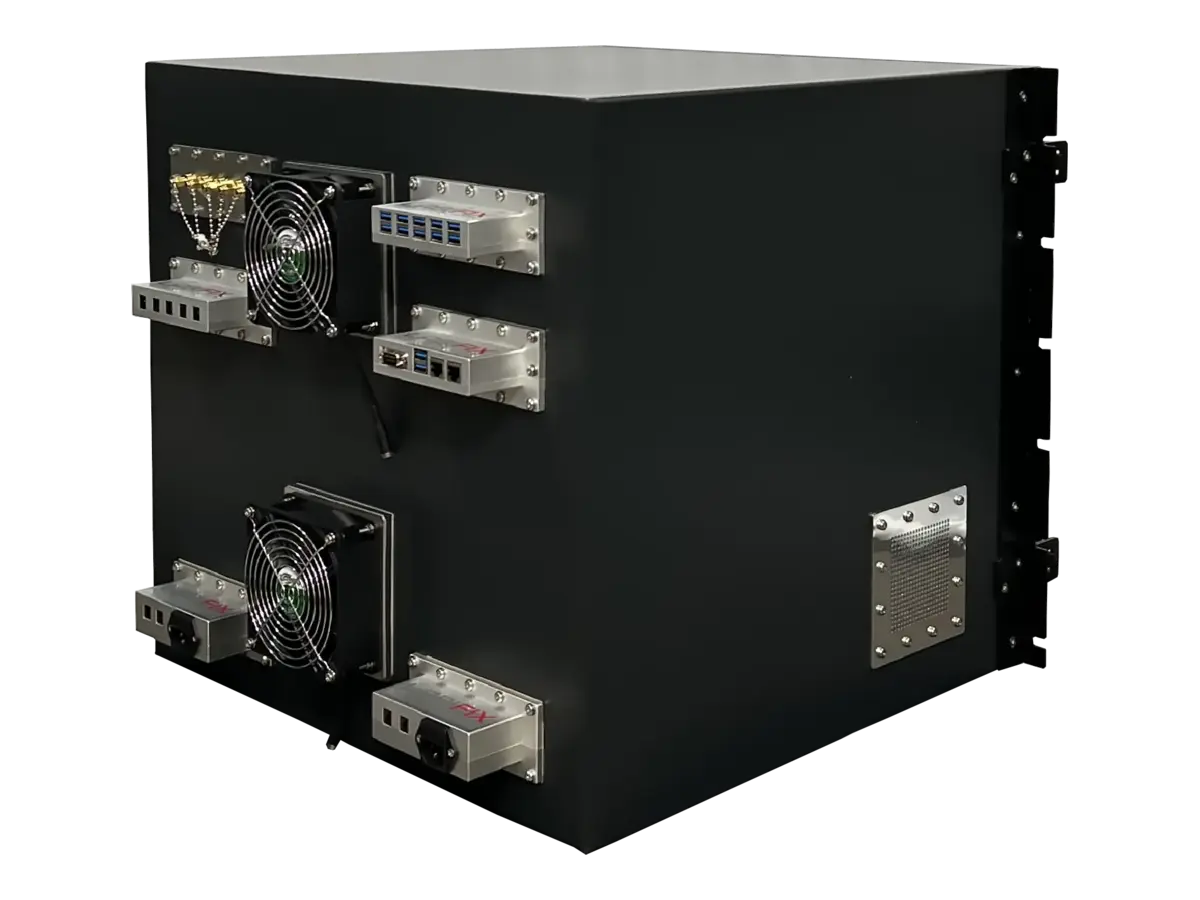

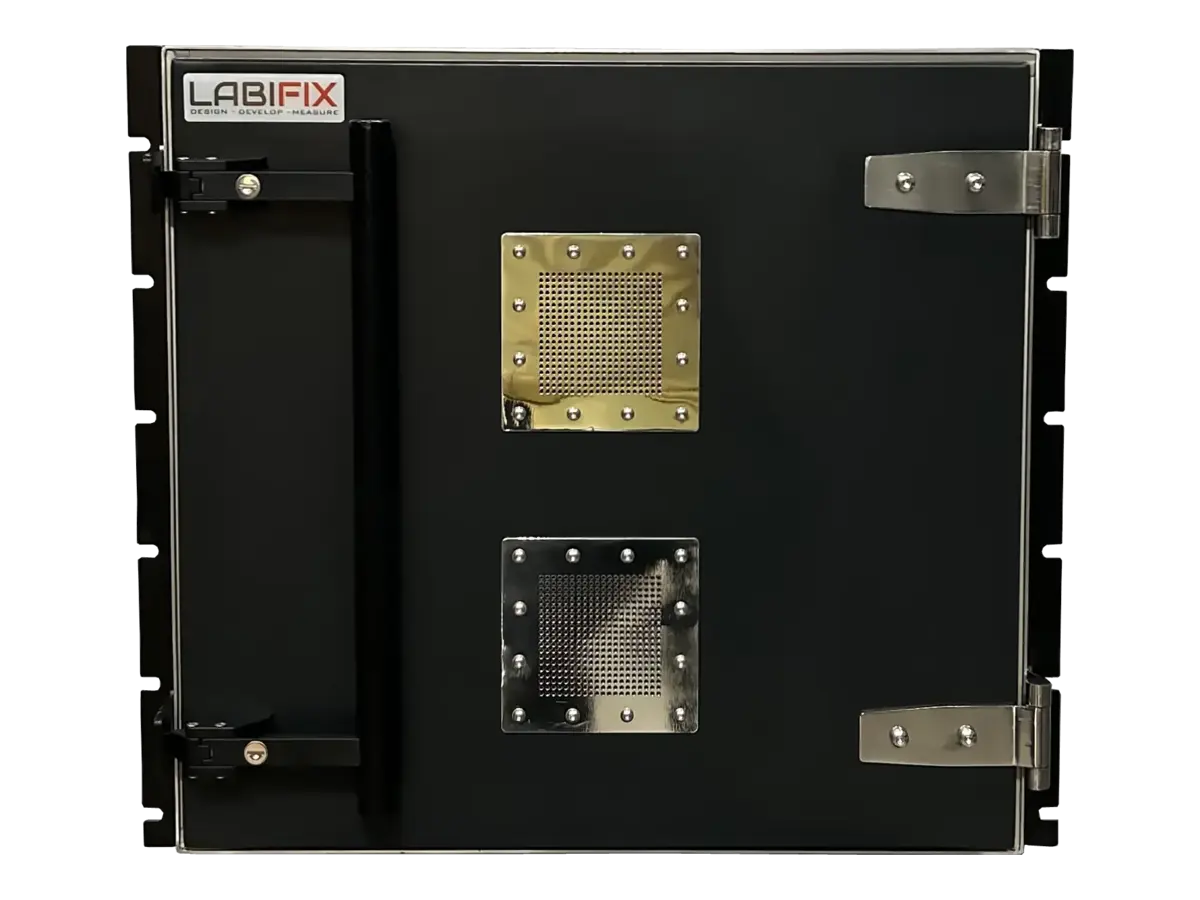

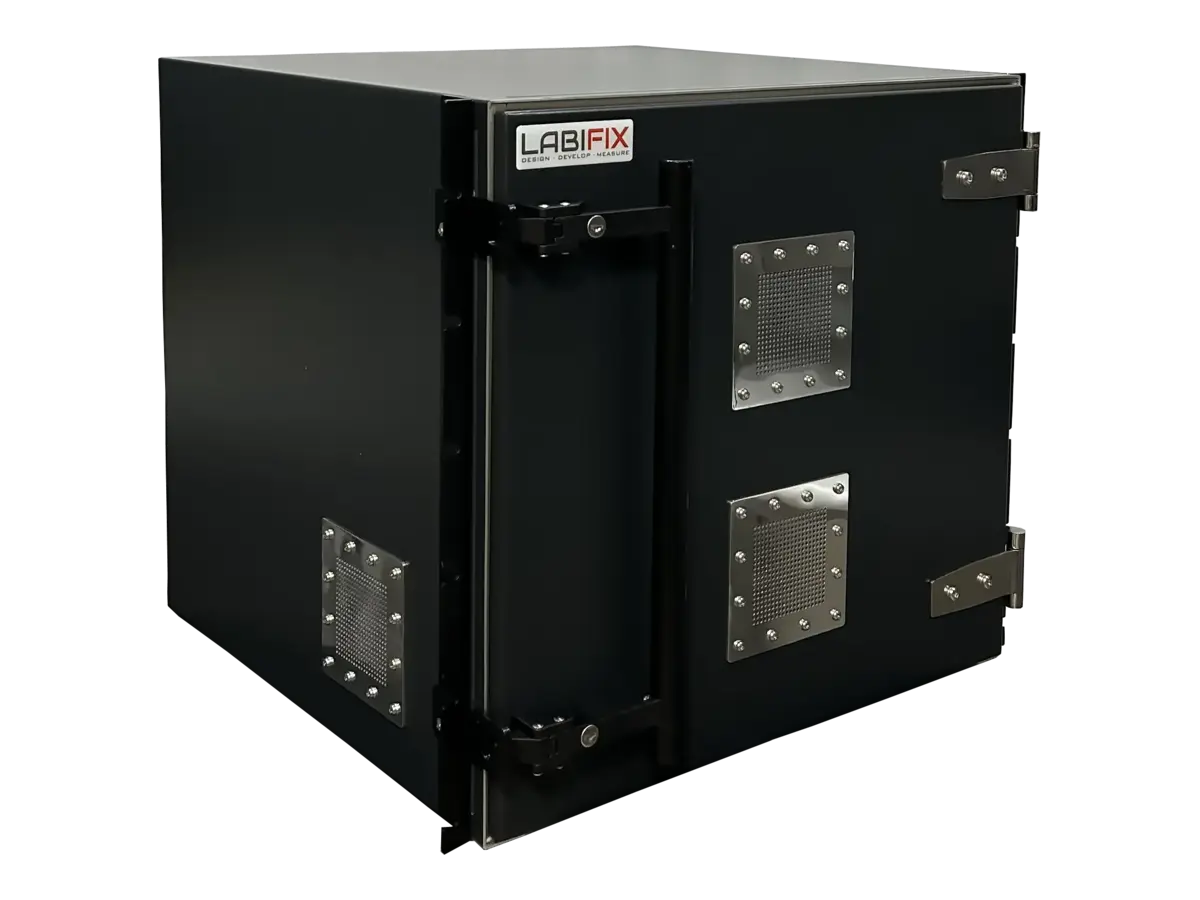

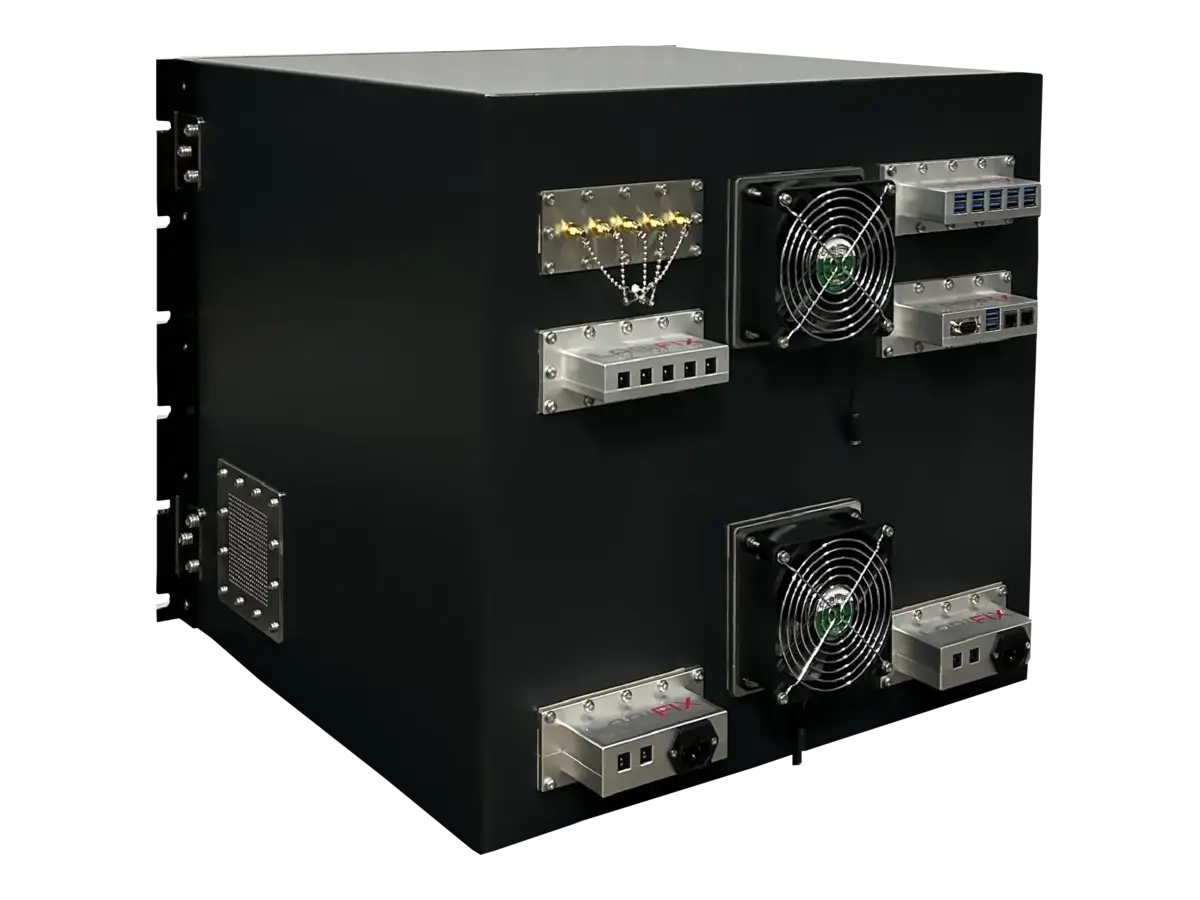

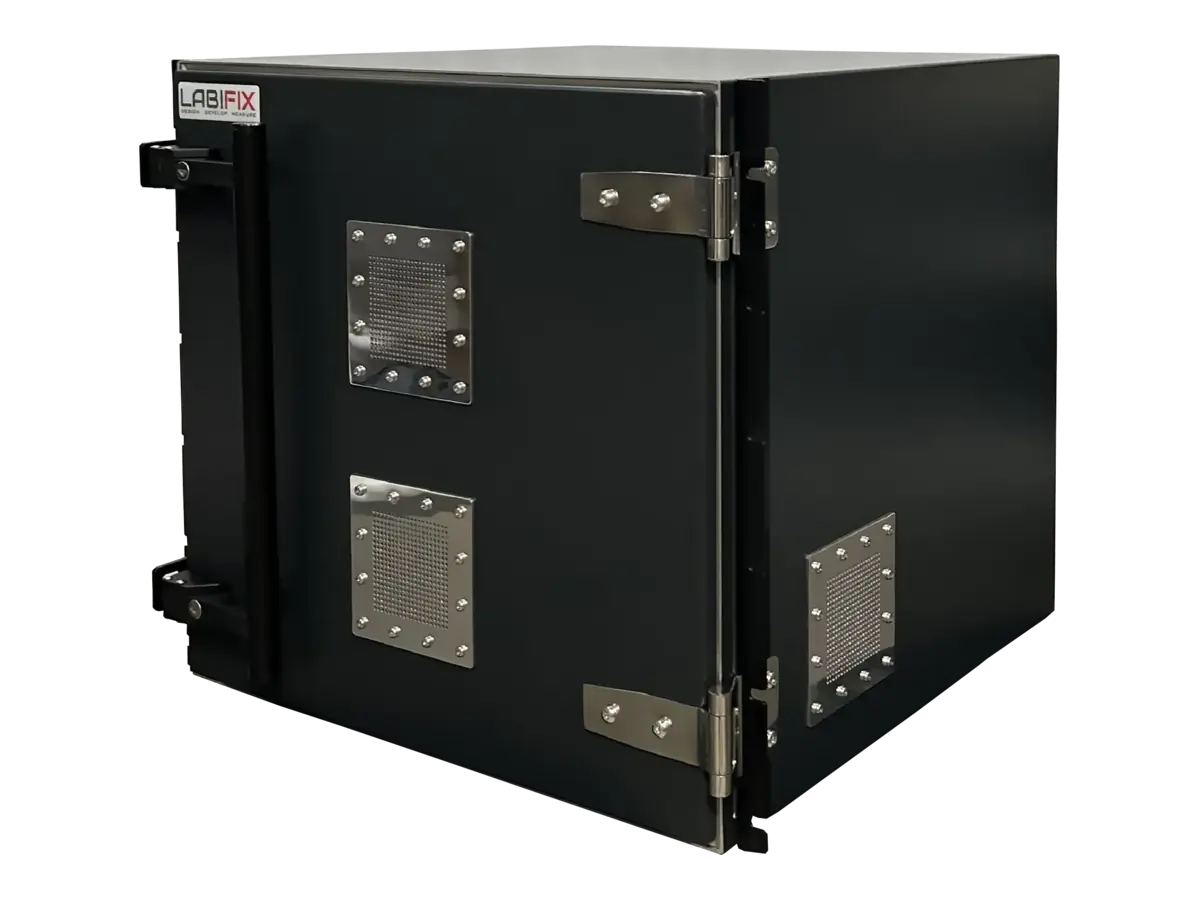

LBX5200 RF Shield Box

LBX5200 is built around a straightforward idea: isolate the device under test while keeping the connectivity and access the test requires. The configuration can include Rugged Welded Construction and EMI filters on Data Ports and Power lines, giving the test setup the flexibility to accommodate the DUT and its required interfaces. That makes it a natural fit for MIMO testing, this enclosure offers a configurable route to controlled device-level RF testing, where a defined RF environment can help engineers work with greater consistency. For teams searching for a RF shielding box, LBX5200 can be considered as part of a tailored RF shielding solution.

Dimensions
Exterior (H x W x D)
21" (H) x 22" (W) x 22" (D)
Interior (H x W x D)
19" (H) x 20" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX5200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)21"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 21" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

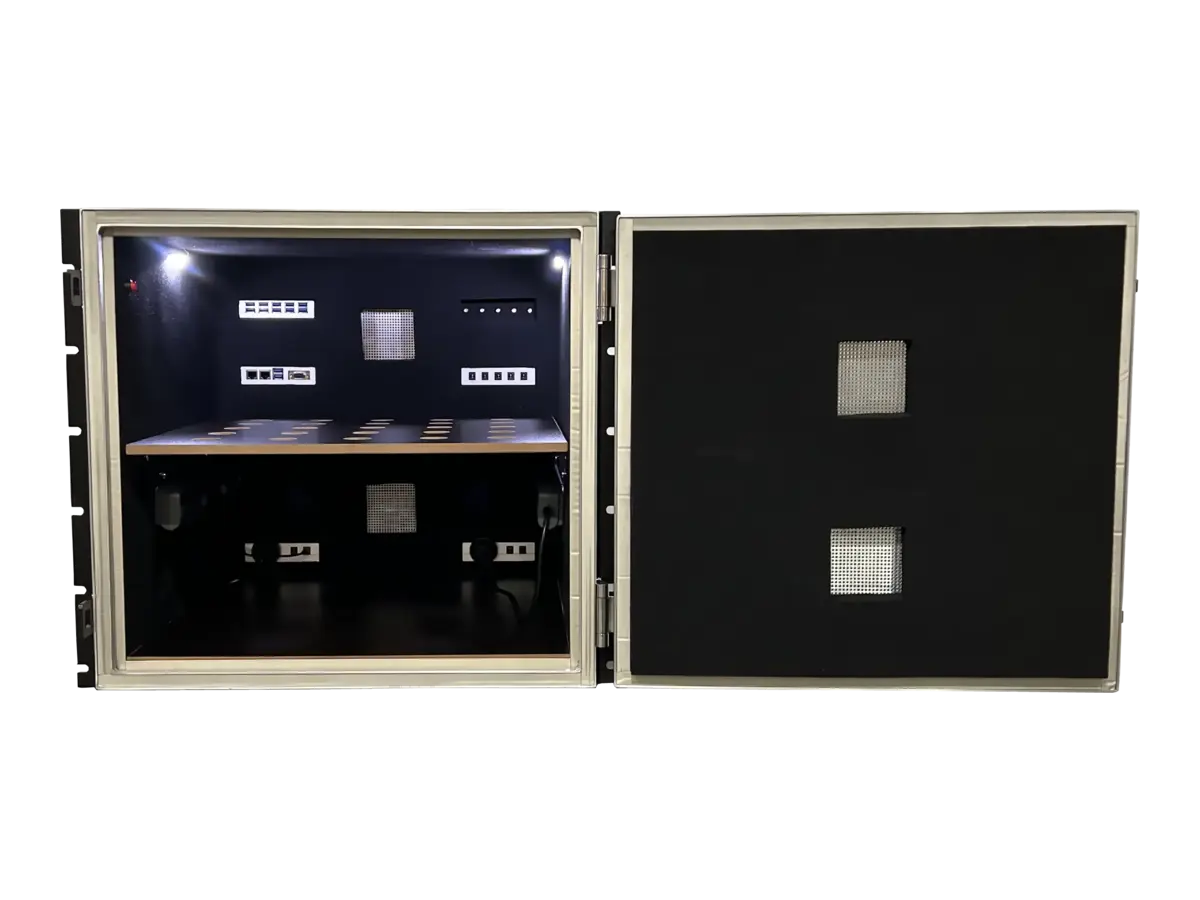

LBX5200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)19"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 19" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
