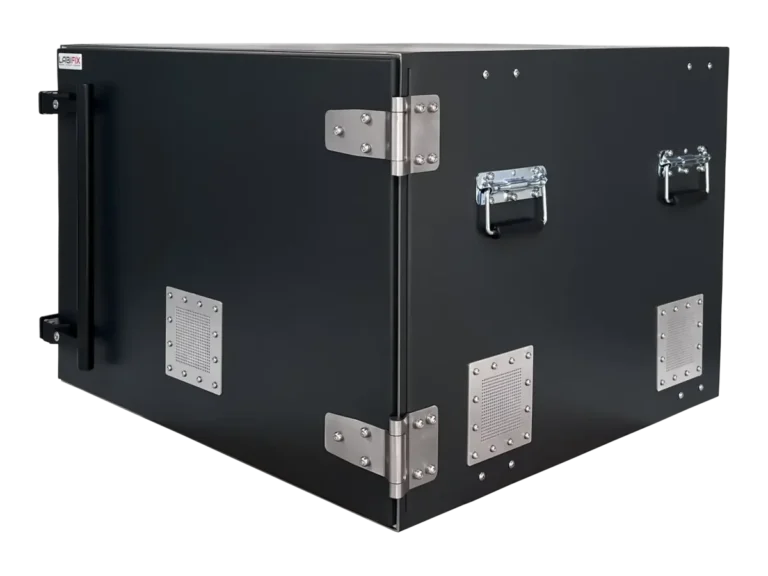

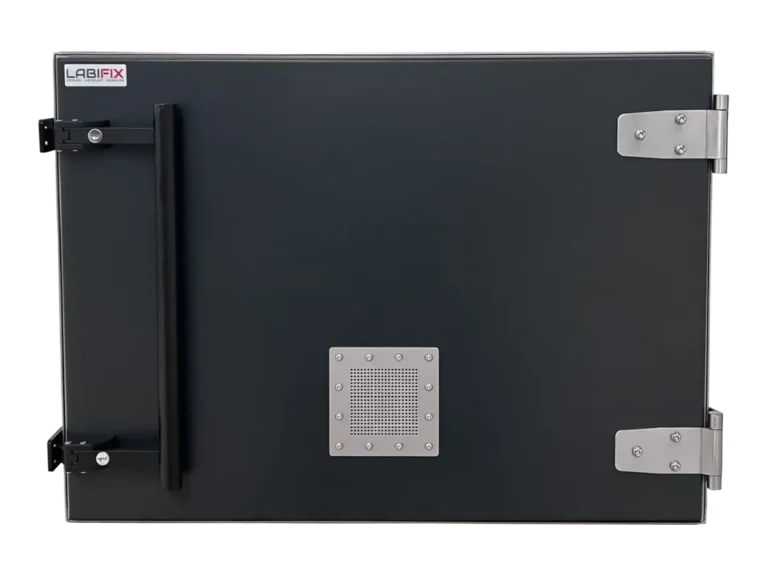

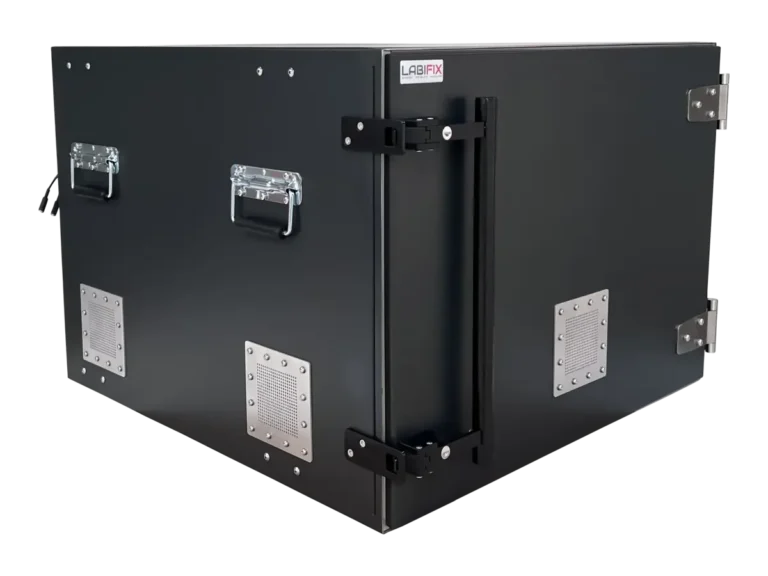

LBX5700 RF Shield Box For Cellular and IOT Devices Testing

RF Shield box for Cellular and IoT Devices Testing

LBX5700 RF Shield box designed specifically for Cellular and Iot Devices Testing, It’s perfect for anyone looking to test their device without having to worry about interference or other environmental factors. Provides high shielding >90dB against all types of EMI /RFI, especially for modern wireless communication technologies such as 3G, 4G, 5G LTE, Wi-Fi 802.11 – all series, Wi-Max and Bluetooth etc. The product can be fully customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules. Feel free to contact us for more details and we will be happy to provide you with a tailor-made testing solution that best suits your testing requirements.

Our Solutions & Benefits
  • Excellent shielding performance
  • Completely Customizable Shielded Enclosure

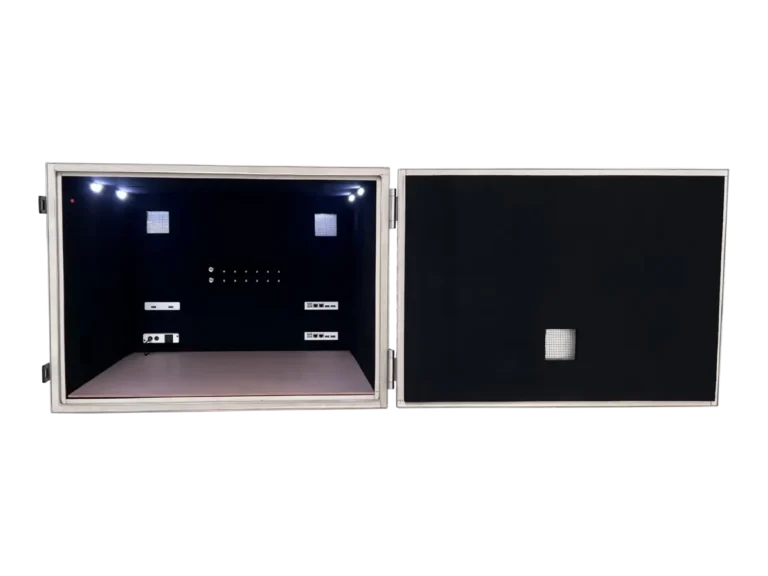

  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Fitted Gasket System
  • Powered by AC / DC Power Filter lines
  • Lightweight Rack Mountable or Tabletop Options

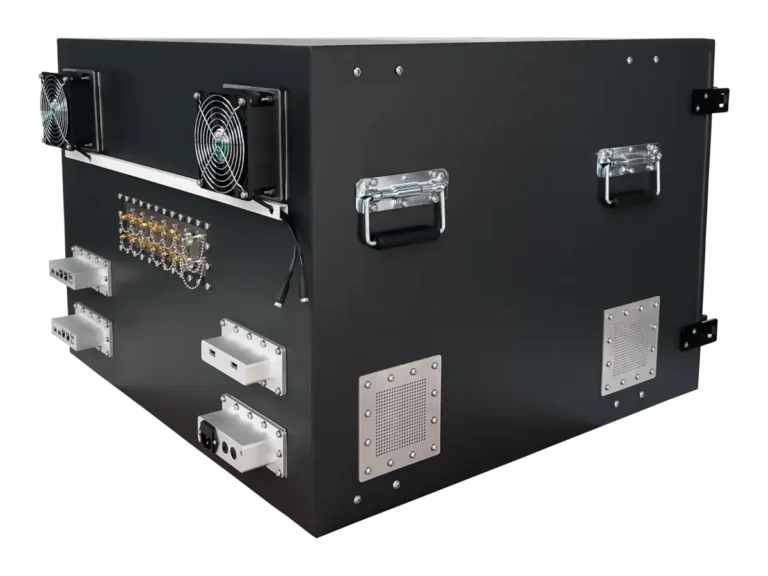

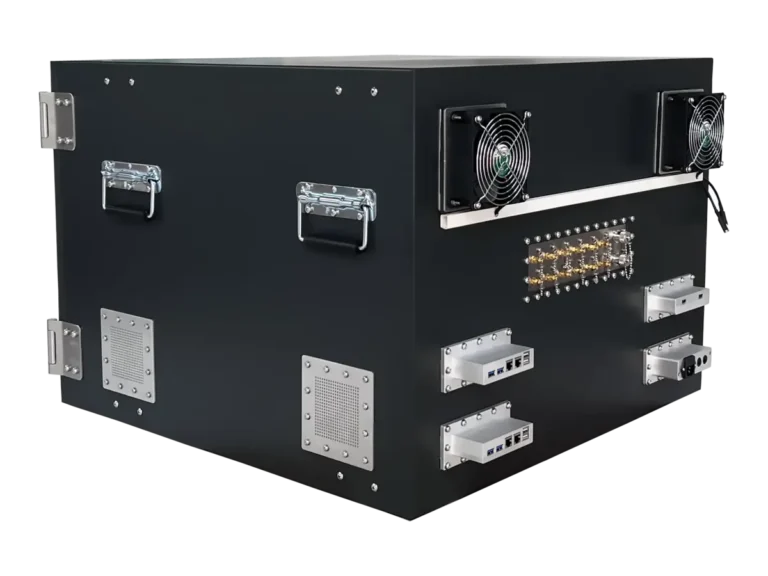

  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 22"H x 30"W x 30"D
  • Interior : 20"H x 28"W x 28"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-1
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-2
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-3
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-4
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-5
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-6
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-7
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-8
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-9
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-10
lbx5700-rf-shield-box-for-cellular-and-iot-devices-testing-11
TECHNOLOGIES SUPPORT
  • Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality

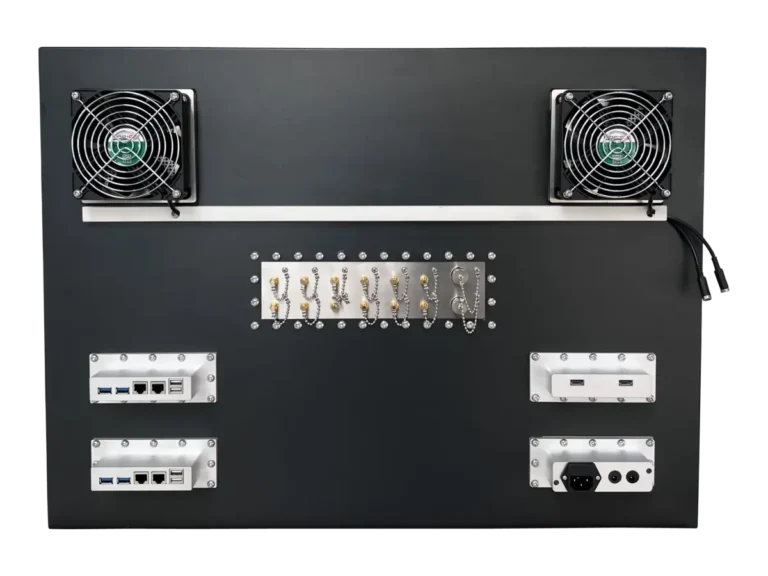

USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G
  • Filtered USB 2.0 & 3.0
  • AC / DC Power filter
  • Signal transmission RF connectors​
  • RF Ports: SMA, SMB, BNC, TNC, UHF.
  • Fiber optics: ST Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • Air ventilation with AC or DC fan
  • High performance shielded Air Vents
