LBX4500 RF Shield Box
The LBX4500 RF Shielded Test Enclosure supports wireless communication technologies such as 3G, 4G, 5G LTE and Wi-Fi 802.11a/b/g/n/ac/n MIMO. Also, it can be completely customizable, allowing users to choose from a wide range of I/O connectors and enclosures, as well as an array of options for power and data ports. The RF shielded enclosure is constructed with superior Enclosure and High Grade RF Absorber materials helps dampen signals inside the RF chamber and can be customized for various requirements. The interior space inside the unit allows for larger devices to be tested while still providing high shielding effectiveness of >100dB.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

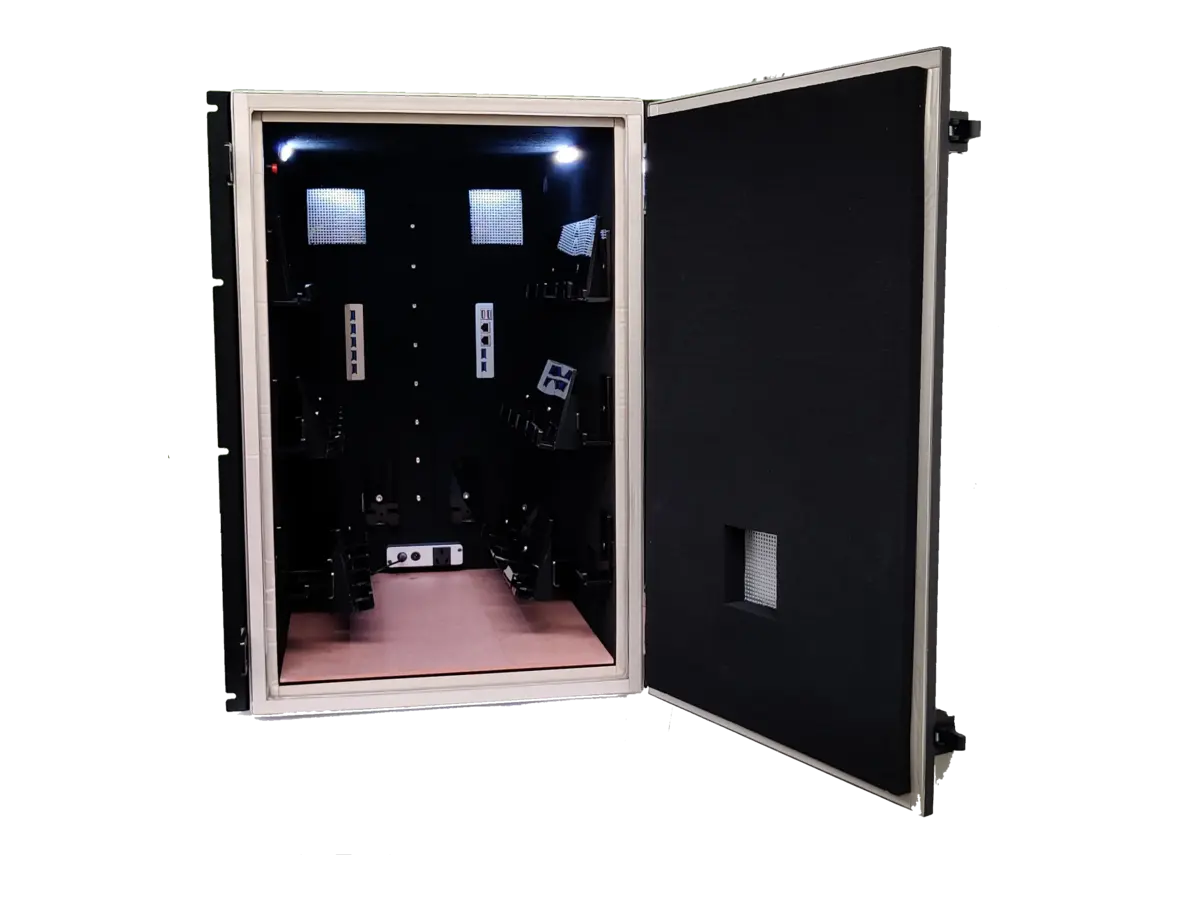

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction

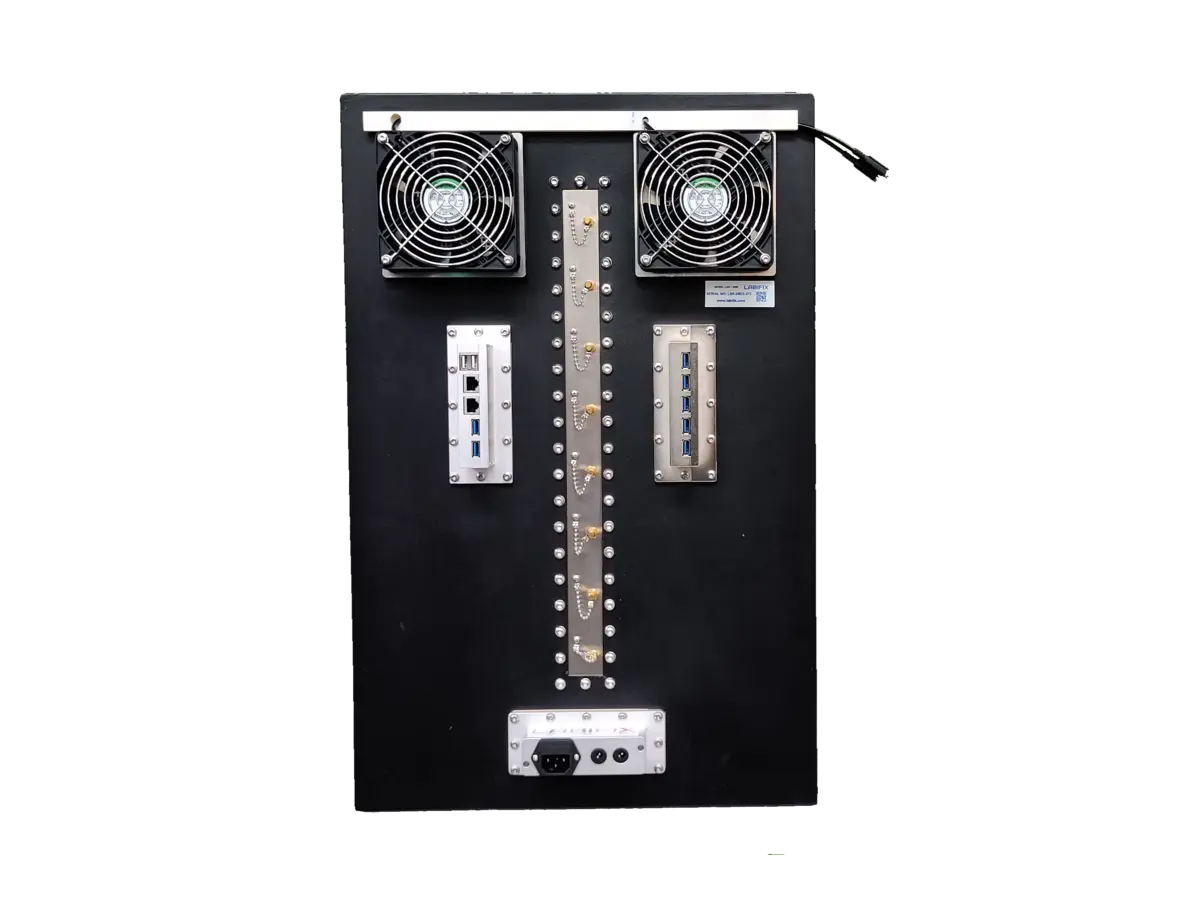

EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Related RF Shielding Enclosures
Explore complementary RF test boxes and isolation enclosures engineered for precision testing
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
