LBX1900

RF SHEILDED TEST ENCLOSURE

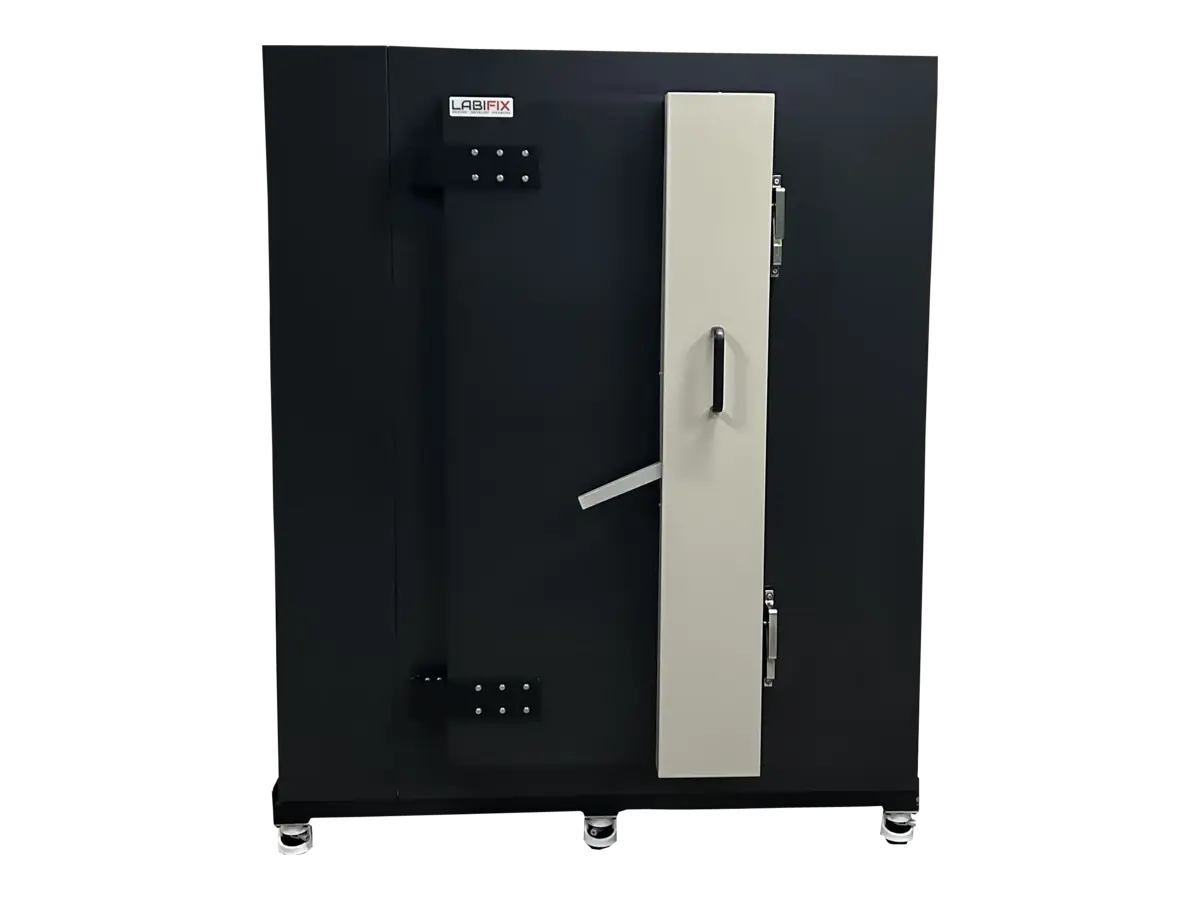

LBX-SB200 RF SHEILDED CHAMBER

RF SHEILDED CHAMBER

The LBX-SB200 RF Shielded Chamber has all the features you require. The ideal solution for testing and measuring wireless radio frequency (RF) communication devices is the LBX-SB200 shielded Chamber. Additionally, this product is ideal for any test application because it has heavy-duty caster wheels that make it simple to move the test enclosure.

The Flat RF absorber also aids in attenuating undesired signals. The unit’s spaciousness permits testing of larger devices while maintaining high shielding effectiveness >100dB. The honeycomb air vent offers the ideal ventilation for adequate air circulation and to prevent heating of the device under test (DUT).

Description

Features
  • Completely Customizable Shielded Enclosure
  • Design and Develop for Wireless Device Testing
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports and Power lines
  • RF Gasket System

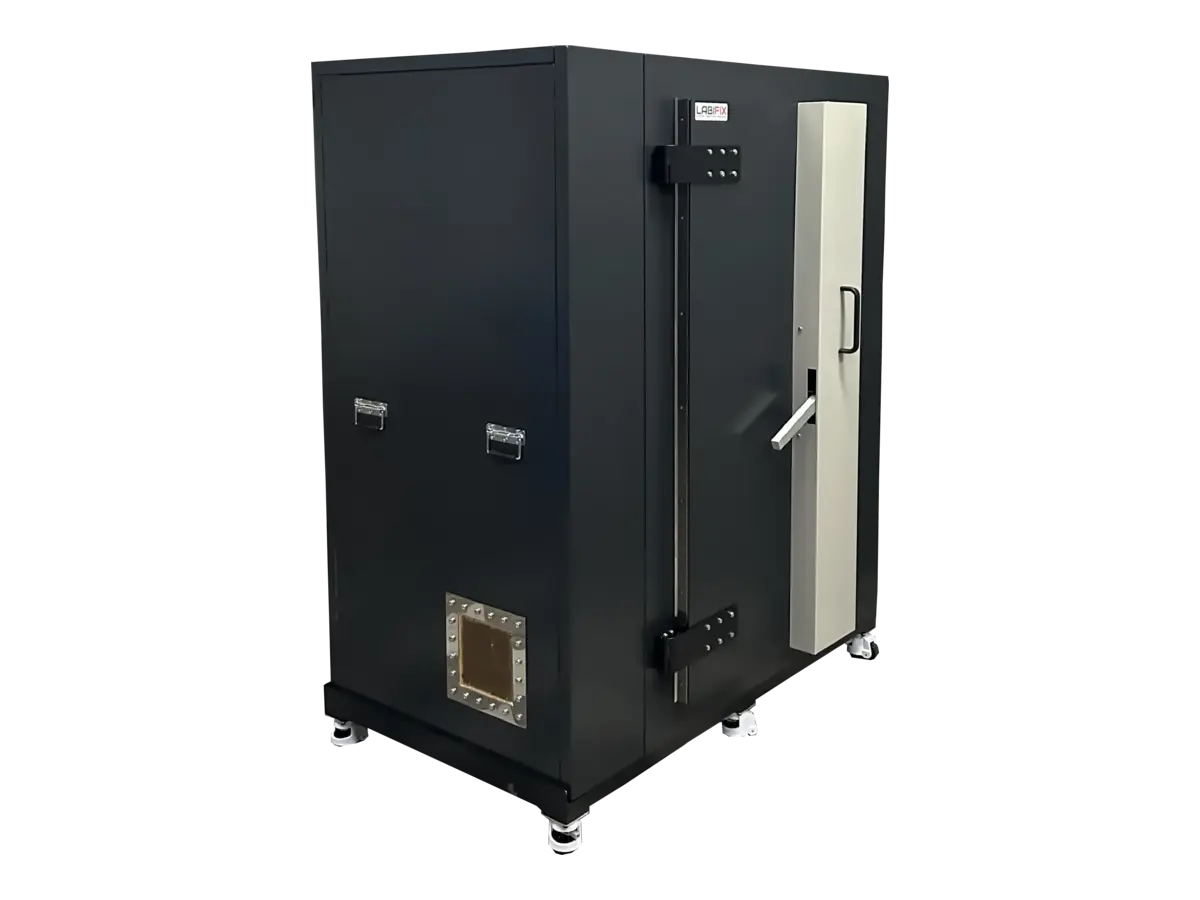

  • High performance shielded Air Vents for adequate air flow
Applications
  • Wi-Fi 802.11 - All series
  • R&D and Quality Assurance Tests
  • Wireless Device Testing
  • Bluetooth and Zigbee
  • Forensics and Security
  • Cellular 4G,5G,LTE, Wimax
  • Wireless Medical Device
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 75"H x 65"W x 39"D
  • Interior : 73"H x 63"W x 37"D

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

RF Shielded Chamber 1.0
RF Shielded Chamber 1.1
RF Shielded Chamber 1.2
RF Shielded Chamber 1.3
RF Shielded Chamber 1.4

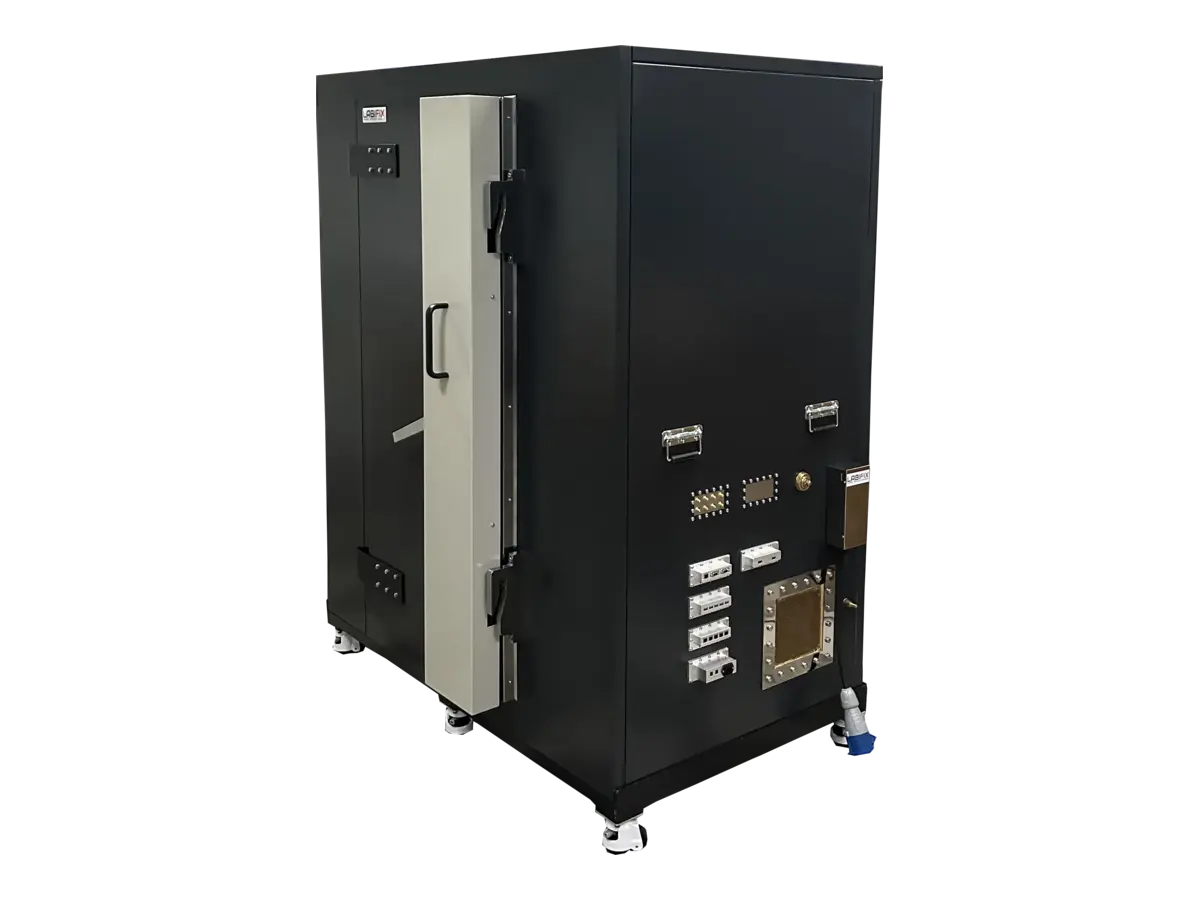

LBX-SB200 Shielded Enclosure comes with the following
  • RF Ports : SMA Bulkhead F Jack to F Jack with protective caps
  • Filtered High Speed USB3.0 Interface
  • Filtered RS232 Connector
  • Filtered HDMI
  • Filtered Ethernet- RJ-45 Connector
  • Filtered DC 5Amps Power Jack
  • Filtered 230VAC Power inlet with 6AMPS Fuse Universal Voltage Range 110-270 Volts-50/60 Hz
  • Honeycomb Air Vents 200mm * 200mm Air Vents
  • Honeycomb Air Vents 200mm With AC Axial Fan 200mm 2800RPM
  • PDU With 10 Multi pin Power Strip

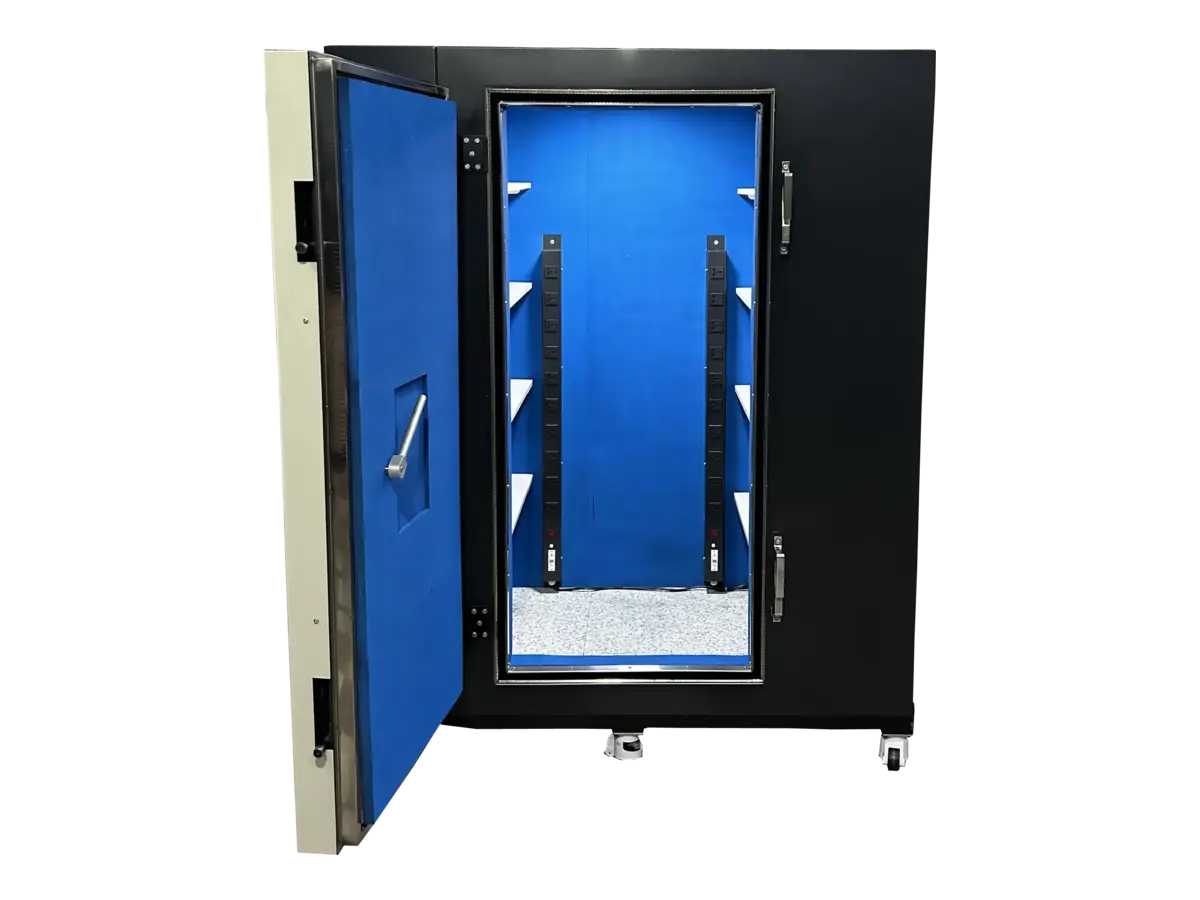

  • 1 inch Thick Flat Absorber Lining Blue Color- Fire retardant RF Absorbers
  • LED Lights Fixtures inside the Shielded Enclosure
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G & 10G
  • Filtered USB 2.0 & 3.0 –C Type
  • AC / DC Power line filter
  • RF Ports: SMA, N Type, BNC, TNC
  • Fiber optics: ST & Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
