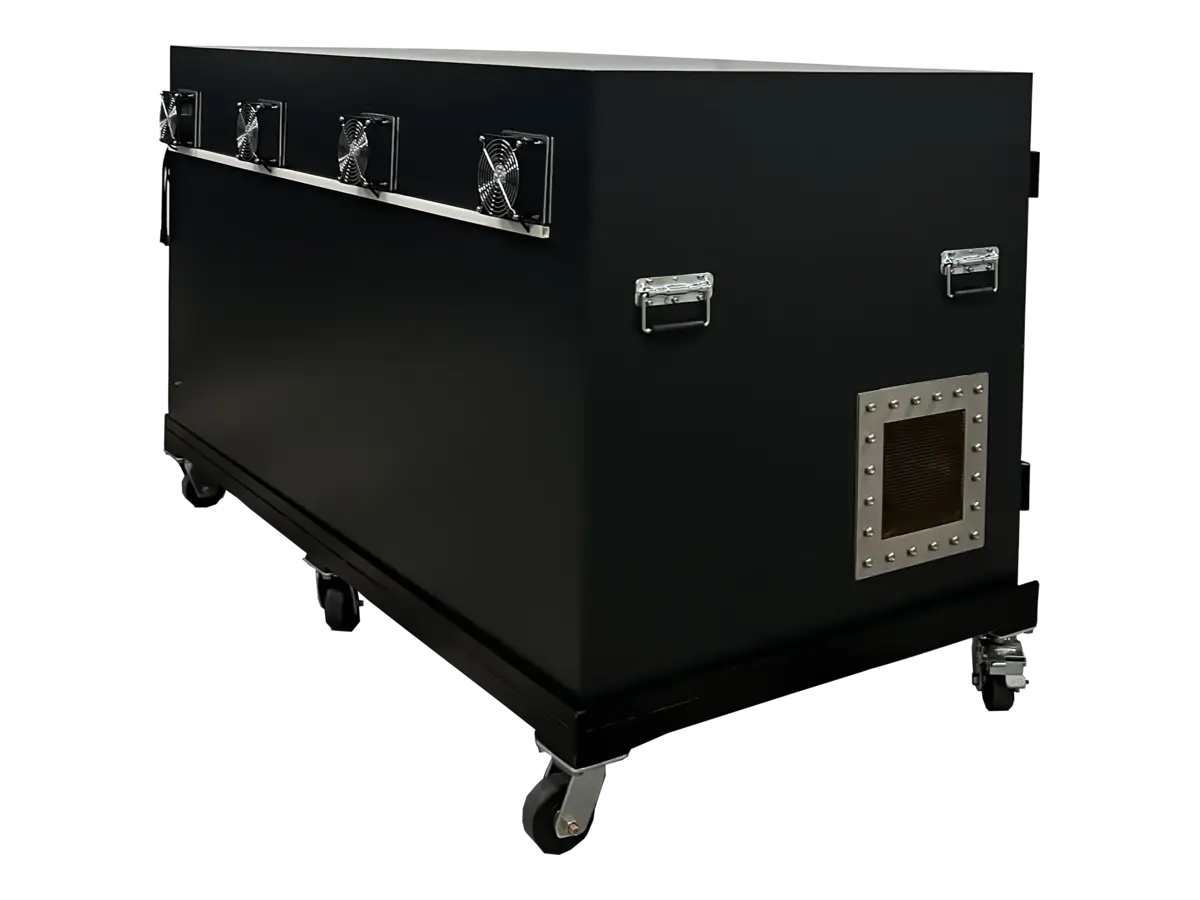

LBX8500 LoRaWAN and Sigfox long-range Testing LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX8500 RF Shield Box

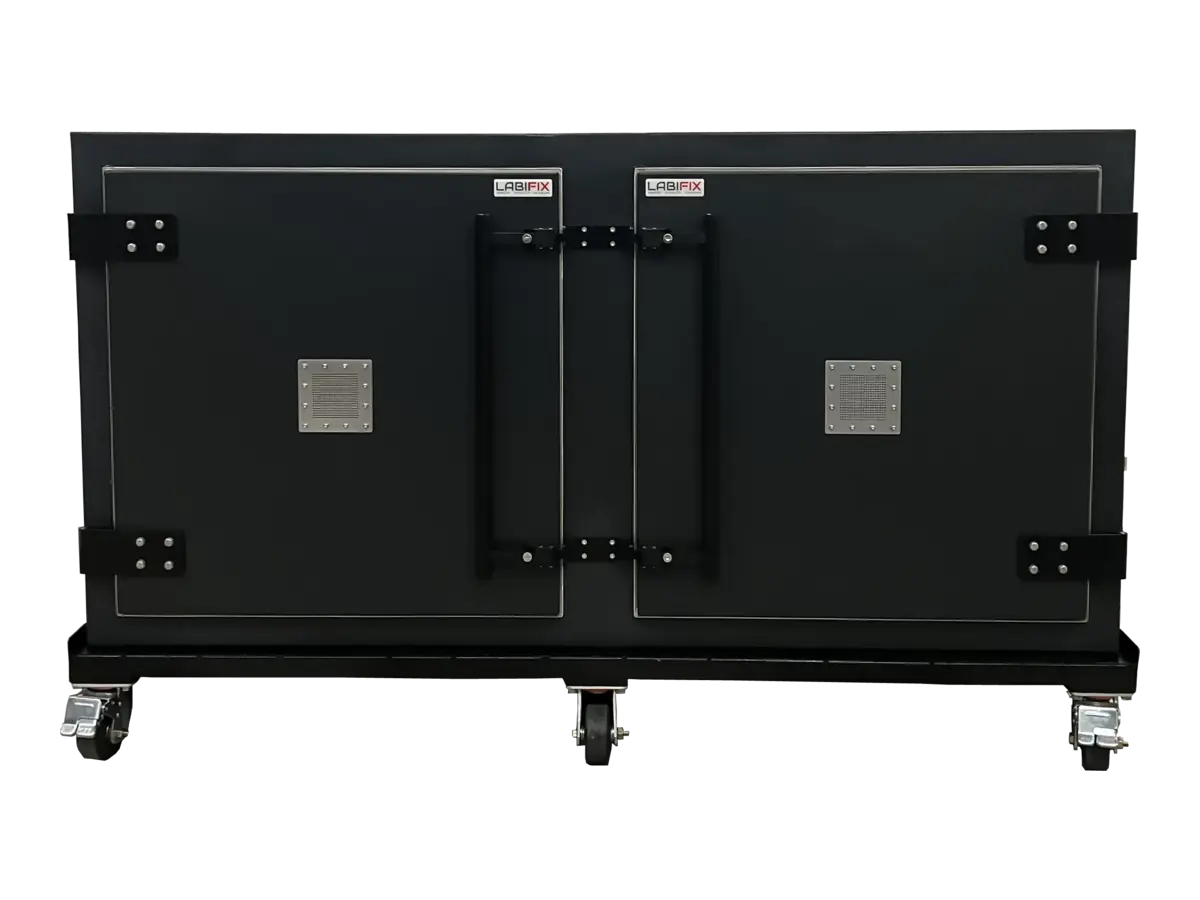

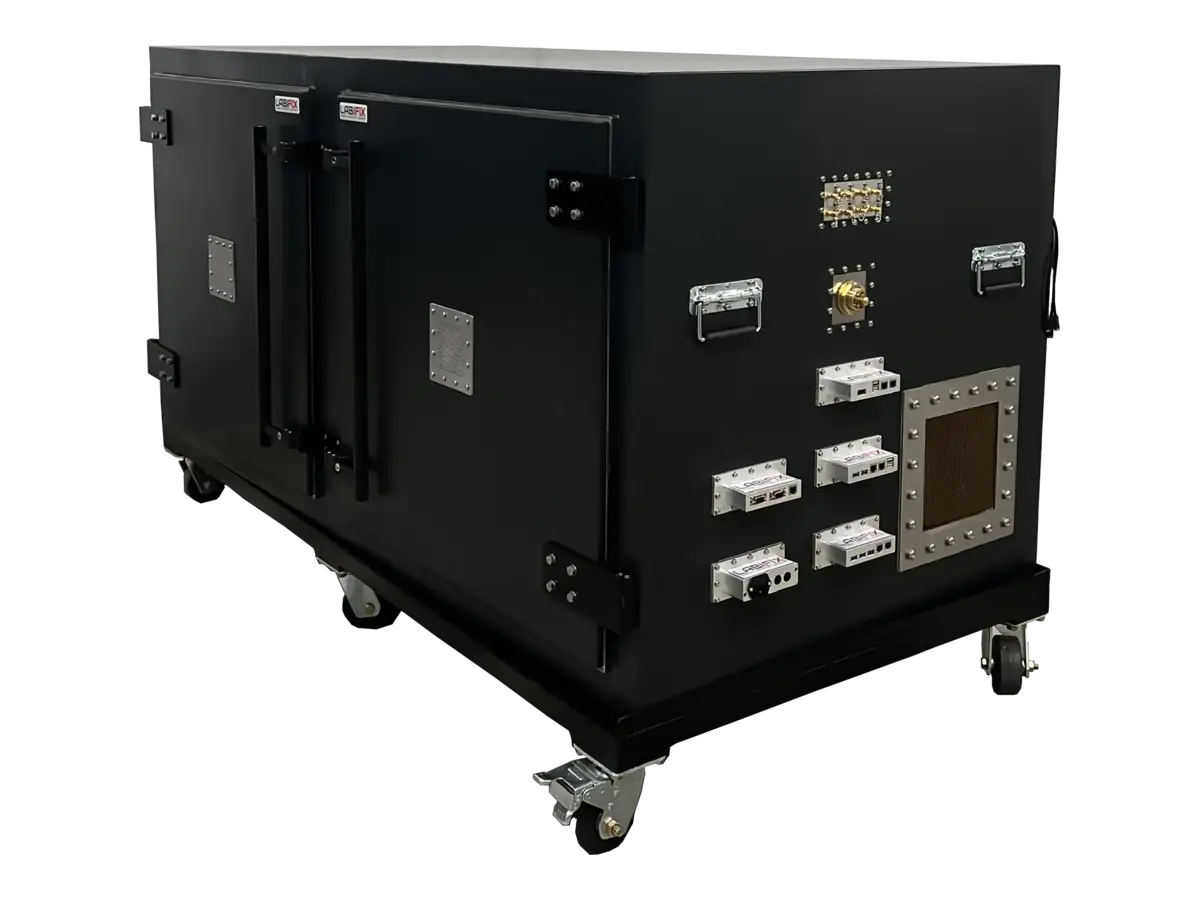

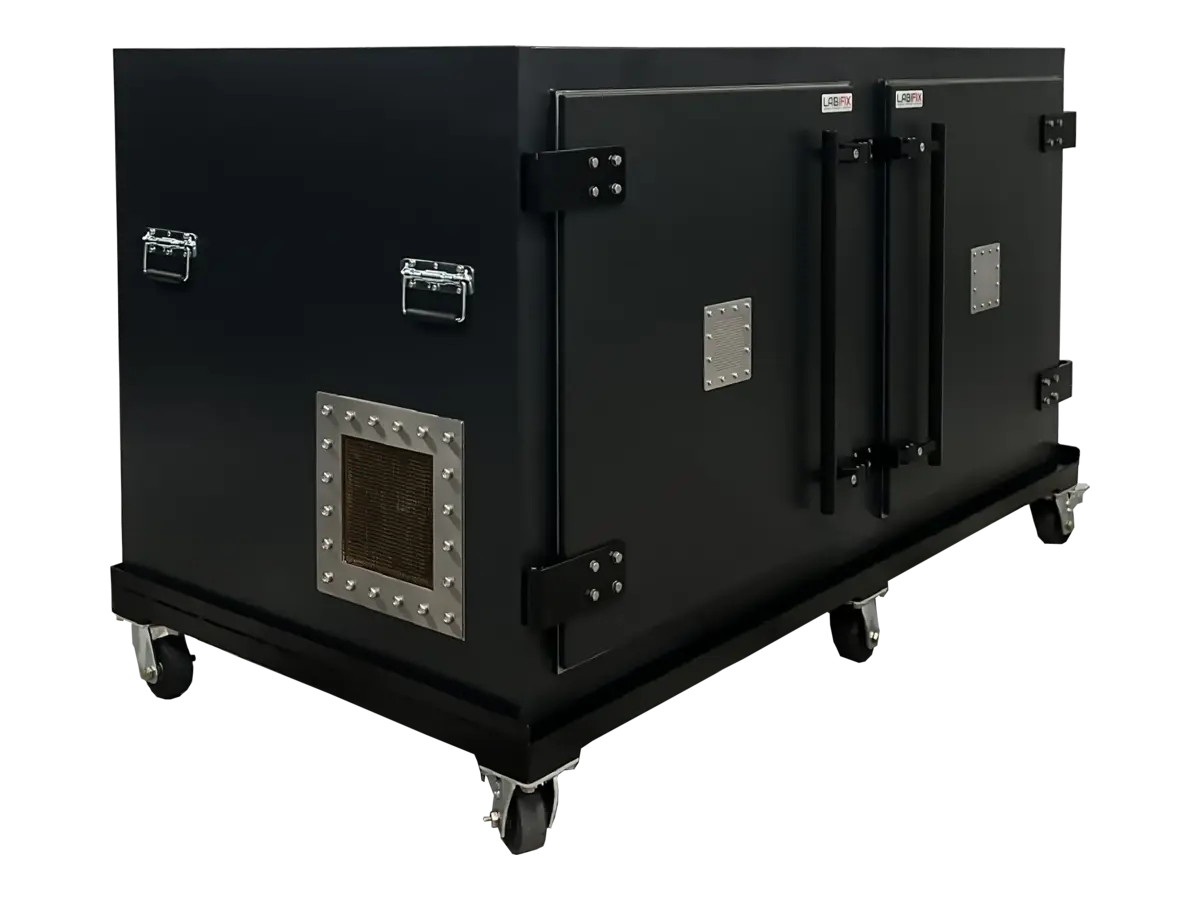

The LBX8500 is designed for testing scenarios that require more than a standard enclosure can offer. The double front-opening swing doors provide easy access to the spacious interior, accommodating larger devices or multiple test articles simultaneously. Optional compartments help organize testing setups, improving efficiency for multi-device validation. The rugged welded construction ensures reliable operation through years of daily use. Superior shielding effectiveness is maintained through filtered power, data, and RF connections. Whether you're testing Bluetooth devices, WLAN equipment, or multiple units in parallel, the LBX8500 provides the space and shielding you need.

Dimensions
Exterior (H x W x D)
36" (H) x 72" (W) x 36" (D)
Interior (H x W x D)
34" (H) x 70" (W) x 34" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

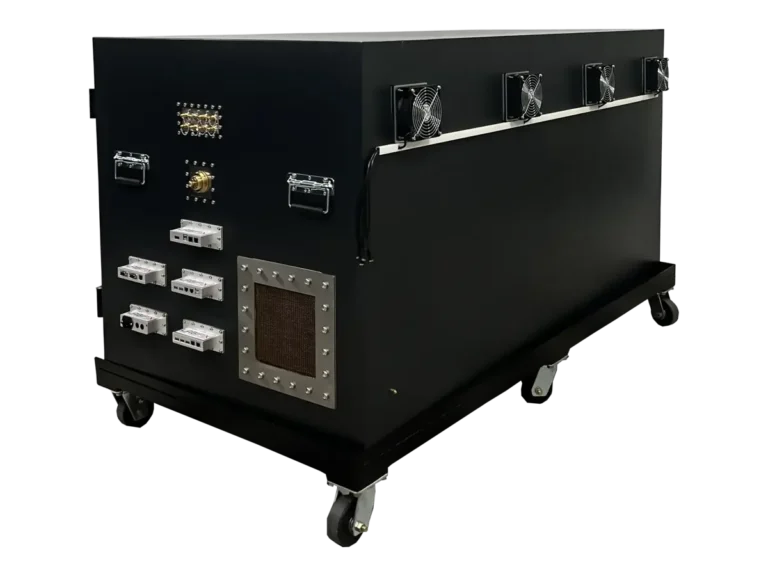

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

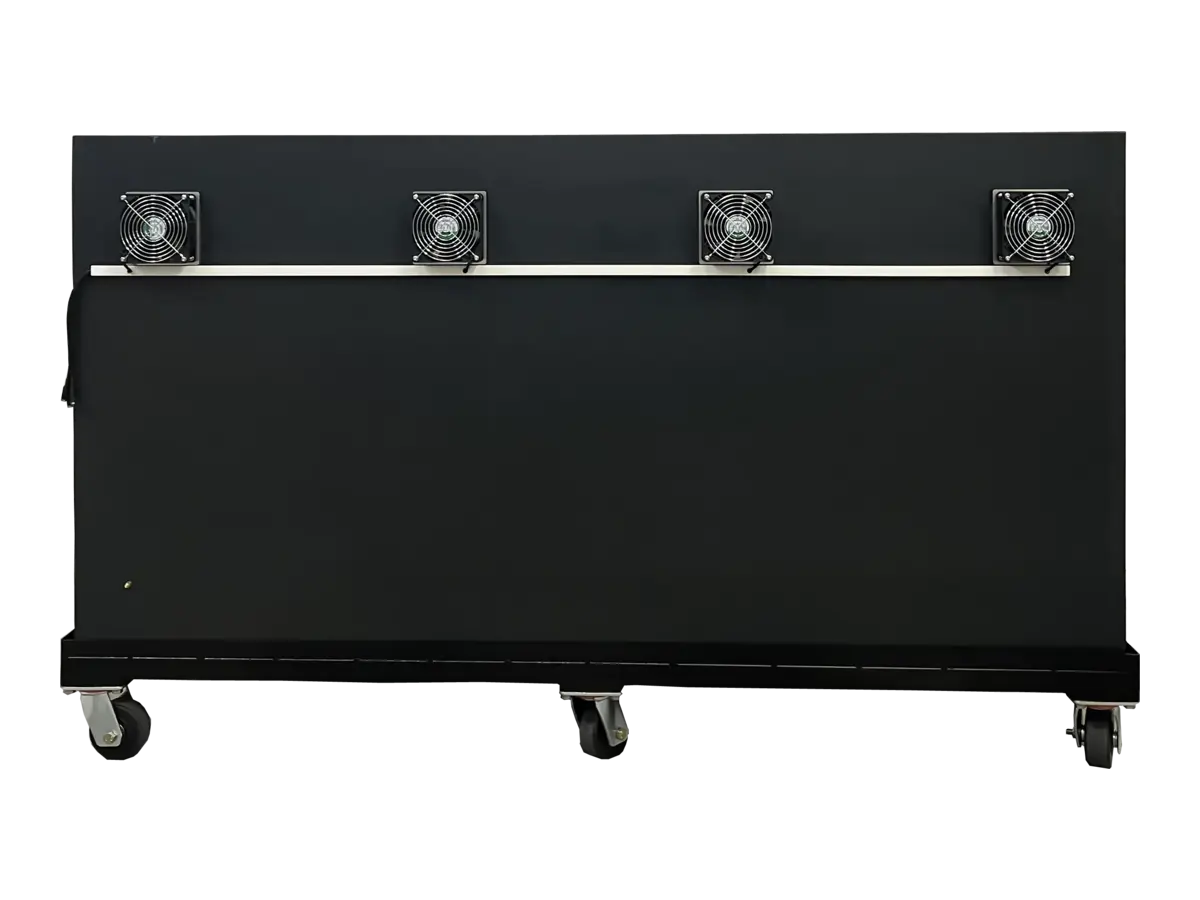

High performance shielded honeycomb Air Vents for optimal cooling

LBX8500 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
72"(EXTERIOR WIDTH)36"(EXTERIORHEIGHT)FRONT VIEW36"(EXTERIOR DEPTH)SIDE VIEW72"(EXTERIOR WIDTH)36"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 72" (W) × 36" (H) × 36" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

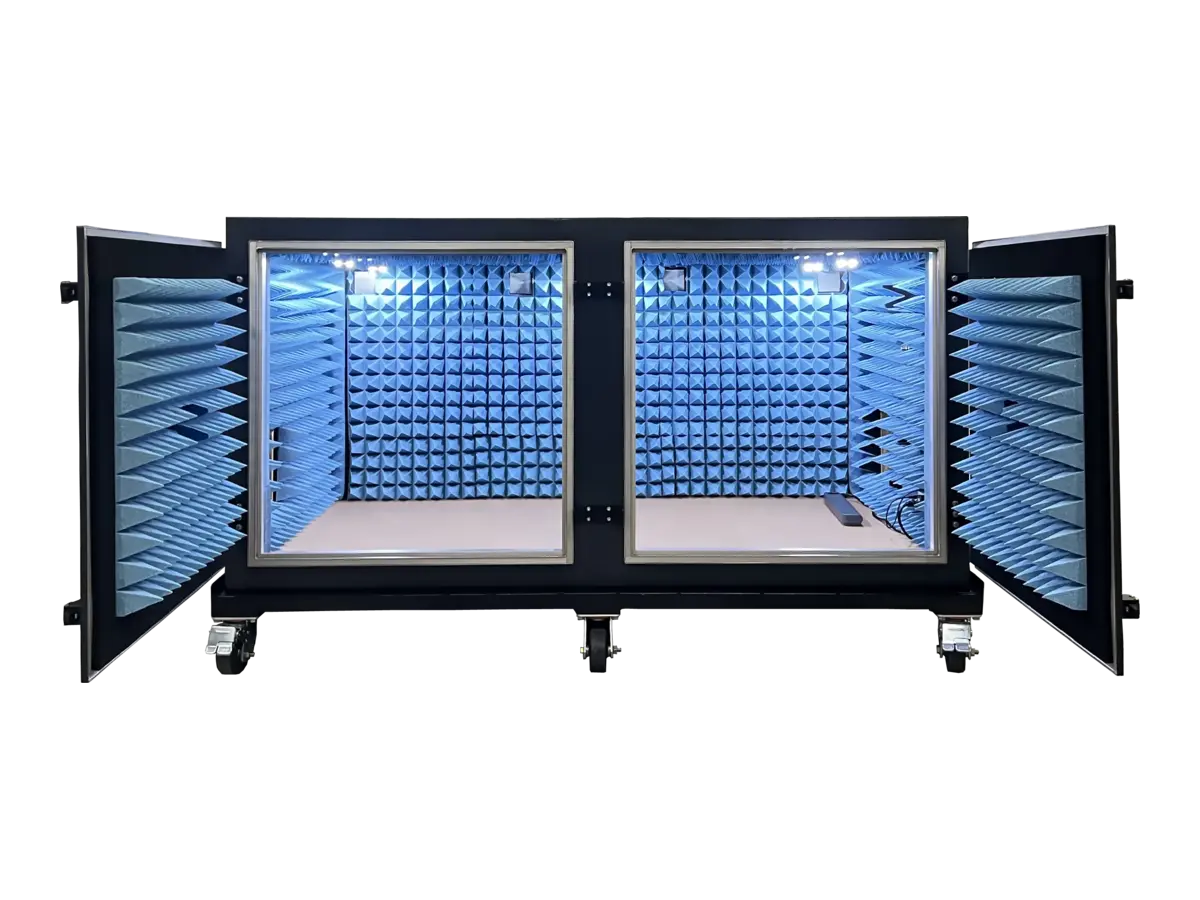

LBX8500 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
70"(INTERIOR WIDTH)34"(INTERIORHEIGHT)INTERIOR FRONT VIEW34"(INTERIOR DEPTH)INTERIOR SIDE VIEW70"(INTERIOR WIDTH)34"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 70" (W) × 34" (H) × 34" (D)RF Pyramidal Microwave Absorber Lining Boundary
