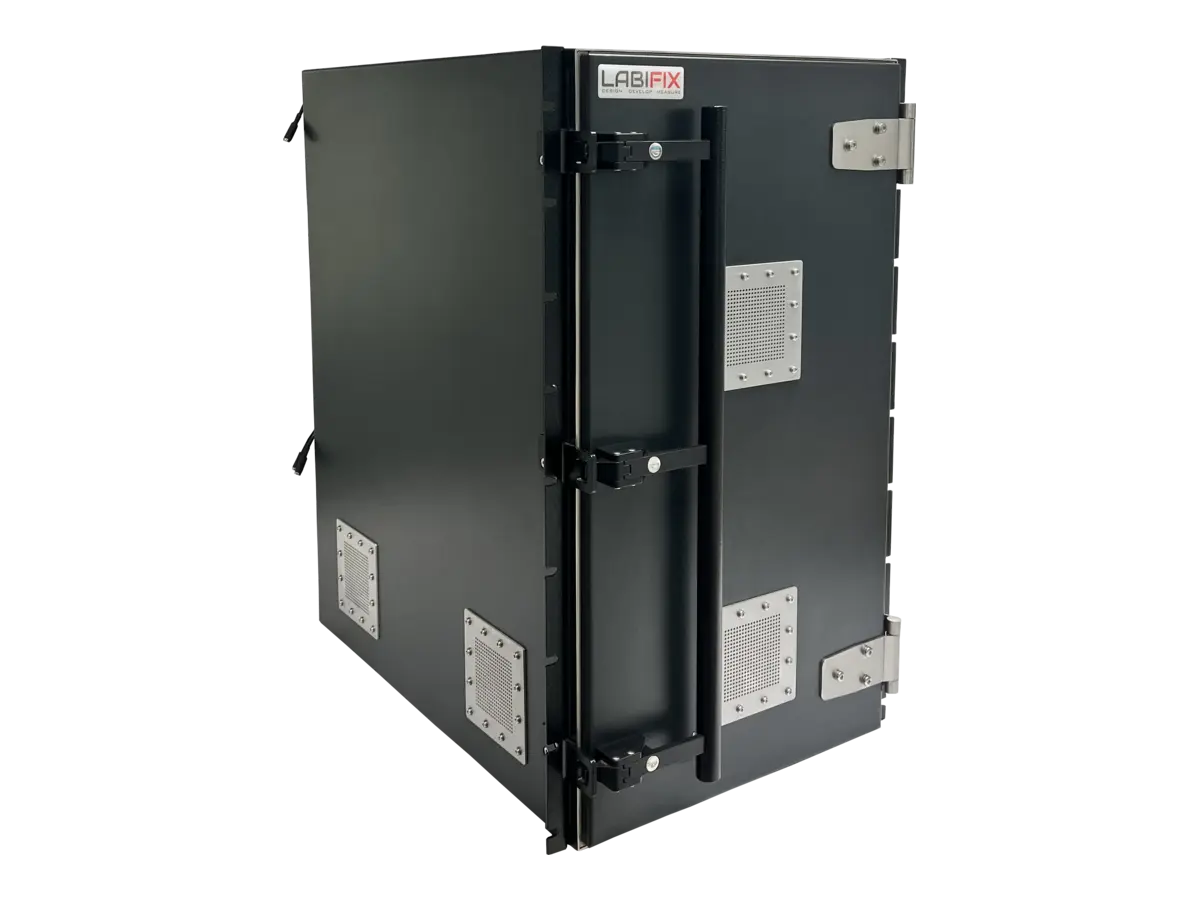

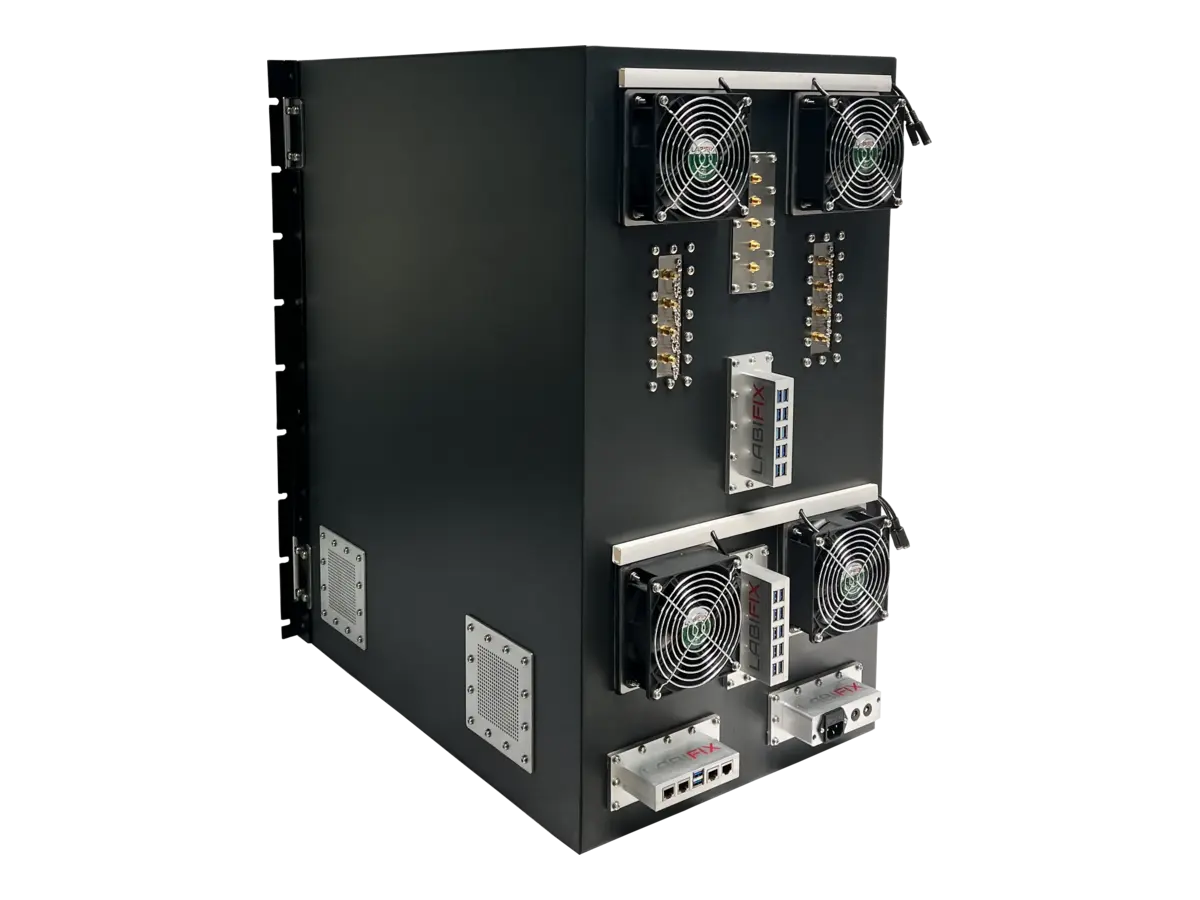

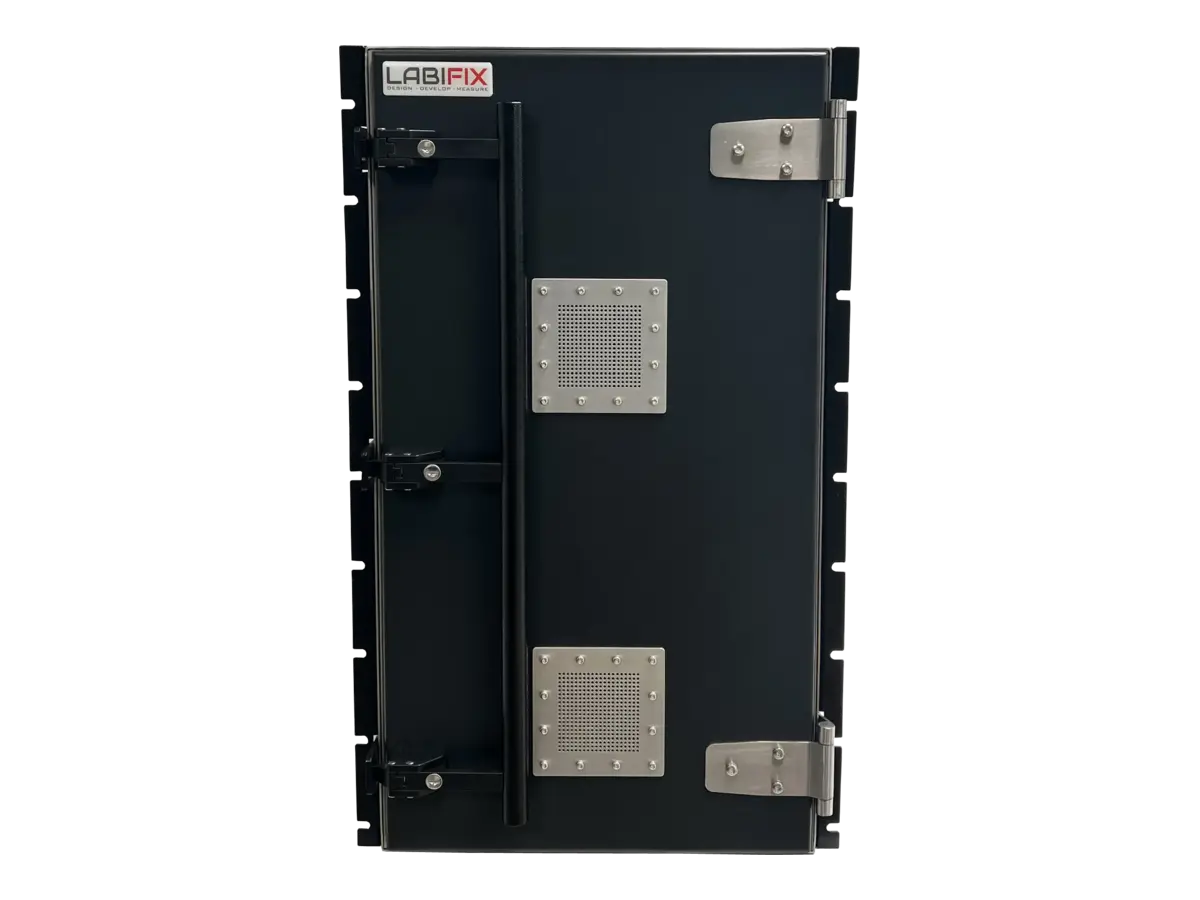

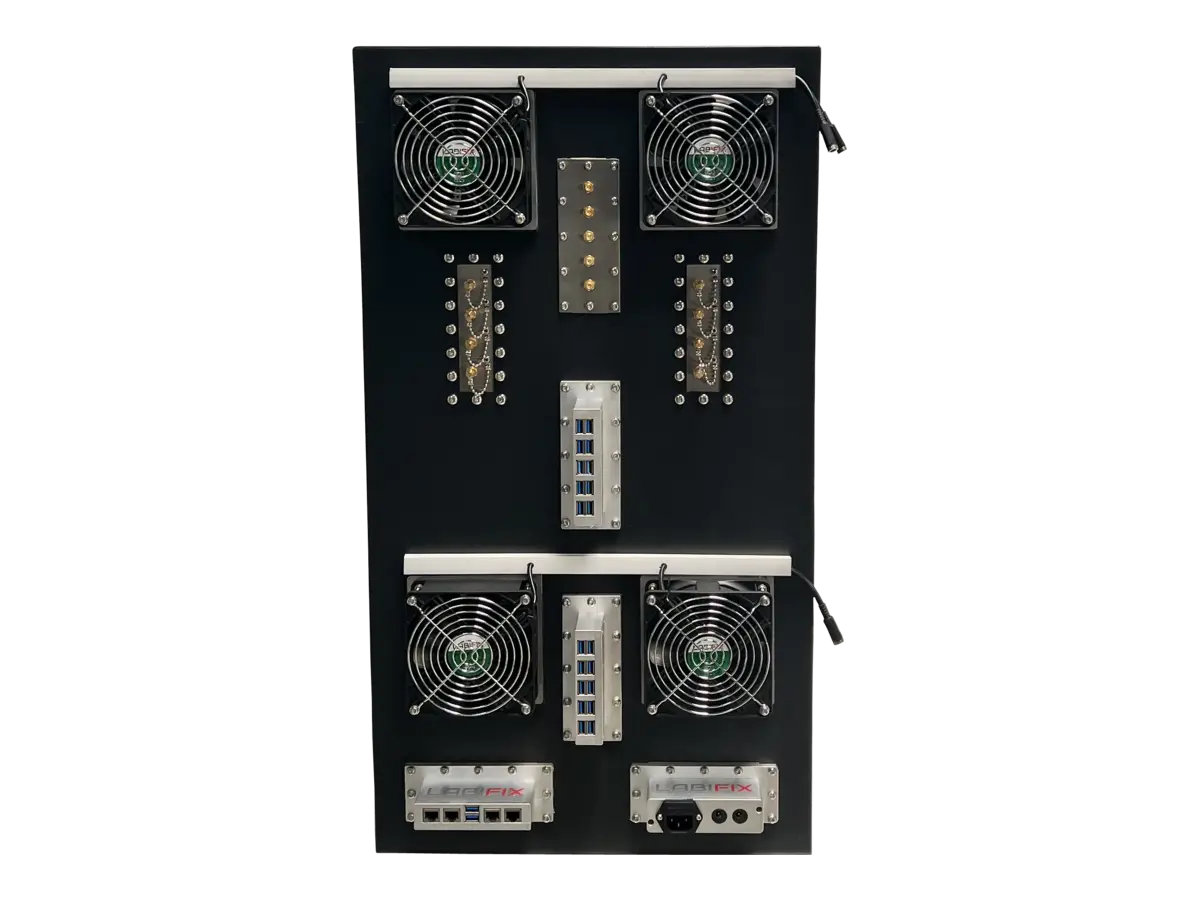

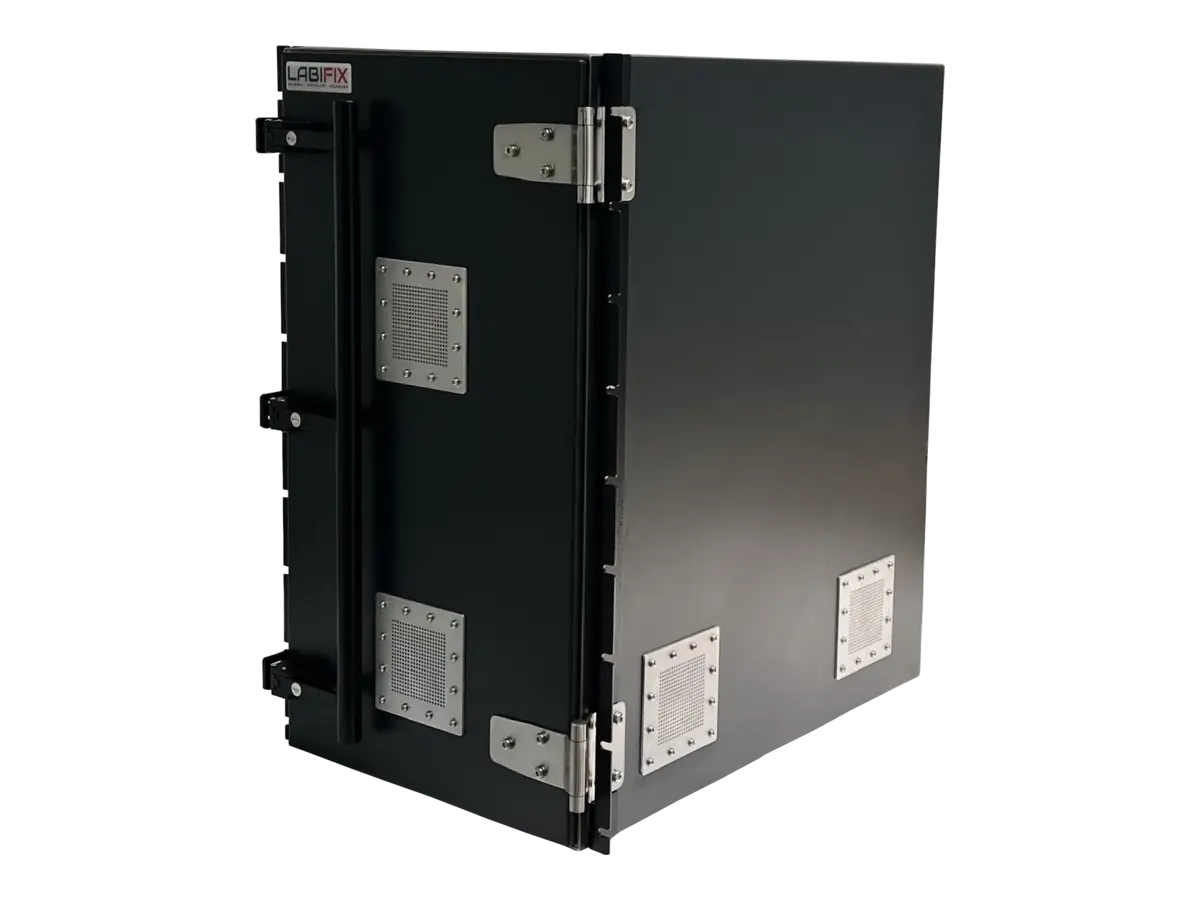

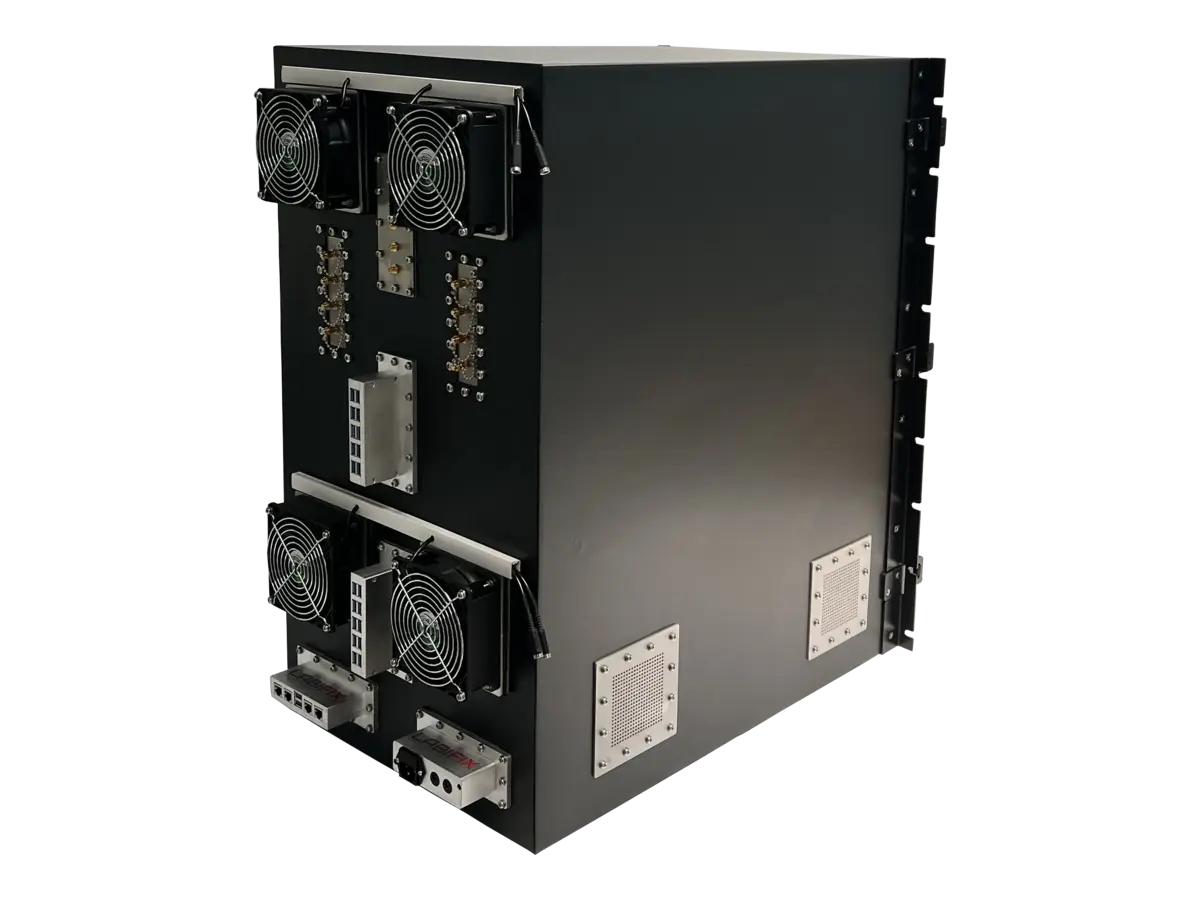

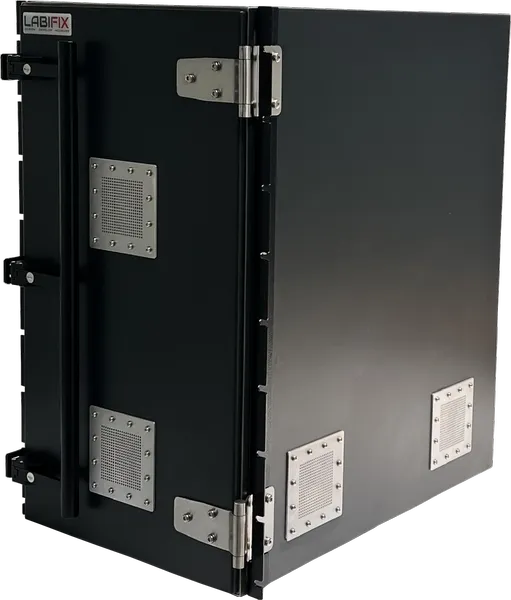

LBX7200 Wi-Fi 6, 6E, and Wi-Fi 7 throughput Testing LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7200 RF Shield Box

Take your testing wherever it needs to go with the LBX7200 portable RF shielded enclosure. This compact, transportable solution delivers >90dB shielding against all types of EMI and RFI, particularly the crowded spectrum occupied by modern wireless technologies. Despite the portable form factor, it handles the full range of protocols—3G, 4G, 5G LTE, all Wi-Fi variants, Wi-Max, and Bluetooth. The modular I/O design allows complete customization with interchangeable RF modules. Choose between 19-inch rack mountable or standalone configurations. Whether you're performing field tests, moving between lab benches, or deploying temporary test stations, the LBX7200 brings professional-grade shielding wherever you need it.

Dimensions
Exterior (H x W x D)
31" (H) x 17" (W) x 27" (D)
Interior (H x W x D)
29" (H) x 15" (W) x 25" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

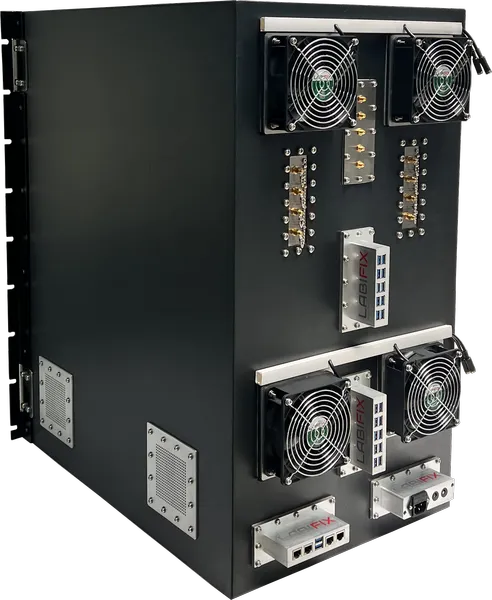

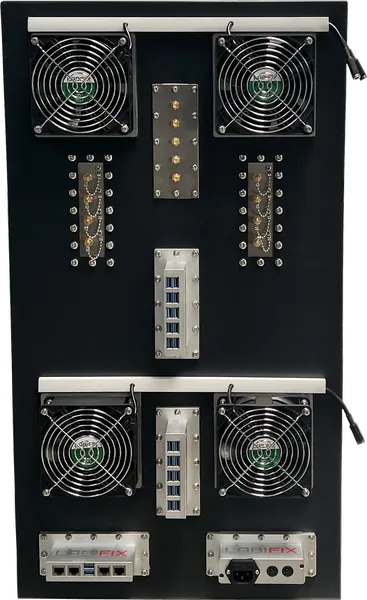

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)31"(EXTERIORHEIGHT)FRONT VIEW27"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)27"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 31" (H) × 27" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)29"(INTERIORHEIGHT)INTERIOR FRONT VIEW25"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)25"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 29" (H) × 25" (D)RF Pyramidal Microwave Absorber Lining Boundary
