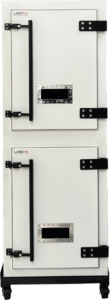

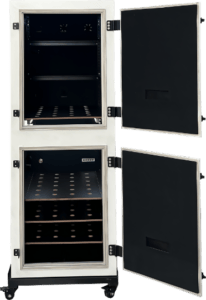

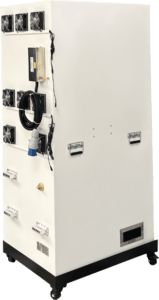

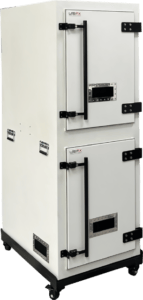

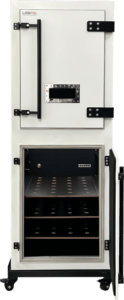

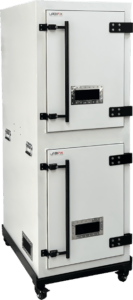

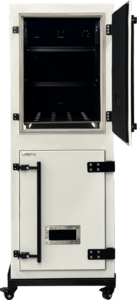

LBX6900 RF Shield Box

The LBX6900 is your reliable partner for Bluetooth and wireless device testing. This RF shielded enclosure provides the controlled environment necessary for accurate measurements, with EMI filters on data ports and high-grade RF absorber material inside. The welded steel construction ensures durability and consistent shielding performance, while the 19-inch rack mount design integrates seamlessly into test systems. Customizable I/O connections accommodate a wide range of test requirements. Bluetooth device testing demands a stable, interference-free environment—the LBX6900 provides exactly that, along with the build quality and flexibility that professional testing demands.

Dimensions
Exterior (H x W x D)
80" (H) x 28" (W) x 38" (D)
Interior (H x W x D)
77" (H) x 26" (W) x 36" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX6900 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
28"(EXTERIOR WIDTH)80"(EXTERIORHEIGHT)FRONT VIEW38"(EXTERIOR DEPTH)SIDE VIEW28"(EXTERIOR WIDTH)38"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 28" (W) × 80" (H) × 38" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX6900 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
26"(INTERIOR WIDTH)77"(INTERIORHEIGHT)INTERIOR FRONT VIEW36"(INTERIOR DEPTH)INTERIOR SIDE VIEW26"(INTERIOR WIDTH)36"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 26" (W) × 77" (H) × 36" (D)RF Pyramidal Microwave Absorber Lining Boundary
