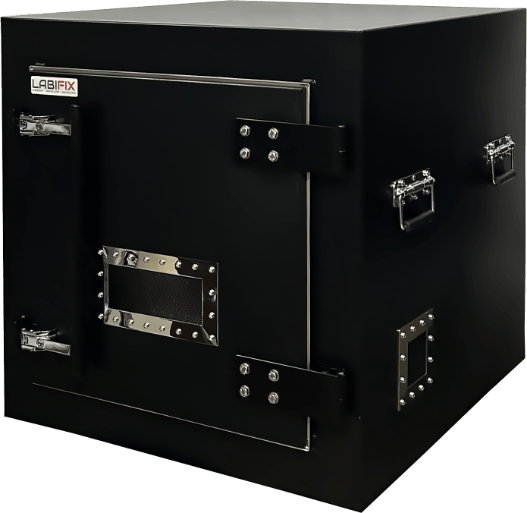

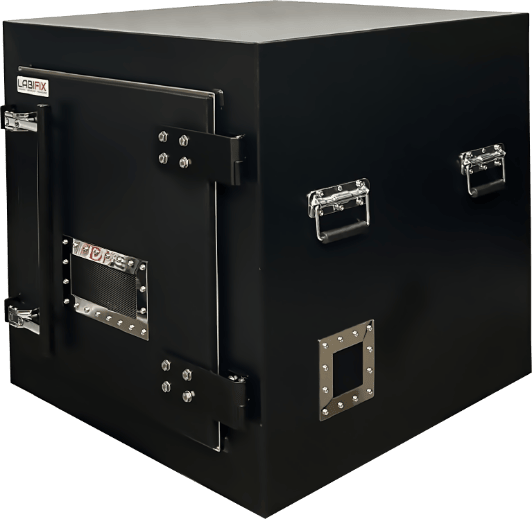

LBX5650 RF Shield Box
LBX5650 is built around a straightforward idea: isolate the device under test while keeping the connectivity and access the test requires. Its configuration can bring together Rugged Welded Construction and EMI filters on Data Ports and Power lines so engineers can balance shielding, connectivity and access without forcing the DUT into a fixed setup. That makes it a natural fit for Bluetooth device testing, where controlled isolation and dependable connectivity help support consistent testing, where a defined RF environment can help engineers work with greater consistency. For teams searching for a RF Isolation box for their RF isolation needs, LBX5650 can be considered as part of a tailored RF shielding solution
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

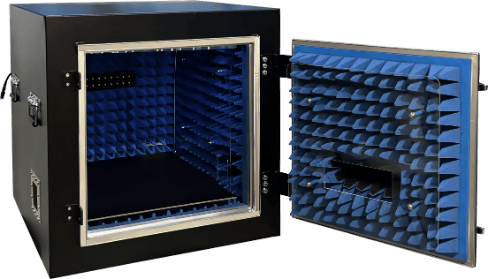

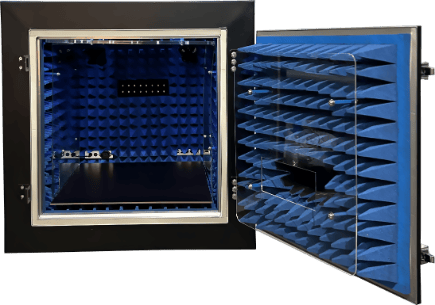

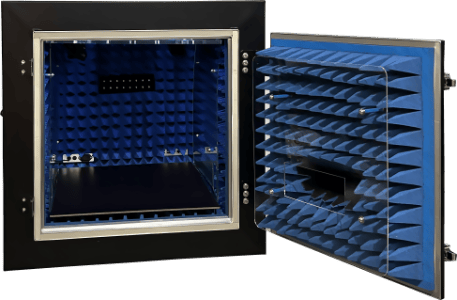

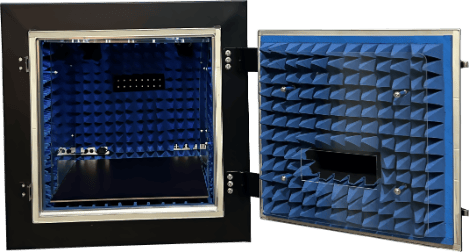

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction

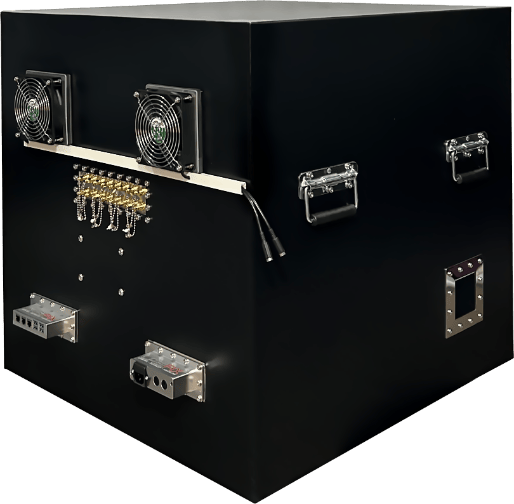

EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
