HomeProductsLBX4002

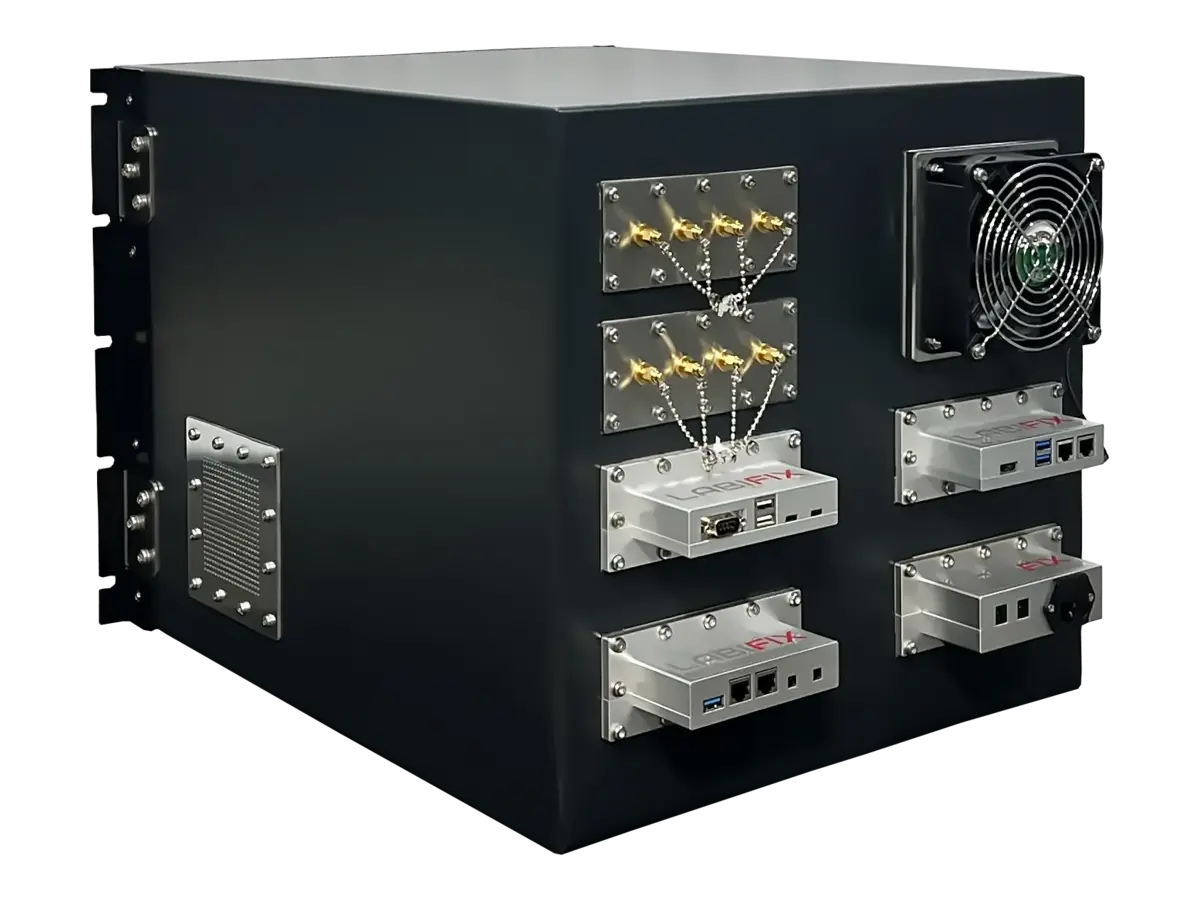

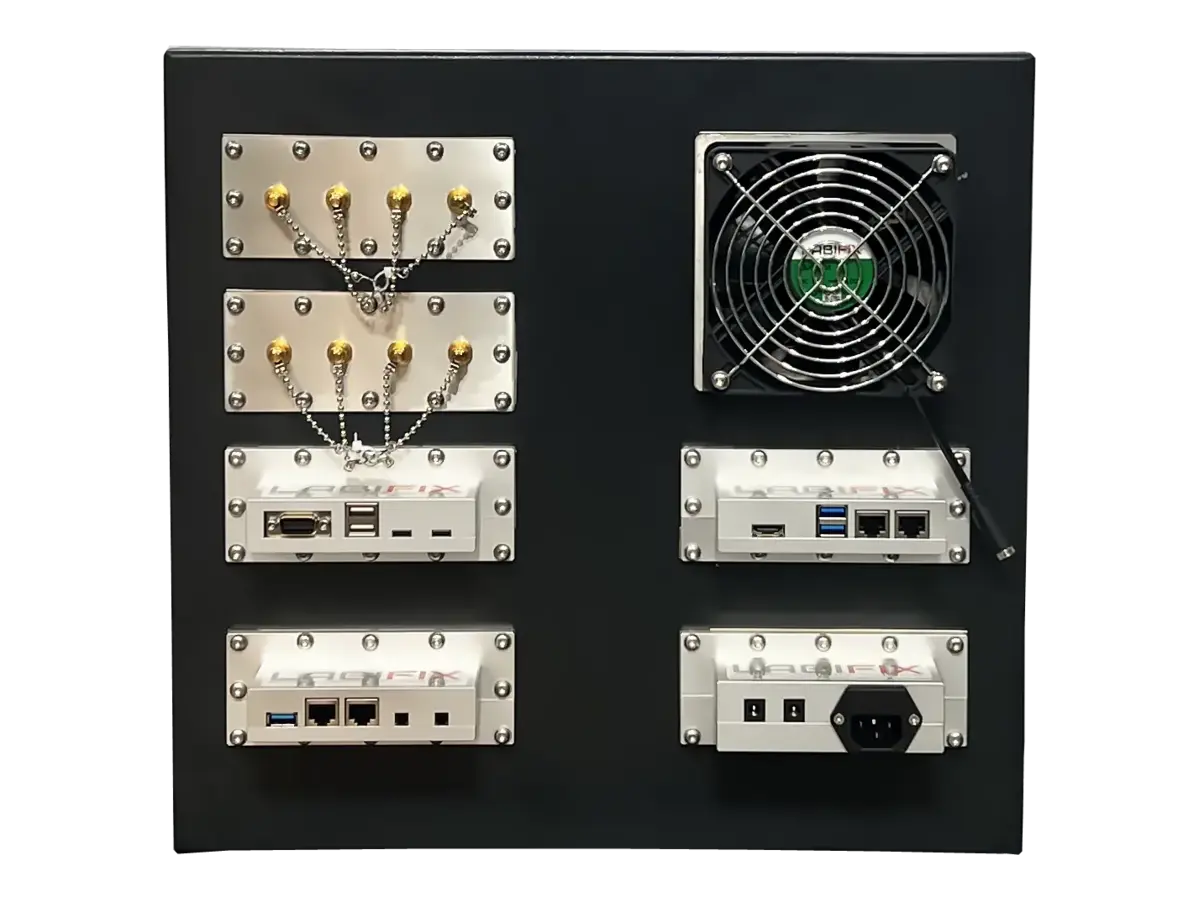

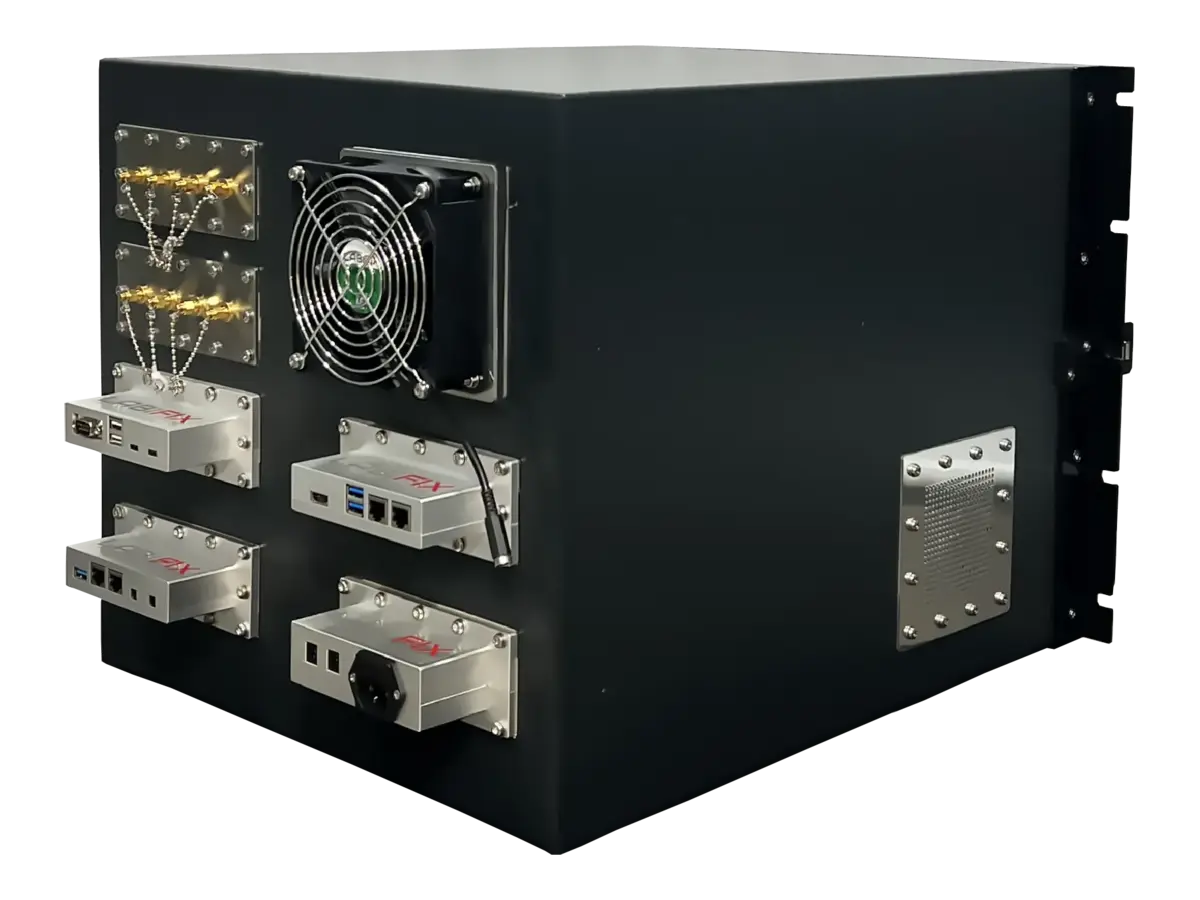

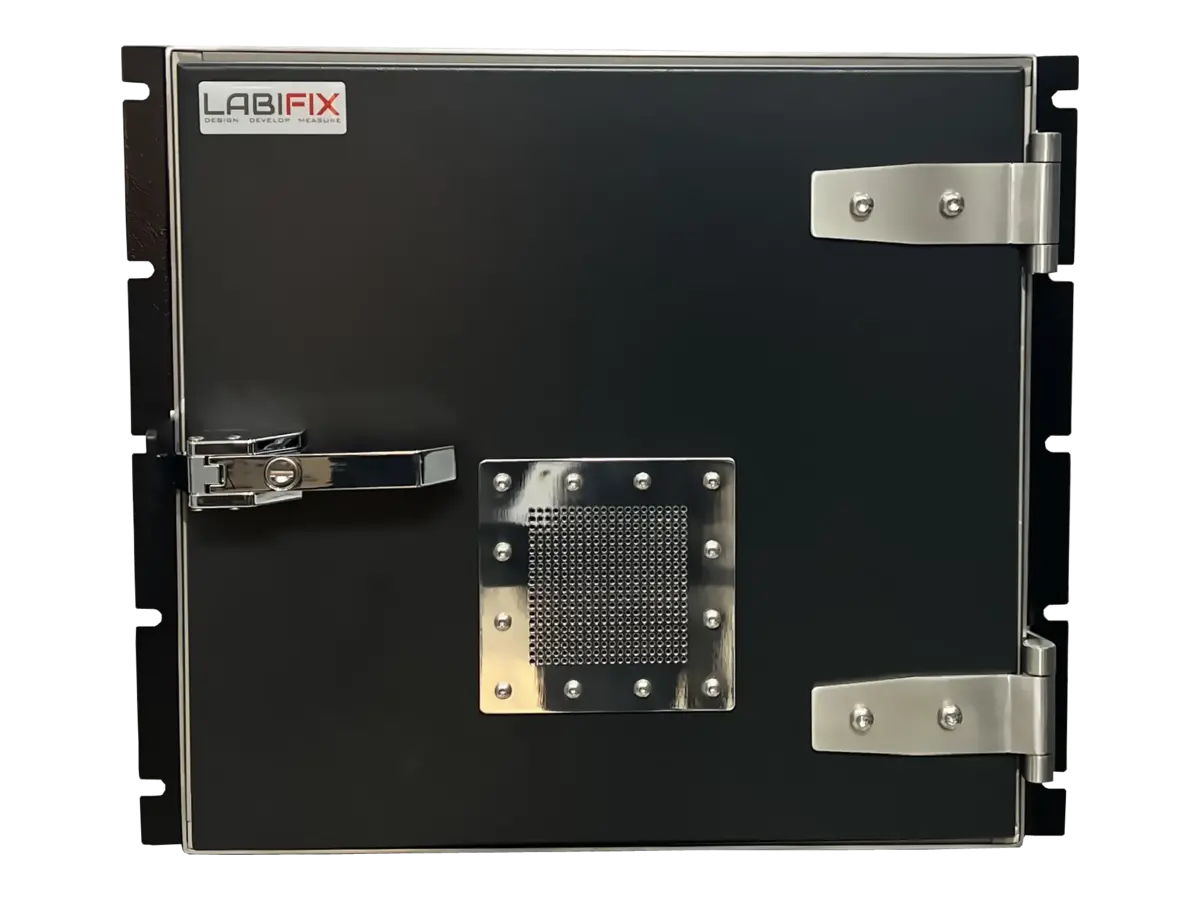

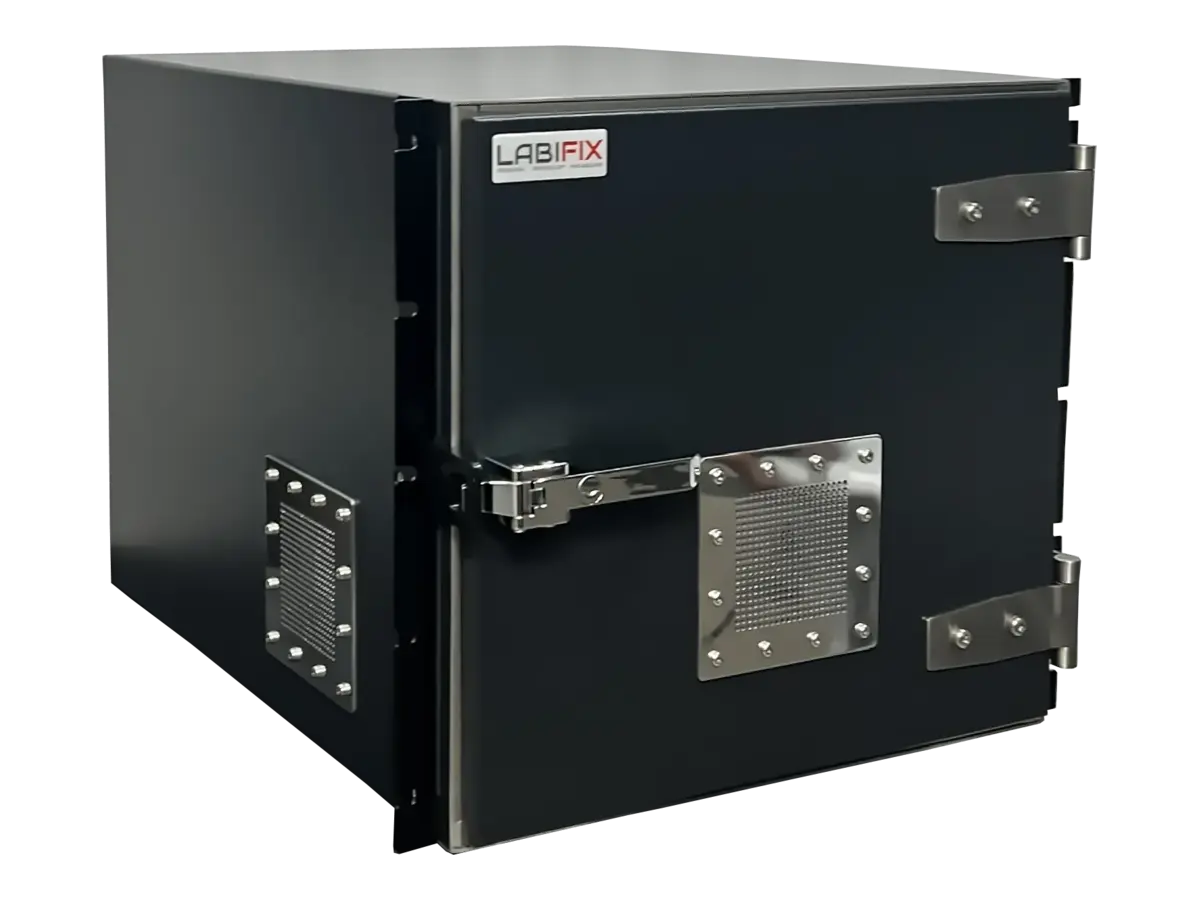

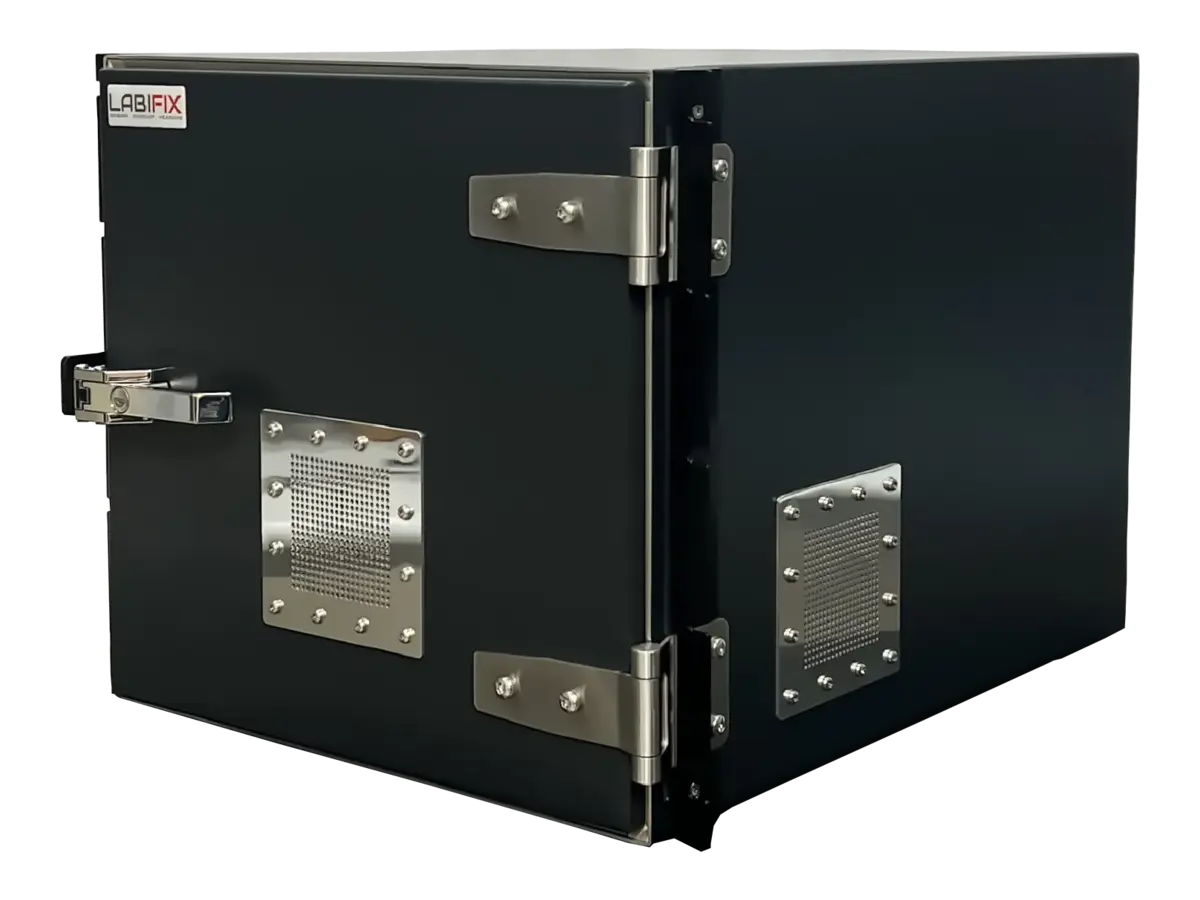

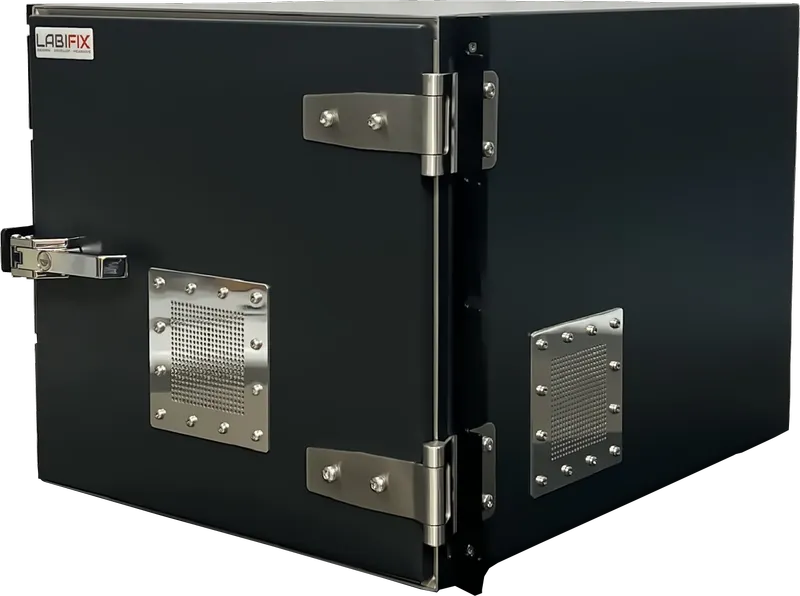

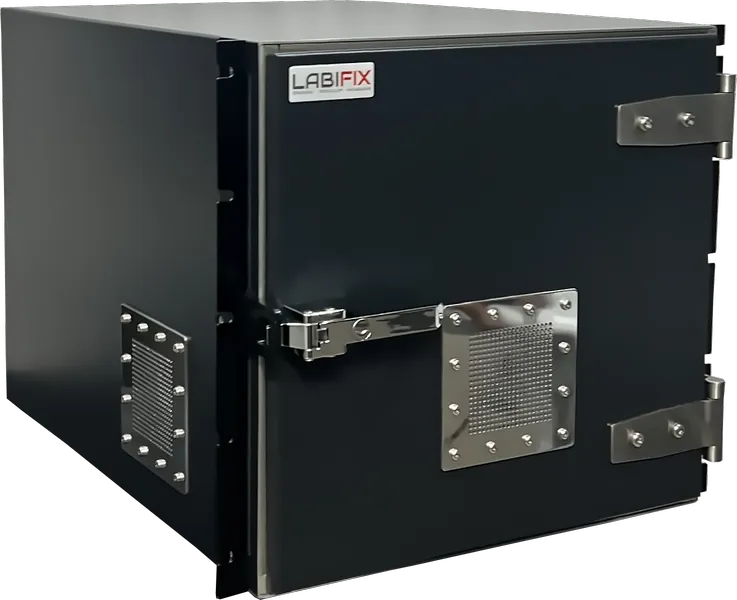

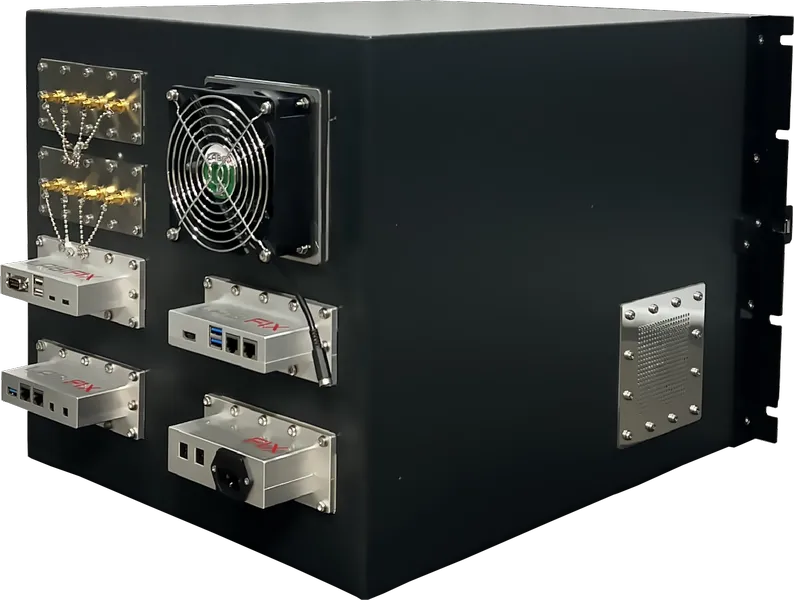

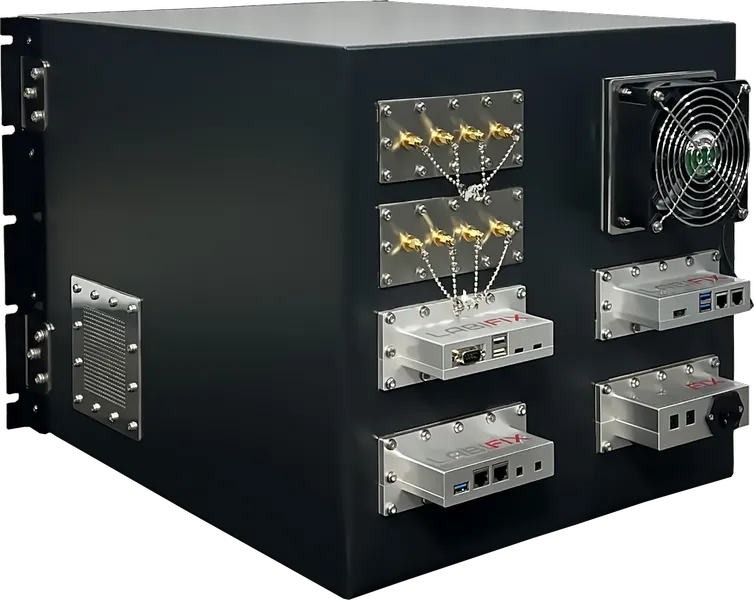

LBX4002 High-PeRFormance RF Electronics Testing Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX4002 RF Shield Box

Designed for testing advanced electronics, the LabiFix LBX4002 provides electromagnetic isolation in a rack-mountable form factor. It protects sensitive wireless components and RF sub-assemblies from ambient spectrum clutter, making it an ideal choice for high-frequency testing, engineering validation, and automated production setups.LBX4002 can be configured around the DUT and the way it needs to be tested. For Wi-Fi mesh testing workflows.

Dimensions
Exterior (H x W x D)
16" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
14" (H) x 15" (W) x 20" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX4002 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)16"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 16" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4002 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)14"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 14" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
LABIFIX RF PRODUCT PORTFOLIO

Related RF Shielding Enclosures

Explore complementary RF test boxes and isolation enclosures engineered for precision testing

LBX ACB20 PERFECT AUDIO VALIDATION

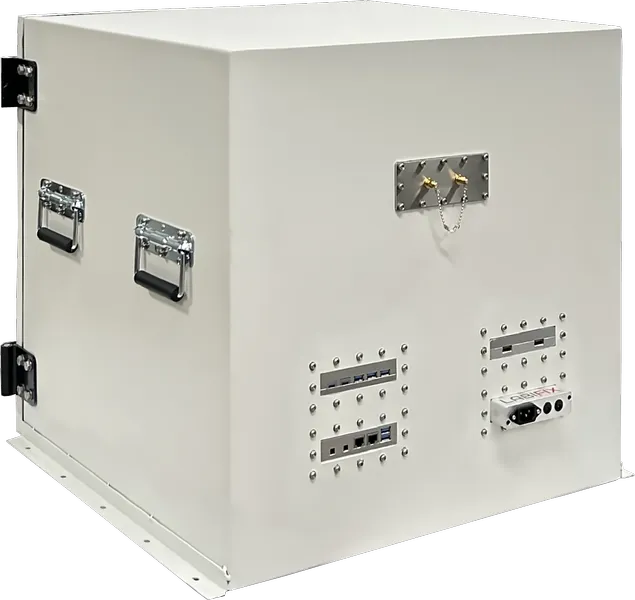

LBX ACB20 PERFECT AUDIO VALIDATION - LabiFix RF Shield Box, front view

LBX ACB20 Acoustic Enclosure serves as an effective and controlled acoustic testing, featuring configuration options that can be tailored to the specific test setup. Its design allows for the integration of an acoustic gasket system along with connectivity and access, without necessitating a fixed arrangement for the device under test (DUT). This enclosure provides a flexible pathway to controlled device-level acoustic testing, enabling the assessment of acoustic products such as speakers, receivers, and microphones in a stable environment characterized by a low noise floor of 25-30 dB. In a noisy environment of 60 dB, the internal noise level is 25 dB. In a noisy environment of 80 dB, the internal noise level is less than 35 dB.

View Details

LBX0500 SMALL RF SHIELDING BOX

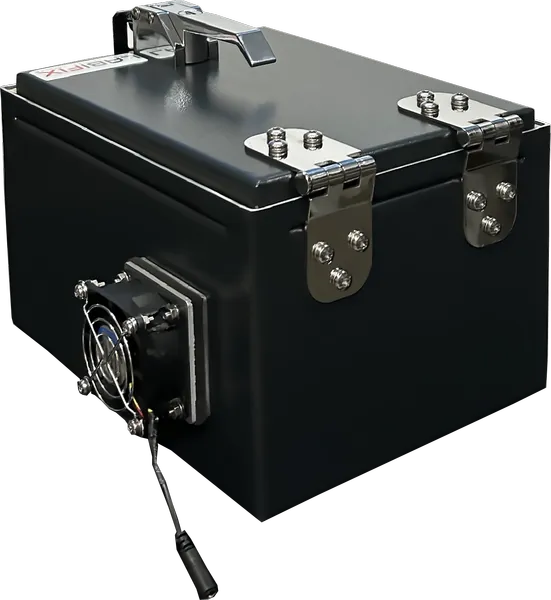

LBX0500 SMALL RF SHIELDING BOX - LabiFix RF Shield Box, front view

LBX-0500 is smaller version of RF Shielded Box which is equipped with features to support wide range of testing requirements. Conveniently used for smaller DUTS these shied Boxes are effectively shield against RF interferences, featuring with Filtered AC & DC power lines, Filtered Data lines, RF connectors. I/O Options, performance, etc. can be customized to meet your needs.

View Details

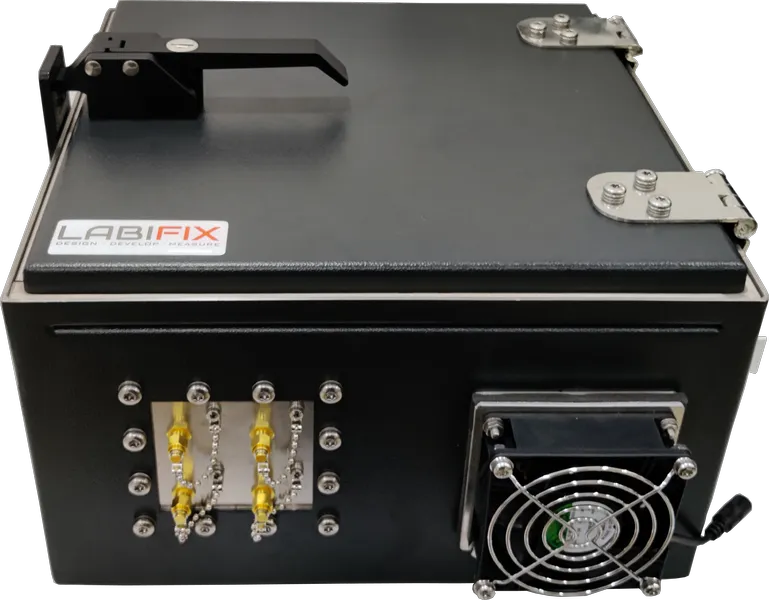

LBX0600 COMPACT TOP OPENING RF SHIELD BOX
