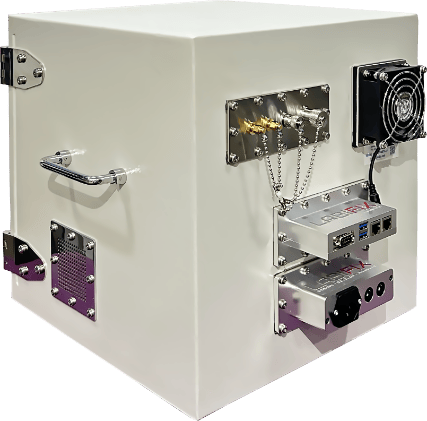

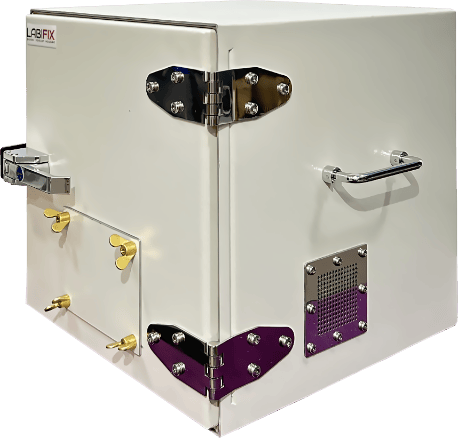

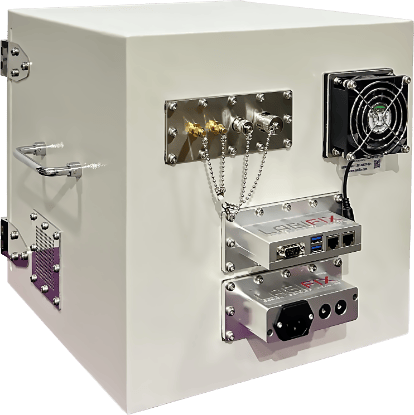

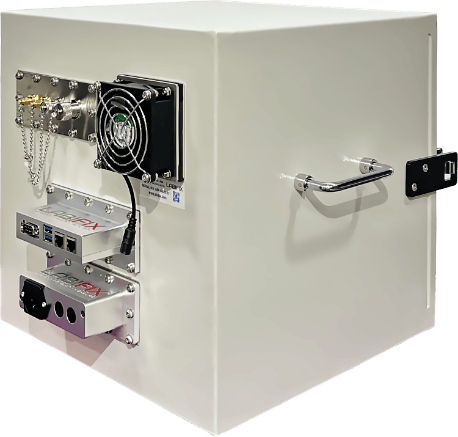

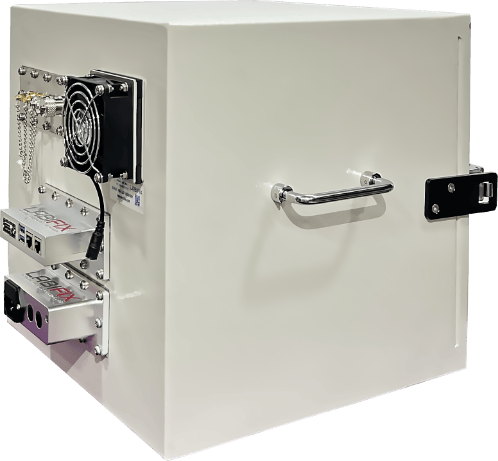

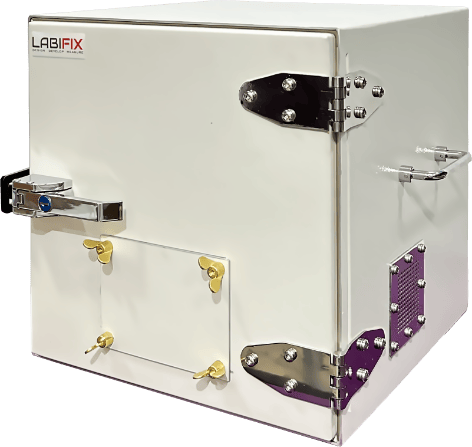

LBX1760 RF Shield Box
LBX1760 Test Box is built around a straightforward idea: isolate the device under test while keeping the connectivity and access the test requires. The configuration can include Rugged Welded Construction and EMI filters on Data Ports and Power lines, giving the test setup the flexibility to accommodate the DUT and its required interfaces. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF test enclosure, LBX1760 can be configured around the DUT and the way it needs to be tested
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements

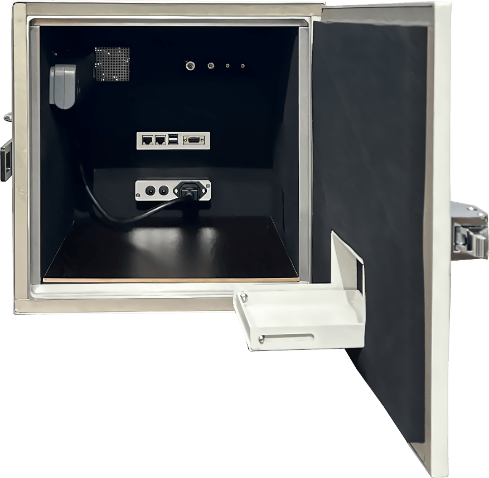

High Performance Pyramidal RF Microwave Absorber lining
User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options
High performance shielded honeycomb Air Vents for optimal cooling
