What frequency ranges does LBX7300 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX7300

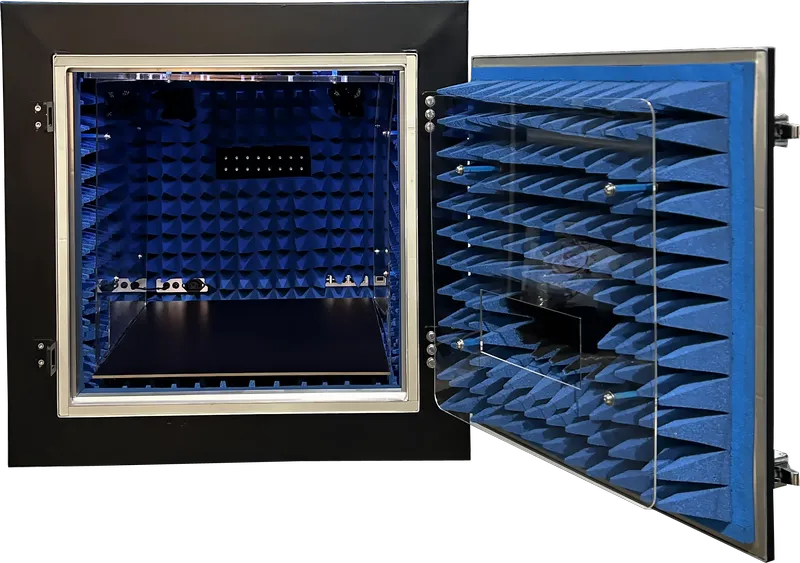

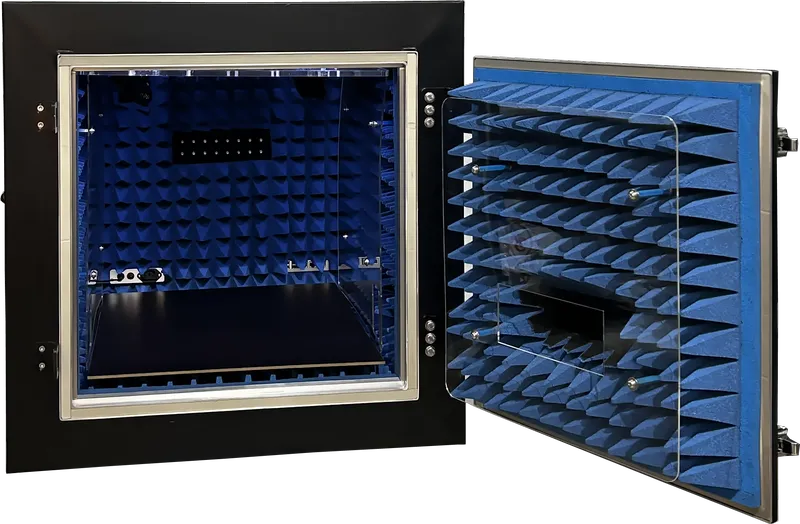

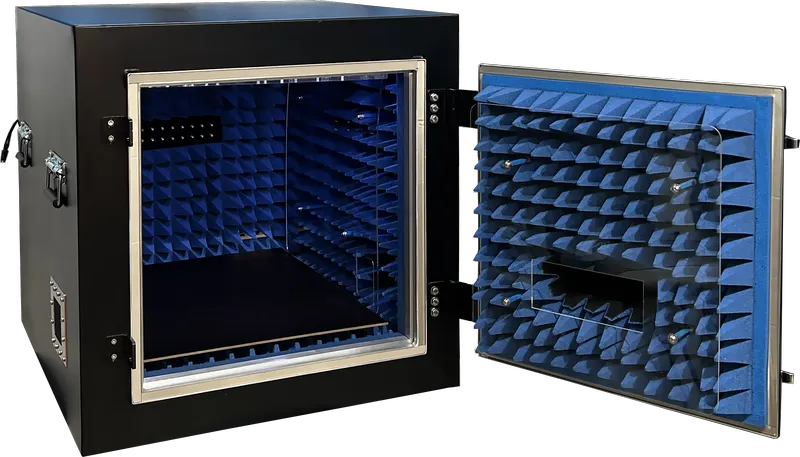

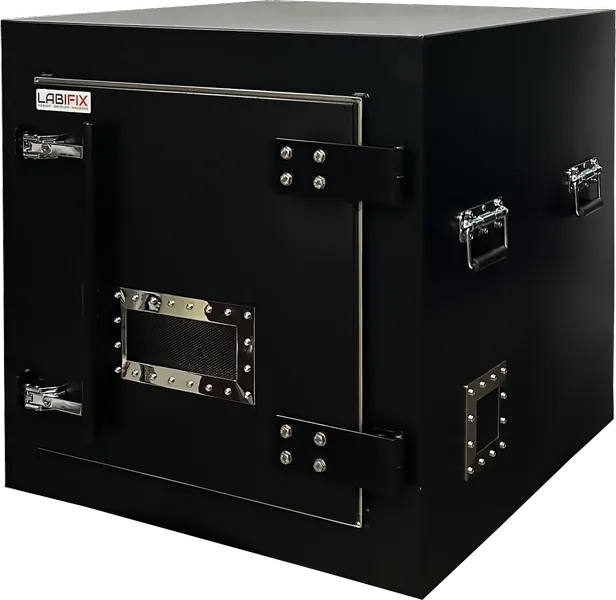

LBX7300 RF Faraday cage for Mobile phone LabiFix RF Shield Box - View 1 of 8

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX7300 RF Shield Box

Name: LBX7300 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX7300

In a world saturated with wireless signals, the LBX730 creates a sanctuary of silence. This manual RF enclosure delivers maximum shielding efficiency across the entire spectrum of modern wireless communications—from legacy 3G to cutting-edge 5G, all Wi-Fi standards, and everything in between. The customization options are extensive: choose your I/O connectors, specify your RF ports, select your data modules. This isn't just a shielding box; it's a tailored solution built around your testing workflow. Perfect for demanding applications in industrial settings, medical environments, military operations, and aerospace projects. When maximum RF isolation is non-negotiable, the LBX7300 delivers

Dimensions

Exterior (H x W x D)

28" (H) x 28" (W) x 30" (D)

Interior (H x W x D)

20" (H) x 20" (W) x 21" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7300 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 28" (W) × 28" (H) × 30" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX7300 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 20" (W) × 20" (H) × 21" (D)RF Pyramidal Microwave Absorber Lining Boundary
