LBX6300 RF Shield Box
LBX6300 RF Shielded Enclosure is designed for testing larger devices that require substantial internal space without sacrificing RF isolation. Its spacious chamber accommodates large DUTs while providing shielding performance above 100 dB. The enclosure can be customized in size, configuration, and interface arrangement to match specific testing requirements. Built with quality materials for long-term use, it helps create a controlled environment for wireless electronics, RF systems, connected equipment, and other large assemblies requiring protection from unwanted external interference during development and validation. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, product development, troubleshooting, characterization, production testing, laboratory workflows, and repeatable results.
- > 85 dB @ 100 MHz ~ 1 GHz
- > 95 dB @ 1 GHz ~ 3 GHz
- > 90 dB @ 3 GHz ~ 6 GHz
- > 85 dB @ 6 GHz ~ 12 GHz
Solutions & Benefits
Excellent shielding performance (> 85–100 dB across broad frequency spectrum)
Completely Customizable Shielded Enclosure tailored to DUT requirements
High Performance Pyramidal RF Microwave Absorber lining

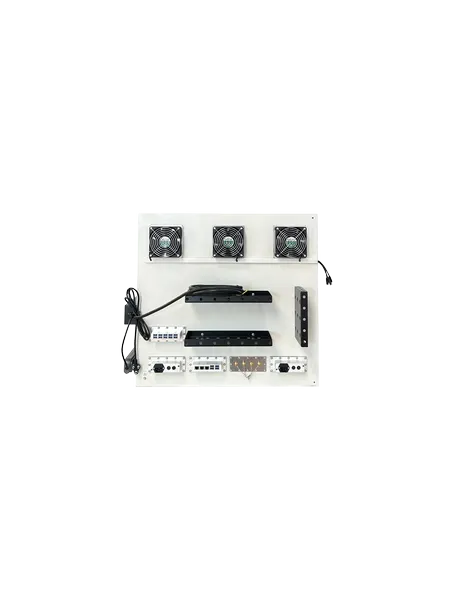

User Defined & Interchangeable I/O Connector Interface options
Rugged Industrial Welded Aluminum / Steel Construction
EMI / RFI filtered Data Ports & Power Line Penetrations
RF Fitted Double-Lip Gasket Sealing System
Powered by AC / DC Power Filter lines with surge suppression
Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

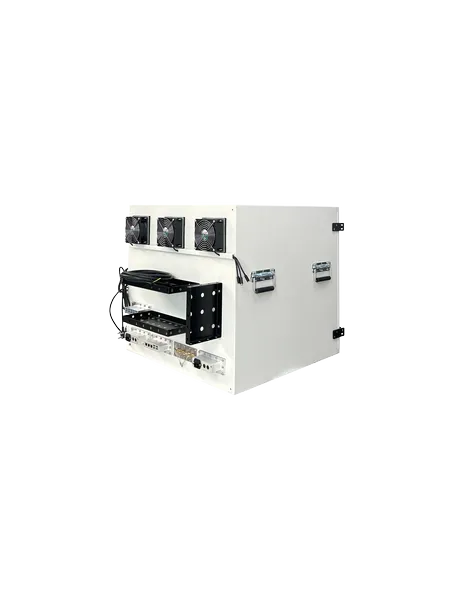

High performance shielded honeycomb Air Vents for optimal cooling
Get in Touch with Engineering
Have a custom specification or specific testing requirement? Contact our RF engineering team for custom dimensions and filter configurations.
