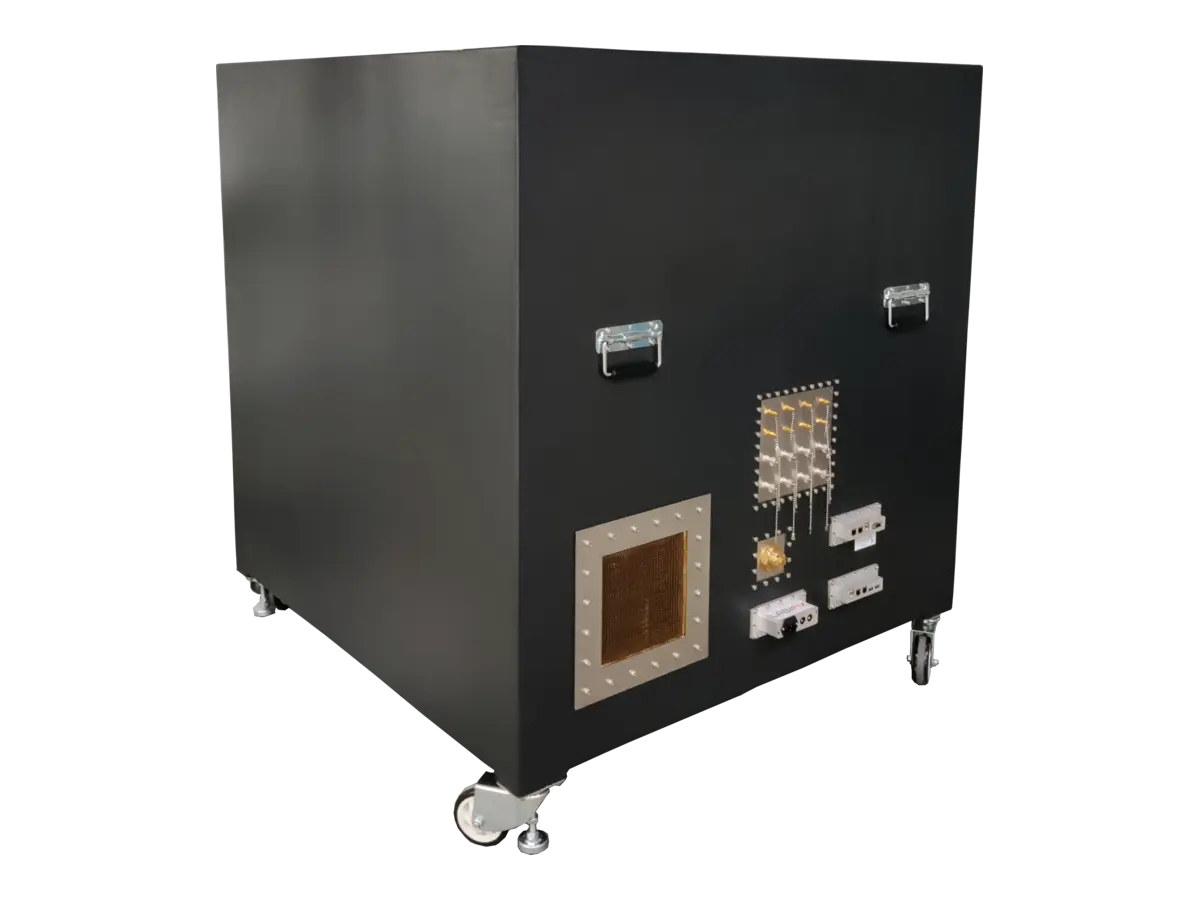

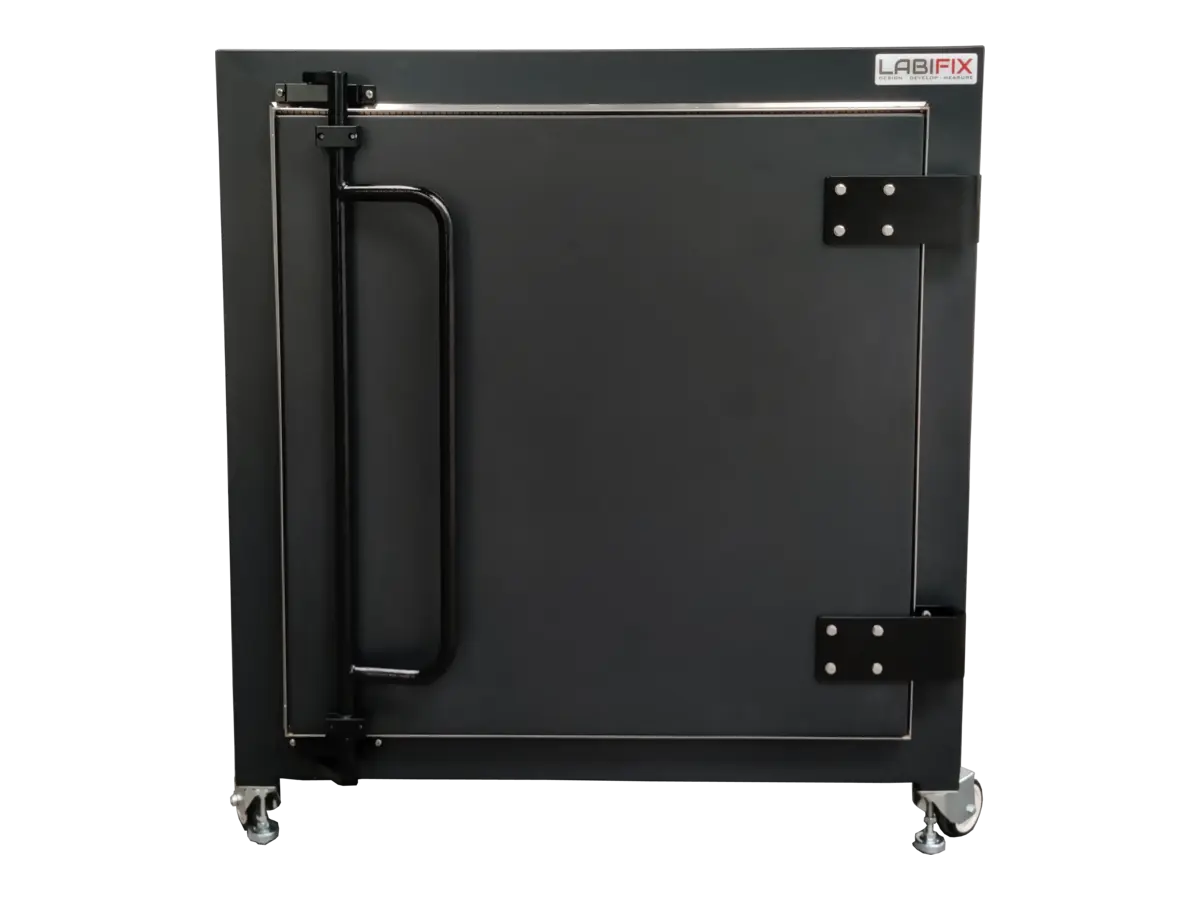

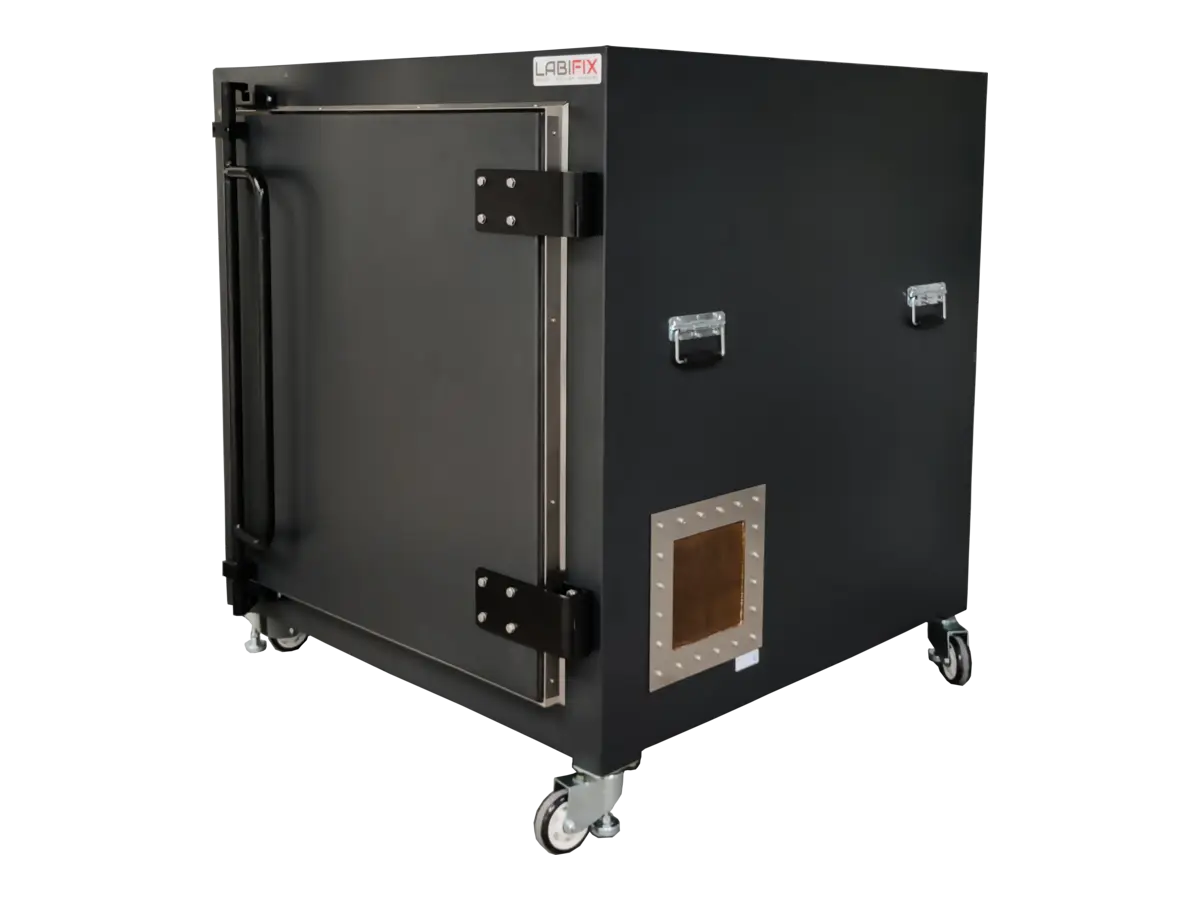

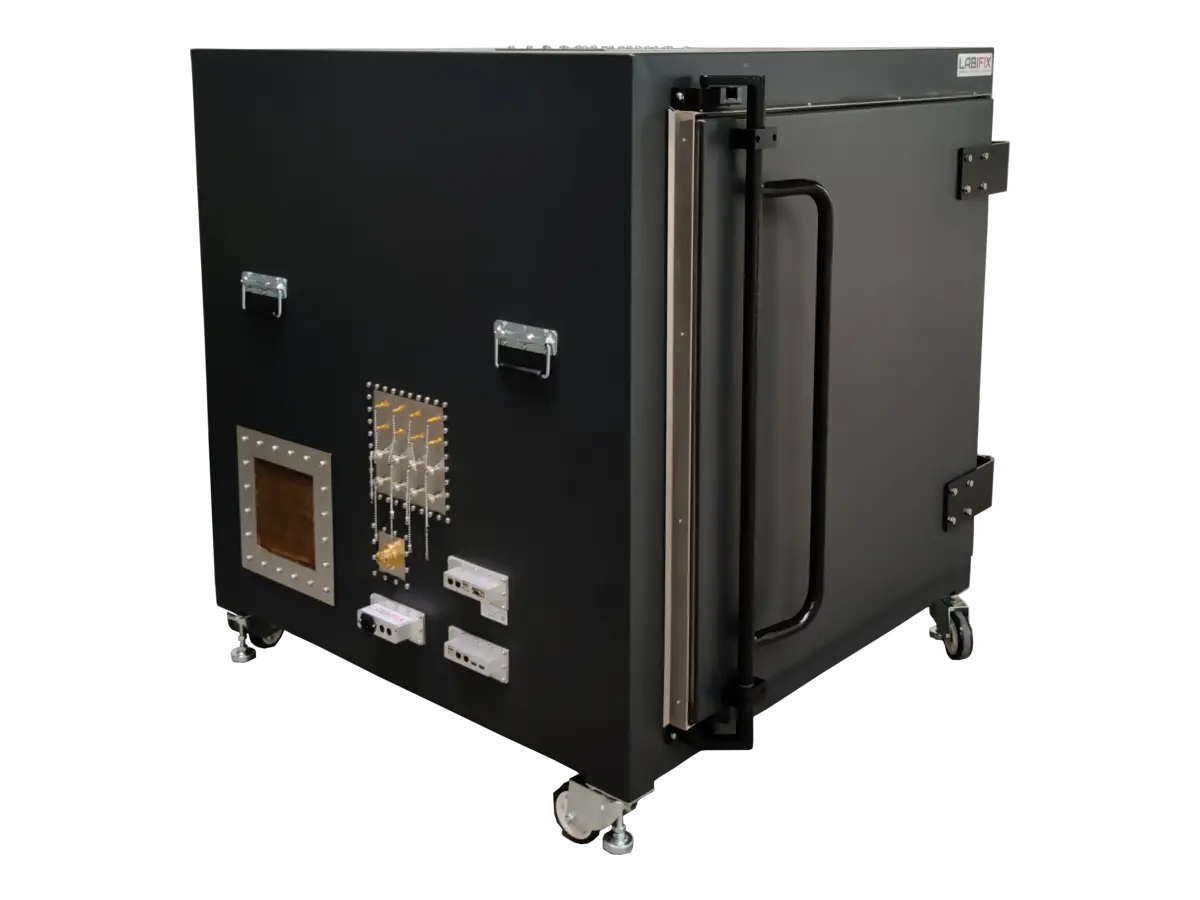

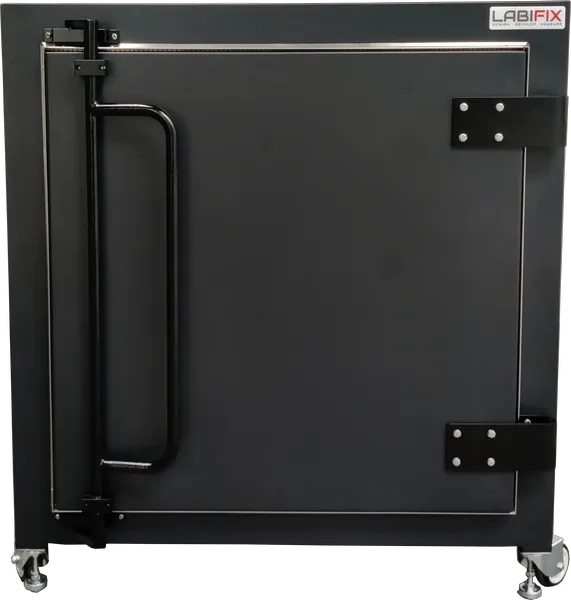

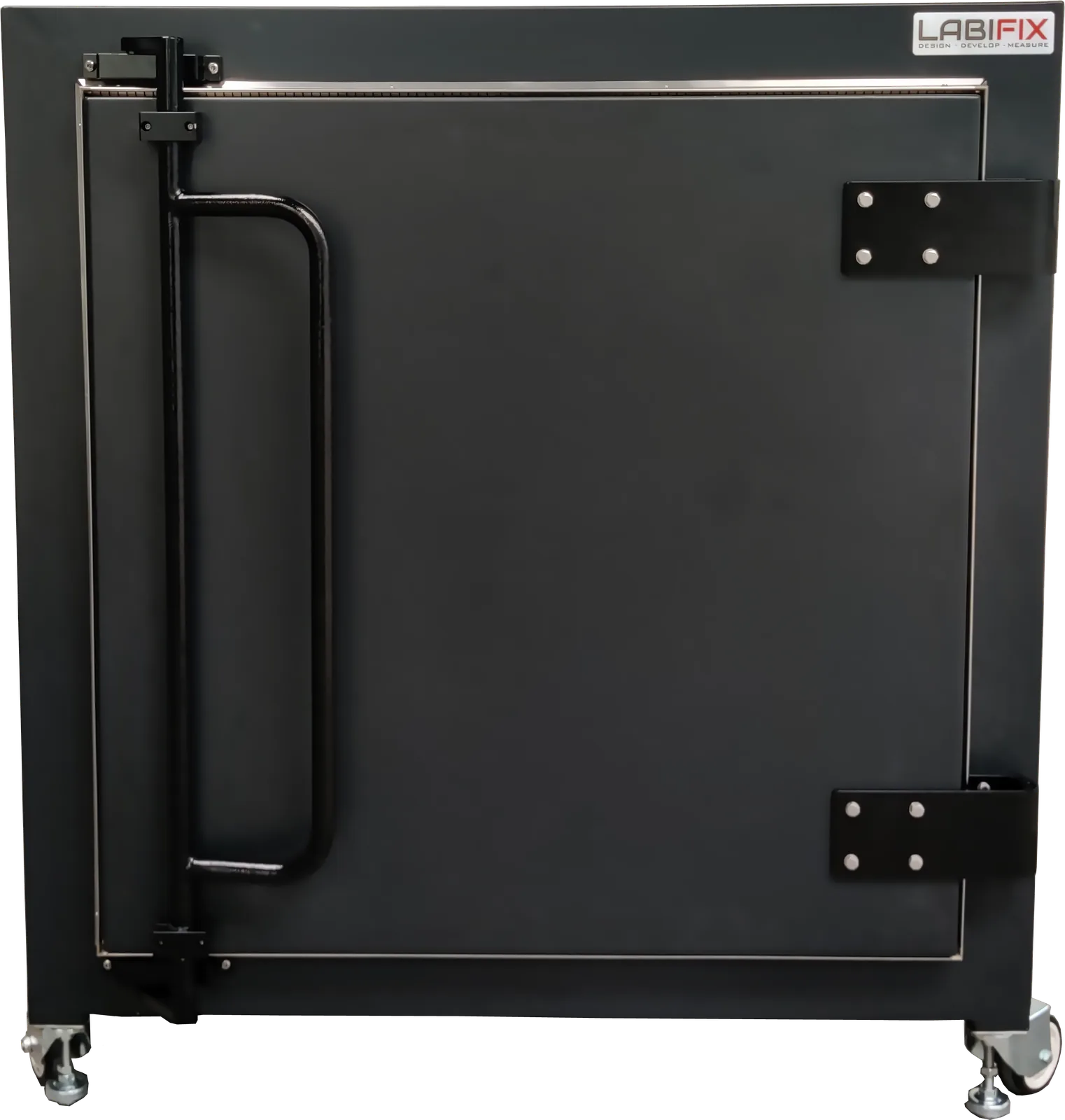

LBX9500 RF Shielded Chamber

RF Shielded Chamber

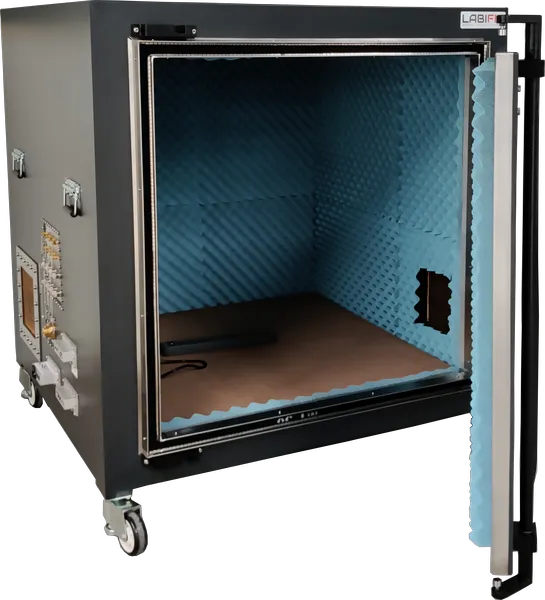

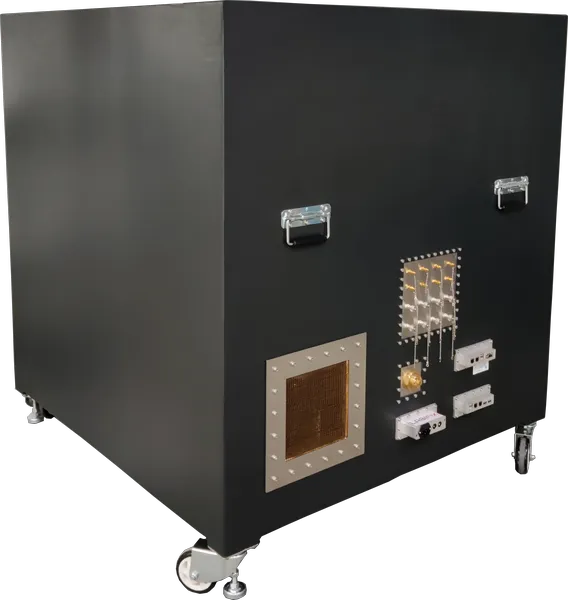

The LBX9500 Modular MIMO OTA validation Shielded Enclosure is a relatively inexpensive solution, but it has all of the features you need. LBX9500 shielded enclosure is the perfect solution for testing and measuring wireless, Radio Frequency (RF) communication devices. Also with heavy duty caster wheels that allow easy movement of the test enclosure, this product is perfect for any Test applications. Additionally, the pyramidal RF absorber helps dampen any unwanted signals. The spaciousness of the unit allows for larger devices to be tested while still providing high shielding effectiveness >100dB. For proper air circulation and to avoid heating of the device under test (DUT) the honeycomb air vent provides the perfect ventilation.

Our Solutions & Benefits
  • Excellent shielding performance
  • Completely Customizable Shielded Enclosure
  • High Performance RF Absorber lining
  • User Defined & Interchangeable I/O Connector options
  • Rugged Welded Construction
  • EMI filters on Data Ports
  • RF Fitted Gasket System
  • Powered by AC / DC Power Filter lines
  • Lightweight Rack Mountable or Tabletop Options
  • High performance shielded Air Vents for adequate air flow
Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

DIMENSION

  • 85dB @ 20 MHz ~ 1 GHz
  • 95dB @ 1 GHz ~ 3 GHz
  • 90dB @ 3 GHz ~ 6 GHz
  • 85dB @ 6 GHz ~ 12 GHz
  • Exterior : 45"H x 45"W x 45"D
  • Interior : 43"H x 43"W x 43"D

Get a Quote

We will get in touch with you shortly

Download Datasheet

Need more help?

We’re happy to assist you. Talk to experts now.

Customer Services

+91 80-79690756

Write to us

business@labifix.com

lbx9500-rf-shielded-chamber-1
lbx9500-rf-shielded-chamber-2
lbx9500-rf-shielded-chamber-3
lbx9500-rf-shielded-chamber-4
lbx9500-rf-shielded-chamber-5
lbx9500-rf-shielded-chamber-6
lbx9500-rf-shielded-chamber-7
lbx9500-rf-shielded-chamber-8
lbx9500-rf-shielded-chamber-9
lbx9500-rf-shielded-chamber-10
lbx9500-rf-shielded-chamber-11
lbx9500-rf-shielded-chamber-12
TECHNOLOGIES SUPPORT
  • Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
  • Wi-Fi 802.11 - all series
  • Wi-Max, GNSS, Bluetooth
  • EMI, RFI test
  • Device Testing, over the air measurements, Pre-compliance
  • R&D, Product verification, Performance reliability, Quality
USER-DEFINED - I/O OPTION
  • Filtered Ethernet - 10M, 100M, 1G
  • Filtered USB 2.0 & 3.0
  • AC / DC Power filter
  • Signal transmission RF connectors​
  • RF Ports: SMA, SMB, BNC, TNC, UHF.
  • Fiber optics: ST Waveguide
  • Data: DB9, DB15, DB25, DB50, RJ11
  • Filtered HDMI, VGA & Audio Ports
  • Air ventilation with AC or DC fan
  • High performance shielded Air Vents
