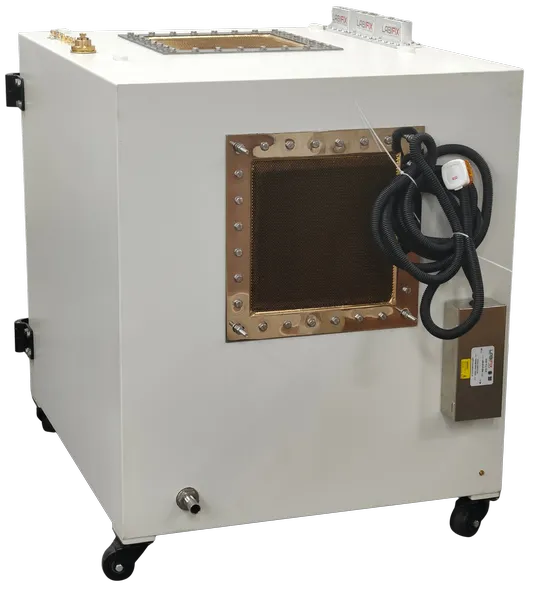

LBX7950 RF Shielded Enclousre for Thermal Chamber LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7950 RF Shield Box

The LBX7950 is the versatile solution for MIMO and OTA validation testing. This modular shielded enclosure accommodates both medium-size wireless devices and larger communications equipment, providing the flexibility your engineering team needs. Multiple RF ports ensure comprehensive connectivity, while data transfer options and AC power line filters maintain signal integrity. The benchtop or trolley mount configuration provides installation flexibility. For RF engineers validating MIMO performance, conducting OTA measurements, or performing general wireless testing, the LBX7950 creates the controlled environment essential for accurate results—all at an accessible price that makes sense for any budget

Dimensions
Exterior (H x W x D)
34.6" (H) x 26.7" (W) x 37.4" (D)
Interior (H x W x D)
34" (H) x 25" (W) x 34" (D)
Shielding Effectiveness
  • > 85 dB @ 100 MHz ~ 1 GHz
  • > 95 dB @ 1 GHz ~ 3 GHz
  • > 90 dB @ 3 GHz ~ 6 GHz
  • > 85 dB @ 6 GHz ~ 12 GHz
Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX7950 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
26.7"(EXTERIOR WIDTH)34.6"(EXTERIORHEIGHT)FRONT VIEW37.4"(EXTERIOR DEPTH)SIDE VIEW26.7"(EXTERIOR WIDTH)37.4"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 26.7" (W) × 34.6" (H) × 37.4" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7950 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
25"(INTERIOR WIDTH)34"(INTERIORHEIGHT)INTERIOR FRONT VIEW34"(INTERIOR DEPTH)INTERIOR SIDE VIEW25"(INTERIOR WIDTH)34"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 25" (W) × 34" (H) × 34" (D)RF Pyramidal Microwave Absorber Lining Boundary
