What frequency ranges does LBX8170 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

Home ProductsLBX8170

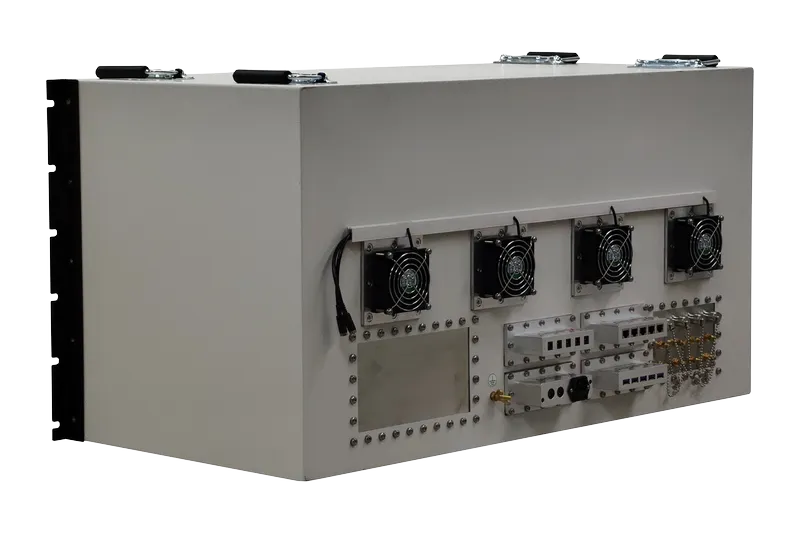

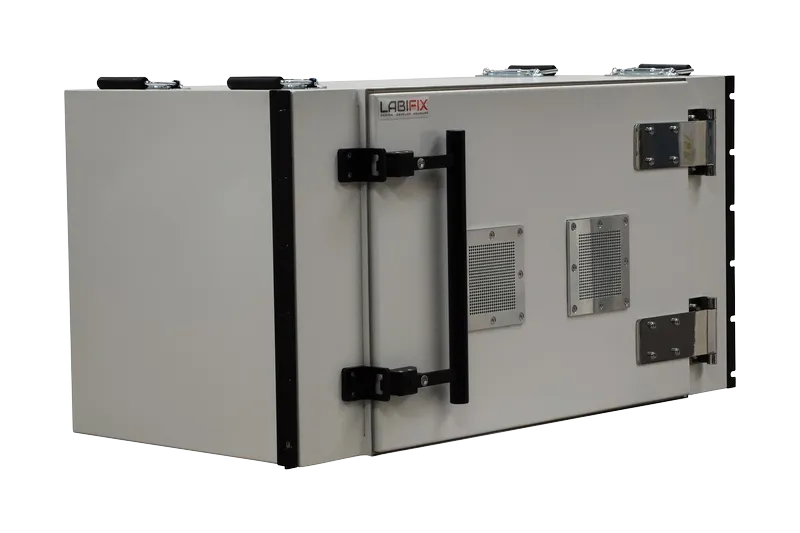

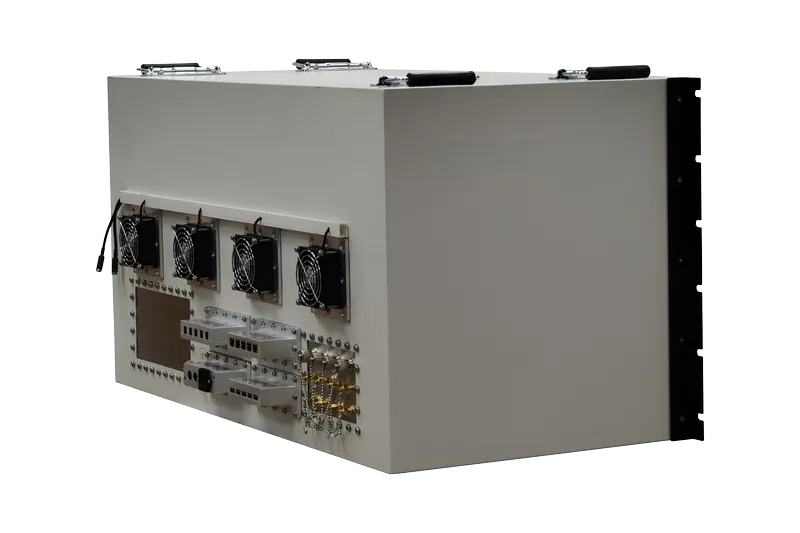

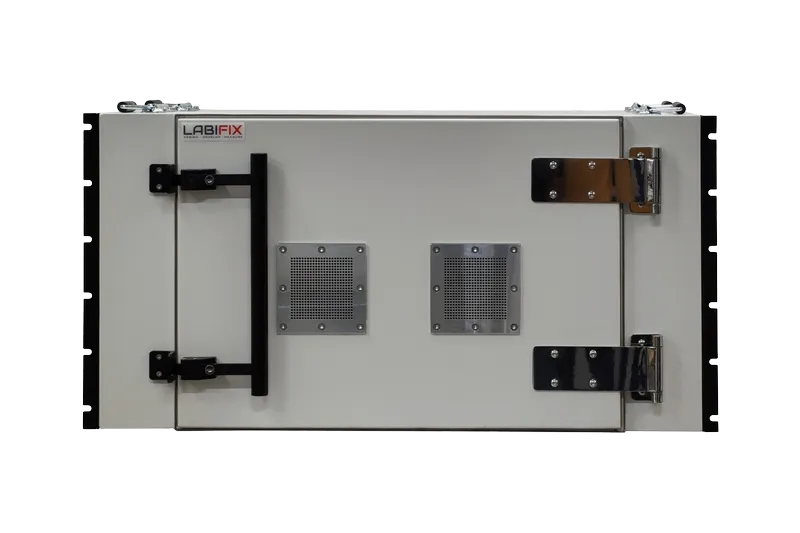

LBX8170 Anechoic Test box LabiFix RF Shield Box - View 1 of 8

Industrial Spec View

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

RF SHIELD BOX

LBX8170 RF Shield Box

Name: LBX8170 Benchtop RF Shield Box | LabiFix
Brand: Labifix Innovations
SKU: LBX8170

LBX8170 RF Shielded Cabinet is engineered for controlled wireless testing where dependable isolation, cooling, and flexible connectivity are required. The rugged steel enclosure helps protect the DUT from external EMI/RFI while containing internal wireless emissions. High-grade RF absorber materials reduce unwanted reflections, and honeycomb ventilation supports airflow during extended testing. Customizable I/O panels can include filtered power, USB, SMA, and other interfaces. It is suitable for 5G, Wi-Fi, Bluetooth, automotive, IoT, R&D, validation, pre-compliance, and production test environments. It helps engineers create controlled, repeatable RF testing environments for accurate measurements, troubleshooting, characterization, production testing, laboratory workflows, and repeatable results.

Dimensions

Exterior (H x W x D)

20" (H) x 37.5" (W) x 20" (D)

Interior (H x W x D)

18" (H) x 35.5" (W) x 18" (D)

Shielding Effectiveness

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Call Consultation

Solutions & Benefits

Excellent shielding performance (> 85–100 dB across broad frequency spectrum)

Completely Customizable Shielded Enclosure tailored to DUT requirements

High Performance Pyramidal RF Microwave Absorber lining

User Defined & Interchangeable I/O Connector Interface options

Rugged Industrial Welded Aluminum / Steel Construction

EMI / RFI filtered Data Ports & Power Line Penetrations

RF Fitted Double-Lip Gasket Sealing System

Powered by AC / DC Power Filter lines with surge suppression

Lightweight Rack Mountable (19-inch) or Tabletop Footprint Options

High performance shielded honeycomb Air Vents for optimal cooling

LBX8170 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 37.5" (W) × 20" (H) × 20" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX8170 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 35.5" (W) × 18" (H) × 18" (D)RF Pyramidal Microwave Absorber Lining Boundary
