What frequency ranges does LBX6240 support?

LabiFix RF shield boxes and test enclosures support frequencies ranging from 100 MHz up to 18 GHz (and up to 40 GHz / 67 GHz for mmWave applications), offering isolation exceeding 85 dB to 100 dB.

Can the I/O interface filter panels be customized?

Yes, all LabiFix enclosures support customizable filtered I/O connections including SMA, N-type, BNC, USB 3.0, Gigabit Ethernet RJ45, fiber optic waveguide pass-throughs, and AC/DC power line filters.

Are LabiFix enclosures compliant with international standards?

Yes, LabiFix RF shielding solutions are engineered in compliance with IEEE-299, MIL-STD-285, CE Marking Conformity, and RoHS 3 standards, manufactured under ISO 9001:2015 certified quality systems.

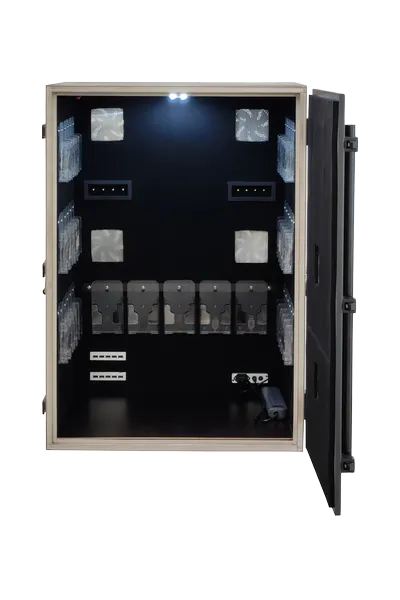

LBX6240 Automated production line calibration LabiFix RF Shield Box - Vista 1 di 8

Vista Specifica Industriale

IEEE-299 Certified

•

MIL-STD-285

•

CE Marked (RED)

BOX DI SCHERMATURA RF

LBX6240 RF Shield Box

Name: LBX6240 Contenitore Schermato RF Standalone | LabiFix
Brand: Labifix Innovations
SKU: LBX6240

Custodia schermata ad alta precisione LabiFix per test RF, EMI ed EMC. LBX6240 - Automated production line calibration.

Dimensioni

Esterno (A x L x P)

39" (H) x 27.5" (W) x 27" (D)

Interno (A x L x P)

37" (H) x 25.5" (W) x 25" (D)

Efficienza di Schermatura

> 85 dB @ 100 MHz ~ 1 GHz
> 95 dB @ 1 GHz ~ 3 GHz
> 90 dB @ 3 GHz ~ 6 GHz
> 85 dB @ 6 GHz ~ 12 GHz

Consulenza Telefonica

Soluzioni e Vantaggi

Eccellenti prestazioni di schermatura (> 85–100 dB su ampio spettro)

Box schermato completamente personalizzabile in base alle specifiche del DUT

Rivestimento interno in piramidi di assorbitore microonde RF ad alte prestazioni

Interfacce connettori I/O intercambiabili e definite dall'utente

Robusta struttura industriale saldata in alluminio / acciaio

Porte dati e linee di alimentazione con filtri EMI / RFI

Sistema di guarnizioni RF a doppio labbro ad alta tenuta

Alimentazione filtrata AC / DC con soppressione dei picchi

Opzioni da banco e rack 19 pollici salvaspazio

Griglie di ventilazione a nido d'ape schermate per raffreddamento ottimale

LBX6240 — Exterior Mechanical Dimensions (3-View Orthographic CAD)

Units:

Exterior Envelope: 27.5" (W) × 39" (H) × 27" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection

LBX6240 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)

Units:

Interior Working Volume: 25.5" (W) × 37" (H) × 25" (D)RF Pyramidal Microwave Absorber Lining Boundary
